19.  Mark-up  for  reassembly  purposes  and  remove  the

, ,

..

. .

...

choke  butterfly  followed  by  the  choke spindle and
linkage.

20.  Prior to removal, mark each throttle butterfly.

21.  Remove

the throttle  linkage, springs and  washers,

noting their sequential positions to aid rcassembly.

22.  If  required  remove  the  primary  and  sccondary

throttle  butterflies  (after  marking-up)  followed  by
the respective spindles.

Inspection and cleaning

23.  When  cleaning  fuel  passages,

DO

NOT use  metal

tools which could cause dimensional changes

in the

drillings

or jets.  Cleaning should  be  effected  using

clean  fuel,  and, where  necessary,  a  moisture  free
air blast.

24.  If  the joint  faces on  the emulsion  block,  top

or carburetter body show any signs of  distortion  or
the edges are burred, these  faces may be reclaimed
by

using  fine  grade  abrasive  cloth  and  a

surface  plate.  Examine  the  faces  for  deep
which  would  lead  to  leakage  taking  place
assembled.

25.  New

and  seals should be  used  throughout

the carburetter rebuild.  A  complete  set  of  gaskets

is available

for replacement purposes.

26.  Examine  the  throttle  spindle  bushes  for  wcar,

if

oval

or badly worn, replace the carburetter body.

27.

the idle mixture volume screw for wear or

damage, replace as required.

35.

Fit  the  pump  jet  with

a  new

'0'

ring  into  the

carburetter body.

36.  Reassemble the primary jet

to

the

jet holder and

fit

to the carburetter body.

37.

Fit

the

secondary  main  and  air  correction

to

the  secondary  emulsion  tube,  locate  and  secure
assembly to the carburetter body.

38.  Assemble the secondary jet to the jet holder and fit

assembly to the carburetter body.

39.  Reassemble  the  primary  main  and  air  correction

jets  to  t h e  emulsion  tube;  and  fit  assembly  to
carburetter body.

40.  Fit the fuel filter and filter plug to the top cover.
41.

Fit the needle valve seating and washer.

42.  Place a new gasket into position.
43.

Fit the needle valve into t h e  needle valve seating.

44.  Position the float tag

in the needle  valve wire loop.

Align  the  float  carrier  with  the pin  holes  and  float

carrier flange

lugs.

the float carrier

with

the

hinge pin.

45.  With  the  needle  valve  on  its  seating  and

the

float

carrier  tag  resting  against  the

valve

(ensuring  that  neither  the  valve  plunger  n o r   the

valve  ball  are  depressed)

the  distance

between  the casing and

front

of the float.

46.

The  dimension  required  is  7

in).  Any

adjustment  must  be  made  by  bending

float

carrier  tag.  Adjustments  must

be  made  by

bending

float carrier arms.

continued

Reassembly

28.  If  previously

insert  the  primary  and

sccondary  throttle  spindles  into  their  respective

positions.

29.

Locate  the  primary  and  secondary  throttle

butterflies  on  to  their  respective  spindles  and
loosely retain with t h e  special screws. Operate
buttcrfly

to

centralise

it

on each spindle and secure

the screws and lock them  by  peening.

30.  Refit

the

throttle  spindle  assembly  to

carburetter  ensuring  the  pin  on  the  free  lever
locates

in  the  slot

on  t h e   primary  shaft  plate,

ensuring  that  the  first  spring  is  located  on  the

spacer,

whilst  the  second  spring  is  engaged  on  the

free lever.

31.

Fit

the  accelerator

pump

assembly  comprising

spring, gasket, diaphragm, spring and pump cover.

32.  Refit

t h e

economy  pump  assembly  comprising

diaphragm, spring and pump cover.

33.  Replace the fuel cut-off valve and solenoid.
34.

Fit

the

idle mixture control screw and carefully turn

until

fully  home, then  turn  the screw  1  to 2 turns

in the reverse direction  to serve as an initial setting.

...

P

ETROL

F

UEL S

YSTEM

47.

Fit  and  secure  the  top  cover  assembly  evenly,  to

48.  Fit the choke spindle into its housing.
49.  Locate  the  choke  buttcrfly

on

the  spindle  and

loosely retain  with  the two special screws. Operate
the  butterfly  to  centralise

it

on  the  spindle,  then

secure the screws and lock them  by  preening.

50.  Refit  t h e   pull-down  capsule,  cable  retaining

bracket, spacer and fixings.

51.  Fit  the pull-down  lever engaging the pivot with  the

pull-down  capsule arm. Secure lever assembly with
washer and circlip.

52.  Fit the float idle cam ensuring the spring is engaged

correctly to the cam.

53.  Refit the choke link  to t h e  choke spindle, securing

with  a  new  split  pin.  Engage  the  opposite  end  of
the choke link to the idle cam.

the carburetter body.

7.  Push  the  mixture control fully  in  and  confirm  that

flap

‘B’ is open, that is in the vertical position.

FOUR

CYLINDER ENGINE CARBURETTER

TUNE AND ADJUST

1.  Before  attempting  any  carburetter  adjustments

ensure

that

cylinder

compressions,

valve

clearances, spark plug gaps and ignition  timing  are
satisfactory.
Check also that there is no air leakage into the inlet
system  through  the  inlet  manifold  and  carburetter

gaskets and brake

hose connections.

Fast idle adjustment

Throttle cable

8.  Pull  the  mixture  control  out  until  the  dimension

2.

3.

4.

5 .

Check  that  the  throttle  pedal,  cable  and  linkage

operate smoothly.

Remove the elbow from the top of the carburetter.

If

necessary  adjust  the  pedal  stop  bolt

so

no

strain is exerted  on the throttle cable. Depress
throttle  pedal  and  check  that  both  the  butterflies
are  fully  open, then  adjust  the  pedal  stop  bolt  so
that it touches t h e  floor, without strain on

t h e

cable

between  the  crank  in  the  vertical  rod

‘D’

and  the

underside  of  the  carburetter  top  cover,  without

compressing  the  spring

is

(0.5 in).

Adjust

fast  idle  screw

‘E’ so that  it just  makes

contact with

fast idle cam.

and tighten the locknut
Ensure  that  when  the  throttle  pedal  is  released
both butterflies are closed completely.

Mixture control

(cold start)

6.

Pull  the  mixture control  cable fully  out  and

that  lever ‘A’ is  against  its stop and the choke flap
‘B’  is  fully  closed.  If  necessary  adjust  the  inner
cable clamp

‘C’ to achieve this condition.

P

ETROL

FU

EL SYSTEM

Idle adjustment

NOTE:  The  idle  mixture  adjustment  screw  provides
mixture  variation  at  idle  speed  only.  Above  idle  speed

the mixture is determined by fixed size jets.

9.  Start the engine and run until the normal  operating

temperature

is attained.

10.  Turn  the  throttle  butterfly  adjustment  screw  to

obtain an idle speed of

600

to

700

11.  Turn  the  idle  mixture  adjustment  screw  clockwise

or anti-clockwise by one-quarter turn increments to
obtain  the  highest  engine

When  this  has

been achieved, re-adjust, if necessary,

the butterfly

adjustment screw to maintain  the

600 to 700

idle speed.

12.

the air intake elbow to the carburetter top.

...

.....

..

ENGINE

ZENITH

CARBURETTER

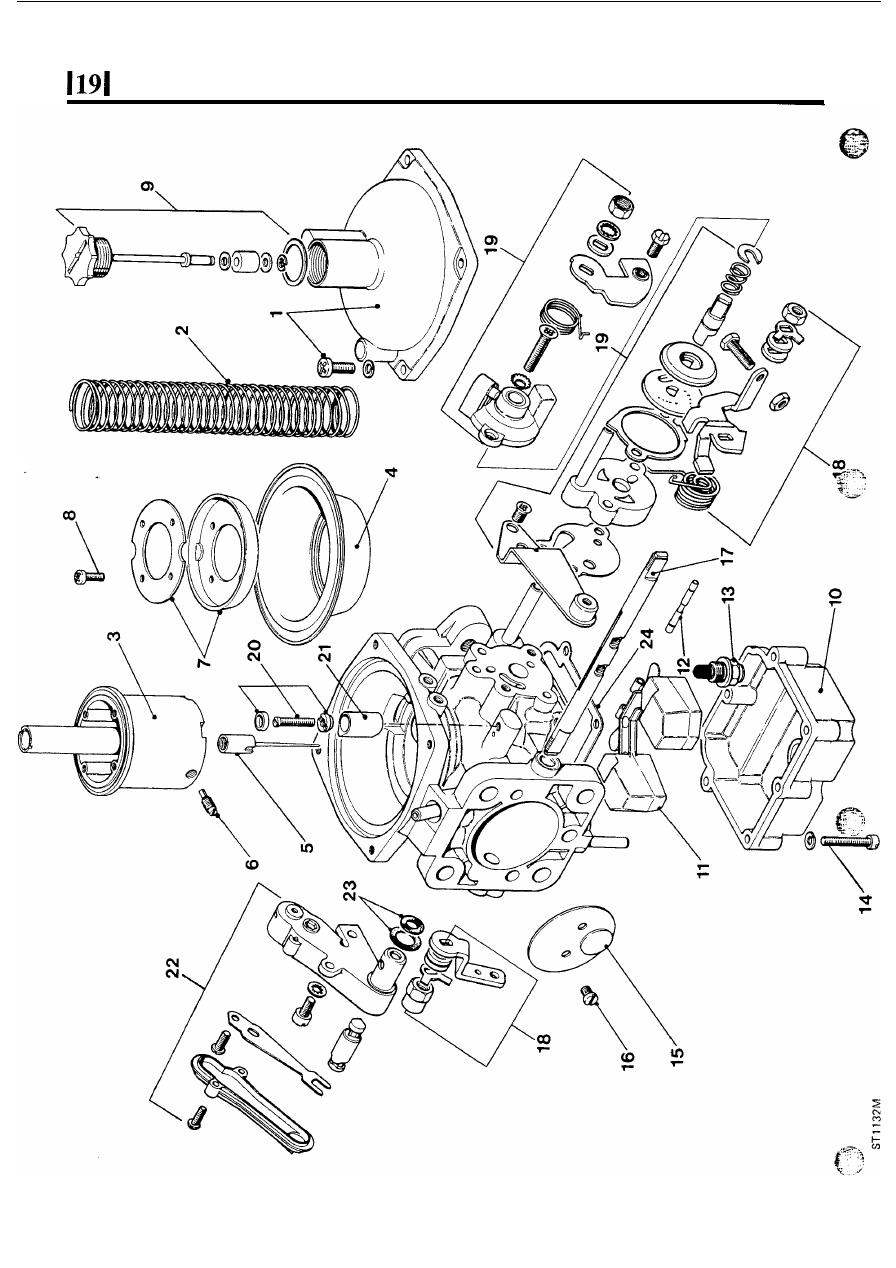

OVERHAUL

DISMANTLE

Remove the piston assembly

1.  Remove the carburetters from the engine.

2.  Release the four screws and withdraw the top cover

3 .   Withdraw  the  air  valve,  shaft  and  diaphragm

4.  Remove the  metering needle retained  by  a  locking

5 .

Release

four  screws  and  separate  the

and spring.

assembly

screw.

diaphragm

from the air valve.

Remove the float chamber

6.  Release  the  six  screws  and  remove  the  float

7.  Release  the  float  assembly  and  spindle  from  the

Unscrew  the  needle  valve  and  washer  from

chamber and joint washer.

two clips.

carburetter body.

Dismantle carburetter body

9.  Make  location  marks,  as  illustrated,  to  assist

correct asscmbly, on  the

buttcrfly,

and carburetter body.
Right-hand carburetter

the two screws and

remove the butterfly and withdraw

Left-hand  carburetter

Remove

iever

assembly.  Release  the  two  screws,  remove  the
butterfly and withdraw the spindle.

12.  Left-hand  carburetter

Release  the  two  retaining

screws  and  shake-proof  washers  and  remove  the
cold start assembly and joint washers.

continued

PETROL F

U

EL SY

S

TEM
