Defender 90 / 110 / 130. Manual - part 16





MAINTENANCE

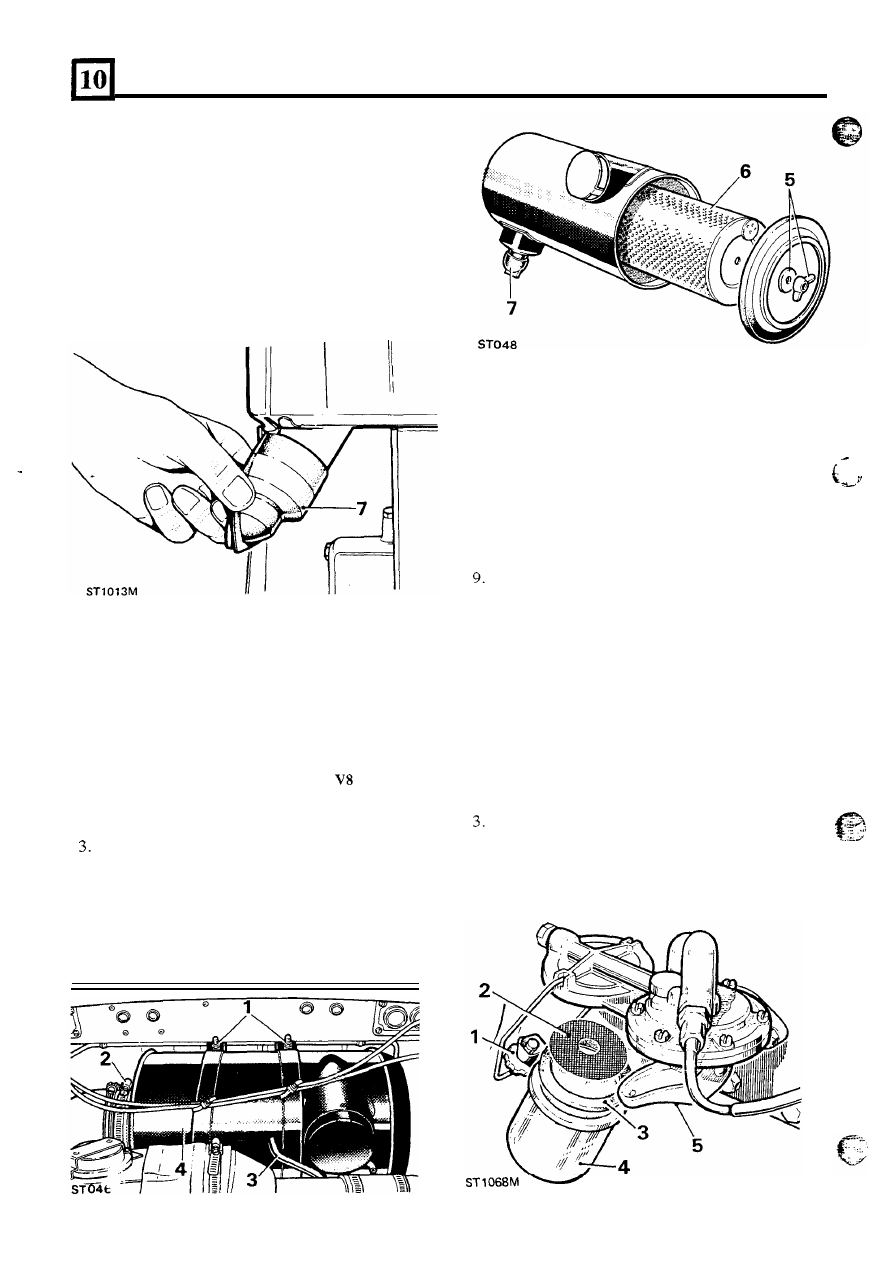

Check air cleaner dump valve

The dump valve provides an automatic drain for the air

cleaner  and  is  fitted  in  the  base  of  the  air  cleaner
support bracket.

7.  Squeeze  open  the  dump valve  and  check  that  the

interior  is  clean.

Also

check  that  the  rubber  is

flexible and in a good condition.

8.

If

necessary,  remove  the dump valve  to  clean  the

interior.  Fit

a new  valve if  the original  is in a poor

condition.

Fit air cleaner

9.  Fir air cleaner canister and secure with the clips.

10.  Connect the air cleaner hose.

RENEW

AIR

CLEANER

ELEMENT

engine

1. Unscrew the two air cleaner strap retaining nuts.

2.  Disconnect the air cleaner hose.

Remove the engine breather hose.

4.

Withdraw air cleaner canister.

5.

Unscrew element wing nut and washer  and remove

filter seal.

6.  Remove  and  discard  the  element.

DO  NOT

attempt to clean  the element, fit a new  one during
reassembly and secure with the wing nut.

Check air cleaner dump valve

7.

Squeeze open  the  dump valve  and  check  that  the

interior  is  clean.

Also  check  that  the  rubber  is

flexible and in a good condition.

8.

If  necessary,  remove  the  dump valve  to clean  the

interior.

Fit  a new valve if  the original  is  in  a poor

condition.

Fit air cleaner

Fit a new element and reassemble the air cleaner.

10.  Fit the air cleaner canister.
11. Fit the breather hose.
12.  Fit the air cleaner hose.
13.  Secure with the retaining straps and nuts.

CLEAN  FUEL  LIFT  PUMP

SEDIMENT  BOWL

Petrol engine

early vehicles

1.  Remove  the  bowl  by  slackening the  thumb  screw

2.  Remove and clean the filter gauze in clean petrol.

Ensure that the sealing washer is in good condition.

4.

Replace gauze and refit the bowl.

5.  Prime the pump by operating the hand lever.

and swinging the retainer

to

one side.

12

CLEAN ELECTRIC

PUMP FILTER

and

later 2.25 Petrol engine vehicles

The pump

is

located  mid-way  along the right hand side

of  the chassis.

1.  Release the three  bolts  and remove  the  protective

cover

except ‘90’ models.

ST

2.  From beneath  the vehicle disconnect the  fuel inlet

pipe

from the pump and blank  the end of  the pipe

by suitable means t o  prevent fuel draining from the
tank.

3.  Release the end cover from the bayonet fixing.

4.  Withdraw  the  filter  and  clean  by  using  a

compressed air

jet from the inside of the filter.

5 .

Remove  the  magnet  (where  fitted)  from  the  end
cover and clean.  Replace the magnet in  the centre
of the end cover.

6 .

Reassemble  the  fuel  pump and  refit  the  fuel inlet

pipe.

7.  Use a new gasket for the end cover if necessary.

Fit the protective cover.

RENEW

FUEL FILTER  ELEMENT

Petrol  engines

4-cylinder and

The  element  provides  a  filter  between  the  pump  and
carburetter and

is

located adjacent to fuel pump on the

right hand side of  the chassis.

1.  Release  the three bolts  and remove  the protective

2.  Unscrew the centre bolt.
3 .   Withdraw the filter bowl.

4.  Remove  the  small  sealing  ring  and  remove  the

element.

5.

Withdraw the large sealing ring from the underside

of the filter body.

6.  Discard  the  old  element  and  replace  with  a  new

unit.

7.  Ensure  that  the centre and  top sealing rings  are in

good condition and replace as necessary.

8.  Fit new element, small hole downwards.
9.  Refit sealing rings (small and large).

cover. See ‘Clean electric fuel pump filter’.

10.  Replace filter bowl and tighten the centre bolt.

13

RENEW

FILTER ELEMENT

Diesel engines

Drain off Water

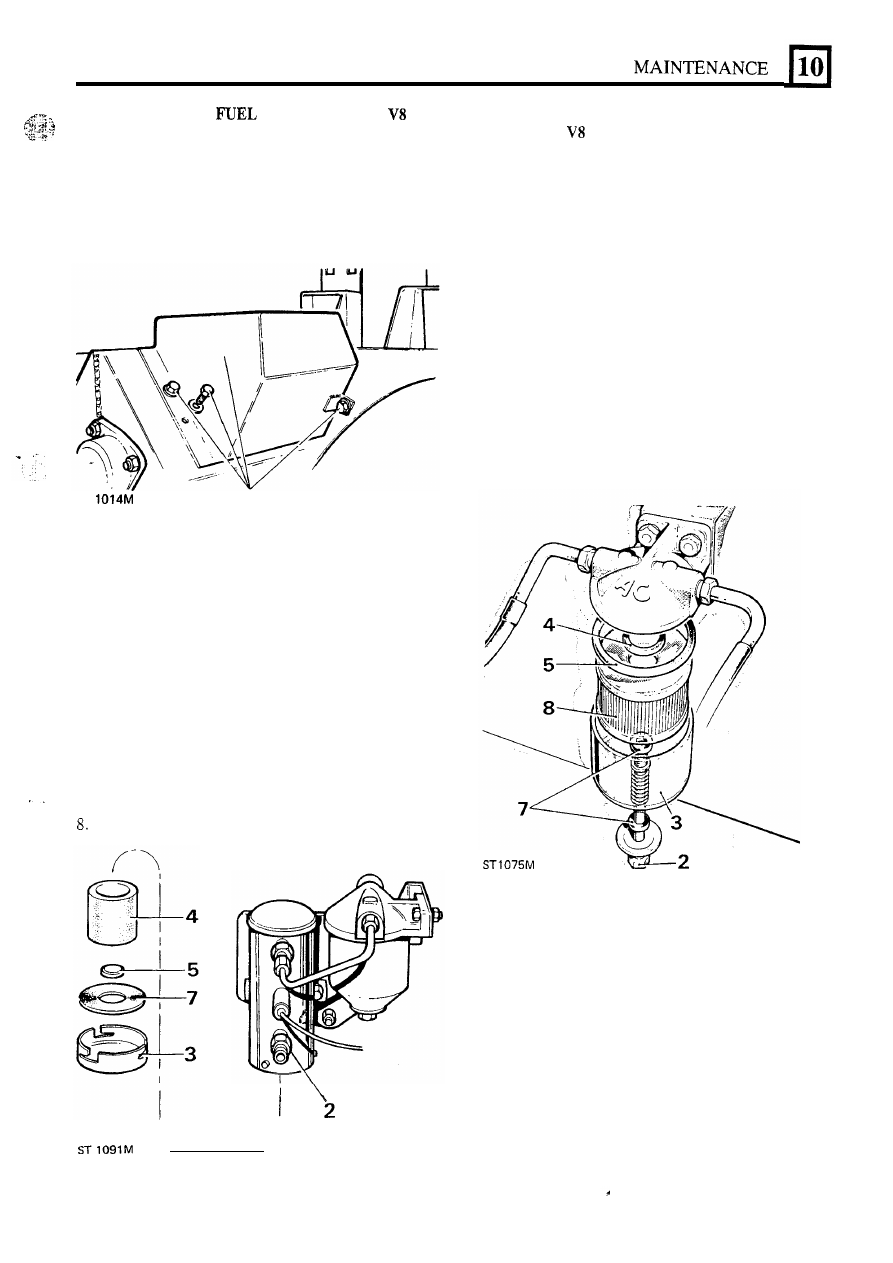

FUEL SEDIMENTER

Diesel engines (where fitted)

The sedimenter  increases  the  working  life

of  the  fuel

filter  by  removing  the  larger  droplets  of  water  and
larger particles of foreign matter from the fuel.

1. Slacken off drain plug to allow water to run out.

2.  When  pure  diesel  fuel  is  emitted,  tighten  drain

Plug-

MAINTENANCE

Renew filter

3.  Support element holder.
4.  Unscrew

special  bolt  on  top  of  the  filter,  the

element holder can now be removed.

5.  Remove and discard the used element.
6 .  Wash the element holder in petrol or fuel oil.

7.

If  necessary  renew  both  the  large  rubber  washer

and the  small  rubber washer  in  the  filter top, also
renew  the  large  rubber  washer  in  the  element
holder.

8.  Push  the  new

onto  the  filter  top  spigot

with the holes in the element to the top.

9.  Fit  the  element  holder  to  the  bottom  of  the

element, and secure with the special bolt.

10.  Prime the system and check for fuel leaks.

14

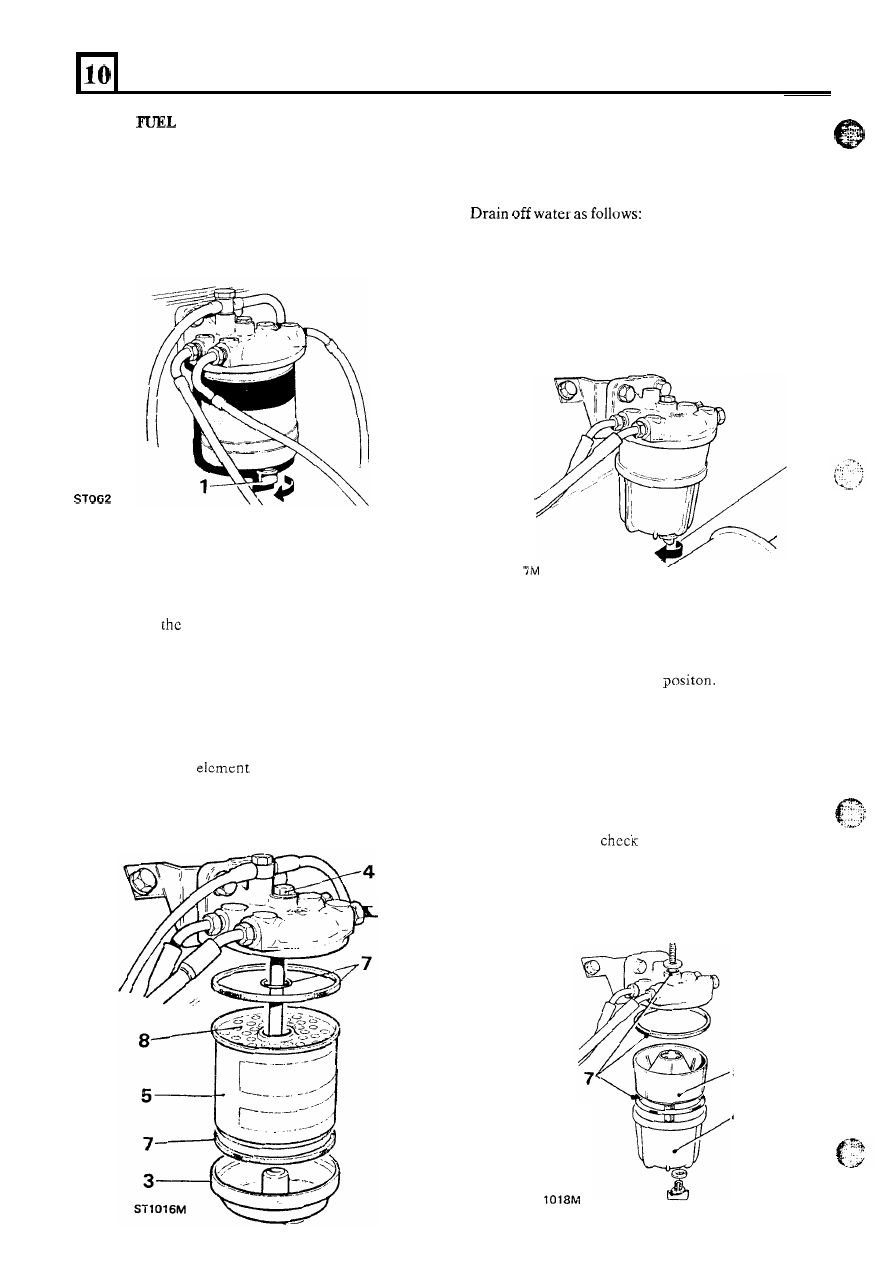

Drain off Water

1.  Slacken off drain plug to allow water to run out.

2.  When  pure  diesel  fuel  is  emitted,  tighten  drain

plug. Dismantle and clean as detailed below.

ST

101

Clean element

3.

Disconnect fuel  inlet  pipe  at  sedimenter  and  raise
pipe  above  level  of  fuel  tank  to  prevent  draining

from tank. Support in this

4.  Support sedimenter bowl  and unscrew  bolt  on  top

of unit and remove bowl.

5.

Remove the sedimenter element.

6.

Clean all parts in kerosene.

7.

Fit new seals and reverse removal procedure.

8.  Slacken  off  the  drain  plug,  when  pure  diesel  fuel

9.  If necessary, prime the system.

runs out tighten plug.

10.

Start engine and

for leaks from sedimenter.

ST

w

4



MAINTENANCE

RENEW  DUCELLIER  DISTRIBUTOR

POINTS

4-cylinder engines

Renew Points

Release the spring clips and remove the distributor

cap.

2.  Pull off the rotor arm.

3.

Remove the dust shield.

4.  Remove the retaining  screw  and remove  the fixed

5 .

Slide the spring clip rearwards.

6.  Disconnect the suppressor lead from the connector

7.  Disconnect the lead from ignition coil.
8.  Remove  insulation  washer  from  the  moving

contact point.

9.  Lift  off  the  moving  contact  point  complete  with

leads  and  connector  block  from  the  distributor
body.

contact point.

block.

Fit the new moving point over post.

Locate the leaf spring in

plastic guide.

12.  Fit the insulation washer.
13.  Secure the assembly with the spring clip.
14.  Fit the connector block to the distributor body.

15.

Connect ignition coil lead.

16.  Fit suppressor lead to connector block.
17.  Fit  the fixed contact  point  and loosely  retain  with

the screw.

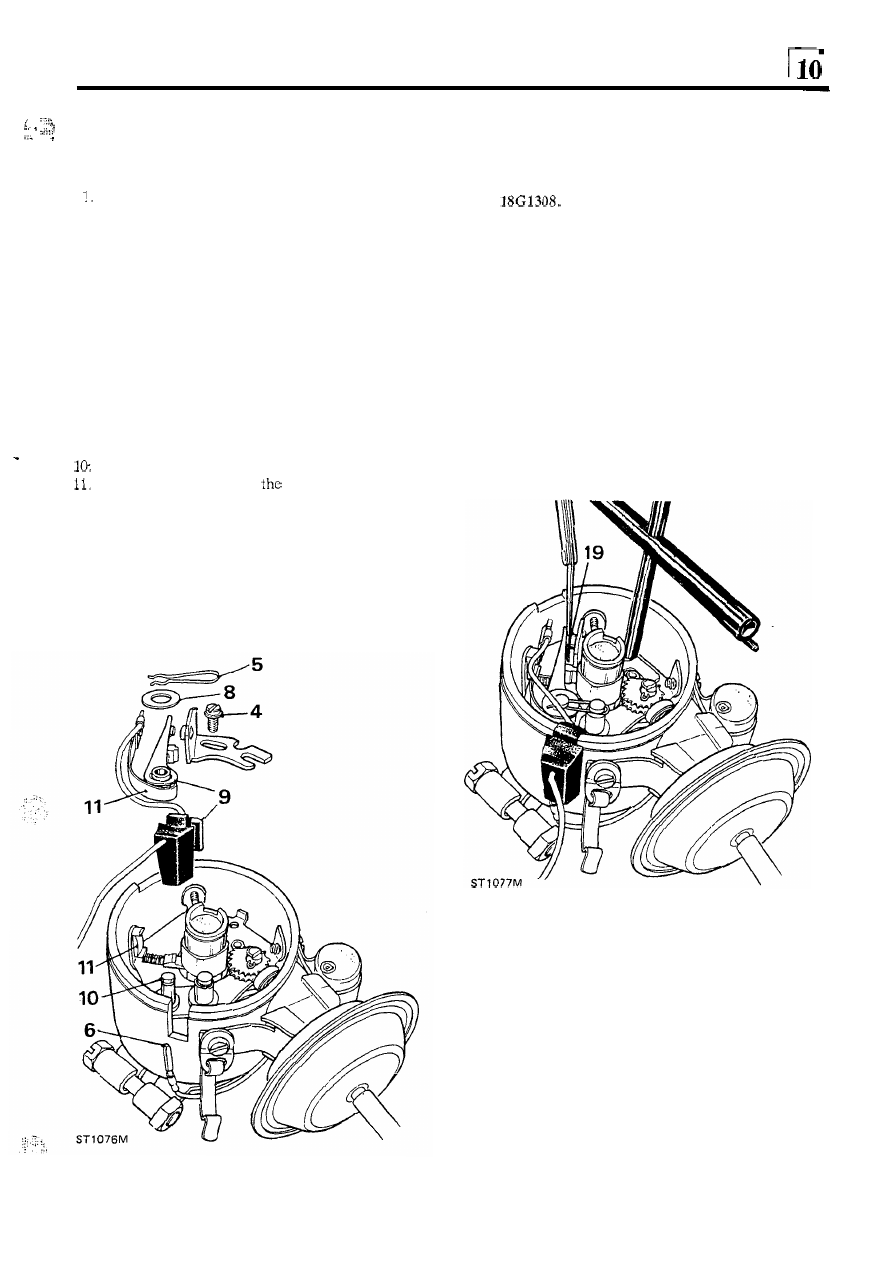

Adjust points

NOTE:

The  following  two  instructions  describe  the

adjustment  of  the  contact  points.  The  accompanying
illustration  shows  it  being  done with  the  aid  of  special
tool

Whilst  the  points  can  be  adjusted  to  the

datum  setting  only  (see  data)  without  the  tool  full
distributor adjustment,  i.e.  dwell angle,  dwell variation
and vacuum advance can only be achieved by  using this
tool in conjunction with engine diagnostic equipment.  It

is essential that the above adjustments are carried out in
order to maintain  correct emission levels and maximum

engine efficiency.

18.

Rotate  the  engine  until  a  cam  of  the  rotor  fully

opens the points.

19.  Using  a  feeler,  adjust  the  position  of  the  fixed

contact  point  to the  datum  setting  and  tighten  the
retaining screw.

20.  Check  and  adjust  the  dwell  angle, dwell  variation

and vacuum advance.

15
