ELECTRICAL

25

DESCRIPTION AND OPERATION

Electric window lift is a new feature for 02MY. The electric windows are only available on the front driver and
passenger doors. Rear passenger doors retain the manual window lift regulator mechanism.

The window lift system comprises a window motor in each front door, two window lift switches located in the fascia
switch panel and a relay, located adjacent to the passenger compartment fusebox. The windows are only
operative when the ignition switch is in position II.

Each window lift motor is located in the door, behind the trim casing. The motor and regulator form a handed
assembly and are not available separately as serviceable items.

The window lift relay receives a permanent battery feed via fusible links 1 and 3 in the under seat fuse box. The
relay coil has one side connected to earth with the other side receiving a feed from the ignition switch position II.
When the ignition is in position II, the relay is energised and battery voltage is supplied to each of the window lift
switches. On vehicles with heated seats, the relay is shared with the heated seat circuit.

Each switch has two wires to its applicable motor. When the switch is operated in either the up or down position,
one wire is supplied with a feed and the other is connected to earth as applicable for the selection made.

Each motor has thermal cut-out protection. If the window reaches the top or bottom limit of its travel or an object
obstructs the window, the thermal cut-out will sense the increased load on the motor and cut the power supply to
the motor brush contacts.

The cut-out time is between 3.5 to 5.0 seconds, with a time to restart of between 1 to 10 seconds. These figures
are based on an ambient temperature of 20

°

C (68

°

F) and a voltage of 13.5V.

86

ELECTRICAL

26

DESCRIPTION AND OPERATION

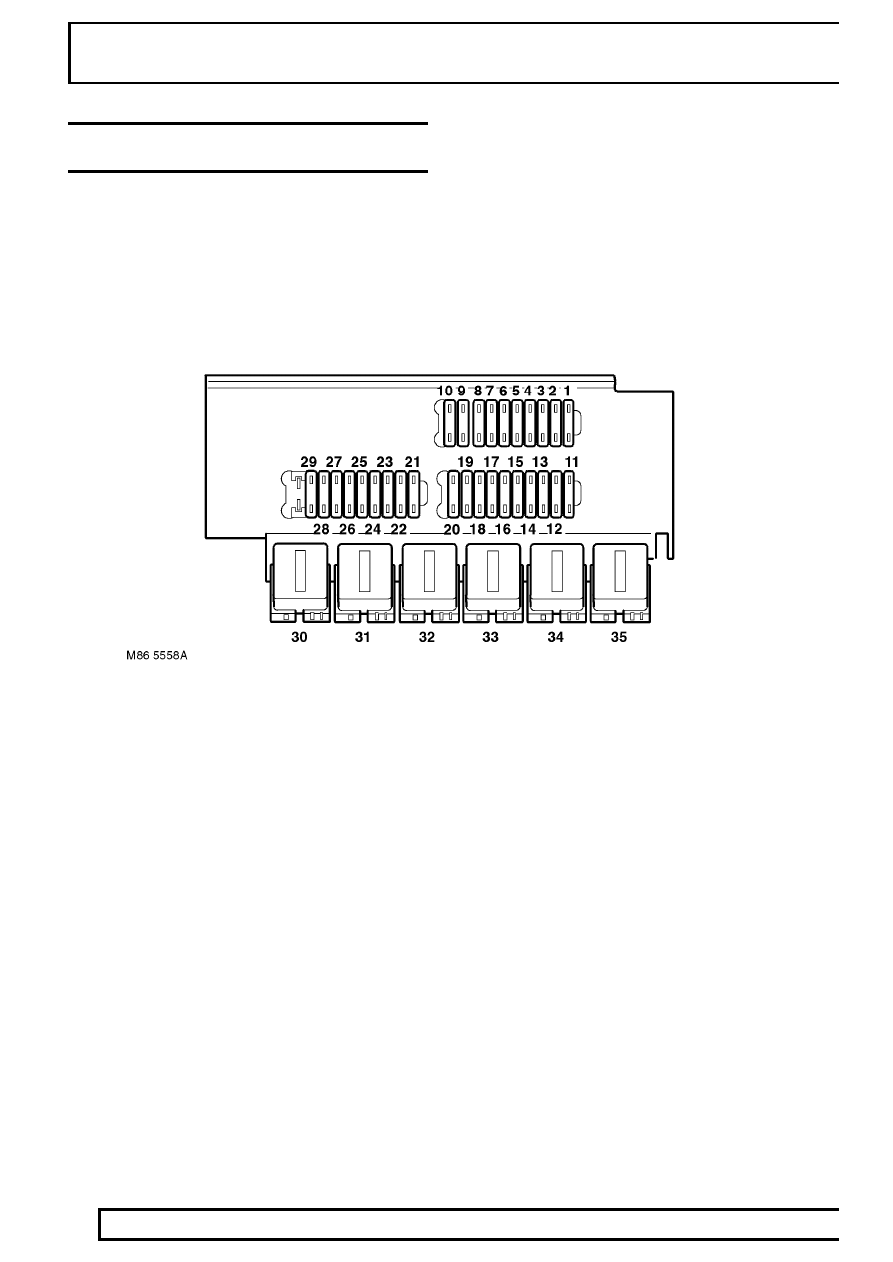

PASSENGER COMPARTMENT FUSE BOX
FROM 02MY

The increase in electrical systems on Defender 02MY vehicles has necessitated an increase in the number of
fuses required.

The passenger compartment fuse box now contains three rows of fuses instead of the previous two rows and
relays to control the CDL system, heated front screen, headlamps, anti-theft alarm ECU and seat heaters and
window lift system.

1. Fuse 8 - Anti-theft alarm ECU/BBUS (10A)
2. Fuse 9 - Front wiper motor and washer pump

(15A)

3. Fuse 10 - Rear wiper relay (10A)
4. Fuse 11 - ABS ECU (10A)
5. Fuse 12 - Engine Control Module (10A)
6. Fuse 13 - Brake pedal switch (10A)
7. Fuse 14 - Reverse lamp switch/Glowplugs (10A)
8. Fuse 15 - Miscellaneous relay control. See

Electrical Library (5A)

9. Fuse 16 - Cigar lighter/Heater blower (20A)

10. Fuse 17 - Radio (5A)
11. Fuse 18 - LH side lamps/trailer pick up (10A)
12. Fuse 19 - RH side lamps/trailer pick up (10A)
13. Fuse 20 - Headlamp levelling/Illumination (10A)
14. Fuse 21 - Direction indicators (10A)
15. Fuse 22 - RH headlamp dip beam (10A)
16. Fuse 23 - LH headlamp dip beam (10A)
17. Fuse 24 - RH headlamp main beam (10A)
18. Fuse 25 - LH headlamp main beam (10A)

19. Fuse 26 - Rear fog lamp ECU (10A)
20. Fuse 27 - Alarm relay (10A)
21. Fuse 28 - Air conditioning blower relay (30A)
22. Fuse 29 - Air conditioning compressor

relay/cooling fan relay (20A)

23. Fuse 30 - Interior lamps/radio/alarm

LED/clock/diagnostic socket/tachometer (South
African vehicles only) (5A)

24. Fuse 31 - Hazard warning lamps (15A)
25. Fuse 32 - Heated rear window (20A)
26. Fuse 33 - Seat heat relay (20A)
27. Fuse 34 - RH window lift switch (20A)
28. Fuse 35 - LH window lift switch (20A)
29. Fuse 36 - Heated front screen (30A)
30. Relay - Heated Front Screen
31. Relay - Starter motor
32. Relay - Heated Rear Window
33. Relay - Headlamps
34. Relay - Anti-theft alarm
35. Relay - Seat heat/window lift

ELECTRICAL

27

DESCRIPTION AND OPERATION

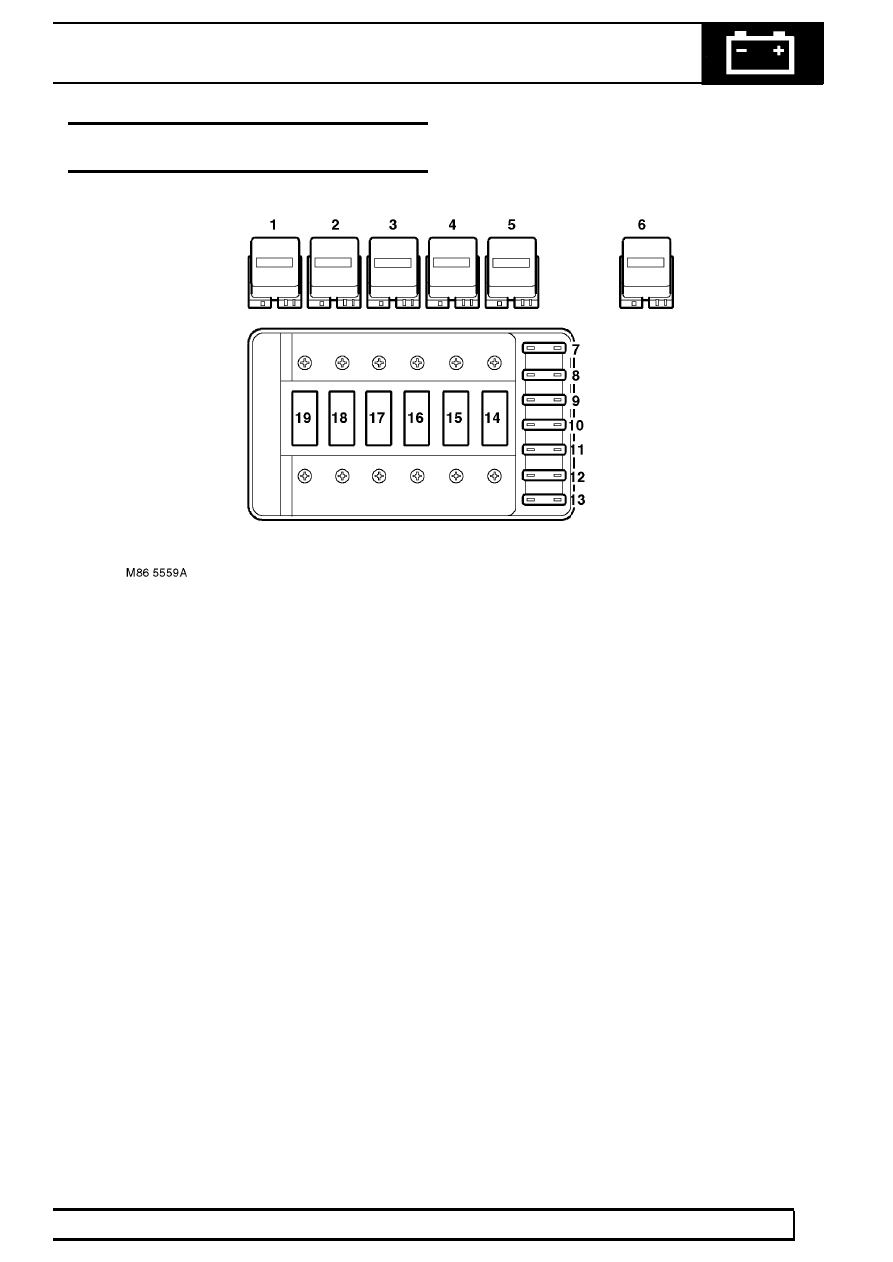

UNDER SEAT FUSE BOX
FROM 02MY

1. A/C Relay (if fitted)
2. A/C relay (if fitted)
3. Glow plug relay
4. Main relay
5. Fuel pump relay
6. ABS Return pump relay
7. Fuse 7 - Central Door Locking (CDL) and BBUS

(20A)

8. Fuse 6 - Anti-theft alarm ECU (15A)
9. Fuse 5 - Main relay (30A)

10. Fuse 4 - Fuel pump relay (20A)
11. Fuse 3 - Horn/HRW relay (20A)
12. Fuse 2 - Accessory socket (20A)
13. Fuse 1 - ABS ECU (30A)
14. Fusible link 6 - Lights (30A)
15. Fusible link 5 - Ignition switch/Starter relay (60A)
16. Fusible link 4 - ABS Pump relay (30A)
17. Fusible link 3 - Window lift/Seat heat relay (60A)
18. Fusible link 2 - Air conditioning (60A)
19. Fusible link 1 - Glow plugs/Heated front screen

(100A)

ELECTRICAL

1

ADJUSTMENT

HEADLAMPS - ALIGN BEAM

Service repair no - 86.40.17

Check

1. Align suitable beam setting equipment to

headlamp.

2. Ensure headlamp height adjustment switch set

to ’O’ and headlamps switch on.
Headlamp setting = 1.2% below horizontal and
parallel.

Adjust

3. Align beam setting equipment to 2nd headlamp

and adjust 2nd lamp as necessary.

4. Switch off headlamps.
5. Remove beamsetter.

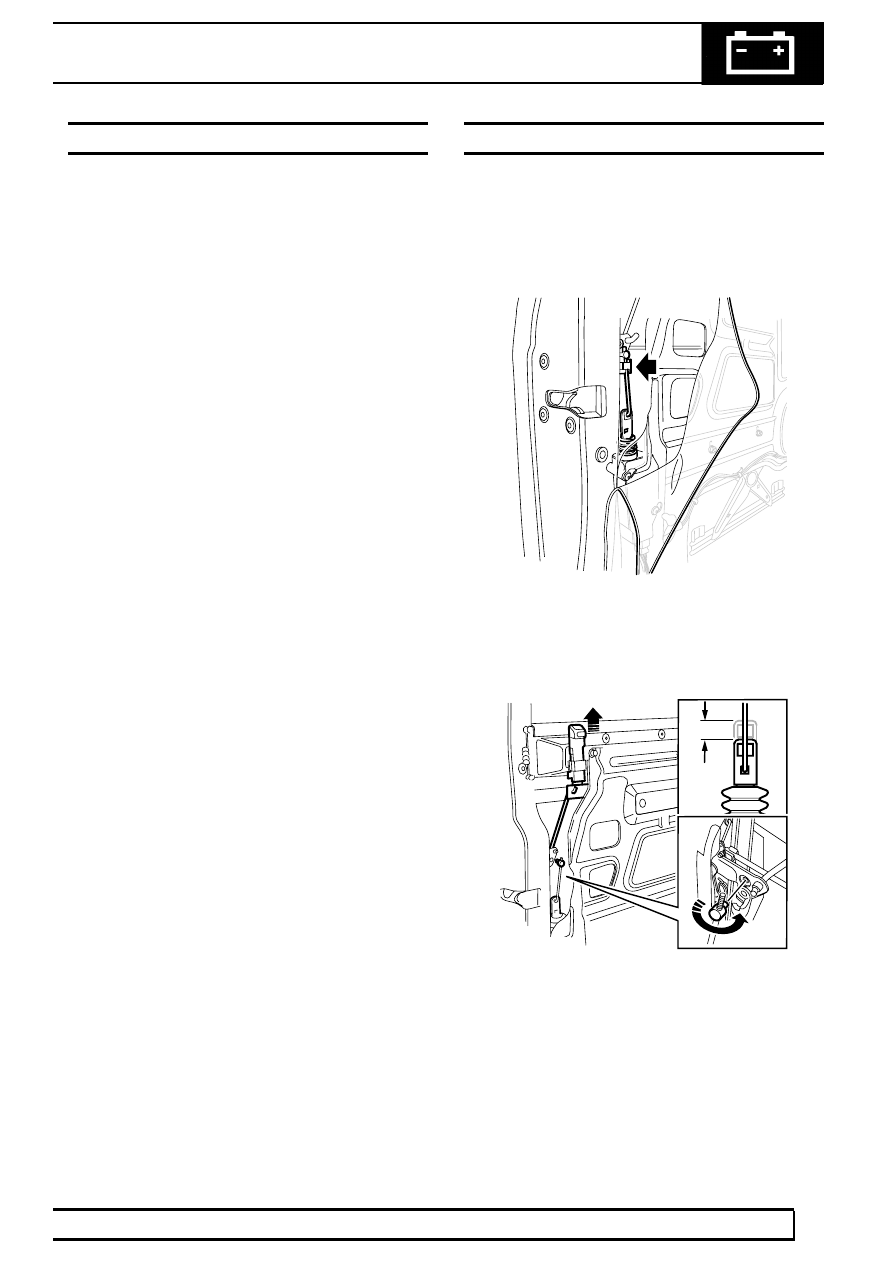

SOLENOID/MOTOR - FRONT DOOR - ADJUST

Service repair no - 86.26.21

Adjust

1. Remove door trim casing. See CHASSIS AND

BODY, Repair.

M86 5629

2. Carefully peel back plastic sheet to expose

mechanism.

3. Release clip and detach solenoid link from latch.

M86 5630

4. Ensure sill button is fully raised.
5. Fully extend solenoid actuator then lower 3.5

mm +/- 1.00 mm.

6. Whilst holding actuator in this position, adjust

length of link, until link pin is aligned with hole in
latch lever.

7. Connect link and secure with clip.
8. Secure plastic sheet.
9. Fit door trim casing. See CHASSIS AND

BODY, Repair.
