Defender (1999-2002). Manual - part 123





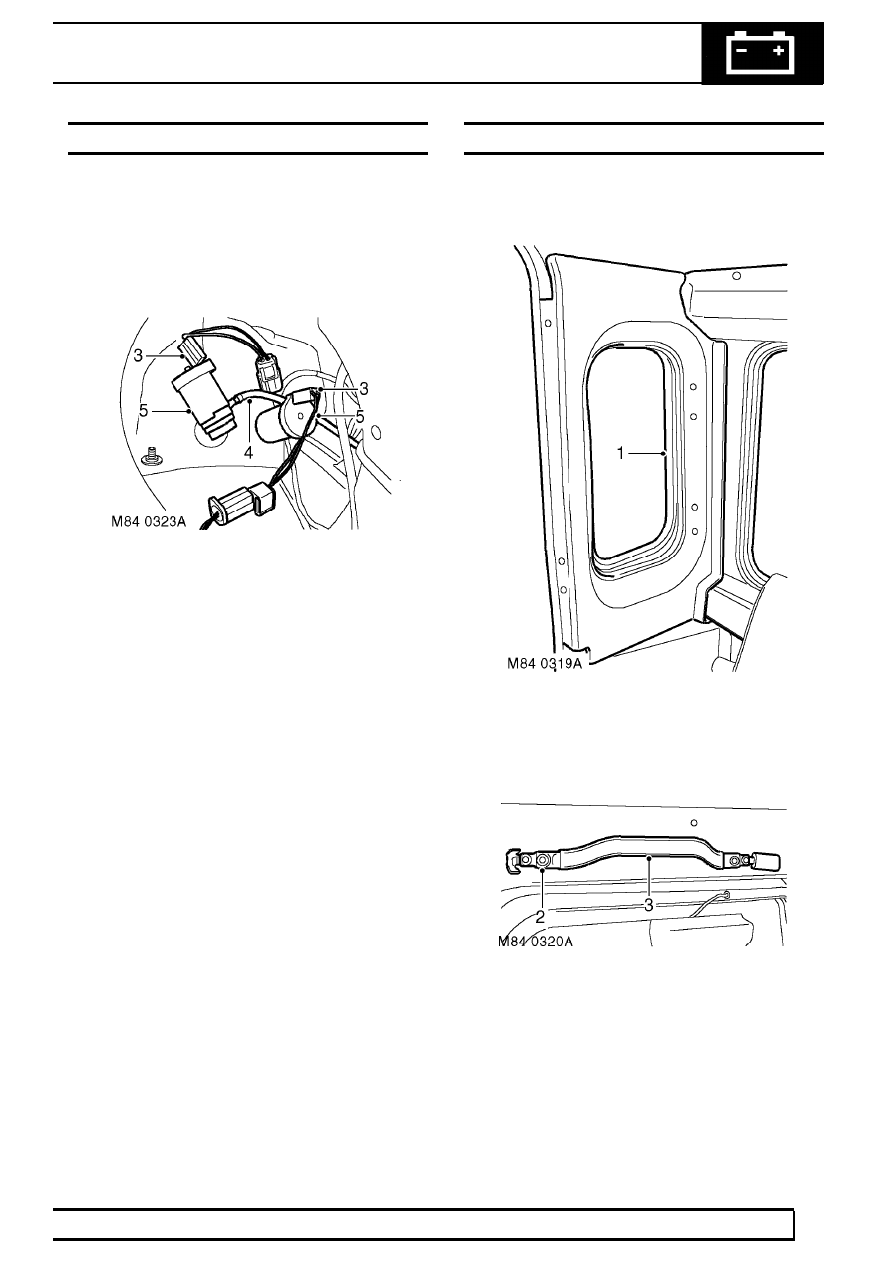

WIPERS AND WASHERS

1

REPAIR

PUMP - WINDSCREEN WASHER

Service repair no - 84.10.21

Remove

1. Remove headlamp. See ELECTRICAL,

Repair.

2. Position drain tin to collect any fluid spillage.

3. Disconnect multiplug from washer pump.
4. Disconnect hose from washer pump.
5. Release washer pump from reservoir and

discard sealing washer.

Refit

6. Fit new sealing washer and secure pump to

reservoir.

7. Connect hose and multiplug to washer pump.
8. Fit headlamp. See ELECTRICAL, Repair.
9. Fill reservoir with screen cleaning fluid.

JET - REAR SCREEN WASHER

Service repair no - 84.30.09

Remove

1. Release and remove both rear side window

finishers.

2. Remove 8 screws securing both rear grab

handles.

3. Remove both rear grab handles.

84

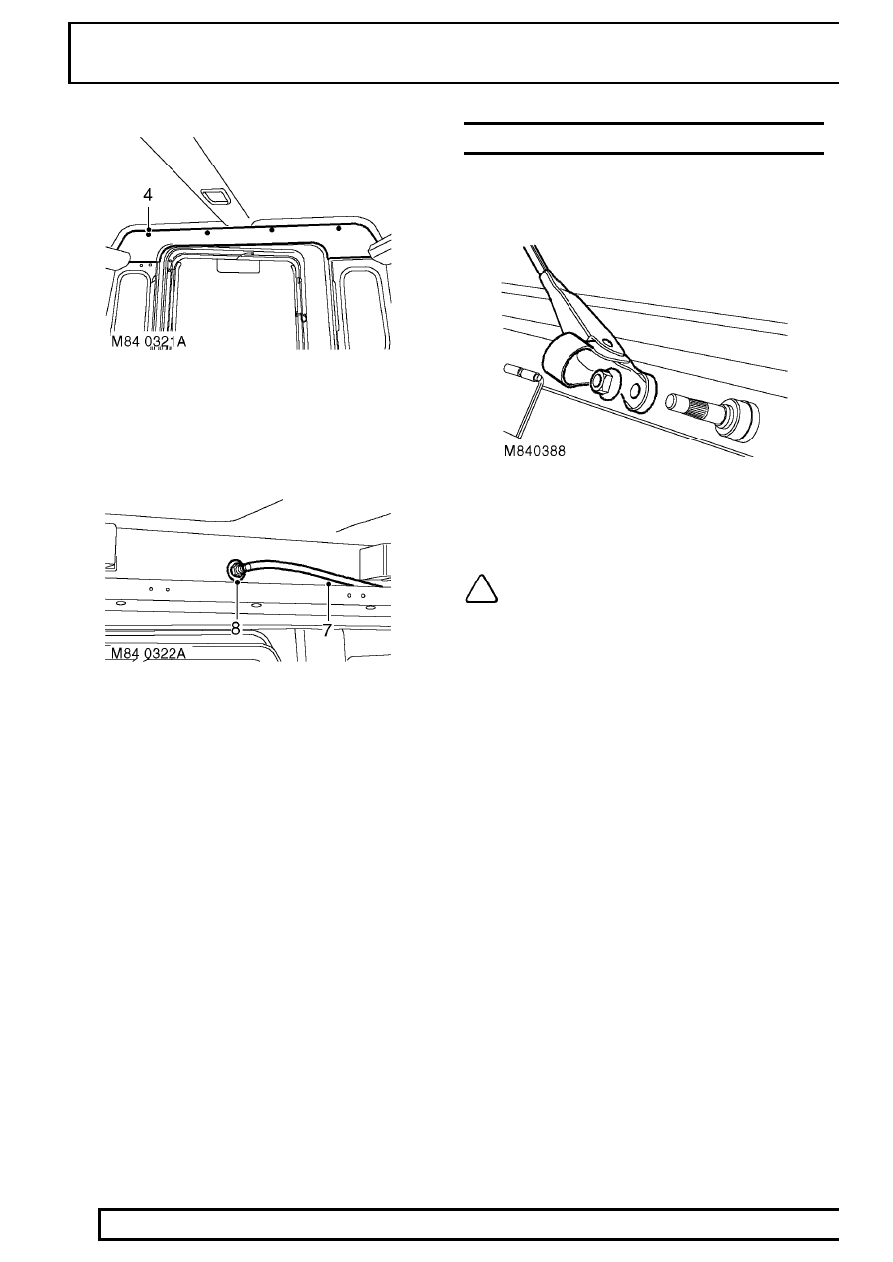

WIPERS AND WASHERS

2

REPAIR

4. Remove 4 trim studs securing upper rear finisher

to body.

5. Release and remove upper rear finisher.
6. Position drain tin to collect any fluid spillage.

7. Disconnect washer tube from jet.
8. Remove nut securing washer jet to body.
9. Remove washer jet.

Refit

10. Fit washer jet to body and secure with nut.
11. Connect washer tube to jet.
12. Remove drain tin.
13. Fit upper rear finisher and secure with trim studs.
14. Fit both rear grab handles and secure with

screws.

15. Fit both rear side window finishers.

ARM - WIPER - FROM 02MY

Service repair no - 84.15.02

Remove

1. Raise nut cover on wiper arm and remove nut.
2. Remove wiper arm from spindle.

NOTE: Do not carry out further
dismantling if component is removed for
access only.

3. Remove wiper blade.

Refit

4. Fit wiper blade.
5. Fit wiper arm to spindle and align blade to

windscreen.

6. Tighten nut securing wiper arm to 17 Nm (13

lbf.ft), and fit cover.

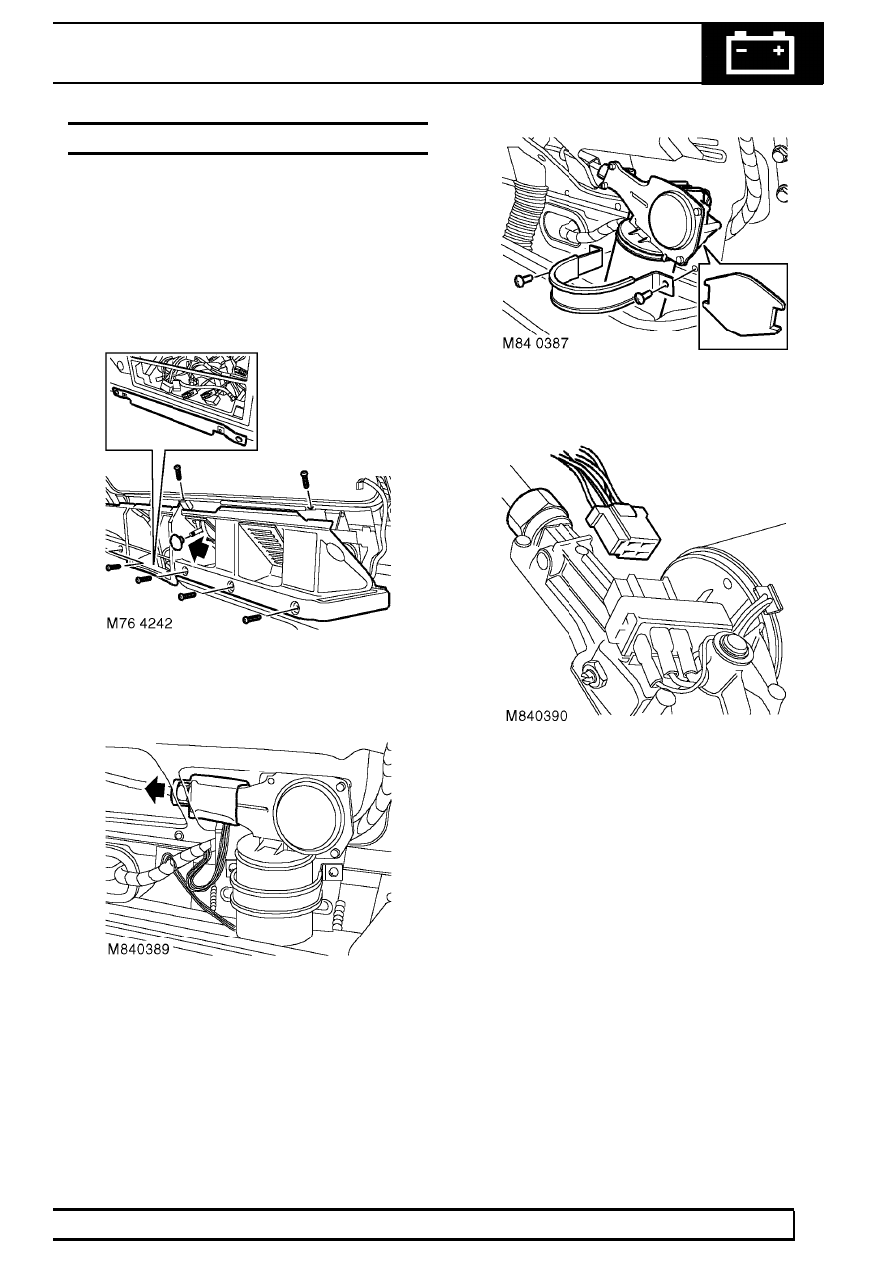

WIPERS AND WASHERS

3

REPAIR

WIPER MOTOR AND DRIVE RACK - FROM 02MY

Service repair no - 84.15.09

Remove

1. Disconnect battery negative lead. See

ELECTRICAL, Repair.

2. Remove wiper arms. See this Section.
3. Remove fascia console. See CHASSIS AND

BODY, Repair.

4. Remove air vent control knobs.
5. Remove 6 screws, remove fascia closing panel

and collect nut plate.

6. Move cover aside and loosen wiper motor drive

tube nut.

7. Remove 2 screws securing wiper motor, remove

retaining strap and mounting pad.

8. Disconnect multiplug from wiper motor.
9. Remove tube nut and remove wiper motor with

rack.

Refit

10. Lubricate wiper motor drive rack with grease.
11. Feed wiper motor rack into tube, connect

multiplug and fit but do not tighten tube nut.

12. Fit mounting pad and retaining strap, align wiper

motor and tighten screws.

13. Tighten wiper motor tube nut to 8 Nm (6 lbf.ft)

and reposition nut cover.

14. Fit fascia closing panel.

84

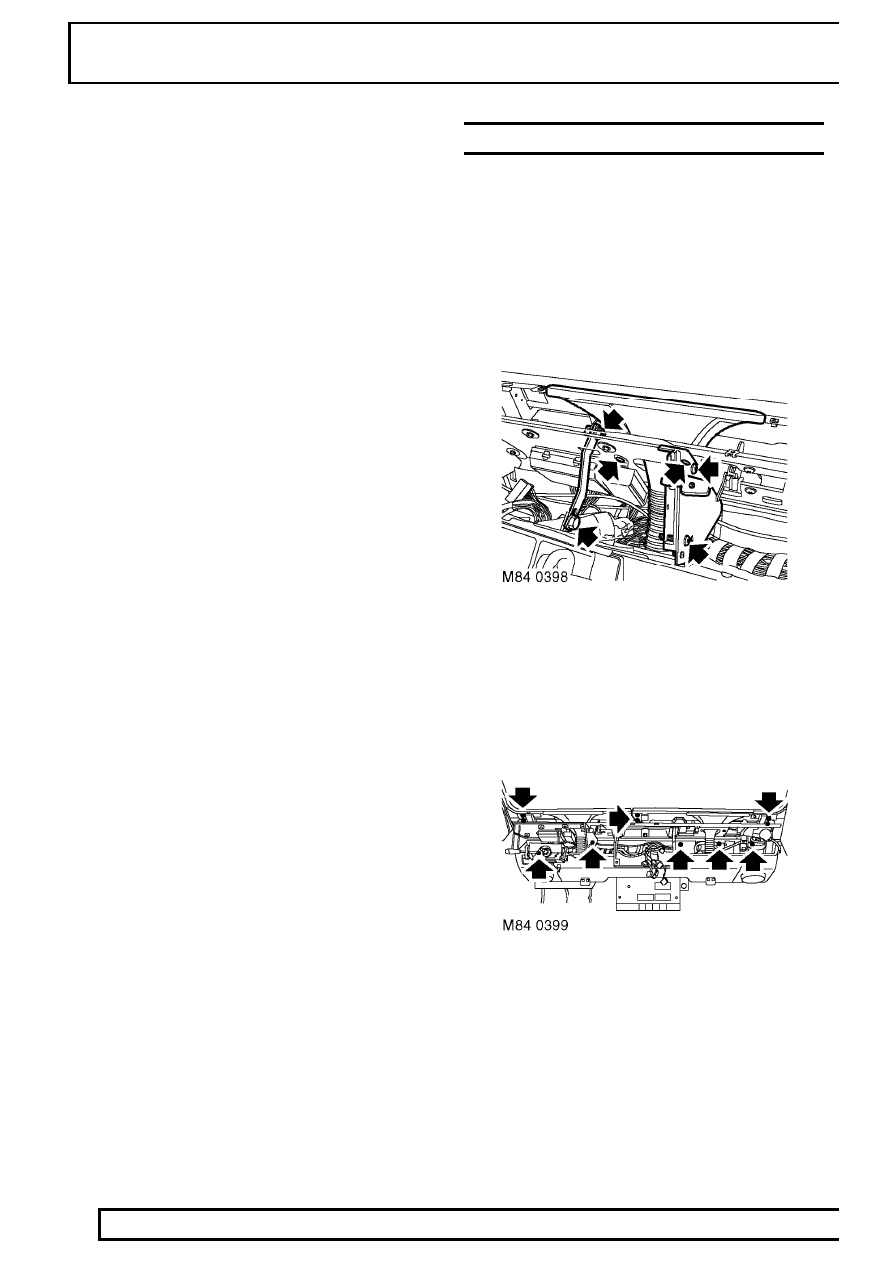

WIPERS AND WASHERS

4

REPAIR

15. Fit nut plate and fit screws to secure nut plate

and closing panel.

16. Fit knobs to air vent control levers.
17. Fit fascia console. See CHASSIS AND BODY,

Repair.

18. Fit wiper arms. See this Section.
19. Connect battery negative lead. See

ELECTRICAL, Repair.

WHEELBOX/DRIVE PIVOT - FROM 02MY

Service repair no - 84.15.25

Remove

1. Disconnect battery negative lead. See

ELECTRICAL, Repair.

2. Remove steering column nacelle. See

STEERING, Repair.

3. Remove wiper motor and drive rack. See this

Section.

4. Remove 2 screws and move heater fan switch

aside.

5. Remove 2 screws securing drivers side demister

duct.

6. Disconnect demister tube and remove duct.
7. Remove bolt and nut and bolt securing steering

column support bracket and remove bracket.

8. Remove 11 screws securing fascia support rail.
