Defender (1999-2002). Manual - part 121





AIR CONDITIONING

3

REPAIR

Refit

6. Position bracket to receiver drier and tighten

clamp bolt.

7. Position receiver to chassis and tighten bolts.
8. Remove plugs from A/C pipes.
9. Lubricate new ’O’ rings with refrigerent oil.

10. Fit ’O’rings, position pipes and tighten bolts to 8

Nm (6 lbf.ft) .

11. Recharge A/C system. See Adjustment.

RELAY - TEMPERATURE CONTROL - FROM 02MY

Service repair no - 82.20.40

Remove

1. Remove front speaker from drivers side. See

ELECTRICAL, Repair.

2. Release relay from support bracket.
3. Disconnect multiplug and remove relay.

Refit

4. Connect multiplug to relay and fit relay to

bracket.

5. Fit front speaker. See ELECTRICAL, Repair.

82

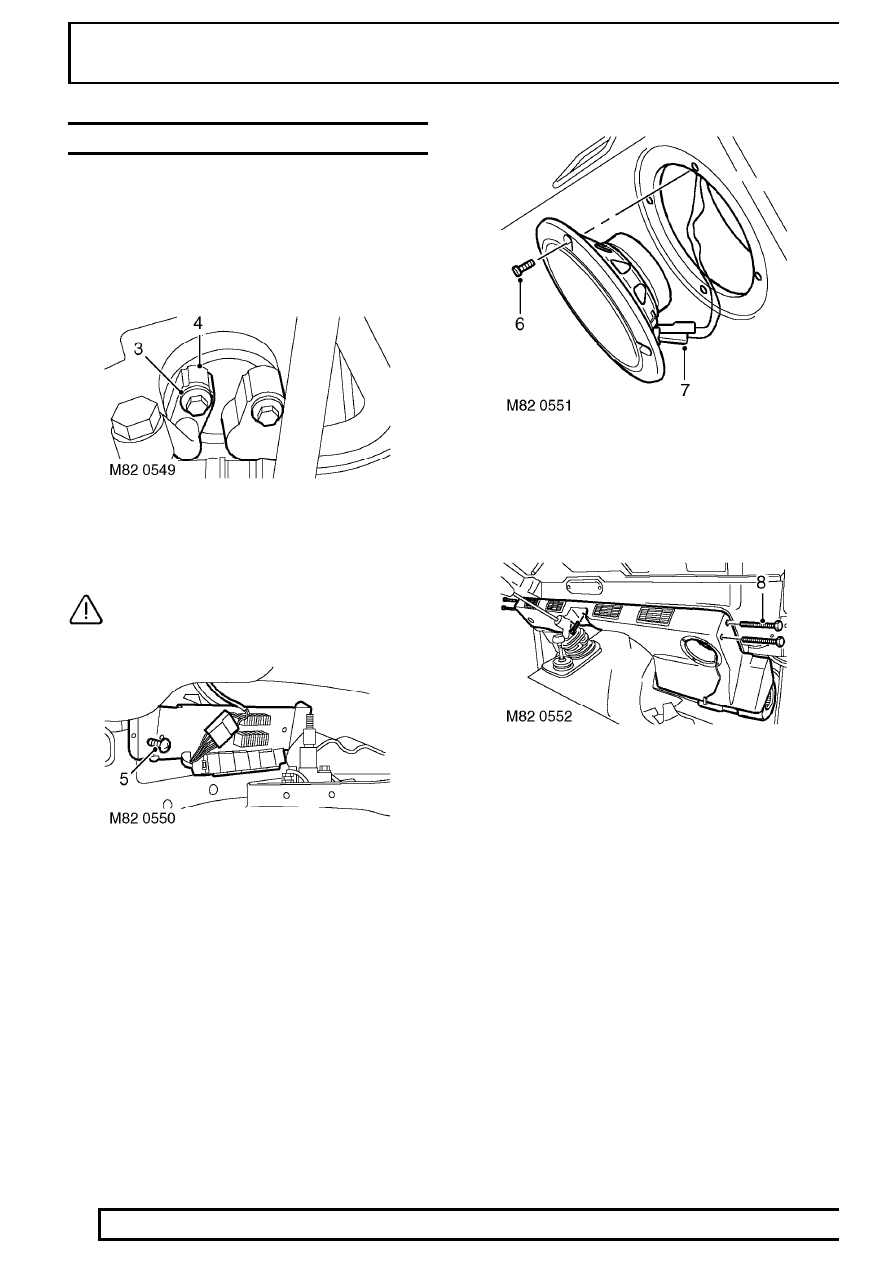

AIR CONDITIONING

4

REPAIR

EVAPORATOR

Service repair no - 82.25.20

Remove

1. Remove battery cover.
2. Recover refrigerant from A/C system. See

Adjustment.

3. Remove 2 bolts securing A/C pipes to

evaporator.

4. Release pipes and discard ’O’ rings.

CAUTION: Immediately cap all air
conditioning pipes to prevent ingress of
dirt and moisture into the system.

5. Remove 2 screws and release fuse/relay bracket

from body and collect 2 spacers.

6. Remove 8 screws securing speakers to A/C

duct.

7. Disconnect speaker Lucars and remove

speakers.

8. Remove 4 screws and bolt securing A/C duct to

fascia panel.

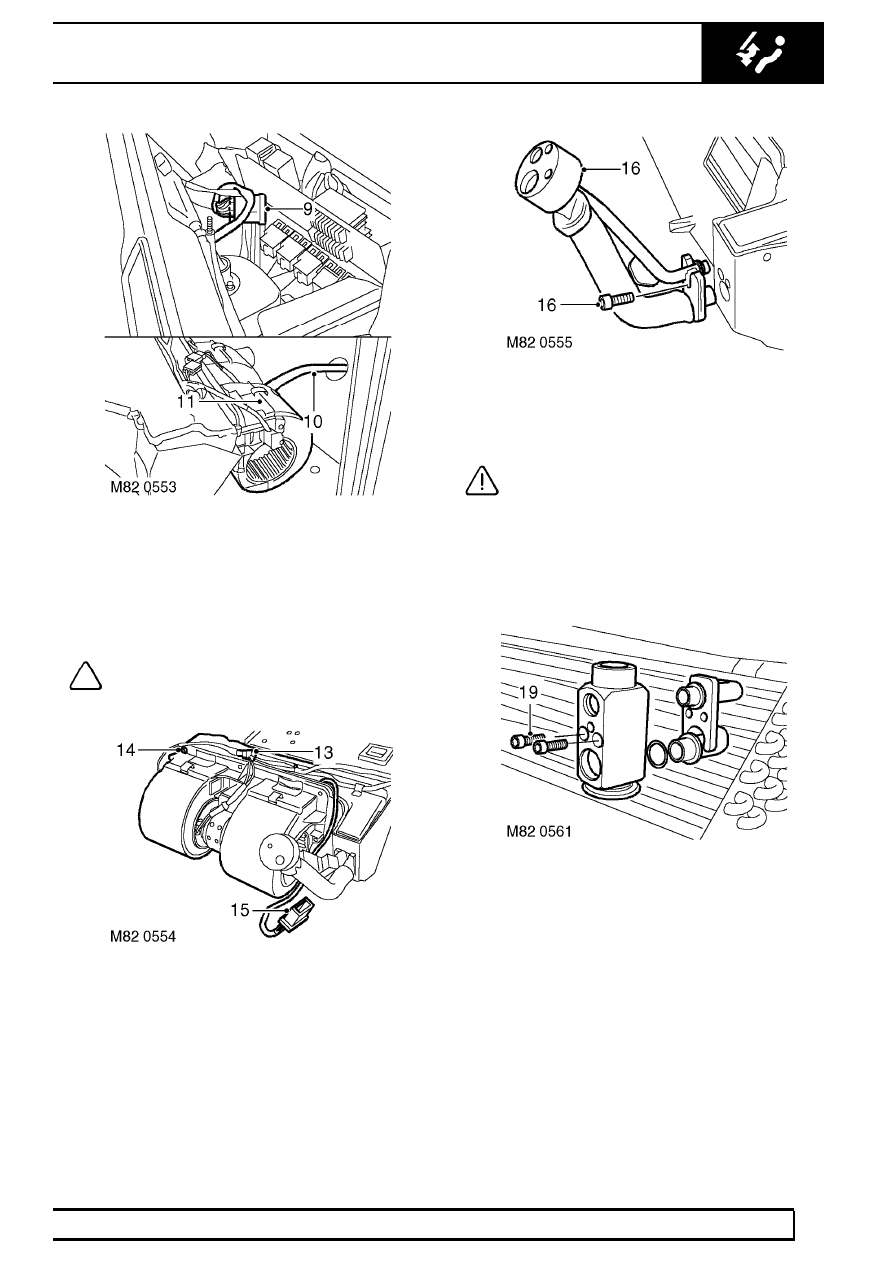

AIR CONDITIONING

5

REPAIR

9. Disconnect multiplug from auxiliary relay

bracket.

10. Release drain pipe from evaporator.
11. Release evaporator from bulkhead grommet.
12. With assistance remove A/C duct assembly from

vehicle.

NOTE: Do not carry out further
dismantling if component is removed for
access only.

13. Disconnect blower motor multiplugs.
14. Remove 5 screws and remove blower unit from

A/C duct.

15. Disconnect multiplug from trinary switch.

16. Remove Allen screw, remove pipe assembly

from evaporator and discard ’O’ rings.

CAUTION: Immediately cap all air
conditioning pipes to prevent ingress of
dirt and moisture into the system.

17. Remove 7 screws and remove evaporator cover

from A/C duct.

18. Release temperature sensor and remove

evaporator.

19. Remove 2 Allen screws, remove TXV from

evaporator and discard ’O’ rings.

82

AIR CONDITIONING

6

REPAIR

Refit

20. Clean TXV and mating face.
21. Lubricate new ’O’rings with refrigerant oil and fit

’O’ rings to pipes.

22. Position TXV and tighten Allen screws.
23. Position evaporator and fit sensor.
24. Position cover and tighten screws.
25. Clean pipes and mating faces.
26. Lubricate and fit new ’O’ rings, position pipes

and tighten Allen screw.

27. Connect trinary switch multiplug.
28. Position blower unit,tighten screws and connect

multiplugs.

29. With assistance position A/C duct assembly to

vehicle.

30. Connect drain pipe to evaporator.
31. Connect multiplug to relay bracket.
32. Align A/C duct to fascia, tighten securing bolt

and screws.

33. Position speakers and connect Lucars.
34. Position relay bracket and tighten bolts.
35. Clean pipes and mating face.
36. Lubricate and fit new ’O’rings to evaporator

pipes.

37. Position pipes and tighten bolts to 6 Nm (4

lbf.ft).

38. Renew receiver drier. See this Section.
39. Recharge A/C system. See Adjustment.
