PANEL REPAIRS

24

SEALING AND CORROSION PROTECTION

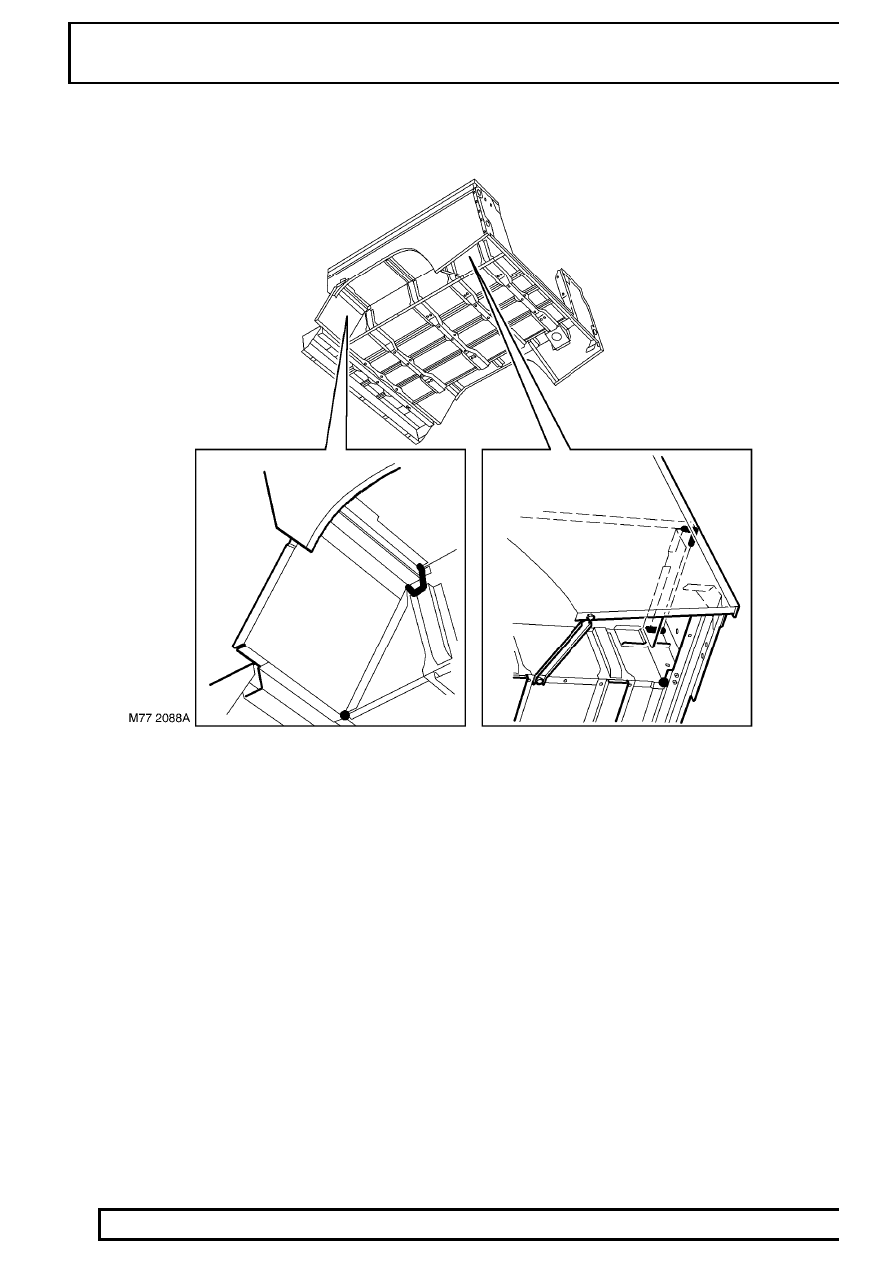

Putty location on underside of vehicle

PANEL REPAIRS

25

SEALING AND CORROSION PROTECTION

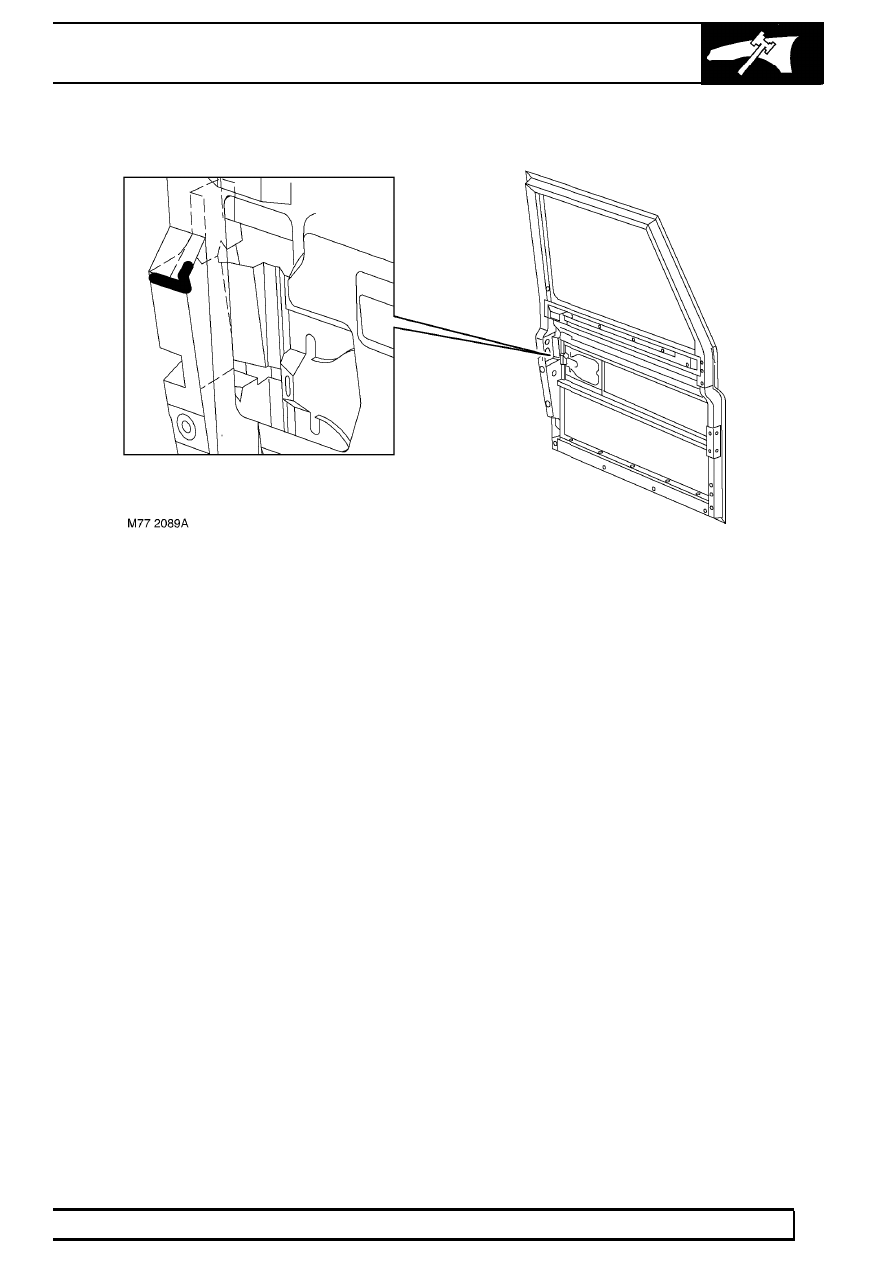

Putty location on front door

77

PANEL REPAIRS

26

SEALING AND CORROSION PROTECTION

FOAM/RUBBER SEAL APPLICATION AREAS

The following Illustrations show the location of foam/rubber seals. All areas
All areas symmetrically opposite to those shown are also treated.

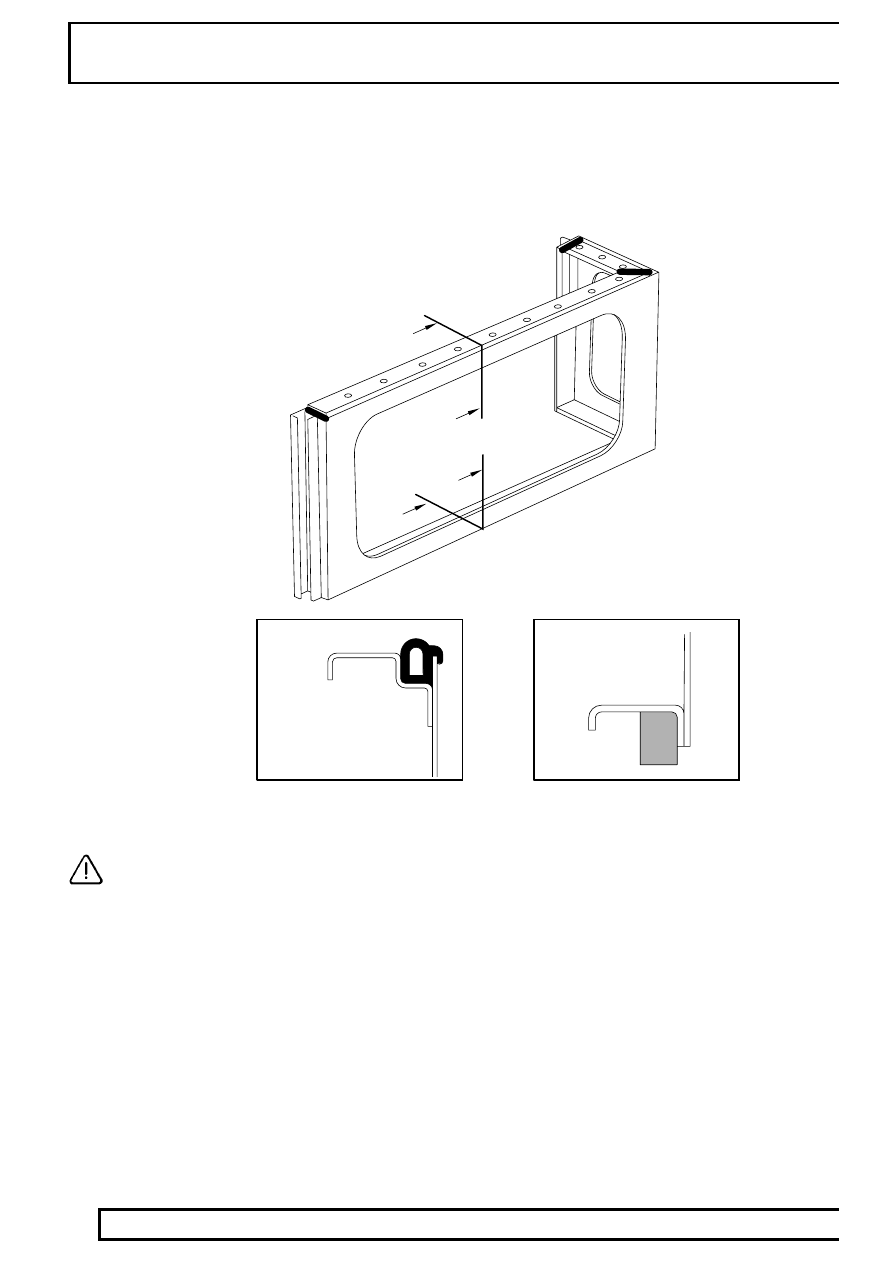

Body side rear

M77 2093A

A

A

B

B

A - A

B - B

Section A-A shows a rubber seal in position on the body side rear upper assembly.

CAUTION: Ensure rubber seal is correctly seated into channel.

Section B-B shows a foam seal located on the bottom edge of the body side rear upper assembly. It is fixed to the
panel using double sided tape.

PANEL REPAIRS

27

SEALING AND CORROSION PROTECTION

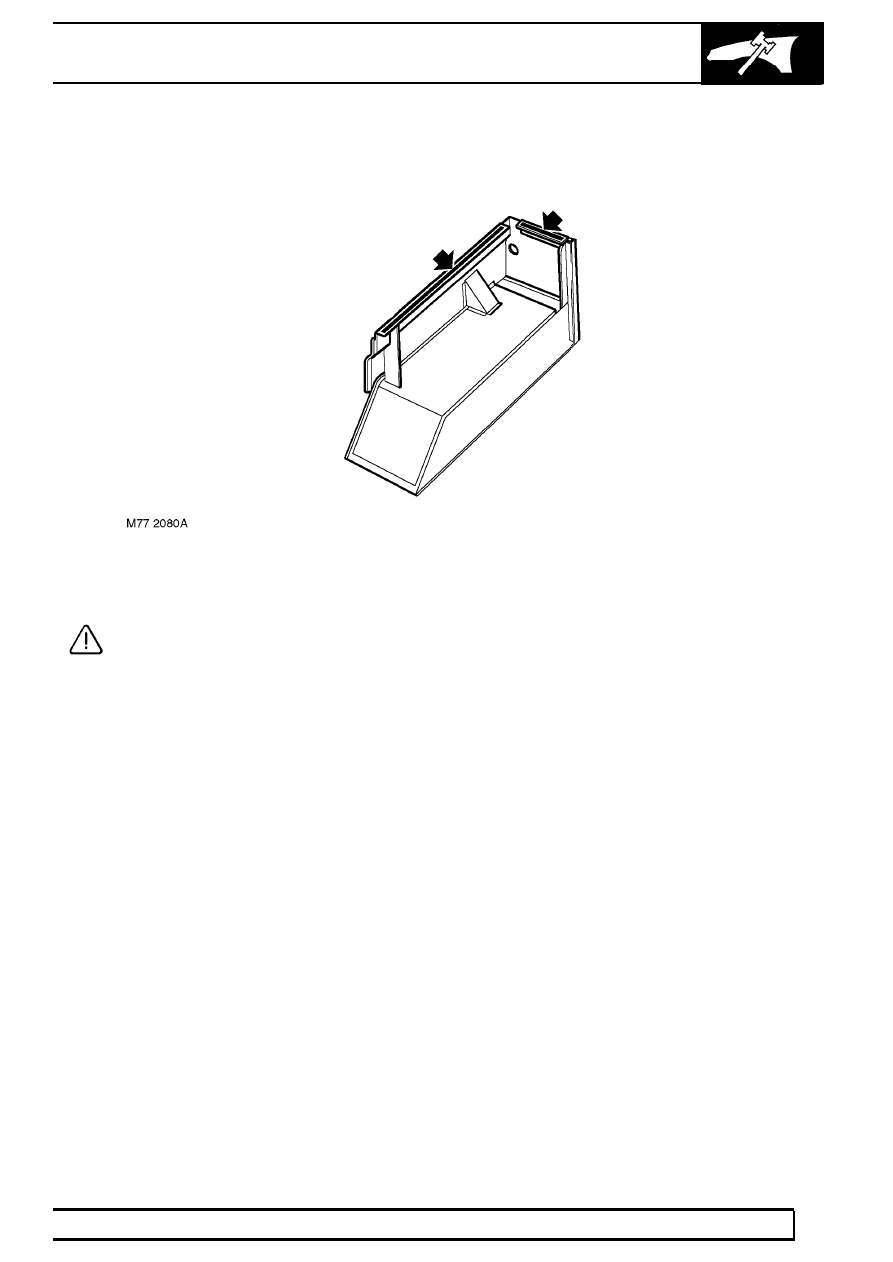

Body side lower

The arrows indicate the positon of two foam seals.

CAUTION: Ensure seals are fitted before refitting assembly.
