Defender (1999-2002). Manual - part 104





PANEL REPAIRS

3

BODY DIMENSIONS

LAND ROVER 90 CHASSIS

77

PANEL REPAIRS

4

BODY DIMENSIONS

LAND ROVER 90

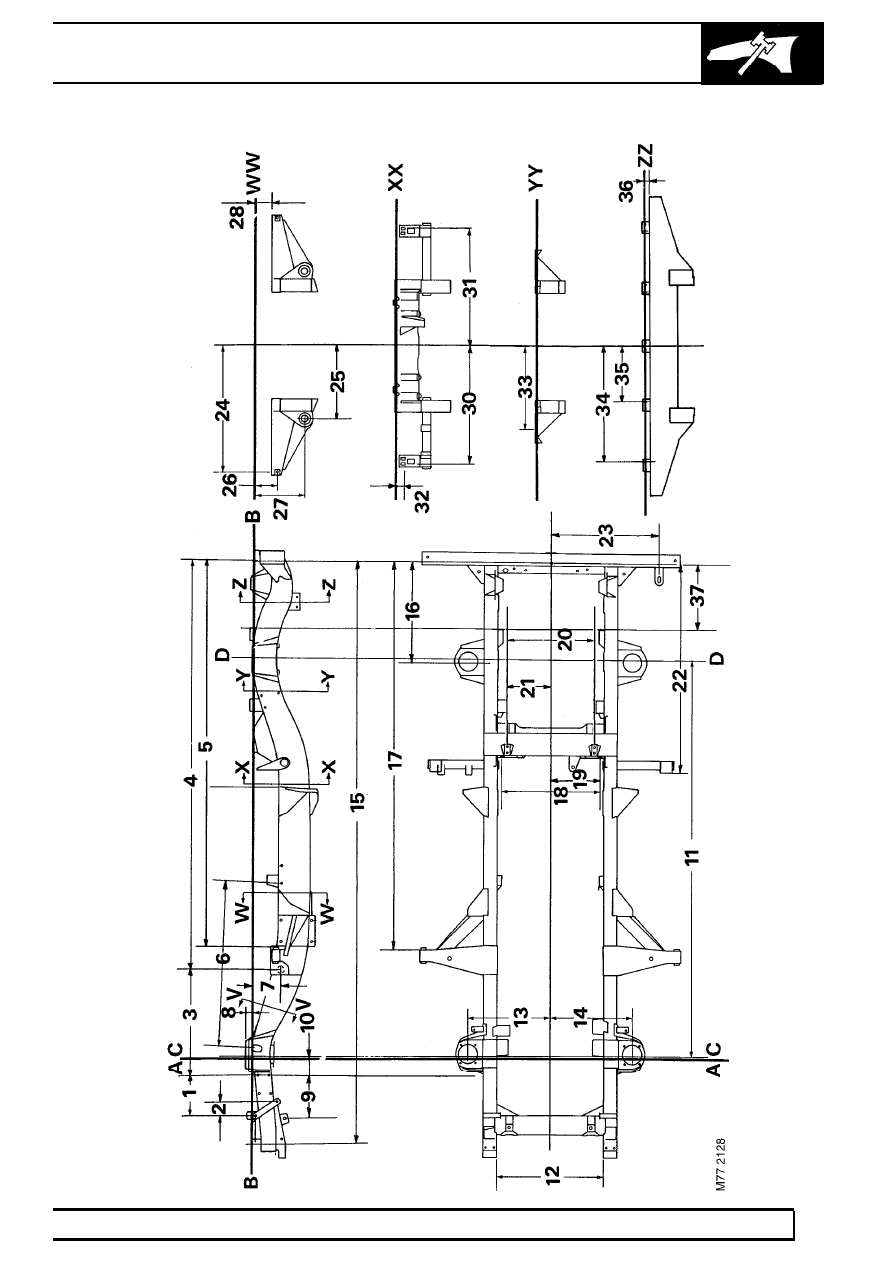

CHASSIS ALIGNMENT DIMENSIONS

A - Front Datum
B - Chassis Datum
C - Front axle centre line
D - Rear axle centre line

1. 239,0 - 236,5 mm
2. 82,0 - 79,5 mm
3. 633 mm
4. 2420,6 - 2418,6 mm
5. 2306,4 - 2305,4 mm
6. 981,2 - 978,7 mm
7. 182,7 mm
8. 41,5 - 37,0 mm
9. 252 - 250 mm

10. 110 mm
11. 2360mm - Wheelbase
12. 636 - 634 mm
13. 488 - 482 mm
14. 488 - 482 mm
15. 3431,1 - 3426,1 mm
16. 588,3 - 586,3 mm
17. 2313,8 - 2311,8 mm
18. 590,5 mm
19. 295,25 mm
20. 519,30 - 517,30 mm
21. 259,80 - 258,50 mm
22. 1242,6 - 1240,6 mm
23. 642,5 - 639,5 mm

24. 750,9 mm
25. 439,5 - 436,5 mm
26. 136,5 mm
27. 299,5 - 295,5 mm
28. 103 - 100 mm
29. 131,5 - 126,5 mm
30. 705,5 - 704,5 mm
31. 705,5 - 704,5 mm
32. 42,2 - 40,2 mm
33. 491 - 486 mm
34. 594,2 - 593,4 mm
35. 283,0 - 282,2 mm
36. 32,25 - 31,25 mm
37. 397 - 395 mm

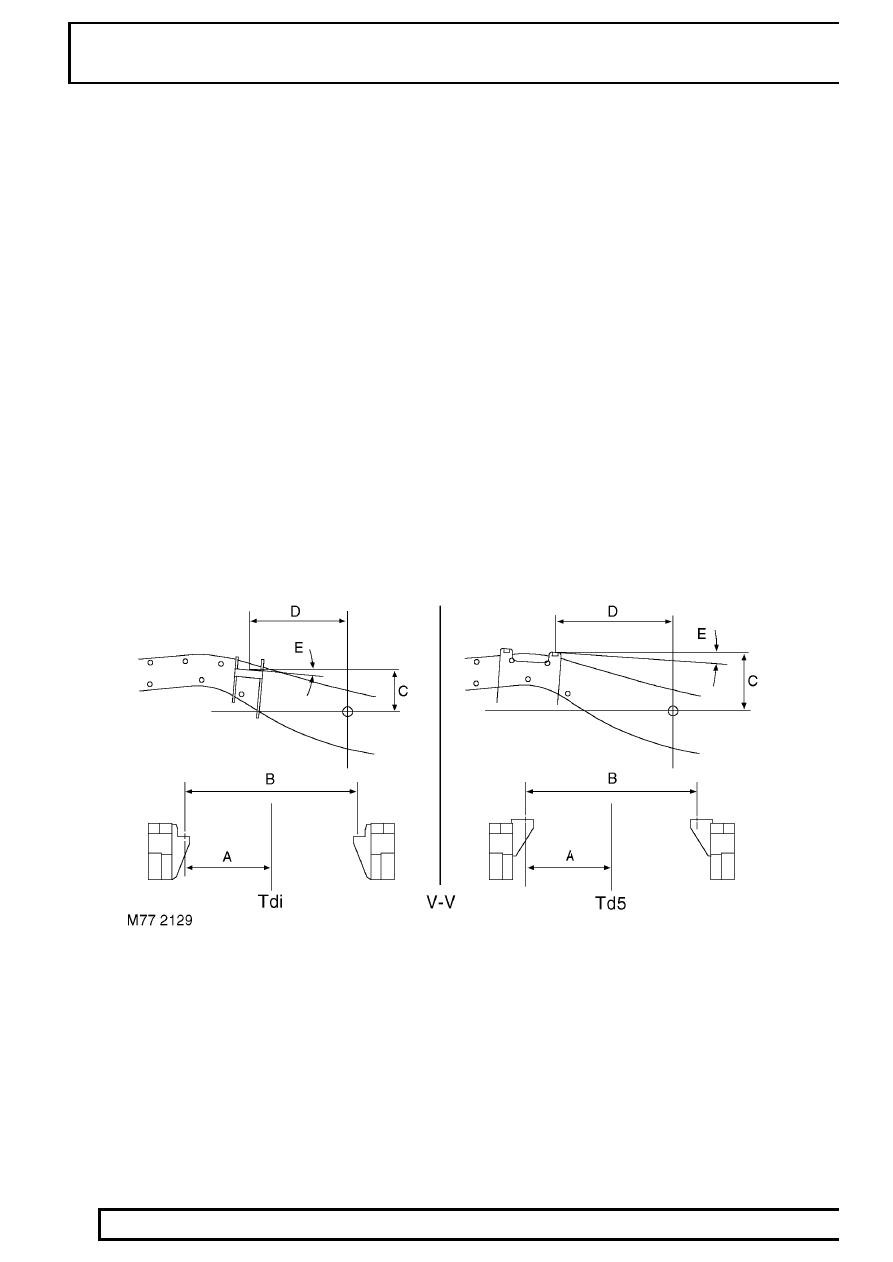

Engine mounting dimensions - section V-V

Section V-V, Tdi and Td5 engine mounting bracket dimensions. The dimensions are applicable to all derivatives.

Tdi dimensions:
A = 276.5
B = 553
C = 127.9
D = 317.4
E = 4 degrees

Td5 dimensions:
A = 273.2
B = 546.5
C = 187.8
D = 374.3
E = 4 degrees

PANEL REPAIRS

5

BODY DIMENSIONS

LAND ROVER 110

77

PANEL REPAIRS

6

BODY DIMENSIONS

LAND ROVER 110

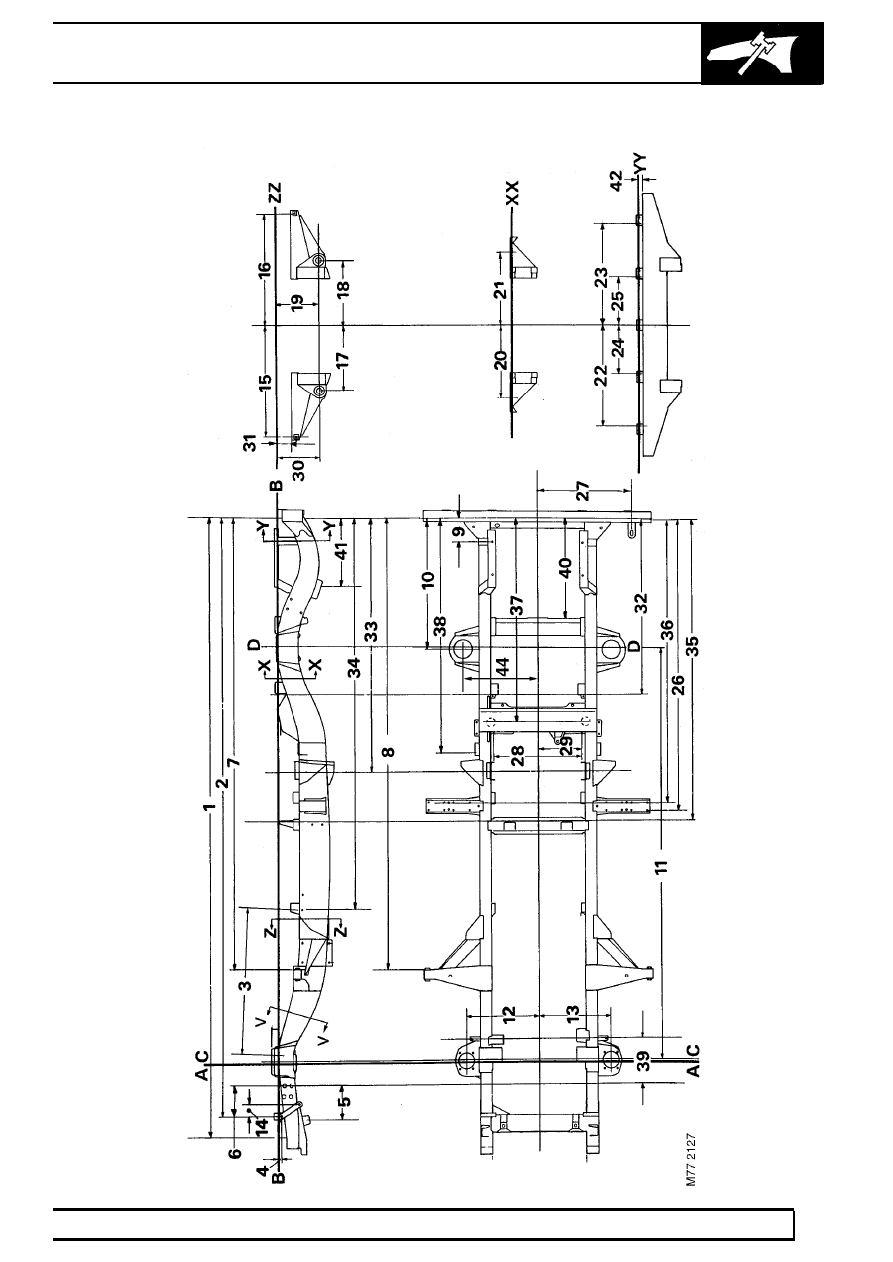

CHASSIS ALIGNMENT DIMENSIONS

A - Front Datum
B - Chassis Datum
C - Front axle centre line
D - Rear axle centre line

1. 4148 - 4143 mm
2. 4009,5 - 4005 mm
3. 978,7 - 981,2 mm
4. 22 - 20 mm
5. 252 - 250 mm
6. 239 - 236,5 mm
7. 3023,3 - 3022,3 mm
8. 3030,7 - 3028,7 mm
9. 155 - 153 mm

10. 871,2 - 869,2 mm
11. 2794 mm - Wheelbase
12. 488 - 482 mm

13. 488 - 482 mm
14. 82 - 79,5 mm
15. 750,9 mm
16. 750,9 mm
17. 440,5 - 435,5 mm
18. 440,5 - 435,5 mm
19. 299,5 - 295,5 mm
20. 500 - 495 mm
21. 500 - 495 mm
22. 594,2 - 593,4 mm
23. 594,2 - 593,4 mm
24. 283 - 282,2 mm
25. 283 - 282,2 mm
26. 1970 - 1968 mm
27. 642,9 - 639,5 mm
28. 750,9 mm

29. 290,5 mm
30. 295,5 mm
31. 299,5 - 295,5 mm
32. 103 - 100 mm
33. 1177,5 - 1175,5 mm
34. 1692,5 - 1689,5 mm
35. 2610 - 2606 mm
36. 2040,5 - 2037,5 mm
37. 1912,5 - 1909,5 mm
38. 1359 - 1357 mm
39. 1573 - 1571 mm
40. 270 - 268 mm
41. 665,5 - 663,5 mm
42. 440 - 438 mm
43. 32,25 - 31,25 mm

Section V-V is through the engine mountings. Dimensional information for the mountings can be found in Land
Rover ’90’ engine mounting dimensions.
