BRAKES

3

REPAIR

SENSORS - ABS - REAR WHEELS

Service repair no - 70.65.31

Remove

1. Raise vehicle on a 2 post ramp.
2. Remove both rear wheels.

3. Remove 3 bolts securing each brake disc

backplate to hub assemblies.

4. Remove both back plates.
5. Remove 2 cable ties securing sensor harness to

outer ends of axle.

6. Carefully prise both sensors from hub

assemblies.

7. Release 4 clips securing sensor harness to axle.
8. Release cable tie securing harness to

differential.

9. Release 3 cable ties securing harness to chassis

longitudinal.

10. Disconnect sensor multiplug.
11. Remove harness and sensor assembly.

Refit

12. Position harness and sensor assembly to vehicle

and connect multiplug.

13. Apply grease to both sensors.
14. Carefully fit both sensors to hub assemblies.
15. Secure harness to axle and differential with

cable ties.

16. Secure harness to axle with clips.
17. Secure harness to chassis with cable ties.
18. Fit both back plates to hub assemblies and

secure with bolts.

19. Fit rear wheels and tighten to 130 Nm (95 lbf.ft)

.

20. Lower vehicle.

70

BRAKES

4

REPAIR

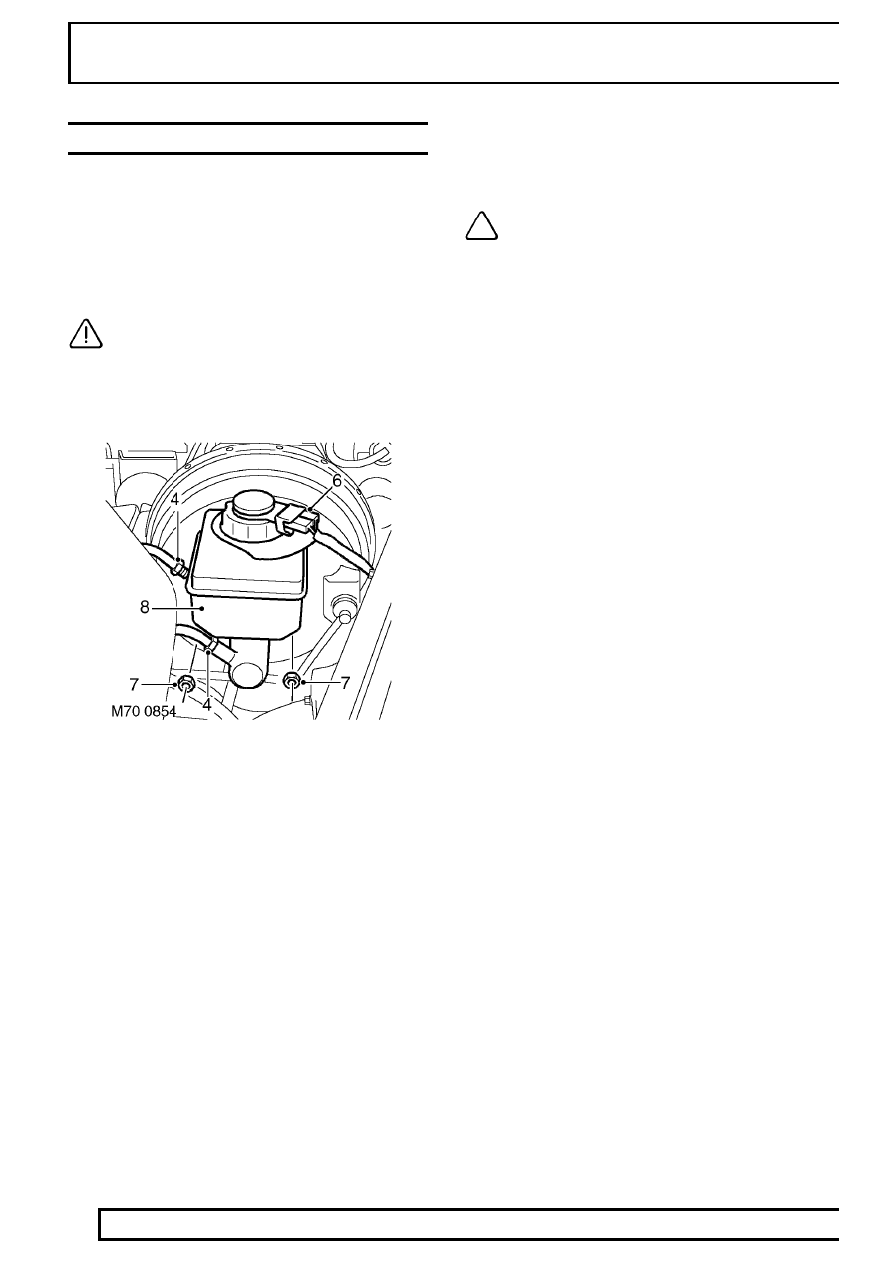

MASTER CYLINDER

Service repair no - 70.30.08

Remove

1. Disconnect battery negative lead.
2. Place a container under the master cylinder to

collect any brake fluid spillage.

CAUTION: Do not allow brake fluid to
contact paint finished surfaces as paint
may be damaged. If spilled, remove fluid

and clean area with clean warm water.

3. Clean area around master cylinder ports.

4. Loosen 2 unions securing brake pipes to master

cylinder ports.

5. Disconnect both brake pipes from master

cylinder. Cover, not plug, pipe ends to prevent
entry of dirt.

6. Disconnect 2 Lucars from reservoir cap.
7. Remove 2 nuts securing master cylinder to

brake servo.

8. Withdraw master cylinder from servo and

remove.
Do not carry out further dismantling if
component is removed for access only.

9. Carefully ease reservoir from master cylinder by

rolling it from seals.

10. Remove seals from master cylinder.

NOTE: Master cylinder to reservoir seals
are different sizes.

11. Fit NEW seals to master cylinder, ensuring seals

are fitted to correct ports.

12. Fit reservoir to master cylinder.

Refit

13. Ensuring that water ingress seal is in position, fit

master cylinder to servo.

14. Fit nuts securing master cylinder to servo and

tighten to 26 Nm (19 lbf.ft) .

15. Connect brake pipes to master cylinder and

tighten unions to 15 Nm (11 lbf.ft) .

16. Connect Lucars to reservoir cap.
17. Fill reservoir with recommended brake fluid. See

LUBRICANTS, FLUIDS AND CAPACITIES,
Information.

18. Bleed the brake system. See Adjustment.
19. Reconnect battery negative lead.

BRAKES

5

REPAIR

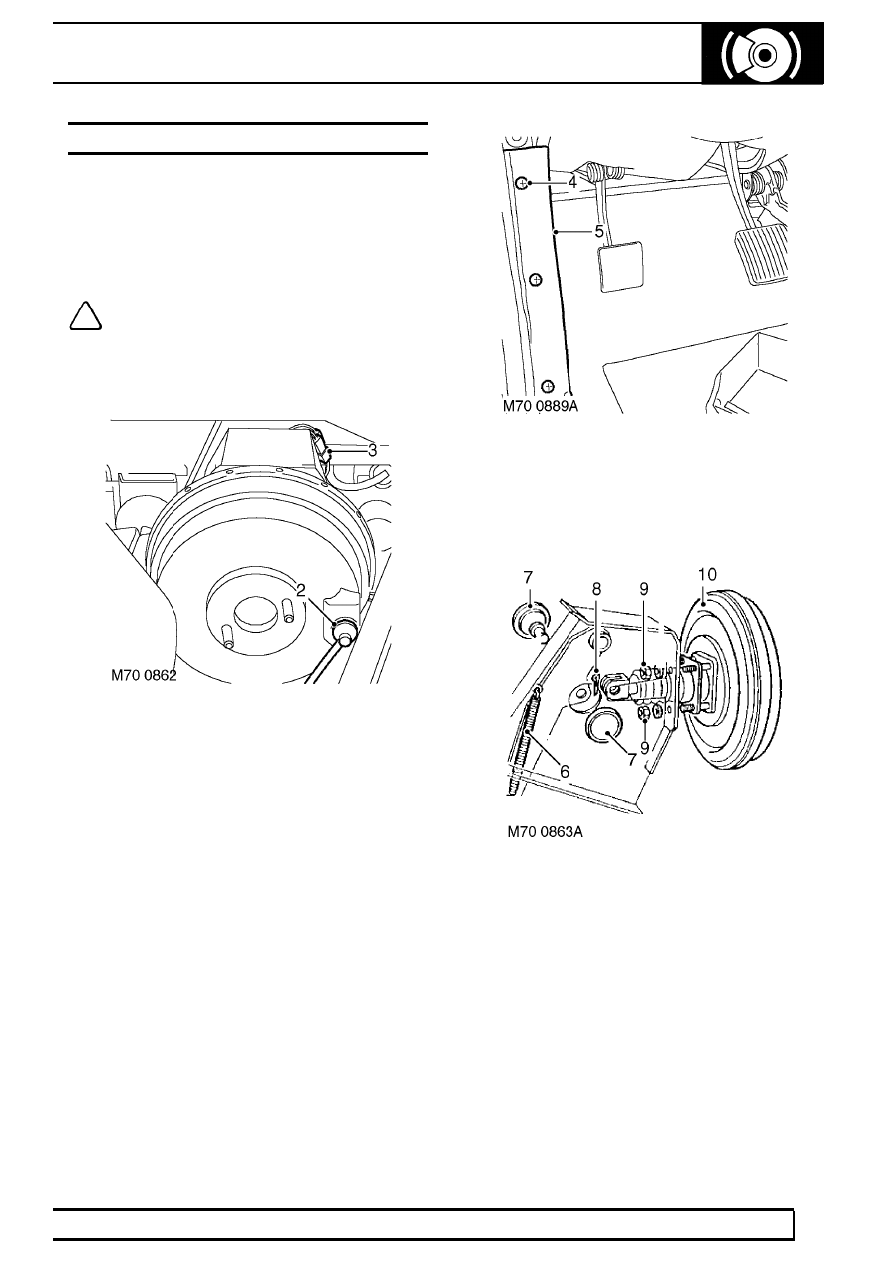

SERVO ASSEMBLY

Service repair no - 70.50.01

Remove

Before starting, refer to general brake service
practice. See Adjustment.

NOTE: The non-return valve and grommet
are the only serviceable components. In
event of failure or damage, fit a new unit.

1. Remove master cylinder. See this Section.

2. Release vacuum hose from servo.
3. Disconnect brake light switch Lucars.

4. Remove 3 screws securing closing panel to

lower ’A’ post.

5. Release closing panel sufficient to gain access

to brake pedal return springs.

6. Release 2 brake pedal return springs from brake

pedal.

7. Remove blanking grommets from either side of

pedal box.

8. Remove split pin and clevis pin securing servo

push rod to brake pedal.

9. Remove 2 nuts securing servo to pedal box.

10. Remove servo assembly and rubber washer

from pedal box.

70

BRAKES

6

REPAIR

Refit

11. Fit rubber washer and servo assembly to pedal

box.

12. Fit nuts securing servo to pedal box and tighten

to 14 Nm. (10 lbf.ft)

13. Position brake pedal to servo push rod.
14. Fit clevis pin and NEW split pin to secure brake

pedal to servo push rod.

15. Fit blanking grommets to each side of pedal box.
16. Attach pedal return springs to brake pedal.
17. Position closing panel and tighten screws to

lower ’A’ post.

18. Connect vacuum hose to servo.
19. Connect brake switch Lucars.
20. Fit brake master cylinder. See this Section.

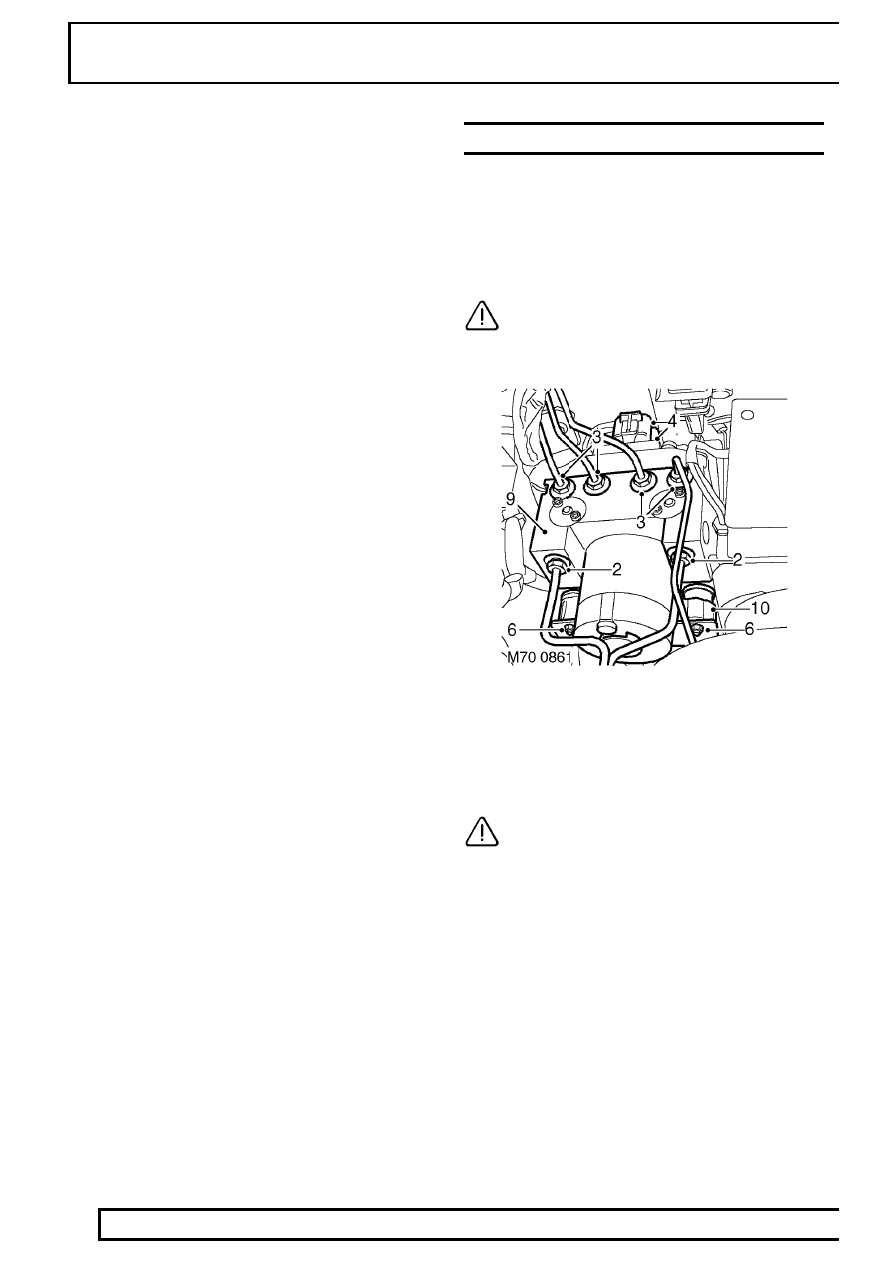

MODULATOR UNIT - ABS

Service repair no - 70.65.49

Remove

1. Position cloth under modulator to absorb any

fluid spillage.

CAUTION: Do not allow brake fluid to
contact paint finished surfaces as paint
may be damaged. If spilled, remove fluid

and clean area with clean warm water.

2. Disconnect 2 inlet brake pipe unions from pump

side of modulator.

3. Disconnect 4 outlet brake pipe unions from top

of modulator.

CAUTION: Plug the connections.

4. Disconnect 2 multiplugs from rear of modulator.
5. Loosen nut securing rear of modulator to

mounting bracket.

6. Remove 2 nuts securing front of modulator to

mounting bracket.

7. Release modulator from mounting bracket.
8. Disconnect multiplug from base of modulator.
9. Remove modulator.

Do not carry out further dismantling if
component is removed for access only.

10. Remove 3 mounting rubbers from old modulator

and fit to new.
