Defender (1999-2002). Manual - part 75





CLUTCH

3

REPAIR

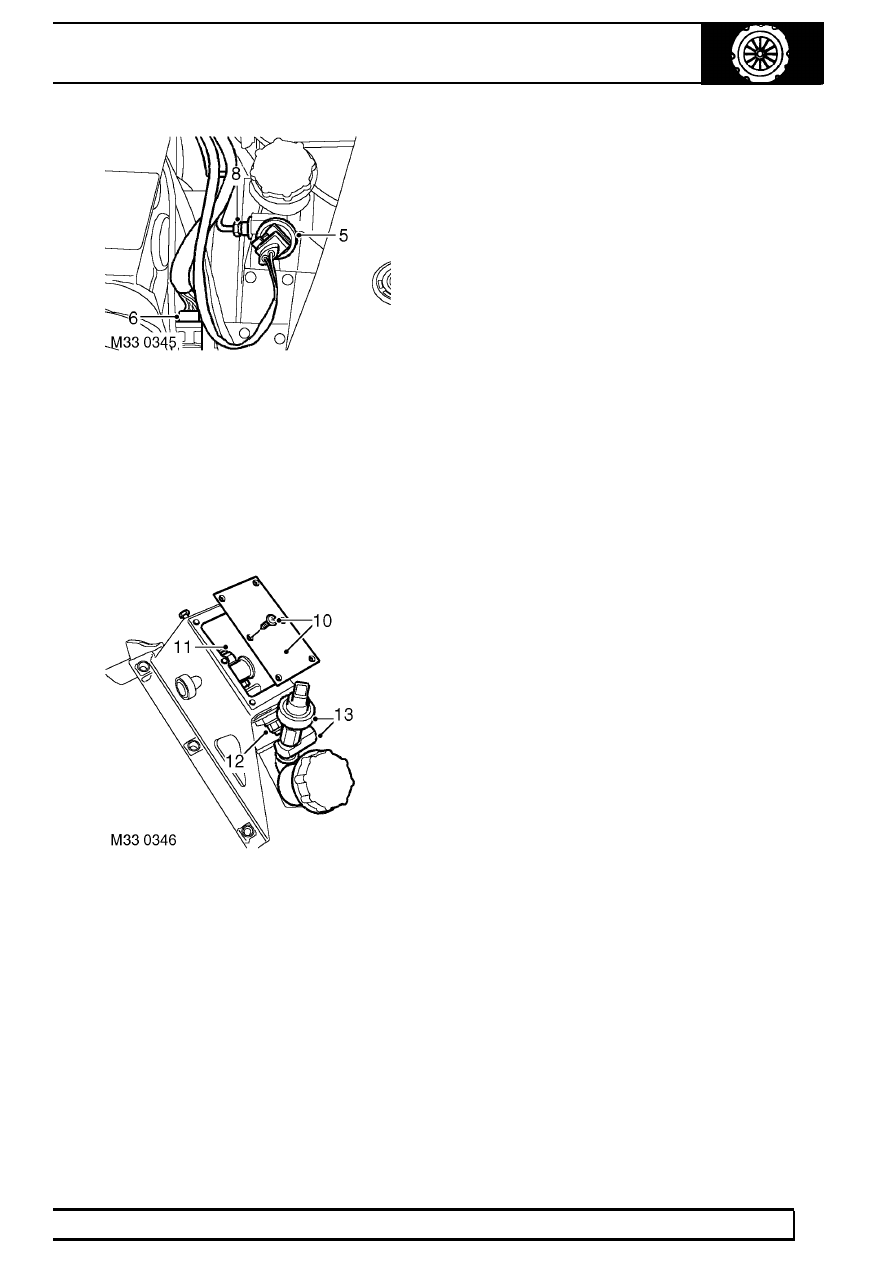

5. Disconnect multiplug from clutch pedal sensor.
6. Disconnect muliplug and harness clip from pedal

bracket.

7. Position cloth to collect fluid spillage.
8. Loosen pipe union, release pipe and plug pipe

and master cylinder.

9. Move brake master cylinder assembly aside and

lift out clutch master cylinder assembly.

10. Remove 6 screws, remove pedal box top cover

and discard gasket.

11. Remove nut securing push rod to clutch pedal

trunnion.

12. Remove 2 bolts and remove clutch master

cylinder from pedal bracket.

13. Remove clutch pedal sensor and pipe union

from master cylinder and discard sealing
washers.

Refit

14. Clean sensor and pipe union.
15. Fit clutch pedal sensor and pipe to master

cylinder using new sealing washers.

16. Position master cylinder to pedal bracket and

align push rod to pedal trunnion.

17. Fit bolts and nuts and secure master cylinder to

pedal bracket.

18. Fit nut securing push rod to clutch pedal trunnion

but do not tighten nut at this stage.

19. Move brake master cylinder aside and position

clutch master cylinder assembly.

20. Clean clutch pipe union.
21. Align pipe and tighten union.
22. Connect multiplug to clutch pedal sensor.
23. Tighten bolts securing clutch pedal and brake

pedal brackets to body.

24. Fit clutch pedal rubber.
25. Position closing panel and tighten screws to

lower ’A’ post.

33

CLUTCH

4

REPAIR

Clutch pedal setting

1. Loosen both locknuts on master cylinder push

rod.

2. Check distance from lower edge of clutch pedal

to floor. Correct measurement is 140 mm (5.50
in) without floor mat.

3. Adjust pedal stop to obtain correct setting.
4. Adjust master cylinder push rod to obtain

approximately 1.5 mm (0.06 in) free play
between push rod and master cylinder piston.

5. Tighten push rod locknuts.
6. Check operation of clutch pedal and ensure that

there is minimum of 6 mm (0.25in) of free play
before pressure is felt.

7. Fit pedal box top cover and multiplug bracket

using a new gasket and secure with screws.

8. Connect multiplug and harness clip to pedal

bracket.

9. Bleed clutch hydraulic system. See

Adjustment.

CYLINDER - CLUTCH SLAVE

Service repair no - 33.35.01

Remove

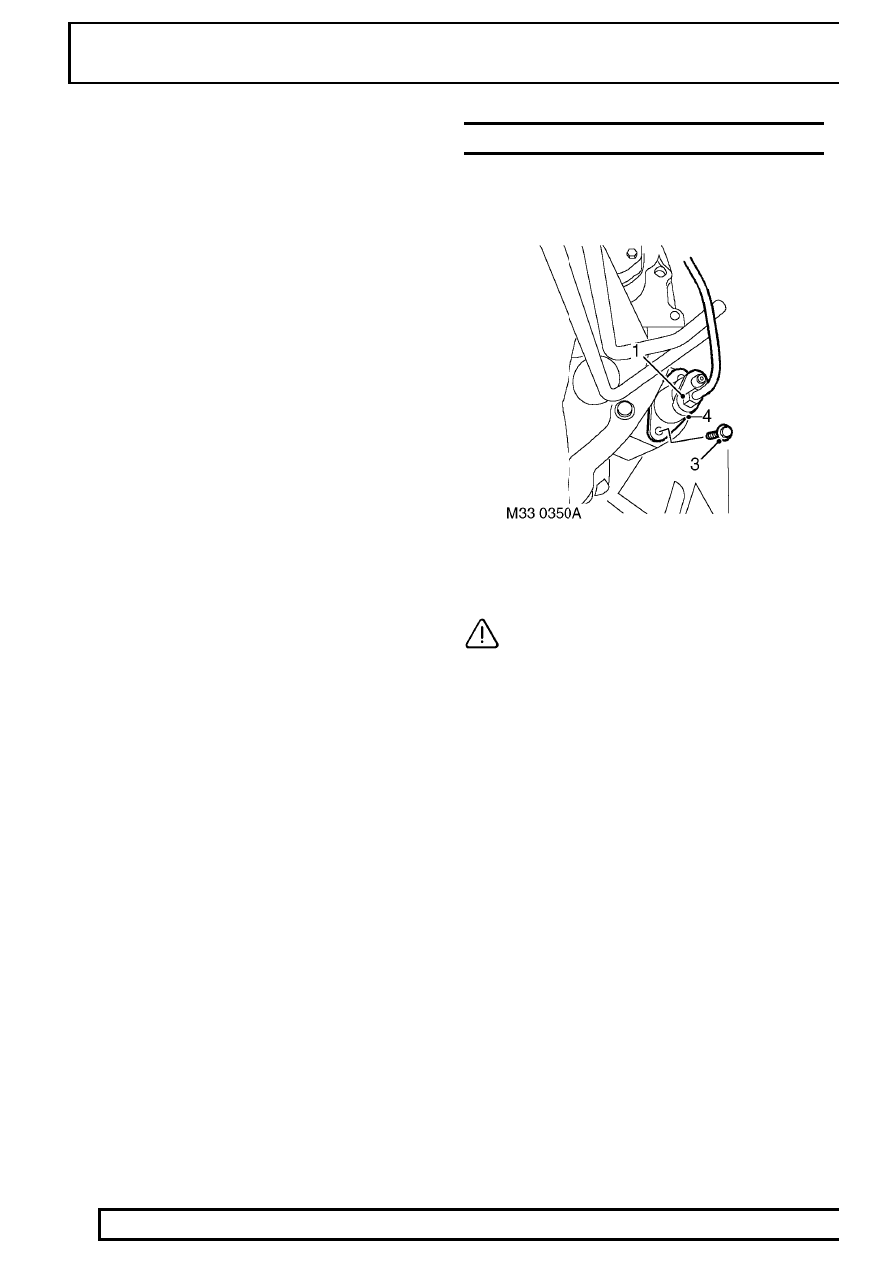

1. Disconnect pipe from slave cylinder.

CAUTION: Plug the connections.

2. Position container to catch spillage.
3. Remove 2 bolts securing slave cylinder to bell

housing.

4. Withdraw slave cylinder from bell housing and

push rod.

Refit

5. Clean ends of pipes, bell housing and slave

cylinder mating faces.

6. Lubricate end of push rod with Molybdenum

disulphide gease.

7. Locate slave cylinder to push rod and bell

housing.

8. Fit bolts and tighten to 25 Nm (18 lbf.ft).
9. Connect clutch pipe to slave clyinder.

10. Bleed clutch system. See Adjustment.
