CLUTCH

1

ADJUSTMENT

HYDRAULIC SYSTEM - BLEED

Service repair no - 33.15.01

Check

CAUTION: Ensure the fluid in the reservoir
is maintained between the minimum and
maximum levels throughout the bleed

procedure using new brake fluid.

CAUTION: Brake fluid will damage paint
finished surfaces. If spilled, immediately
remove fluid and clean area with water.

1. Top up clutch system reservoir.
2. Raise front of vehicle and support on stands.

WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.

3. Remove dust cap, connect bleed tube to bleed

screw and submerge free end into a clear
container of brake fluid.

4. Loosen bleed screw, then apply steady pressure

to the clutch pedal, depressing it through its full
stroke. Allow the pedal to return unassisted.

5. Repeat the procedure until a flow of clean,

air-free fluid is purged into the container.

6. Hold pedal down and tighten bleed screw to 9

Nm (7 lbf.ft).

7. Check and top up reservoir.

CAUTION: Never re-use fluid that has been
bled from the system.

8. Remove stands and lower vehicle.

CLUTCH

1

REPAIR

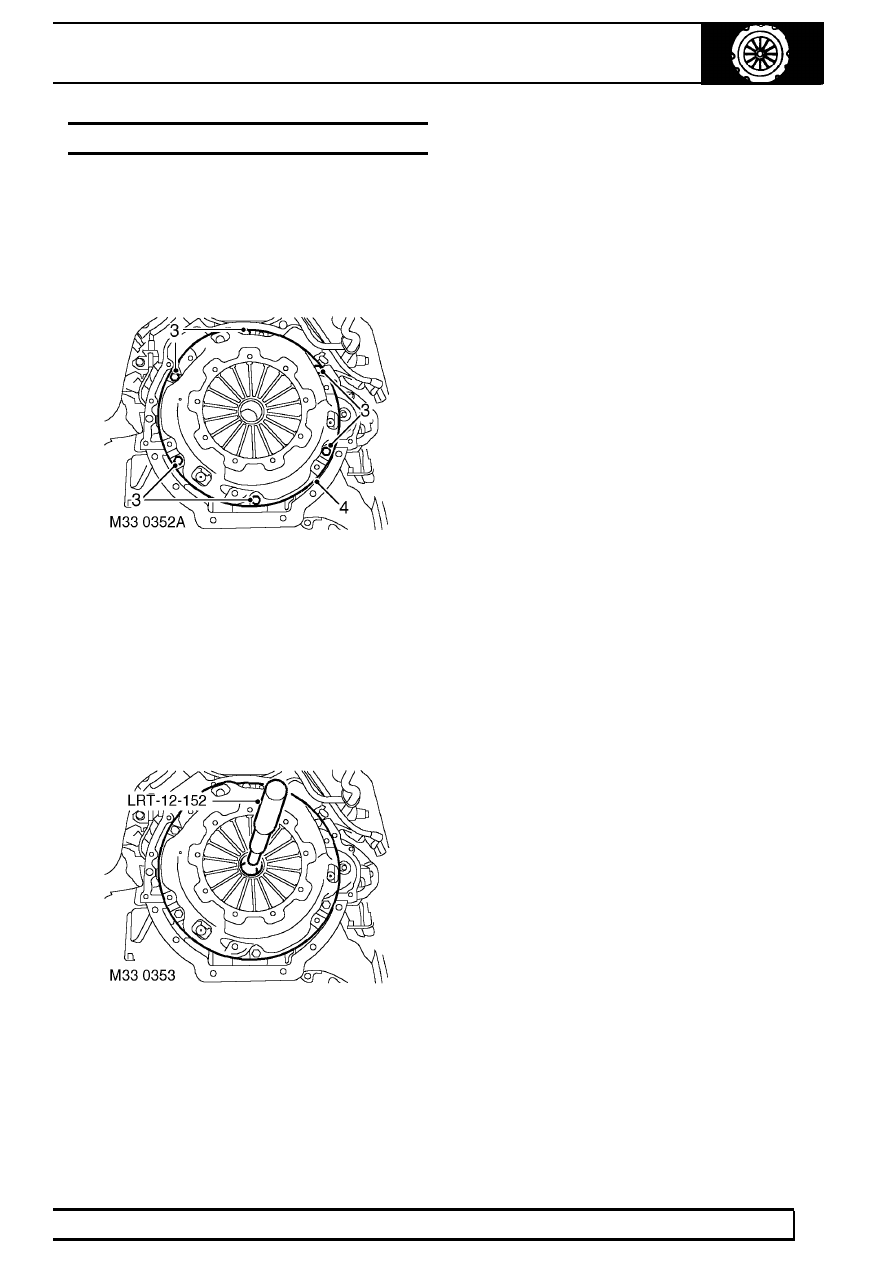

CLUTCH ASSEMBLY

Service repair no - 33.10.01.01

Remove

1. Remove gearbox assembly. See MANUAL

GEARBOX, Repair.

2. Restrain flywheel.

3. Working in sequence, loosen 6 nuts securing

clutch cover to flywheel.

4. Remove clutch cover and clutch plate.

Refit

5. Clean clutch cover and flywheel mating faces

and spigot bush in end of crankshaft.

6. Position clutch drive plate to flywheel with

’gearbox side’ facing towards gearbox.

7. Position LRT-12-152 alignment tool through

drive plate into spigot bearing in crankshaft.

8. Fit clutch cover and locate on dowels.
9. Position clutch cover nuts and tighten in diagonal

sequence to 25 Nm (18 lbf.ft).

10. Fit gearbox assembly. See MANUAL

GEARBOX, Repair.

33

CLUTCH

2

REPAIR

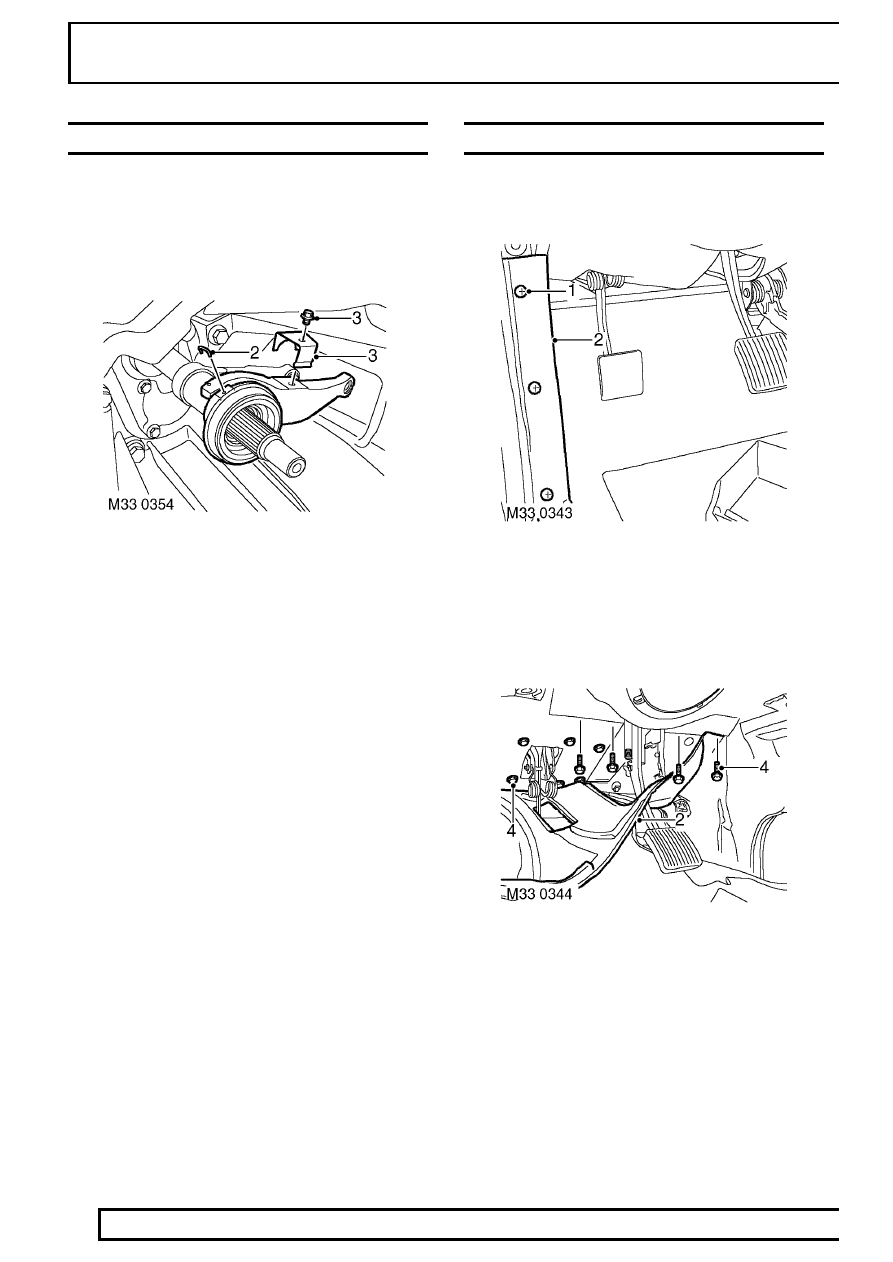

BEARING - CLUTCH RELEASE

Service repair no - 33.25.12

Remove

1. Remove gearbox assembly. See MANUAL

GEARBOX, Repair.

2. Remove retaining peg and remove release

bearing.

3. Remove bolt securing clutch release fork,

remove retaining clip and remove clutch release
fork.

Refit

4. Clean release fork.
5. Examine clutch release fork pivot points for

wear.

6. Apply a smear of Molybdenum disulphide grease

to release fork pivot points.

7. Fit retaining clip ensuring it locates over pivot

point washer.

8. Fit bolt and tighten to 10 Nm (7 lbf.ft).
9. Clean release bearing and bearing sleeve

mating faces.

10. Apply smear of Molybdenum disulphide grease

to release bearing sleeve.

11. Fit release bearing and secure with retaining

peg.

12. Fit gearbox assembly. See MANUAL

GEARBOX, Repair.

CLUTCH - MASTER CYLINDER LH DRIVE

Service repair no - 33.20.01

Remove

1. Remove 3 screws securing closing panel to

lower ’A’ post.

2. Release closing panel sufficient to gain access

to clutch and brake pedal bracket bolts.

3. Remove clutch pedal rubber.

4. Remove 12 bolts securing clutch and brake

pedal brackets to body.
