COOLING SYSTEM

4

DESCRIPTION AND OPERATION

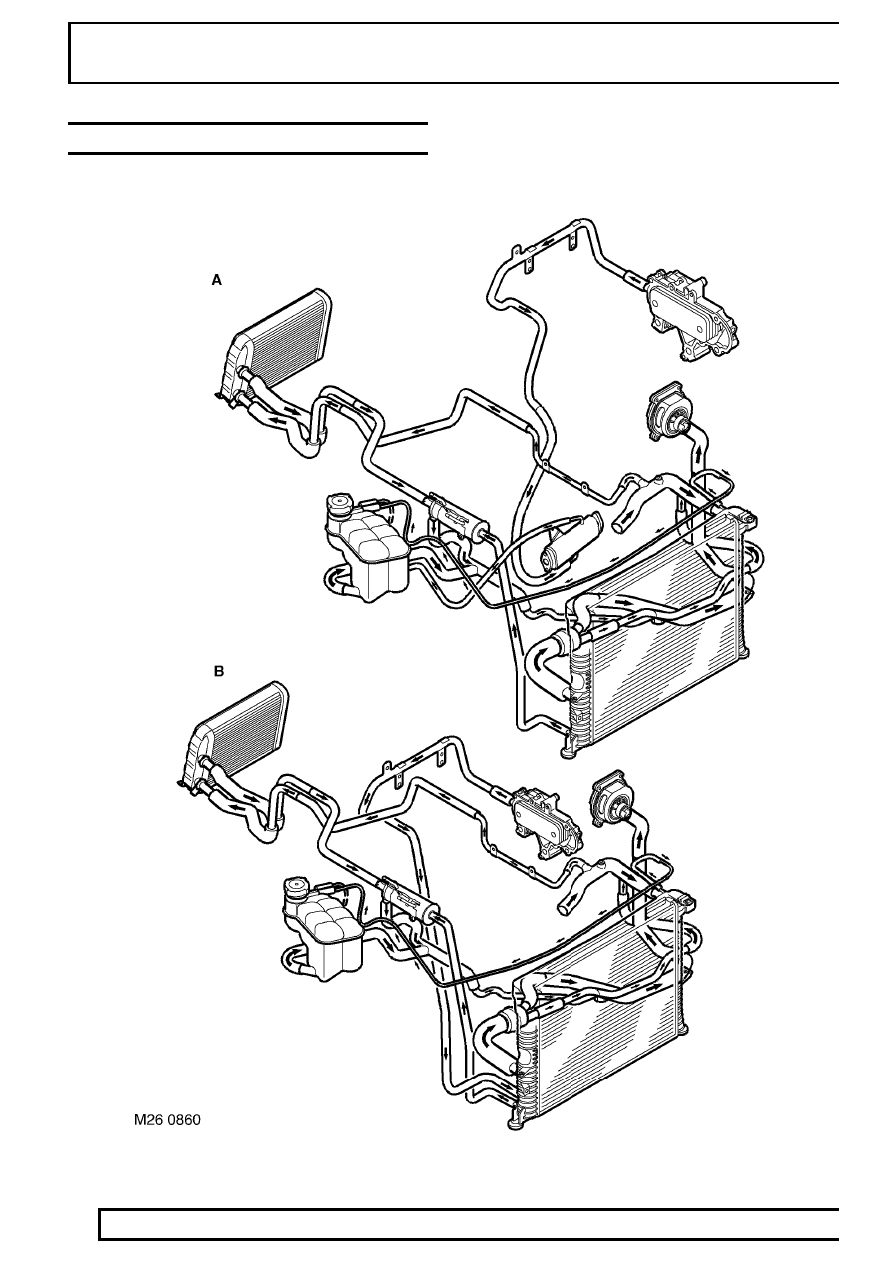

COOLING SYSTEM COOLANT FLOW

COOLING SYSTEM

5

DESCRIPTION AND OPERATION

A - EU 3 Models

B- Pre EU3 Models

GENERAL

The cooling system used on the Diesel engine is a pressure relief by-pass type system which allows coolant to
circulate around the engine block and heater circuit when the thermostat is closed. With coolant not passing
through the by-pass or the radiator promotes faster heater warm-up which in turn improves passenger comfort.

A coolant pump is mounted on a casting behind the PAS pump and is driven from the PAS pump at crankshaft
speed by the auxiliary drive belt. The pump mounting casting connects with passages in the cylinder block and
pumps coolant from the radiator through the cylinder block.

A viscous fan is attached to an idler pulley at the front of the engine. The fan is attached to a threaded spigot on
the pulley with a right hand threaded nut. The fan draws air through the radiator to assist in cooling when the
vehicle is stationary. The fan rotational speed is controlled relative to the running temperature of the engine by a
thermostatic valve regulated by a bi-metallic coil.

The cooling system uses a 50/50 mix of anti-freeze and water.

Thermostat Housing
A plastic thermostat housing is located behind the radiator. The housing has three connections which locate the
radiator bottom hose, top hose and coolant pump feed pipe. The housing contains a wax element thermostat and
a spring loaded by-pass flow valve.

Thermostat - Main valve
The thermostat is used to maintain the coolant at the optimum temperature for efficient combustion and to aid
engine warm-up. The thermostat is closed at temperatures below approximately 82

°

C (179

°

F). When the coolant

temperature reaches approximately 82

°

C the thermostat starts to open and is fully open at approximately 96

°

C

(204

°

F). In this condition the full flow of coolant is directed through the radiator.

The thermostat is exposed to 90% hot coolant from the engine on one side and 10% cold coolant returning from
the radiator bottom hose on the other side.

Hot coolant from the engine passes from the by-pass pipe through four sensing holes in the flow valve into a tube
surrounding 90% of the thermostat sensitive area. Cold coolant returning from the radiator, cooled by the ambient
air, conducts through 10% of the thermostat sensitive area.

In cold ambient temperatures, the engine temperature is raised approximately 10

°

C (50

°

F) to compensate for the

heat loss of 10% exposure to the cold coolant returning from the radiator bottom hose.

26

COOLING SYSTEM

6

DESCRIPTION AND OPERATION

By-pass flow valve
The by-pass flow valve is held closed by a light spring. It operates to further aid heater warm-up. When the main
valve is closed and the engine speed is below 1500 rev/min, the coolant pump does not produce sufficient flow
and pressure to open the valve. In this condition the valve prevents coolant circulating through the by-pass circuit
and forces the coolant through the heater matrix only. This provides a higher flow of warm coolant through the
heater matrix to improve passenger comfort in cold conditions.

When the engine speed increases above 1500 rev/min the coolant pump produces a greater flow and pressure
than the heater circuit can take. The pressure acts on the flow valve and overcomes the valve spring pressure,
opening the valve and limiting the pressure in the heater circuit. The valve modulates to provide maximum coolant
flow through the heater matrix and yet allowing excess coolant to flow into the by-pass circuit to provide the
engines cooling needs at higher engine rev/min.

Outlet Housing
A cast aluminium outlet housing is attached to the cylinder head with three bolts and sealed with a gasket. Coolant
leaves the engine through the outlet housing and is directed through a hose to the heater matrix, the radiator or
the by-pass circuit.

An Engine Coolant Temperature (ECT) sensor is installed in a threaded port on the side of the outlet housing. The
sensor monitors coolant temperature emerging from the engine and sends signals to the Engine Control Module
(ECM) for engine management and temperature gauge operation.

Expansion Tank
The expansion tank is located in the engine compartment. The tank is made from moulded plastic and attached to
brackets on the right hand inner wing. A maximum coolant when cold level is moulded onto the tank.

Excess coolant created by heat expansion is returned to the expansion tank from the radiator bleed pipe at the top
of the radiator. An outlet pipe is connected into the coolant pump feed hose and replaces the coolant displaced by
heat expansion into the system when the engine is cool.

The expansion tank is fitted with a sealed pressure cap. The cap contains a pressure relief valve which opens to
allow excessive pressure and coolant to vent through the overflow pipe. The relief valve is open at a pressure of
1.4 bar (20 lbf.in) and above.

Heater Matrix
The heater matrix is fitted in the heater assembly inside the passenger compartment. Two pipes pass through the
bulkhead into the engine compartment and provide coolant flow to and from the matrix. The pipes from the
bulkhead are connected to the matrix, sealed with ’O’ rings and clamped with circular rings.

The matrix is constructed from aluminium with two end tanks interconnected with tubes. Aluminium fins are
located between the tubes and conduct heat from the hot coolant flowing through the tubes. Air from the heater
assembly is warmed as it passes through the matrix fins. The warm air is then distributed in to the passenger
compartment as required.

When the engine is running, coolant from the engine is constantly circulated through the heater matrix.

COOLING SYSTEM

7

DESCRIPTION AND OPERATION

Radiator
The 44 row radiator is located at the front of the vehicle in the engine compartment. The cross flow type radiator is
manufactured from aluminium with moulded plastic end tanks interconnected with tubes. The bottom four rows are
separate from the upper radiator and form the lower radiator for the fuel cooler. Aluminium fins are located
between the tubes and conduct heat from the hot coolant flowing through the tubes, reducing the coolant
temperature as it flows through the radiator. Air intake from the front of the vehicle when moving carries the heat
away from the fins. When the vehicle is stationary, the viscous fan draws air through the radiator fins to prevent
the engine from overheating.

Two connections at the top of the radiator provide for the attachment of the top hose from the outlet housing and
bleed pipe to the expansion tank. Three connections at the bottom of the radiator allow for the attachment of the
bottom hose to the thermostat housing and the return hose from the oil cooler and the feed hose to the fuel cooler.

The bottom four rows of the lower radiator are dedicated to the fuel cooler. The upper of the two connections at
the bottom of the radiator receives coolant from the oil cooler. This is fed through the four rows of the lower
radiator in a dual pass and emerges at the lower connection. The dual pass lowers the coolant temperature by up
to 24

°

C before being passed to the fuel cooler. Two smaller radiators are located in front of the cooling radiator.

The upper radiator is the intercooler for the air intake system and the lower radiator provides cooling of the
gearbox oil.

Pipes and Hoses
The coolant circuit comprises flexible hoses and metal formed pipes which direct the coolant into and out of the
engine, radiator and heater matrix. Plastic pipes are used for the bleed and overflow pipes to the expansion tank.
A bleed screw is installed in the radiator top hose and is used to bleed air during system filling. A drain plug to
drain the heater and cylinder block circuit of coolant is located on the underside of the coolant pump feed pipe.

Oil Cooler
The oil cooler is located on the left hand side of the engine block behind the oil centrifuge and oil filter. Oil from the
oil pump is passed through a heat exchanger which is surrounded by coolant in a housing on the side of the
engine.

Full water pump flow is directed along the cooler housing which also distributes the flow evenly along the block
into three core holes for cylinder cooling. This cools the engine oil before it is passed into the engine. A small
percentage of the coolant from the oil cooler passes into a metal pipe behind the engine. It then flows into the
lower radiator via a hose.

Fuel Cooler
The fuel cooler is located on the right hand side of the engine and is attached to the inlet manifold. The cooler is
cylindrical in design and has a coolant feed connection at its forward end. A ’T’ connection at the rear of the cooler
provides a connection for the coolant return from the heater matrix and coolant return from the fuel cooler.

The ’T’ connection houses a thermostat which opens at approximately 82

°

C. This prevents the cooler operating in

cold climates. Two quick release couplings on the cooler allow for the connection of the fuel feed from the
pressure regulator and return to the fuel tank. A counter flow system is used within the cooler.

Fuel flows around a coolant jacket within the cooler and flows from the back to the front of the cooler. As the hot
fuel cools travelling slowly forwards it meets progressively colder coolant travelling in the opposite direction
maintaining a differential cooling effect.
