Defender (1999-2002). Manual - part 63





19

FUEL SYSTEM

10

REPAIR

POTENTIOMETER - THROTTLE

Service repair no - 19.30.14

Remove

NOTE: The throttle potentiometer is an
integral part of the throttle pedal assembly
and must not be dismantled.

1. With assistance remove 2 nuts and bolts

securing throttle pedal to body.

2. Disconnect multiplug from throttle potentiometer

and remove throttle pedal.

Refit

NOTE: From Vin 607225 a three track
throttle potentiometer was fitted in place
of a two track potentiometer. Three track

potentiometers cannot be fitted to vehicles
previously fitted with two track potentiometers.
Two track potentiometers can be fitted to vehicles
previously fitted with three track potentiometers,
but TestBook must be used to configure the ECM.

3. Connect multiplug to throttle potentiometer.
4. Position throttle pedal assembly, tighten nuts

and bolts to 25 Nm (18 lbf.ft).

PUMP - FUEL

Service repair no - 19.45.08

Remove

1. Remove fuel tank. See this Section.

2. Using LRT-19-009 remove locking ring from fuel

pump housing.

3. Remove fuel pump from tank and discard

sealing ring.

Refit

4. Clean pump housing and mating face on fuel

tank.

5. Fit seal to pump housing.
6. Fit pump to fuel tank and secure with locking

ring.

7. Fit fuel tank. See this Section.

FUEL SYSTEM

11

REPAIR

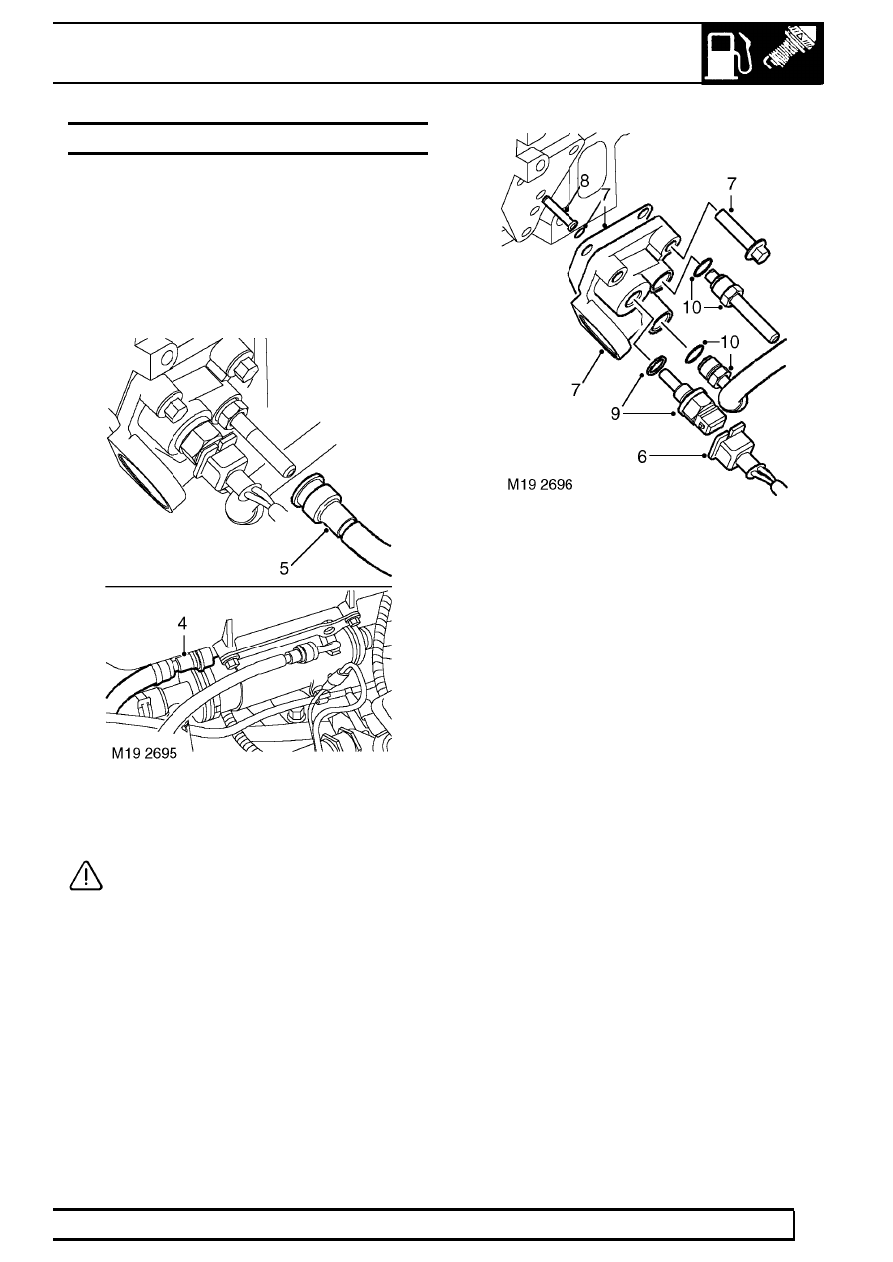

REGULATOR - FUEL PRESSURE

Service repair no - 19.45.06

Remove

1. Remove battery cover.
2. Disconnect battery negative lead.
3. Remove 3 bolts and remove engine acoustic

cover.

4. Release hose from fuel cooler.
5. Release fuel hoses from pressure regulator.

CAUTION: Plug the connections.

6. Disconnect multiplug from fuel temperature

sensor.

7. Remove 3 bolts, remove pressure regulator from

cylinder head and collect gasket and ’O’ring.

8. Remove fuel filter from cylinder head.
9. Remove fuel temperature sensor and discard

sealing washer.

10. Remove fuel hose and fuel pipe and discard ’O’

rings.

Refit

11. Clean fuel pressure regulator, mating face and

fuel filter.

12. Clean fuel pipe unions.
13. Fit fuel pipe and fuel hose to pressure regulator

using new ’O’ rings.

14. Fit fuel temperature sensor using new sealing

washer and tighten to 14 Nm (11 lbf.ft) .

15. Fit fuel filter to cylinder head.
16. Using a new gasket and ’O’ ring position

pressure regulator and tighten bolts to 25 Nm
(18 lbf.ft)
.

17. Connect fuel temperature sensor.
18. Connect fuel hoses to pressure regulator and

fuel cooler.

19. Fit engine acoustic cover.
20. Reconnect battery negative lead.
21. Fit battery cover.

19

FUEL SYSTEM

12

REPAIR

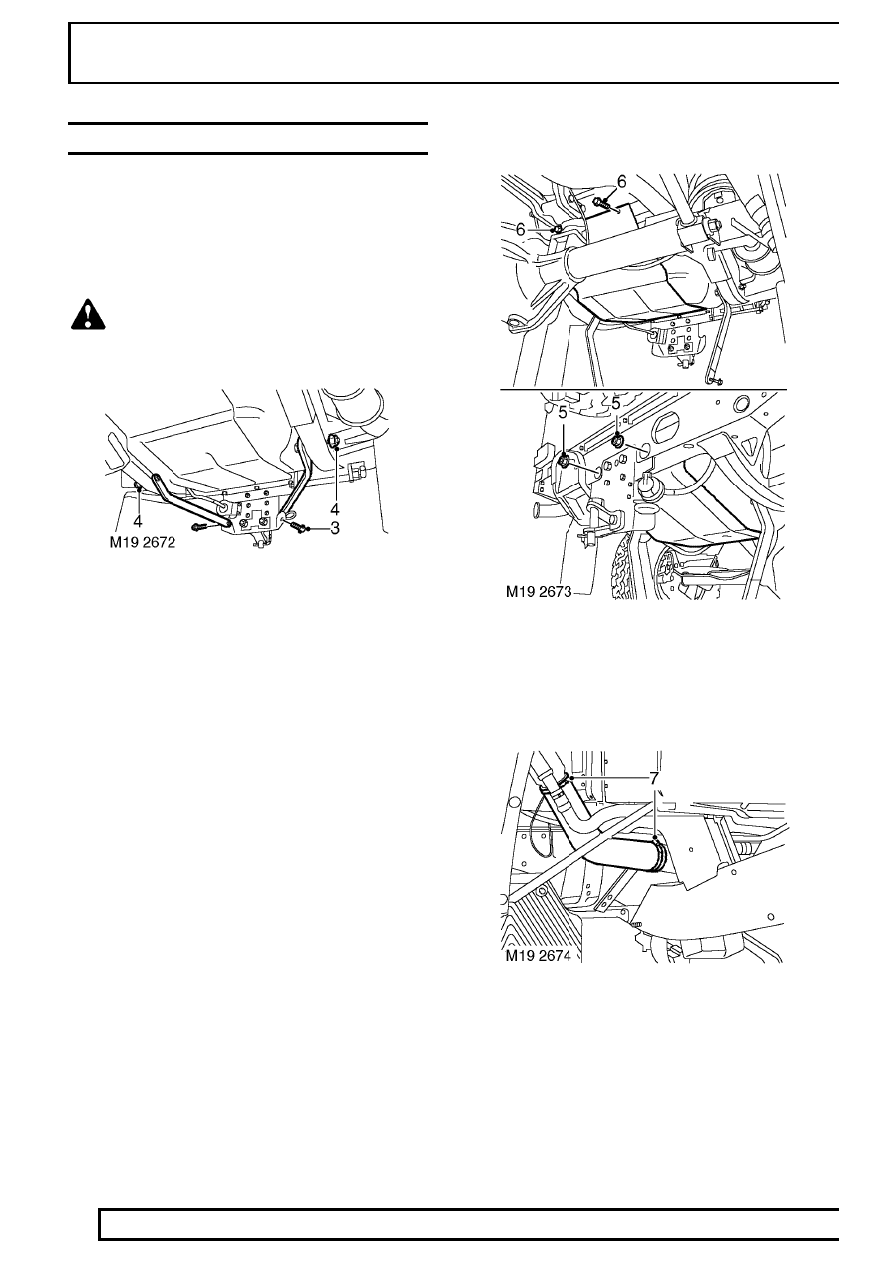

FUEL TANK

Service repair no - 19.55.01

Remove

1. Drain fuel tank. See Adjustment.
2. Raise rear of vehicle.

WARNING: Support on safety stands.

Vehicles fitted with tow bar

3. Remove 2 bolts securing support bars to drop

plate.

4. Loosen 2 nuts securing support bars to chassis.

All Vehicles

5. Remove 2 nuts securing fuel tank support to rear

chassis member.

6. Remove 2 bolts securing fuel tank support plate

to chassis member.

7. Release clip securing filler hose and release

hose from filler neck.

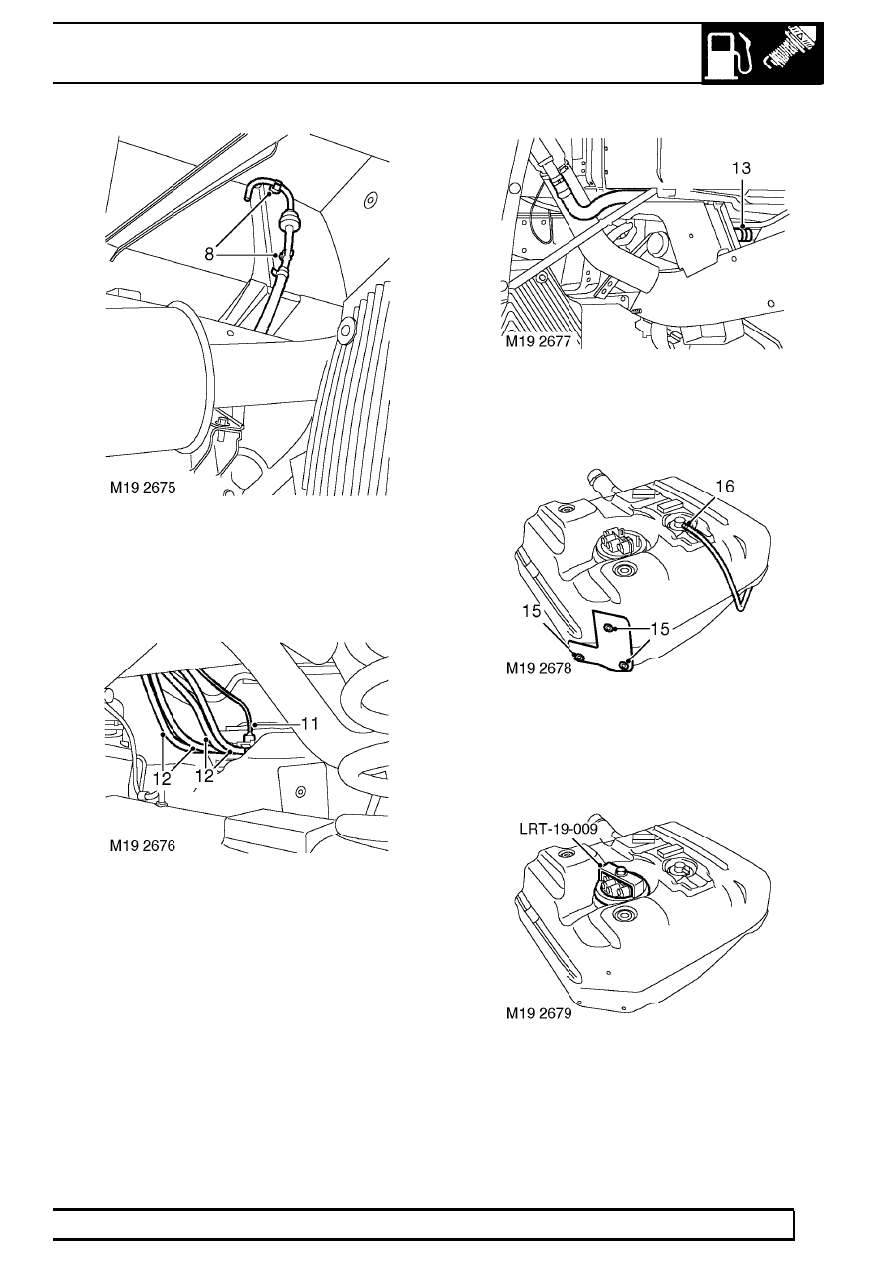

FUEL SYSTEM

13

REPAIR

8. Disconnect vent hose from clips on rear chassis

member.

9. Support weight of fuel tank.

10. With assistance, lower fuel tank and remove

support plate.

11. Disconnect multiplug from fuel pump.
12. Noting their fitted position, disconnect 4 fuel

hoses from fuel pump.

13. Release clip and disconnect filler neck breather

from fuel tank.

14. With assistance, lower and remove fuel tank.

15. Remove 2 scrivits securing heat shield remove

heat shield.

16. Release clip securing breather hose to tank and

remove hose.

17. Using LRT-19-009 remove fuel pump locking

ring.

18. Remove fuel pump and discard sealing ring.
