FUEL SYSTEM

11

DESCRIPTION AND OPERATION

OPERATION

The low pressure stage of the fuel pump draws fuel from the swirl pot and pumps it into the fuel filter. The high
pressure stage of the fuel pump draws the fuel from the fuel filter and pumps it along the fuel feed pipe to the
cylinder head.

The fuel enters the cylinder head through a connection on the fuel pressure regulator housing and supplies each
injector with pressurised fuel. The fuel pressure regulator maintains the fuel pressure at the injectors at 4 bar (58
lbf.in) by returning excess fuel back to the fuel filter. The returned fuel passes through the fuel cooler in the engine
compartment before it passes to the fuel filter.

When the engine is running, each injector is operated by an overhead camshaft which depresses a push rod in
each injector at a timed interval. When the cam has depressed the push rod and the push rod is returning to its
extended position, fuel is drawn from the fuel supply drilling in the injector.

When the ECM determines that injection is required, the ECM transmits an electrical pulse which energises the
fast acting solenoid, closing the spill valve on the injector and locking fuel in the injector body. As the cam begins
to depress the push rod, the fuel in the injector is rapidly pressurised. When the pressure exceeds the nozzle
spring pressure, the nozzle opens and injects fuel at very high pressure into the cylinder.

When the ECM determines that the injection period should end, the solenoid is rapidly de-energised, opening the
spill valve on the injector and allowing fuel to pass into the return circuit.

The ECM controls the injection timing by altering the time at which the solenoid is energised, and the injection
period by controlling the period for which the solenoid is energised.

FUEL SYSTEM

1

ADJUSTMENT

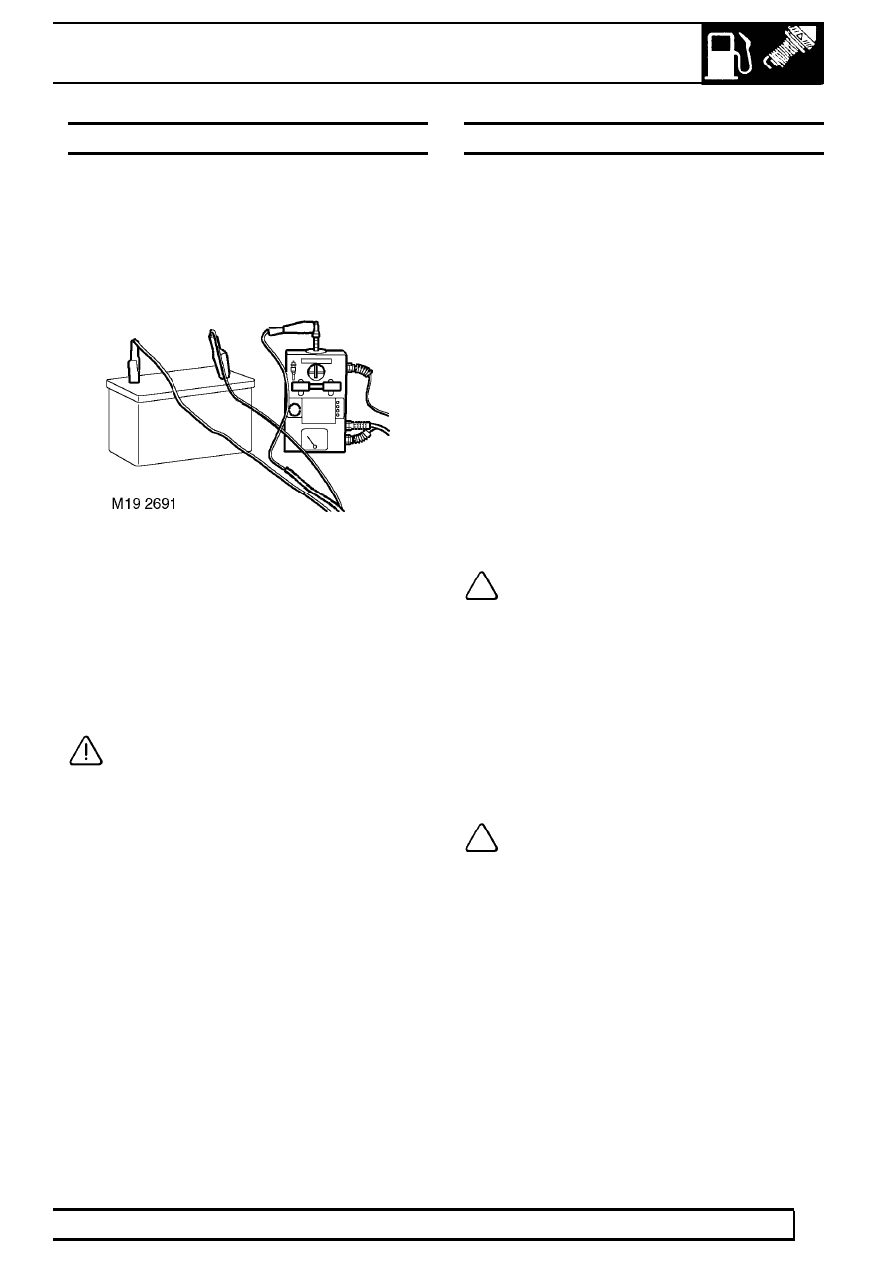

HEATER PLUG TEST

Service repair no - 19.90.20.01

Check

1. Test out of engine
2.
Remove heater plug. See Repair.

3. Using LRT-12-511, connect RED lead to battery

’+’ positive and the BLACK lead to battery ’-’
negative.

4. Position heater plug into tester and retain with

spring loaded bar.

5. Connect YELLOW lead to heater plug terminal.
6. Press red button on tester and note ammeter

reading. Keep button depressed, heater plug tip
should start to glow after 5 seconds

CAUTION: The heater plug tip must glow
first, if it fails to do so, replace heater plug.

7. The ammeter reading should show an initial

current draw of 25 amps, which should fall to 12
amps after 20 seconds.

8. Refit heater plug. See Repair.

FUEL SYSTEM - BLEED

Service repair no - 19.50.07

Fuel Purging Procedure

1. If the vehicle runs out of fuel, or the fuel level is

so low that the fuel system draws air into the fuel
rail, the fuel rail will need to be purged before the
engine will start. This can be achieved by
following a set procedure. The process does not
require the use of any specialist equipment and
can be performed by the driver of the vehicle.
The process is as follows:

2. Switch off ignition and wait 15 seconds.
3. Turn ignition key to position 2 and wait 3

minutes, (this ensures that the fuel system
purges all the air from the fuel rail within the
cylinder head).

4. Depress the throttle pedal to more than 90% of

its total travel, (to the throttle stop).

5. Crank the engine keeping the throttle pedal

depressed.

NOTE: This operation is controlled by the
ECM and it is important that the purging
operation is not carried out on a vehicle

that has not run out of fuel. If it is carried out
unnecessarily it can lead to the engine flooding
and failing to start.
This operation will be cancelled:

6. As soon as engine speed exceeds 600 rev/min.
7. The driver allows the throttle pedal to close to a

position less than 90% of its travel.

8. The ignition key is released from the start

position.

NOTE: The engine must not be cranked for
more than 30 seconds in any one period.

9. Repeat the above procedure if the engine fails to

start.

19

FUEL SYSTEM

2

ADJUSTMENT

FUEL TANK - DRAIN

Service repair no - 19.55.02

1. Remove battery cover.
2. Disconnect both leads from battery, earth lead

first.

WARNING: Fuel vapour is highly
flammable and in contained spaces is also
explosive and toxic. Always have a fire

extinguisher containing FOAM, CO2, GAS OR
POWDER close at hand when handling or draining
fuel.

3. Using a fuel recovery appliance, drain the fuel

from the tank into a sealed container. Follow the
manufacturers instructions for the connection
and safe use of the appliance.

4. Remove filler cap and insert hose into filler neck.
5. Connect bowser earth line. Drain fuel.
6. Connect battery leads.
7. Fit battery cover.

FUEL SYSTEM

1

REPAIR

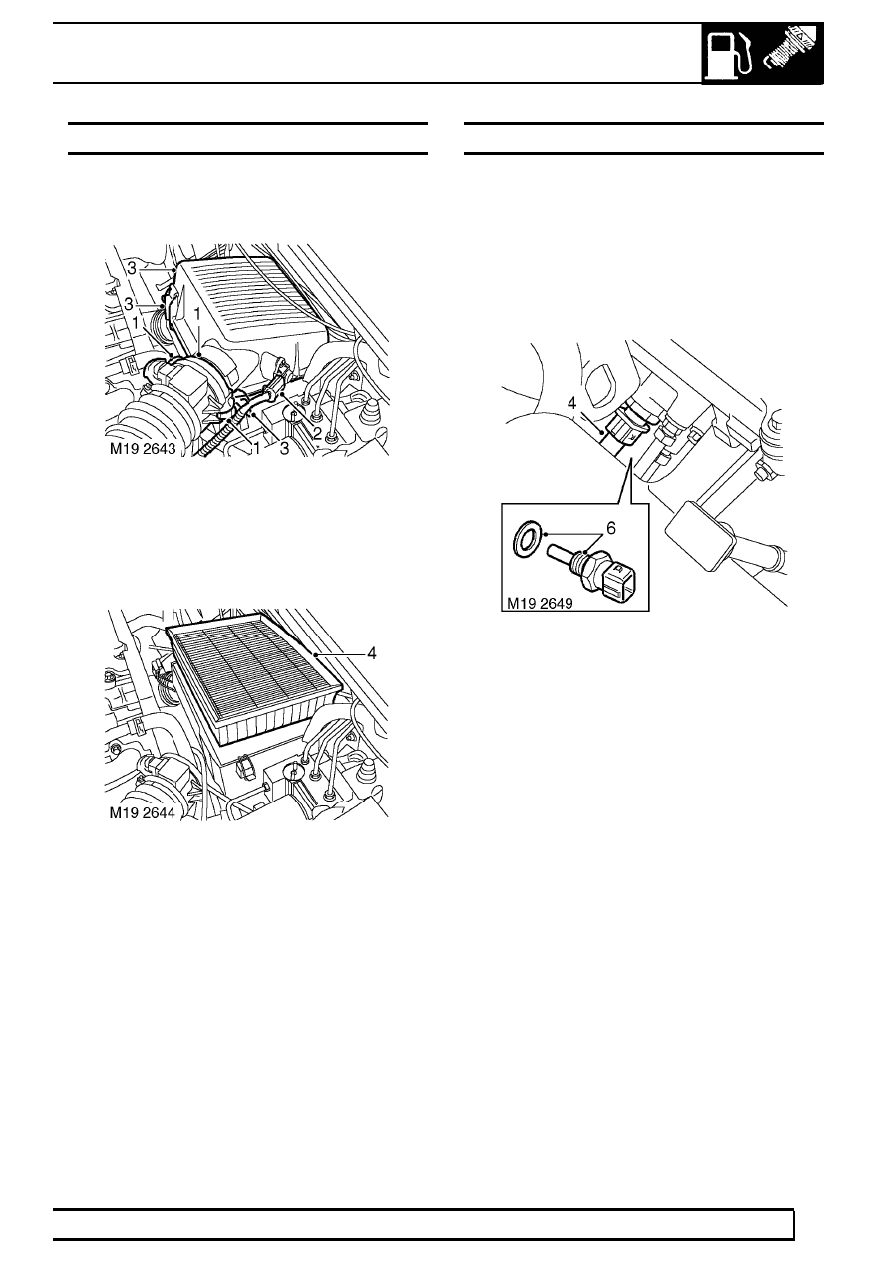

ELEMENT - AIR FILTER

Service repair no - 19.10.10

Remove

1. Release 2 clips and disconnect air flow meter

from air filter cover.

2. Disconnect multiplug from AAP sensor.
3. Release 2 clips and remove cover from air filter.

4. Remove air filter element.

Refit

5. Clean air filter body and cover.
6. Fit new air filter element.
7. Position air cleaner cover and secure clips.
8. Position air flow meter and secure clips.
9. Connect AAP sensor multiplug.

SENSOR - FUEL TEMPERATURE

Service repair no - 19.22.08

Remove

1. Remove 3 bolts and remove engine acoustic

cover.

2. Release fixings and remove battery cover.
3. Disconnect battery negative lead.

4. Disconnect multiplug from fuel temperature

sensor.

5. Thoroughly clean area around fuel temperature

sensor before removal.

6. Remove fuel temperature sensor and discard

sealing washer.

Refit

7. Clean fuel temperature sensor mating faces.
8. Fit new sealing washer and tighten fuel

temperature sensor to 13 Nm (9 lbf. ft) .

9. Connect multiplug to fuel temperature sensor.

10. Reconnect battery negative lead.
11. Fit battery cover and secure fixings.
12. Fit engine acoustic cover and secure with bolts.
