Defender (1999-2002). Manual - part 35





ENGINE

31

REPAIR

All Models

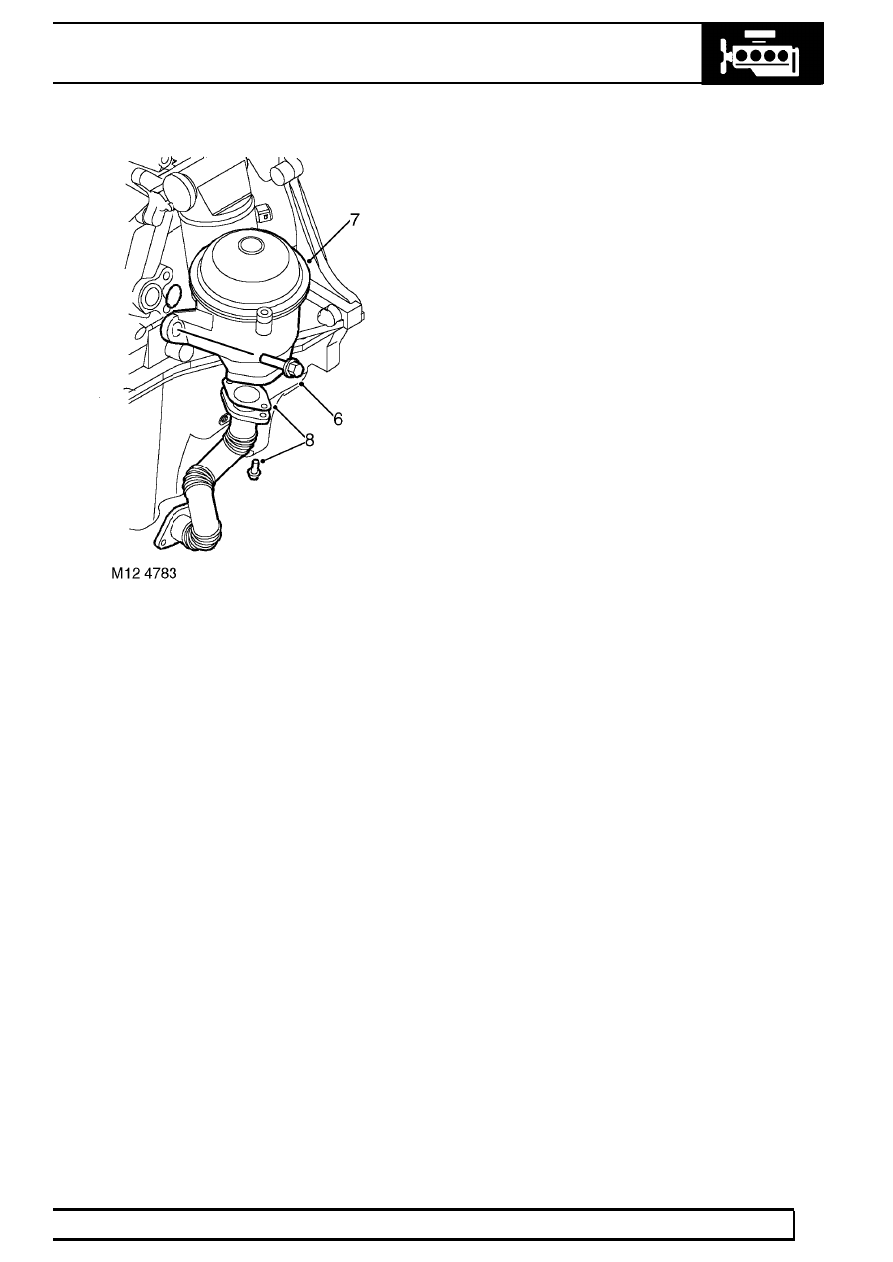

6. Remove 3 bolts securing centrifuge to engine oil

cooler.

7. Remove centrifuge and discard ’O’ ring.
8. Remove 2 bolts, remove drain pipe from

centrifuge and discard gasket.

Refit

9. Clean mating faces of centrifuge, oil cooler and

sump.

10. Position drain pipe to centrifuge using new

gasket and tighten bolts to 10 Nm (7 lbf.ft) .

11. Position new ’O’ ring to oil cooler.
12. Position centrifuge and tighten bolts to 25 Nm

(18 lbf.ft) .

13. Align drain pipe to sump, fit new gasket and

tighten bolts to 10 Nm (7 lbf.ft)

Models with air conditioning only

14. Position compressor and tighten bolts to 25 Nm

(18 lbf.ft) .

15. Fit auxiliary drive belt. See ELECTRICAL,

Repair.

All Models

16. Fit turbocharger. See FUEL SYSTEM, Repair.
17. Fit underbelly panel. See CHASSIS AND

BODY, Repair.

12

ENGINE

32

REPAIR

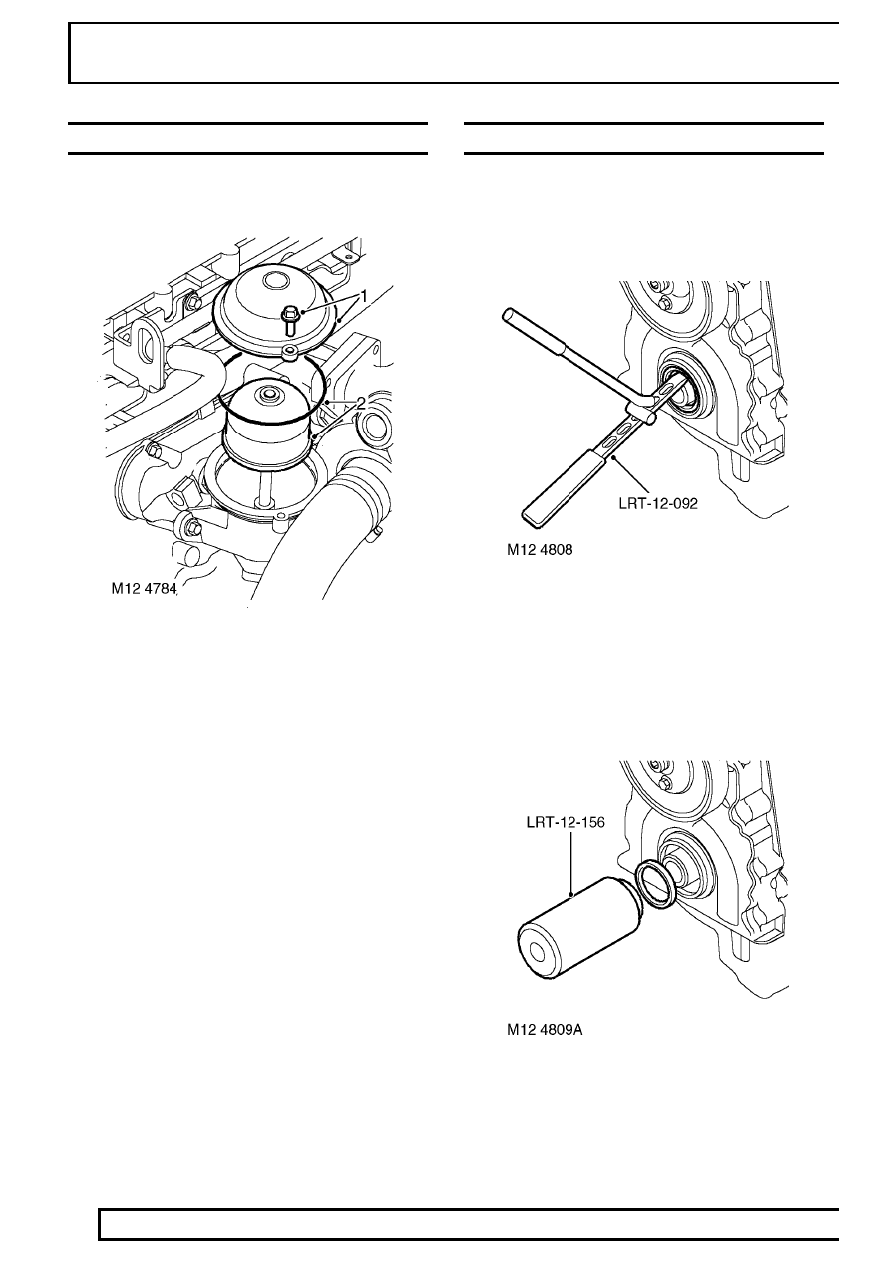

ROTOR - CENTRIFUGE

Service repair no - 12.60.91

Remove

1. Remove 2 bolts and remove centrifuge cover.
2. Remove and discard ’O’ ring and rotor

Refit

3. Clean centrifuge body and cover.
4. Fit new rotor.
5. Fit centrifuge cover using new ’O’ ring and

tighten bolts to 9 Nm (7 lbf.ft) .

OIL SEAL - TIMING COVER

Service repair no - 12.65.05

Remove

1. Remove crankshaft pulley. See this Section.

2. Position LRT-12-092 into crankshaft front oil seal

and discard seal.

Refit

3. Using a lint free cloth, thoroughly clean oil seal

recess and the running surface on crankshaft
pulley.

4. Position new seal into timing chain housing. Drift

seal into place using LRT-12-156 .

5. Remove LRT-12-156 .
6. Fit crankshaft pulley. See this Section.

ENGINE

33

REPAIR

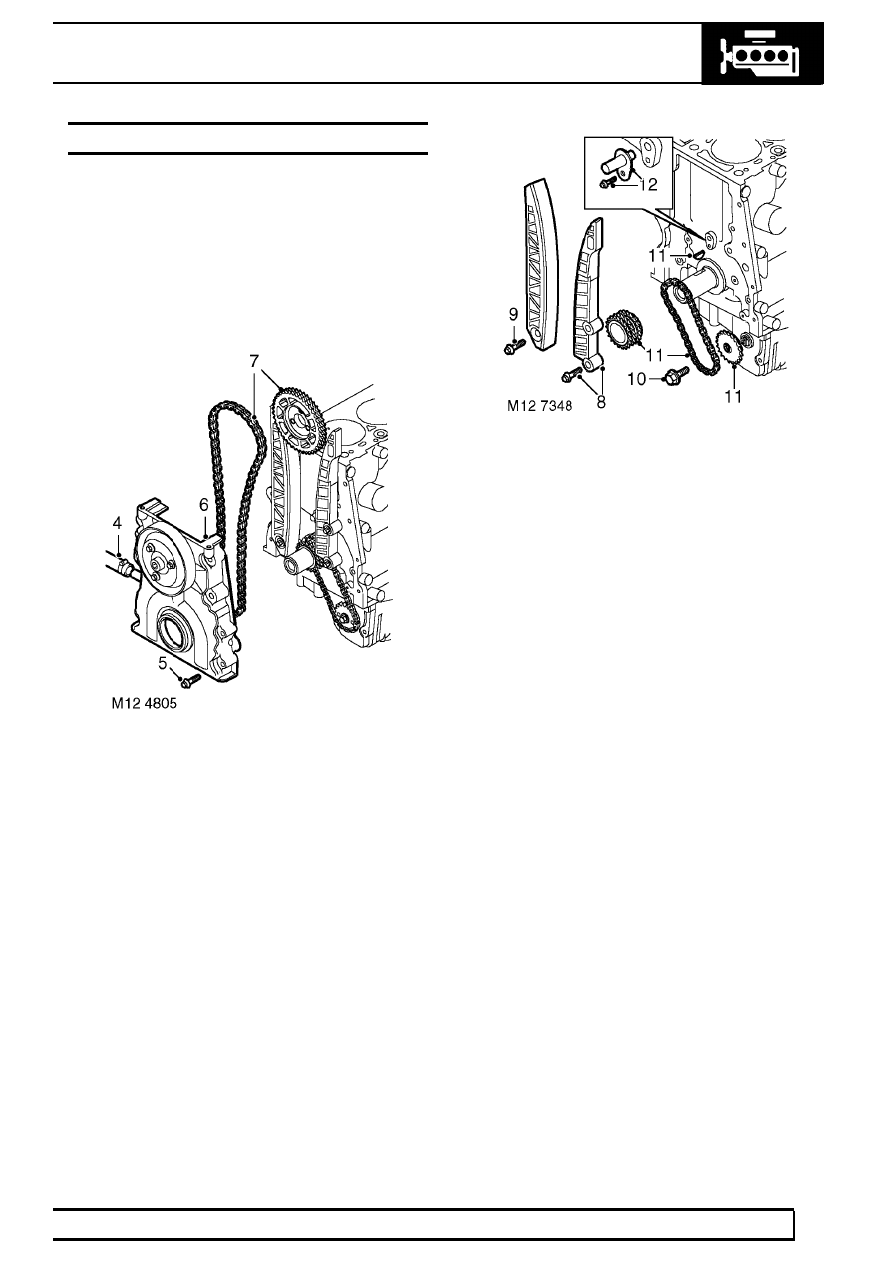

TIMING CHAIN AND SPROCKETS

Service repair no - 12.65.13

Remove

1. Remove crankshaft front oil seal. See this

Section.

2. Remove cylinder head gasket. See this

Section.

3. Remove sump gasket. See this Section.

4. Release clip securing vacuum pump drain hose

to timing chain cover.

5. Remove 8 bolts securing timing chain cover.
6. Remove cover.
7. Remove timing chain and camshaft sprocket.

8. Remove 2 bolts and remove timing chain fixed

guide.

9. Remove bolt and remove timing chain adjustable

guide.

10. Remove bolt securing oil pump drive sprocket.
11. Remove crankshaft sprocket, oil pump drive

chain and sprocket.

12. Remove bolt and remove timing chain lubrication

jet.

Refit

13. Clean timing chain lubrication jet.
14. Fit lubrication jet and tighten bolt to 10 Nm (7

lbf.ft) .

15. Clean oil pump drive sprocket bolt threads.
16. Clean timing sprockets and chain guides.
17. Ensure that crankshaft is set to TDC firing No. 1

cylinder.

18. Fit oil pump drive chain to crankshaft sprocket

and fit sprocket to crankshaft.

19. Fit sprocket to oil pump.
20. Apply Loctite 242 to oil pump sprocket bolt

threads and tighten bolt to 25 Nm (18 lbf.ft) .

21. Fit timing chain fixed guide and tighten M10 bolt

to 45 Nm (34 lbf.ft) and M6 bolt to 10 Nm (7
lbf.ft)
.

22. Fit timing chain adjustable guide and tighten bolt

to 25 Nm (18 lbf.ft).

12

ENGINE

34

REPAIR

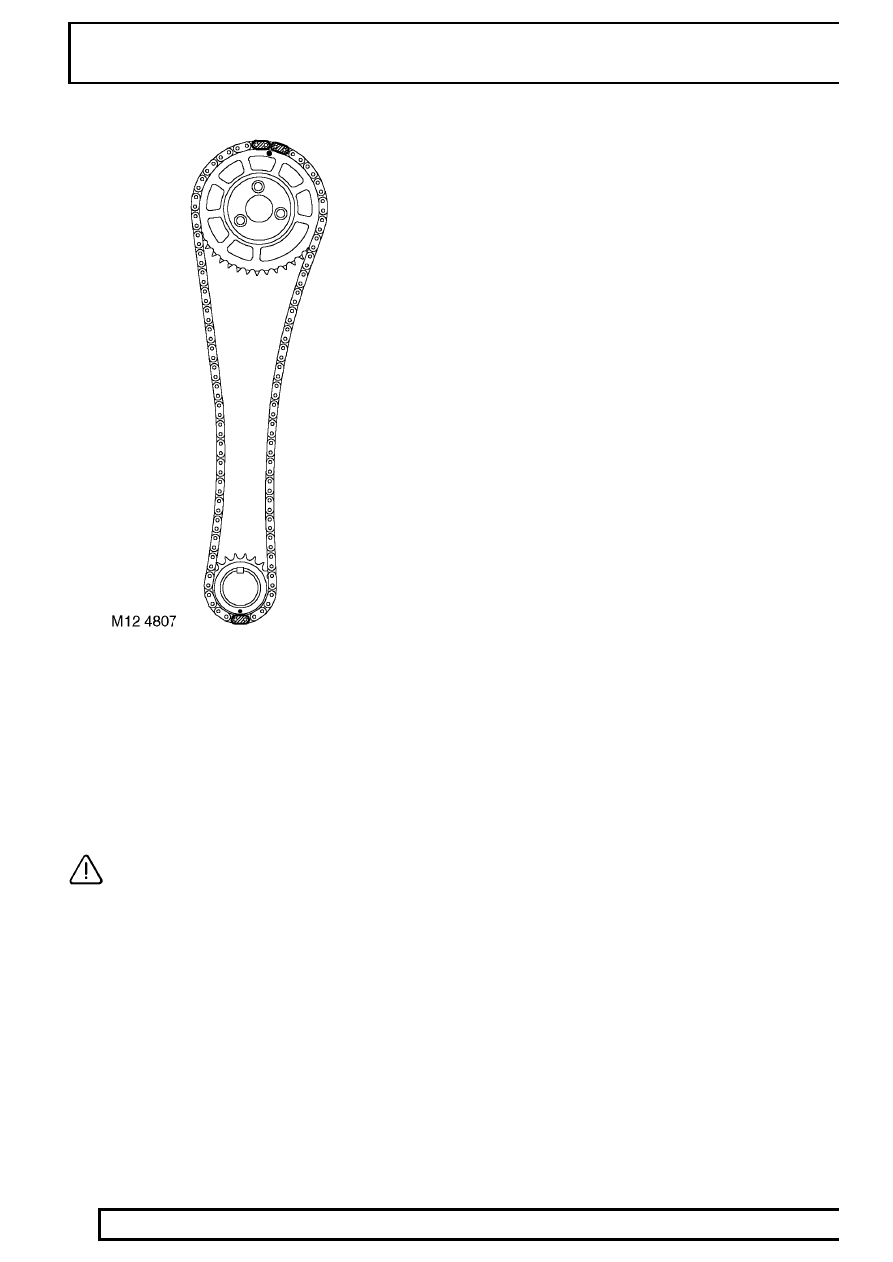

23. Fit camshaft sprocket to timing chain with timing

mark between the 2 bluelinks.

24. Fit timing chain to crankshaft sprocket aligning

blue link to timing mark.

25. Clean timing cover and mating face.
26. Apply an even film of sealant, Part No. STC

4600 to timing cover and spread to an even film
using a roller.

CAUTION: Assembly and bolt tightening
must be completed within 20 minutes of
applying sealant.

27. With assistance, fit timing cover, connect

vacuum pump drain hose and working
progressively, tighten bolts to 27 Nm (20 lbf.ft) .

28. Secure vacuum hose clip.
29. Fit cylinder head gasket. See this Section.
30. Fit sump gasket. See this Section.
31. Fit crankshaft front oil seal. See this Section.
