10 - MAINTENANCE

CONTENTS

Page

MAINTENANCE

UNDERBONNET VIEW - Td5

1

..............................................................................

SEATS AND SEAT BELTS

2

..................................................................................

LAMPS, HORNS AND WARNING INDICATORS

2

................................................

WIPERS AND WASHERS

3

...................................................................................

HANDBRAKE

3

.......................................................................................................

BATTERY CONDITION - Td5

4

..............................................................................

HANDSET BATTERY

5

...........................................................................................

HEADLAMP ALIGNMENT

5

....................................................................................

ROAD WHEELS

6

...................................................................................................

TYRE PRESSURES, CONDITION AND TREAD DEPTH

6

....................................

BRAKE PADS, CALIPERS AND DISCS

7

..............................................................

ROAD WHEEL SPEED SENSOR HARNESS - Td5

7

............................................

FUEL FILTER ELEMENT

8

.....................................................................................

FUEL FILTER SEDIMENTER - Td5

8

.....................................................................

INTERCOOLER / COOLING SYSTEM

9

................................................................

AMBIENT AIR PRESSURE (AAP) SENSOR - Td5

9

..............................................

DOOR LOCKS AND HINGES

10

............................................................................

ENGINE COOLANT

10

...........................................................................................

BRAKE FLUID

11

....................................................................................................

AIR FILTER ELEMENT AND DUMP VALVE

11

.....................................................

AUXILIARY DRIVE BELT

12

...................................................................................

PAS FLUID, CLUTCH FLUID AND SCREEN WASHER LEVELS

12

.....................

STEERING BOX

13

................................................................................................

ENGINE OIL

14

.......................................................................................................

CENTRIFUGE ROTOR - Td5

14

.............................................................................

FULL FLOW OIL FILTER

15

...................................................................................

GEARBOX OIL

15

...................................................................................................

TRANSFER BOX OIL

16

.........................................................................................

FRONT AND REAR AXLE OIL

17

..........................................................................

PROPELLER SHAFTS

18

.......................................................................................

CLUTCH PIPES AND UNIONS

18

..........................................................................

PAS PIPES AND UNIONS

19

.................................................................................

ENGINE, GEARBOX, TRANSFER BOX AND AXLES

19

.......................................

EXHAUST SYSTEM

20

...........................................................................................

STEERING BOX AND SUSPENSION

20

...............................................................

STEERING BALL JOINTS

21

.................................................................................

SHOCK ABSORBERS

22

.......................................................................................

TOWING BRACKET

22

...........................................................................................

ENGINE AND TRANSMISSION MOUNTINGS

23

..................................................

10 - MAINTENANCE

CONTENTS

Page

ROAD TEST

23

......................................................................................................

ENDORSE SERVICE RECORD

24

........................................................................

REPORT ANY UNUSUAL FEATURES

24

.............................................................

MAINTENANCE

1

MAINTENANCE

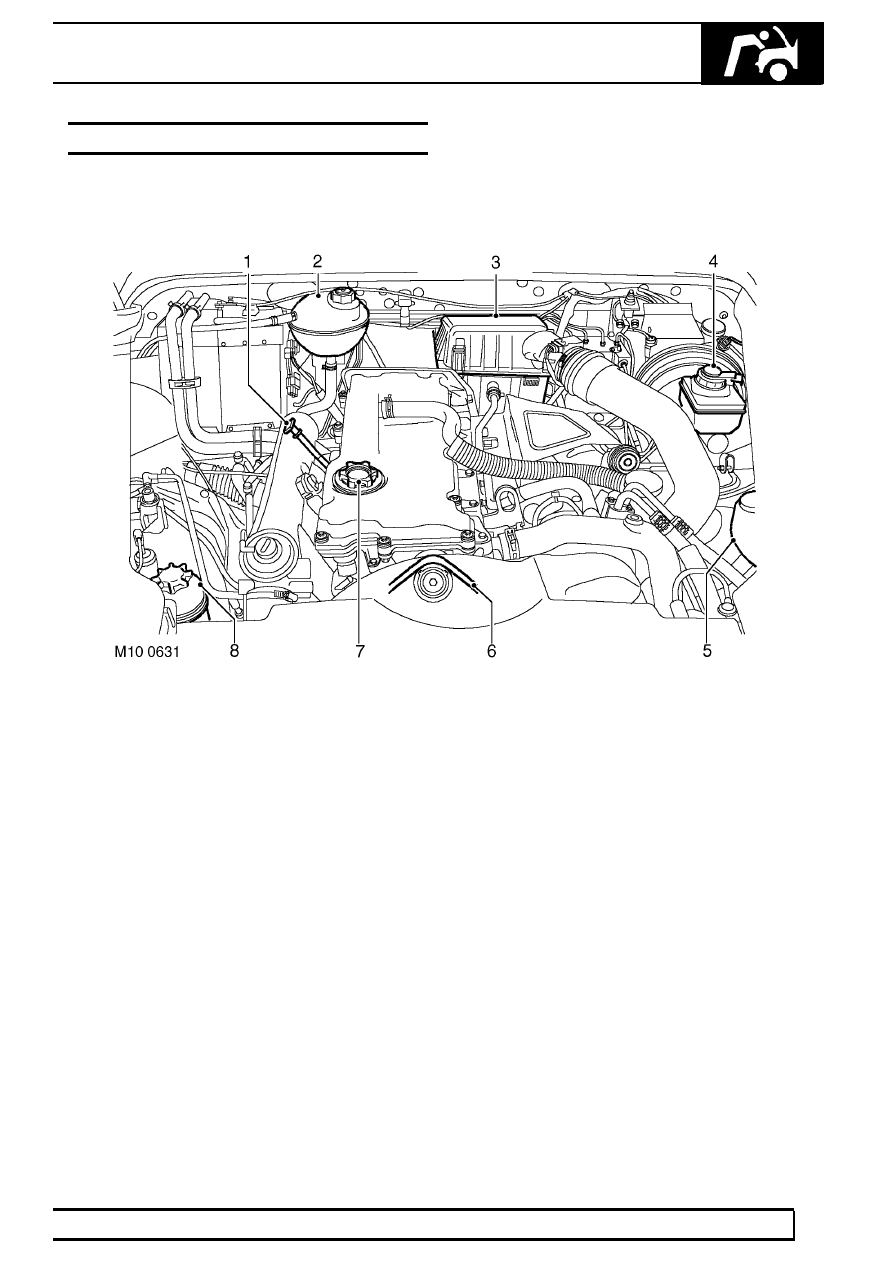

UNDERBONNET VIEW - Td5

LHD shown

1. Engine oil dipstick
2. Coolant expansion tank
3. Air cleaner
4. Brake/clutch fluid reservoir filler cap

5. Windscreen washer reservior
6. Auxiliary drive belt
7. Engine oil filler cap
8. PAS fluid reservoir

10

MAINTENANCE

2

MAINTENANCE

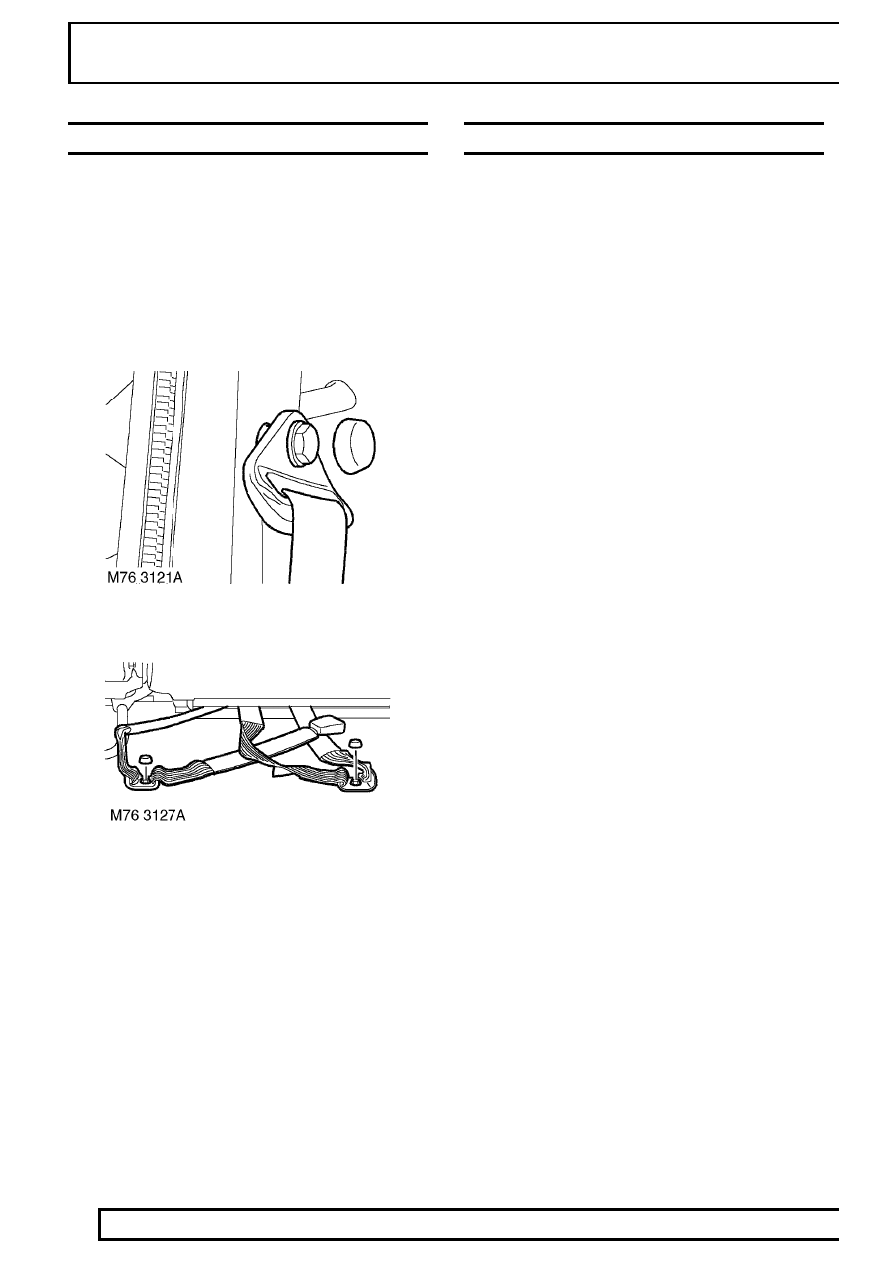

SEATS AND SEAT BELTS

1. Check seat frames are secured to floor and

show no signs of movement.

2. Check operation of seat slide and tilt

mechanisms, ensuring there is no excessive
play between seat cushion and seat back.

3. Check tightness of accessible seat fixings.
4. Fully extract seat belt and allow it to return under

its own recoil mechanism.

5. Check entire length of seat belt webbing for

signs of fraying or damage. Repeat for all belts.

6. Check security of seat belt upper mountings.

7. Check security of seat belt buckle mountings.
8. Connect each belt to the correct buckle, check

seat belt buckle and tongue are secure. Release
seat belt buckle and check for correct operation.

9. Check tightness of accessible seat belt

mountings

LAMPS, HORNS AND WARNING INDICATORS

1. Switch on side, head and tail lights and check

operation.

2. Check headlamp dim/dip operation.
3. Check headlamp levelling operation.
4. Check turn signals and hazard warning lights

operation.

5. Press brake pedal and check operation of brake

lights.

6. Check all exterior lamp lenses for clarity and

condition. Pay particular attention to head lamp
lenses for signs of stone chips or damage.

7. Check horn for loud clear sound.
8. Check operation of all instrument pack warning

and indicator lights.

9. Check for correct operation of interior courtesy

lights.
