Defender (1993+). Manual - part 116





SECTION

Body

..................................................................

SECTION

Electrical

...........................................................

Published by Rover Technical Communication

Publication Part No. LRL0076USA

©1996

Rover Group Limited

BODY AND ELECTRICAL CONTENTS

Section

Number

Page

Rear seat cushion

.........................................................................................................

Rear seat squab

............................................................................................................

Rear seat belts

..............................................................................................................

Side trim panel

..............................................................................................................

Interior roll-over bar

.......................................................................................................

Cubby box

.....................................................................................................................

Rear grab handle

..........................................................................................................

..................................................................................  7

- Rear

speaker panel

........................................................................................................

.........................................................................................

Rear door trim casing

....................................................................................................

Sun roof

10

-  Front  headlining

..........................................................................................................

11

Interior rear view mirror  ................................................................................

Sun visors

...................................................................................................................

12

Front seat belts

...........................................................................................................

13

Rear end trim panel

.......................................................................................................

.......................................................................................................................

-  Exterior

roll-over  bar

...................................................................................................

14

Rear tow bar

...........................................................................................................15

Rear wiper motor

...........................................................................................................

Switch panel

rear door services

..................................................................................

Switches

tailgate functions

.........................................................................................

Interior lamp

..................................................................................................................

High level stop lamp

.......................................................................................................

Radio speaker

rear

.....................................................................................................

..............................................................................................

High level stop lamp bulb

- Rear end lining

- Rear headlining

12

BODY

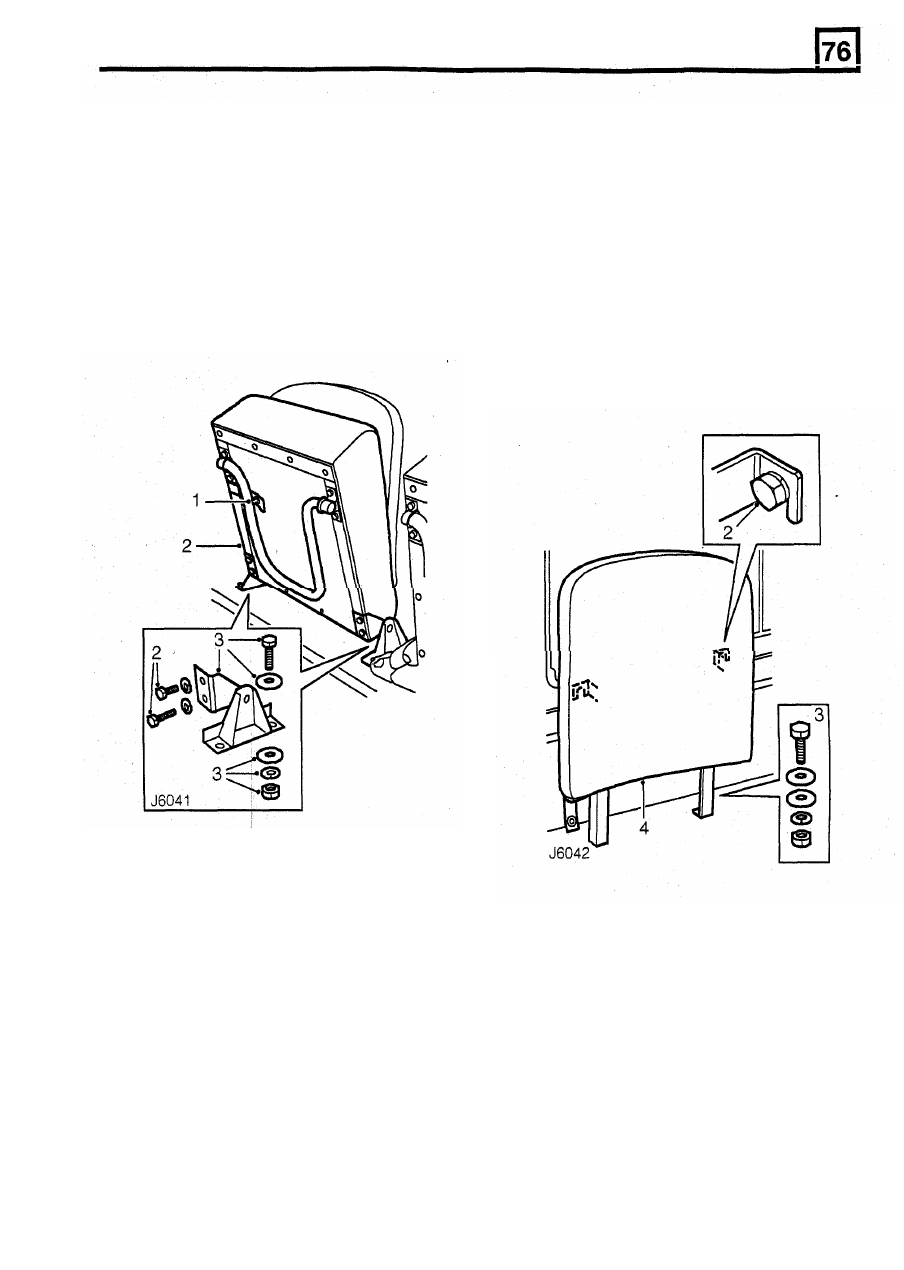

REAR SEAT CUSHION

REAR SEAT

SQUAB

Service repair no

76.71.26

Service repair no -

76.71.24

Remove

Remove

1.

Release seat cushion stowage strap.

2.  Remove four bolts and spring washers and lift

seat cushion.

seat cushion from pivot brackets.

3.  Remove four bolts, plain washers, spring

to body side.

washers and nuts. Detach both pivot brackets
from wheel arch.

1.

Release seat cushion stowage strap and lower

2.

Slacken two bolts securing seat squab brackets

3.  Remove two bolts, plain washers, spring

washers and nuts securing seat squab to wheel
arch.

4.

Lift seat squab and release brackets from
retaining bolts.

Refit

4.

Secure pivot brackets

to wheel arch and tighten

bolts to

10

Nm

(7 Ibf.ft).

5.

Position seat cushion in pivot brackets and

secure with four bolts and spring washers.

6.

Fit stowage strap.

Refit

5.

Lower seat squab brackets over retaining bolts,

6.  Secure seat squab to wheel arch, tighten bolts to

tighten bolts to

10

Nm (7 Ibf.ft).

10 Nm (7 Ibf.ft).

7 .   Raise seat cushion and fit stowage strap.

BODY

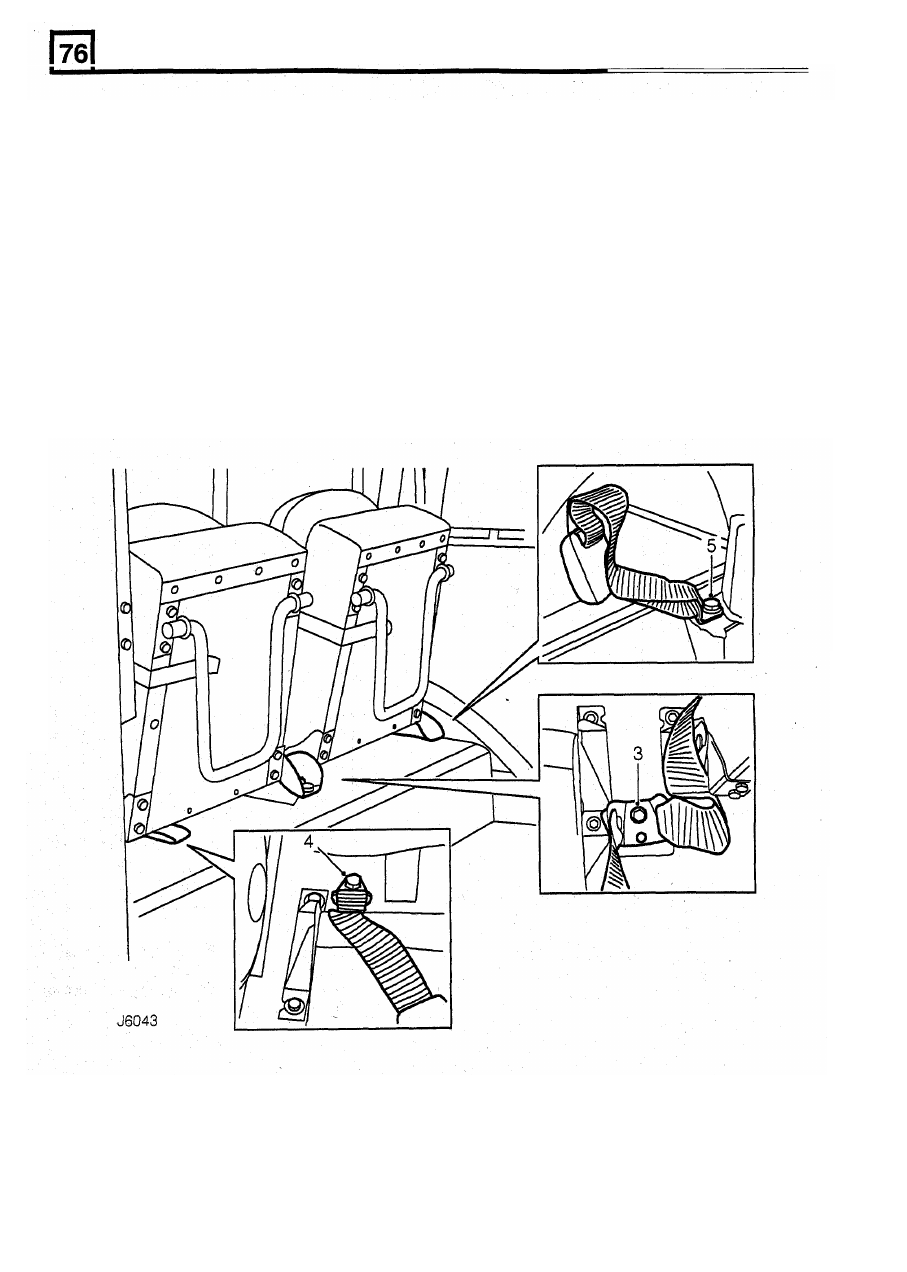

REAR SEAT BELTS

Refit

Service repair no - 76.73.18

Remove

6.

Reverse removal procedure, ensuring seat belt

fixing bolts are tightened to 32

Nm

(24

Ibf.ft).

1.

Release belt straps from buckles on both seats.

2.

Raise both seat cushions and secure with

stowage straps.

3.

Unscrew bolt and remove bracket and inner seat
belt straps.

4.

Unscrew bolt and remove rear seat buckle strap

from wheel arch.

5.

Unscrew bolt and remove front seat buckle strap

from interior roll-over bar mounting.
