ELECTRICAL EQUIPMENT
DASH

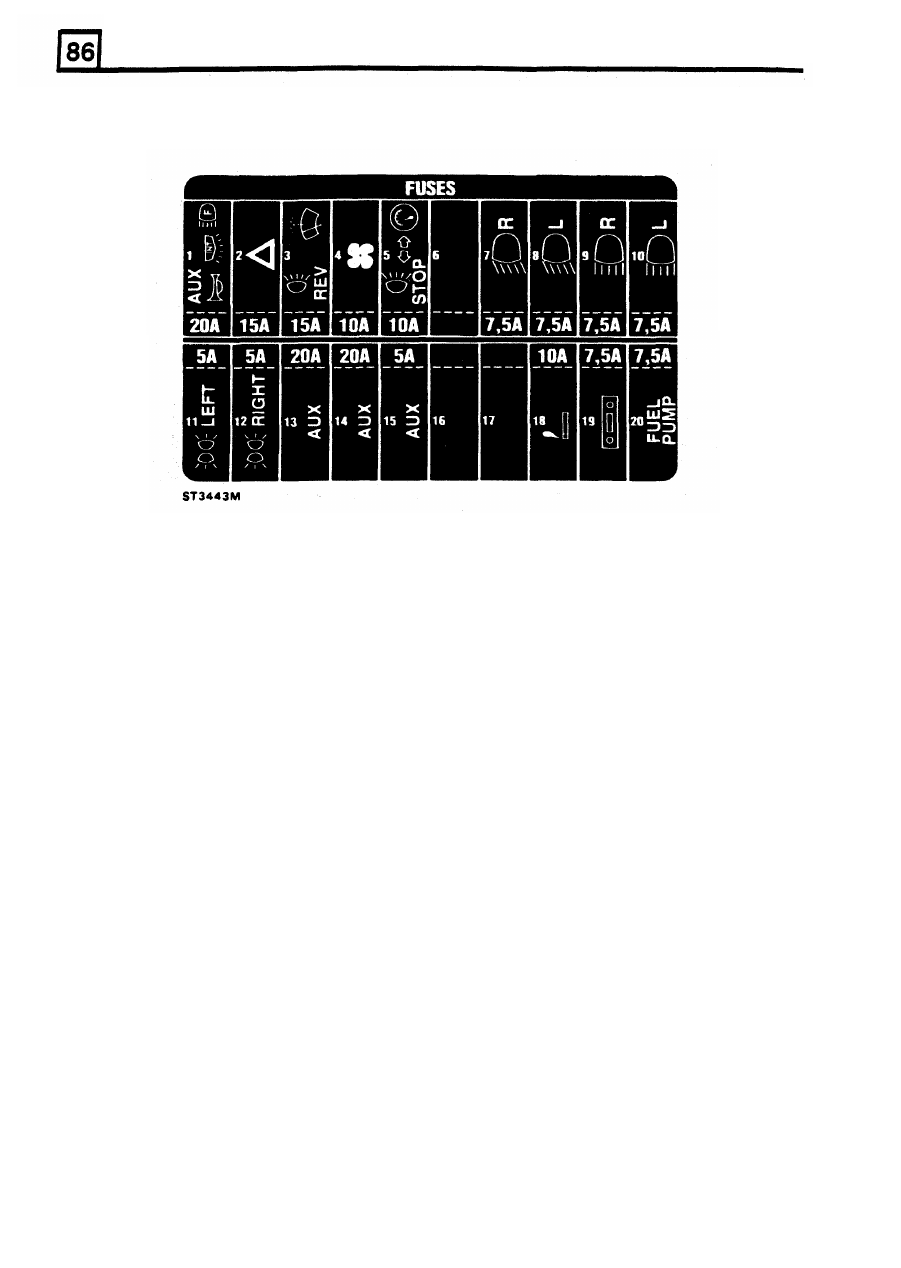

FUSE BOX
SCHEMATIC
DEFENDER
90
ST3443
MAIN
DASH
VALUE
ClRCUIT SERVED
FUSE
FUSE
B
1
20A
Aux. instrument; fog lights; horn; int. lights
B
2
15A
Hazard warning lights
A
3
15A
Reverse light: electric screen wash
A
4
10A
Heater blower motor
A
S
10A
Stop lights, direction indicators
6
Not used
C
7
7.5A
Right head light dipped beam
C
8
7.5A
Left head light dipped beam
C
9
7.5A
Right head light main beam
C
10
7.5A
Left head light main beam
C
11
5 A
Left side lights
C
12
5 A
Right side lights
B
13
20A
Auxiliary
B
14
20A
Auxiliary
B
1s
5 A
Auxiliary
16
Not used
17
Not used
A
18
10A
Cigar lighter
A
19
5 A
Radio
D
20
7.5A
Fuel pump
44
REVISED: OCT
1993
