AIR

CONDITIONING

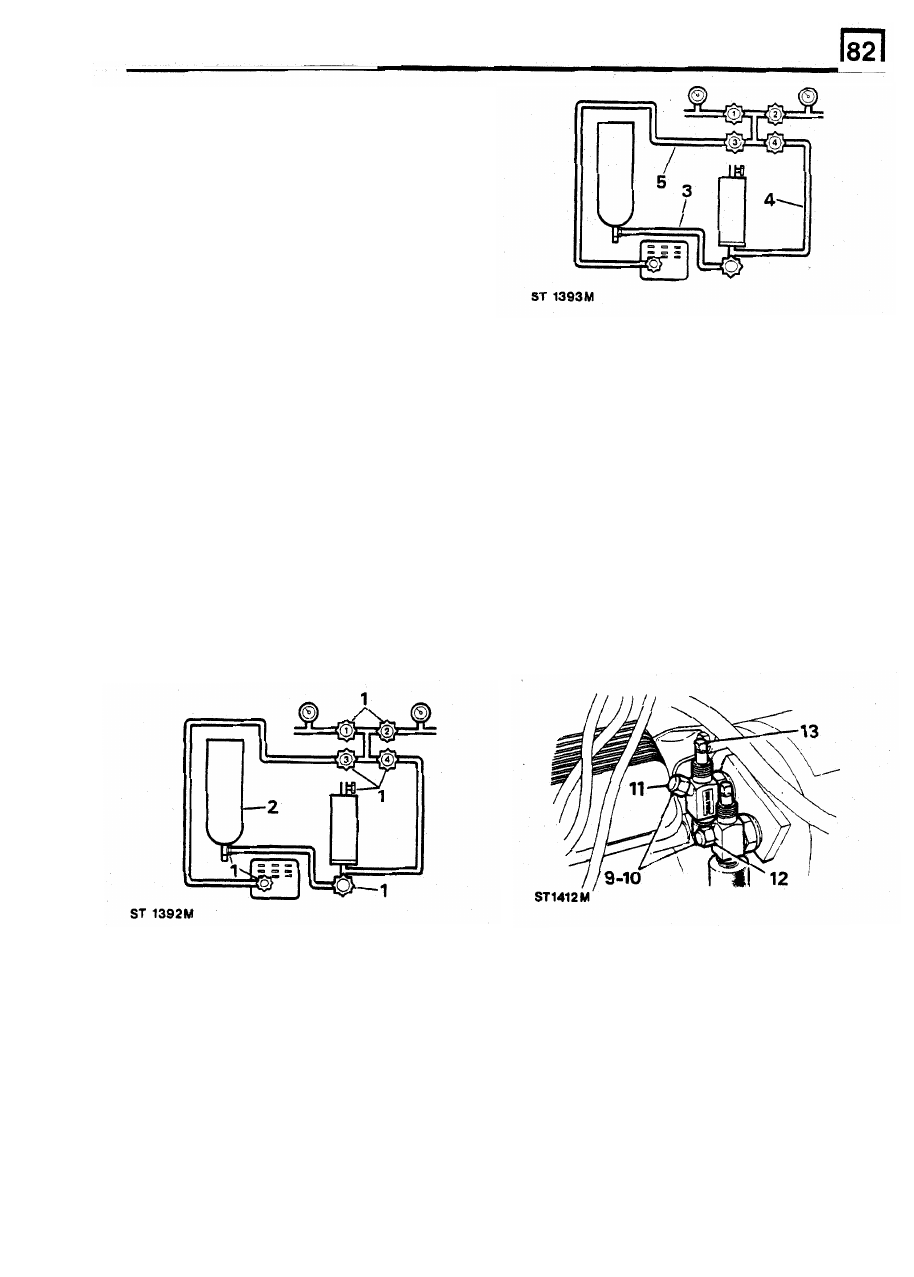

CHARGING AND TESTING EQUIPMENT

Connecting the gauge set

NOTE:  1:  There  are  two  methods

of

connecting

the  charging  and  testing  equipment,  depending
on  the  operation  to  be  carried  out.  The  method
described for  'evacuating

or

charging with  liquid

refrigerant'  also  applies  to  'pressure  test'  and
'compressor oil level check' operations.

NOTE:  2:  Various  types  of  charge  and  test

equipment  are  available  depending  upon  the

manufacturer  chosen by the user. The equipment
illustrated  may  differ  slightly

in

layout  to  that

possessed  by

he

user,

however,

it

is

recommended  that

the  user  adheres  to  the

appropriate  manufacturer's  instructions  for  the

charge  and  test  equipment  used  in  their

8.  Put on the safety goggles.

workshop.

Fitting

1.

6.

Place  the  vehicle  in  a  ventilated  area  away

from  open  flames  and  heat  sources.  Stop the
engine, open and secure the bonnet.

7.

Check  that  both service  valves  are  fully  open

(turned anti-clockwise).

9.

Remove the  caps from  the gauge connections

on the service ports.

10.

Coat the threads and flares with  refrigerant

oil.

11.

Connect  the  low  pressure charging  line  (blue)
from  valve  No.

to  the  compressor  suction

service port.

12.  Connect the  high  pressure charging  line  (red)

from  valve  No. 2 to the compressor discharge
service port.

13.  Using  the  service  wrench,  turn  the  suction

service  valve  stem  'clockwise'  counting  the
number of  turns necessary to close the valve.

Ensure that  all the valves on the charging and

testing  equipment  are  closed.  Control  valves
on  the  particular  equipment  selected  are
numbered

to  4  as  illustrated. The  sequence

may vary  on other proprietary equipment.

2.  Mount  a  1 1 , 3  kg  drum  of  refrigerant  upside

down  on  the  support  at  the  rear  of  the
charging  equipment,  and  secure  with  the
strap.

14.  After  the  valve  is  fully  closed,  turn  the  stem

out  (anti-clockwise) half  the  number  of  turns
counted, this  should position the  valve  seat  in
the mid {test) position.

3.

Connect  the  hose  from  the  bottom

of

the

'charging cylinder to the refrigerant drum valve.

4.

Connect  the  hose  between the  bottom

of

the

charging  cylinder  and  the  refrigerant  control

valve (No. 4).

5.

Connect  the  hose  between the  vacuum  pump
valve and the vacuum control valve (No.3).

REISSUED: FEB 1993

11

AIR  CONDITIONING

15.  Turn  the  stem  on  the  discharge  valve

1.

Place  the  vehicle  in  a  ventilated  area  away

clockwise  until  the  pressure  rises  on  the

from  open flames  and  heat sources.

discharge pressure  gauge,  If  the  system  is  to
be  evacuated,  the  discharge  service  valve

3.

Open and secure the bonnet.

seat  must  be in the mid (test) position.

4.

Remove  the  caps  from  the  compressor

connected  and  ready  for  proceeding  with  the

5.

Check  that  both  compressor  service  valves

required operation.

are fully opened (turned anti-clockwise).

6.  Close  all  valves  on  the  charging  and  testing

7.  Put on safety goggles.

17.  If  the  engine  has  been  operated,  it  must  be

8.

Connect the  high  pressure charging  line  (red)

stopped  prior  to  disconnecting  the  charging

from valve  No.  2 to the compressor discharge

and testing equipment.

service port.

18.

Close

both

service

ports

(turn

fully

9.

Run  the  (blue)  hose  to  an  open  tapped

anti-clockwise) until fully  closed.

container  of  approximately  one  litre  capacity.

19.

Close  all  valves

on

the  charging  and  testing

Attach the  hose to  the  container

so

that

it

will

equipment.

not  blow  out  of  the container. The  purpose of

20.  Disconnect the charging lines from the service

the  container  is  to  collect  any  oil  carried  by

ports.

the refrigerant.

21.  Refit  the  blanking  caps  to  the  compressor

10.

Open the compressor discharge service port a

valve  stems  and  service  ports,  and  to  the

quarter

of

a turn.

charging lines.

11.  Open valve No. 2 fully.

2.  Stop the engine.

16.  The  charging  and  testing  equipment  is  now

service ports.

Removing

equipment.

22.

Close the bonnet.

12.

Slowly open the valve No.  1  one turn to  allow

the  refrigerant to  escape,  if  necessary,  adjust
the  refrigerant flow

so

that  the  oil  captured  in

the container is not blown out of  the container.

AIR  CONDITIONING  SYSTEM  OPERATIONS

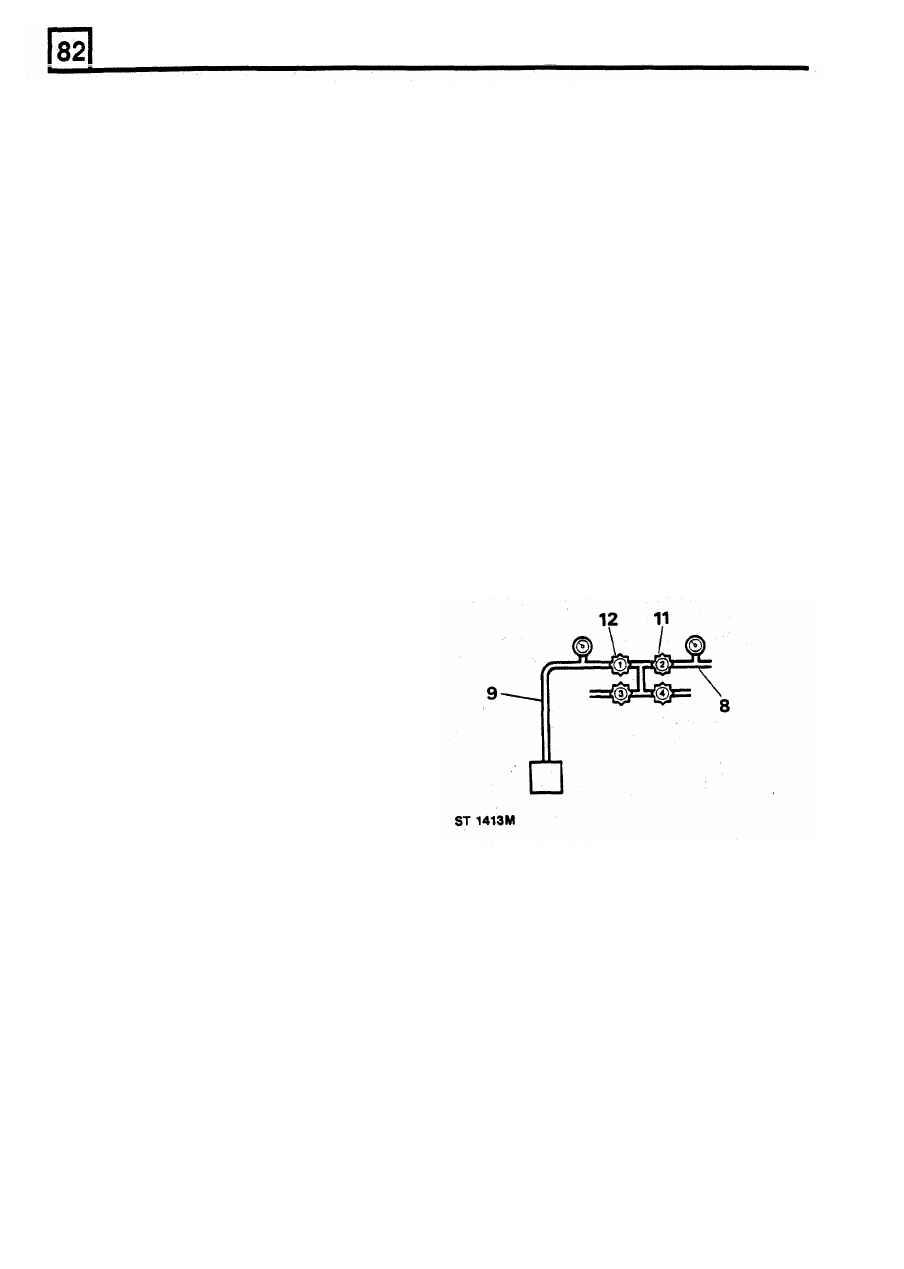

Depressurising

NOTE:  The  air conditioning  refrigeration system

contains  'Refrigerant  12'  under  pressure,  and

before  any  component

is

disconnected  or

removed,  the  system  must  be  discharged

of

all

pressure.
Refrigerant  12  evaporates

so

rapidly  at  normal

atmospheric  pressures  and  temperatures  that  it
tends  to  freeze  anything  it  contacts.  Extreme

care  must  be  taken  t o   prevent  any  liquid
refrigerant  from  contacting  the

skin  and

especially the eyes.  Should any  liquid refrigerant
get  into  the  eyes,  use  a  few  drops  of  sterile

13.  Measure  the  amount  of

oil

discharged  from

mineral oil t o  wash them out  and then wash the

the system

so

that  an equal amount of  new oil

eyes  with

weak  solution  of  boric  acid.  Seek

can  be  returned  to  the  system  during  the

medical  attention  immediately  even  though  the

charging operation.  Discard the old

oil.

initial  irritation  has  ceased  after  first  aid

14.

When  the  gauge  pressure  is  below  50  psi,

treatment.  Always  wear  safety  goggles  when

slowly  open  the  valve  No.  1  to  maintain

opening refrigerant connections.

refrigerant flow.

15.

When  the  pressure  has  been  reduced,  and

WARNING: Open connections slowly, keeping the

the  system  has  been  completely  discharged,

hands

and

face  well  clear,

so

that  no  injury

close the valves Nos.  1 and 2 on the charging

occurs if  there  i s  liquid i n  the line. If  pressure is

and testing equipment.

noticed allow it to bleed off slowly.

16.  Close  the  compressor  discharge  service  port

(turn anti-clockwise).

17.

Disconnect  the  high  pressure  charging  line
from the compressor service port.

12

REISSUED:

FEB

1993

AIR

CONDITIONING

NOTE:

If  it  is  necessary  to  disconnect  the

1.

Depressurise  the  air  conditioning  system  as

compressor  hoses,  the  compressor  should  be

previously  described, then  connect  the  gauge

sealed by  fully  closing the  relevant  service valve

set  as  detailed  under  'Charging  and  Testing

(turn  fully  clockwise).  It  is  essential  to  ensure

Equipment'.

that  both  service  valves  are  open  before

2.  Adjust  both  service  valve  seats  to  the  mid

operating  the  compressor.  Similarly  any  other

(Test) position.

component

of

the  refrigeration system should  be

3.  Open the low and high pressure valves  Nos.  1

capped immediately when disconnected.

and 2.

4.

Start  the  vacuum  pump  and  check  that  the
vacuum pump valve is open.

5.

Slowly  open  the  vacuum  control  valve  No.  3.

If

the  vacuum  is  applied  to  the  system  too

quickly, the residual oil  may  be drawn out.

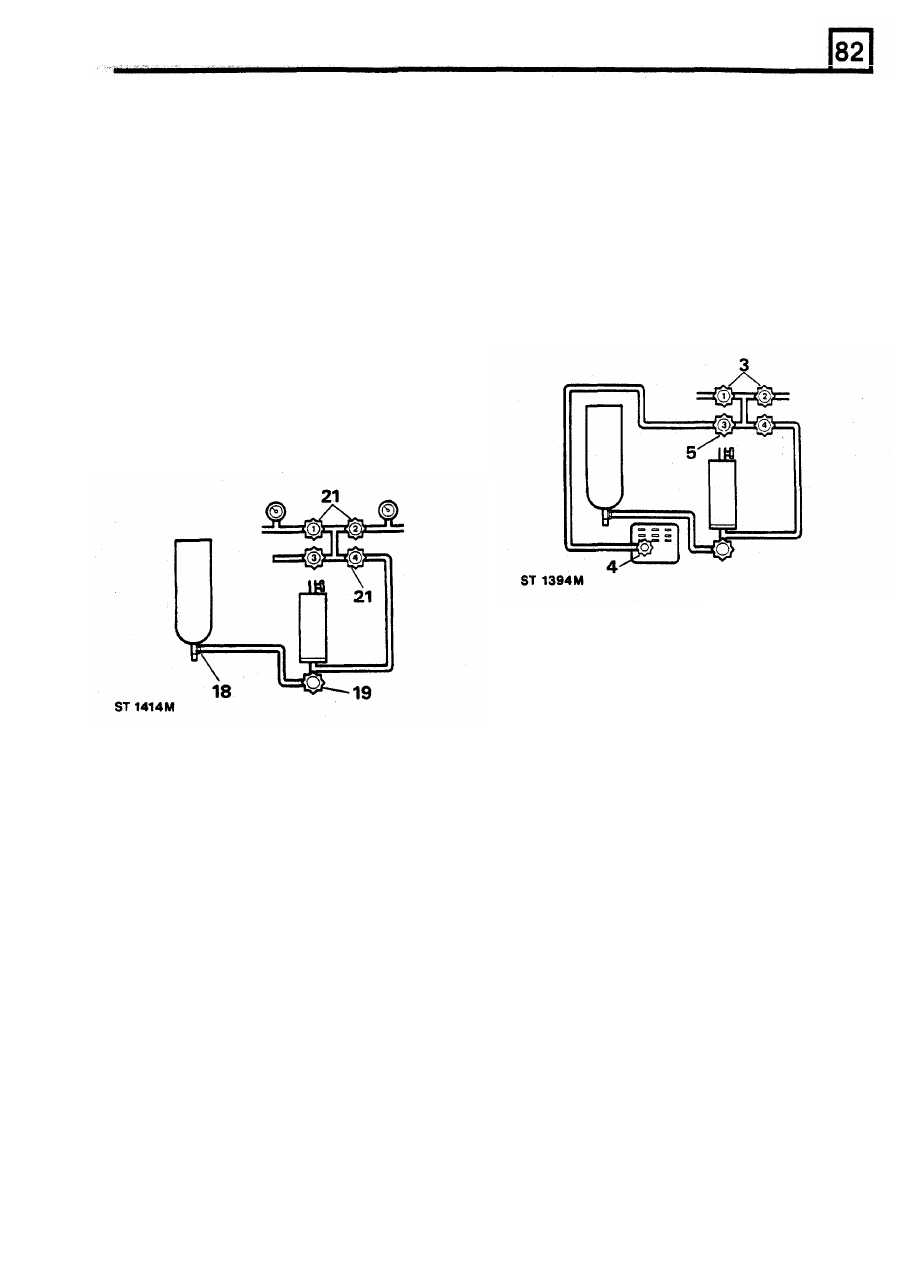

18.  Open the refrigeration drum valve.
19.

Open  the  valve  at  the  base  of  the  charging
cylinder  and  allow  approximately  0,25  kg  of
refrigerant to enter the cylinder.

20.  Close  the  refrigeration  drum  valve  and  the

valve at the base of  the charging cylinder.

21.  Open  the  refrigerant  control  valve  (valve

No.

4)  and  flush  out  the  high  and  low  pressure
lines  by  opening  valves  Nos.  1  and  2
momentarily until  a white  stream of  refrigerant
is observed.

6.

In

evacuating  the  system  it  is  necessary  to

lower the  pressure

so

that  the  boiling  point  of

water  in  the  system  is  lower  than  the
surrounding  air  temperature.

At

an  ambient

temperature

of

23.8°C  (75°F),

it

is  necessary

to  lower  the  system  pressure  to  29.5  in  Hg
vacuum  to  bring  the  boiling  point  of  water  to

22.  Close  all  valves  on  the  charging  and  testing

22°C  (72°F).  Atmospheric  pressure  (and
vacuum gauge  readings)  decrease  as  altitude

23.

The

air

conditioning

system

is

now

increases  by  approximately  25  mm  Hg  per
300 m. The following chart provides a guide to
the  various  gauge  readings  at  differing
altitudes,  for  the  same  10  mm  Hg  absolute

equipment, and fit  the blanking caps.

depressurised.

Evacuating

pressure.

Whenever  the  system  has  been  opened  to  the

Altitude, f t

Vacuum Reading in Hg  mm

atmosphere  it  is  necessary  that  the  system  be

29.5

750

evacuated to  remove all  air  and  moisture.  It

is

also

1,000

300

28.5

725

an  essential  preliminary  operation  to  charging  the

2,000

600

27.4

695

system  with  Refrigerant  12.  The  evacuate  operation

3,000

900

26.4

670

also  provides  a  check  for  leaks  due  to  faulty

4,000

1200

25.4

645

connections.

5,000

1500

24.5

622

6,000

1800

23.5

596

7,000

2100

22.6

574

8,000

2400

21.8

554

9,000

2700

20.9

530

10,000

3000

20.1

510

REISSUED:

FEB

1993
