CHASSIS

AND

BODY

REMOVING

THE

DOOR

LATCH ASSEMBLY

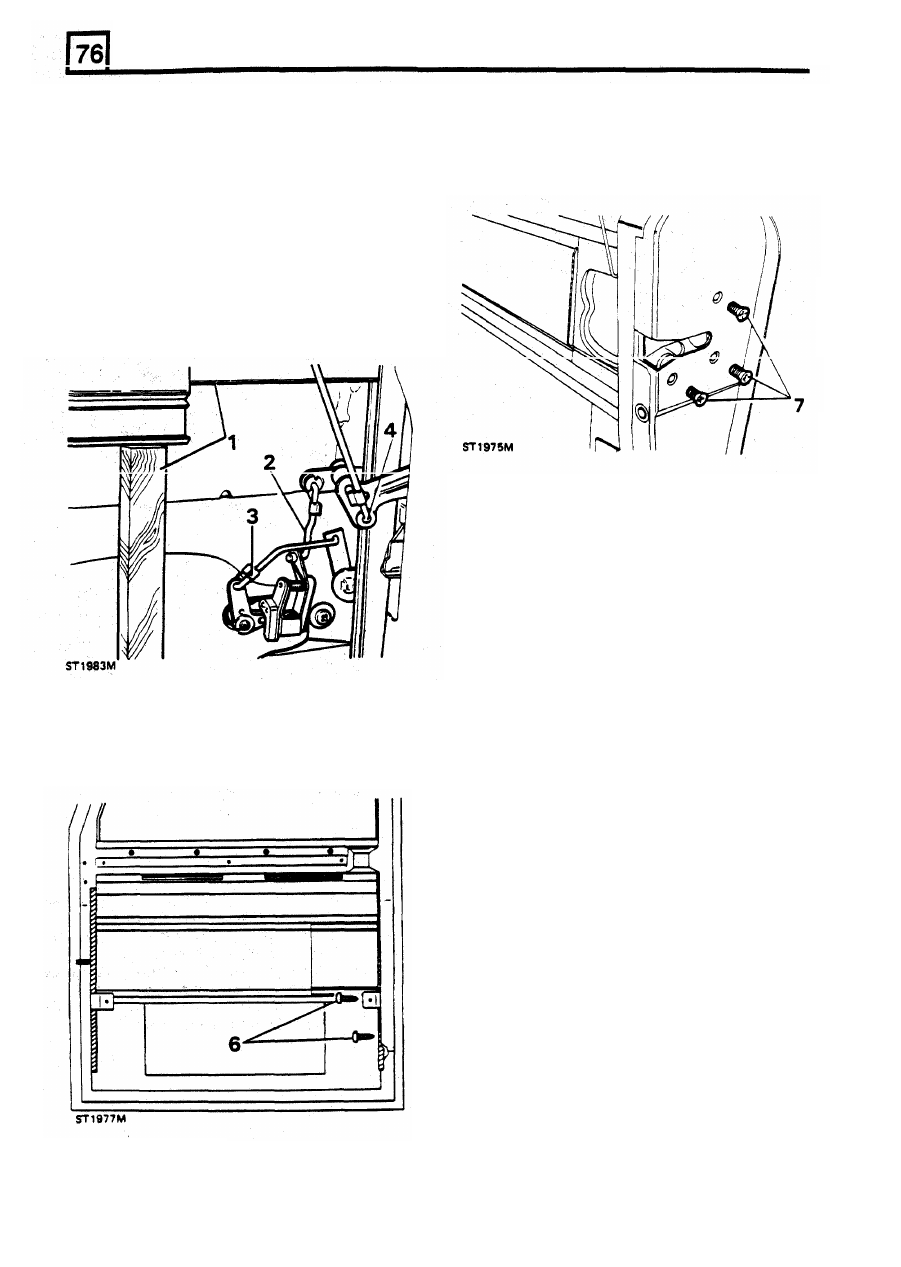

DEFENDER 110 - Front doors

Remove

7.  Remove  the  three  screws  securing  the  latch

8.

Whilst  taking  care

not

to  damage  the  runner,

ease

it

away  from  the  latch  and  manoeuvre

the

latch assembly from the

door

assembly  to  the  door.

Carry  out  the  instructions  to  remove  the
mounting  panel  and  support  the  glass  with

timber.

2.  Disconnect  the  control  rod  from  the  handle

operating lever.

3 .   Disconnect  the  control

rod  from  the  locking

lever

on

the handle.

4.

Disconnect the  locking button control  rod from

the latch mechanism.

Fitting latch

assembly

9.  Carefully  ease  the  window  runner  away,

sufficiently

to

enable  the  latch  to  be  located

into position.

10.

Secure  the  latch  to  the  door  with  the  three
screws.

11.

Secure  the  window  runner  with  the  two
screws  ensuring  that  the  packing  strip  is  in
position and  that  the  screw  heads  are  below
the bottom

of

the runner to prevent damage to

the glass.

12.

Fit

the

handle  with  the

two

screws,  ensuring

that  the bezels are in position.

6.

Remove the

two

self-tapping Screws retaining

13.  Connect  the

control  rod  to  the  handle

operating

lever  and  secure  with  the  spring

clip.

14.

Connect  the  control  rod  to  the  locking  lever
and retain with the spring clip.

15

Connect

the  locking  button control

rod  to  the

latch lever and secure with the spring clip

16

Carry-out  the  instructions

to

fit  the  mounting

Panel.

17

Fit  the  door  trim.  regulator  handle,  door

pull.

and bezels.

5.

Remove  the

two

screws  and  remove

the

handle assembly from  the door. See Exterior

door  handle.

the

lower

end

of

the window glass runner.

16

REVISED: OCT

1993

CHASSIS AND  BODY

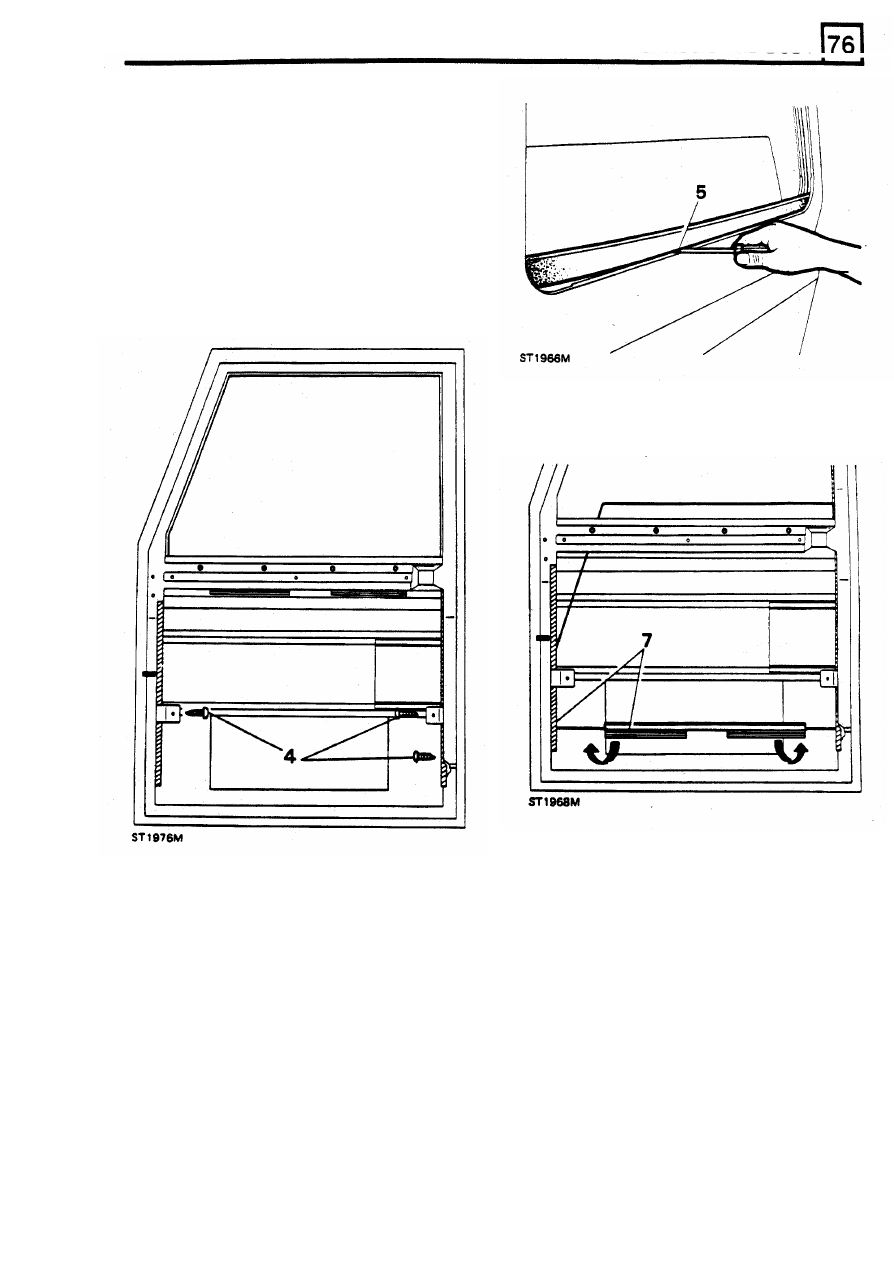

REMOVING GLASS DEFENDER

110

- Front doors

Remove

Carry-out  the  instructions

to

remove  the

mounting panel.

2.

Remove the window  regulator.

3.

Push  the  glass  up  to  the  top  of

its

travel  and

support  with  a suitable length of  timber.

4.

Remove the  two  self  tapping  screws  securing

the  window  glass  runner

on

the  latch  side

of

the  door  and  the  single  screw  from  the  hinge

side.

7.  Ease  the  runner  from  the  glass

at

the  hinge

side

of

the door,  lift  the glass over  the  bottom

edge

of

the door  and withdraw.

Fitting

glass

5  Taking  care  not  to  damage  the  paint  work.

prise the  exterior  waist  weather  strip  from  the
door

as  illustrated.

6.

Remove  the  timber  support  and  lower  the

glass to  the bottom

of

the door.

8.

lnsert  the  glass  into  the  runners

at  an  angle

9.  Whilst  lifting  me  glass,  position

it

squarely  in

the  runners and raise

it  to

the  top

of

its  travel

and insert the timber support.

10.

Secure  the  hinge  side  runner  with  the  single
screw  ensuring  that  the  packing  strip  is  in
position.

17

REVISED:

OCT

1993

CHASSIS AND

BODY

6.

Withdraw  the

lock

barrel  from  the  exterior

door handle complete with the locking sleeve

11.

Locate  the  packing  strip  and  secure  the
opposite  runner  with  the

two

screws.  Ensure

that  all  three  screw  heads are  well  below  the

bottom

of

the  runners

to

prevent  damage

to

the glass.

12.

Locate  the  regulator

in

the  window  lift

channels.

13.

Carry-out  the  instructions  to  fit  the  mounting
panel.

14.

Fit  the  door  trim,  window  regulator, door  pull

and bezels.

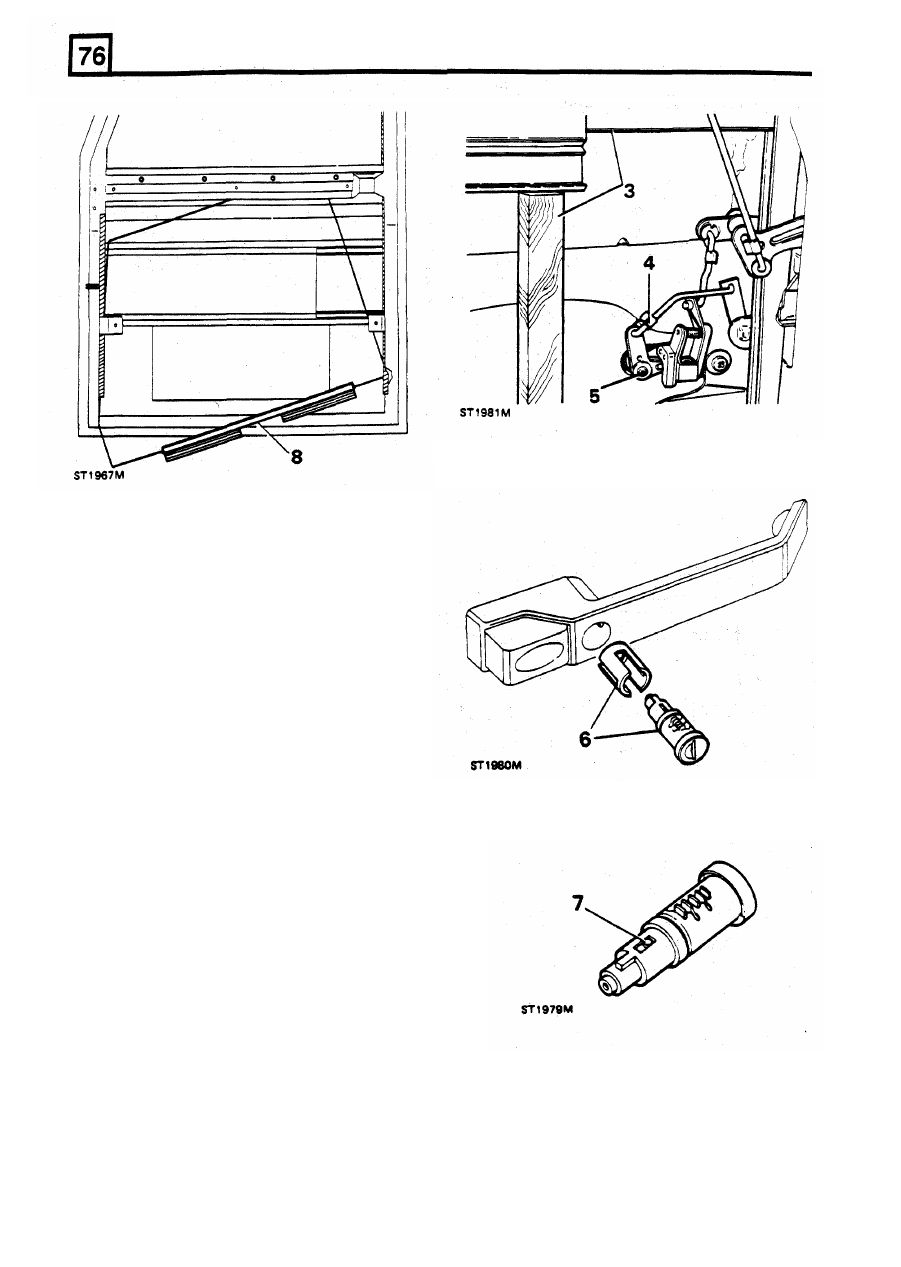

REMOVING LOCKING BARREL

DEFENDER

110

-  Front  doors

Remove

7.  To remove the barrel from the plastic retaining

sleeve,  depress  the  spring  loaded  button  and

1 .

Remove  me  regulator  handle,  door  pull,

withdraw the sleeve.

bezels, door trim and weather  protection sheet.

2.

Carry-out  the  instructions

to

remove  the

mounting panel.

3.

Raise and support

the

glass to gain access to

me latch mechanism

Release the spring clip and disconnect the rod
from the

lock

operating lever.

5.

Remove  the  single  screw  and  withdraw  the
lock lever assembly.

18

REVISED:

OCT

1993

CHASSIS AND

BODY

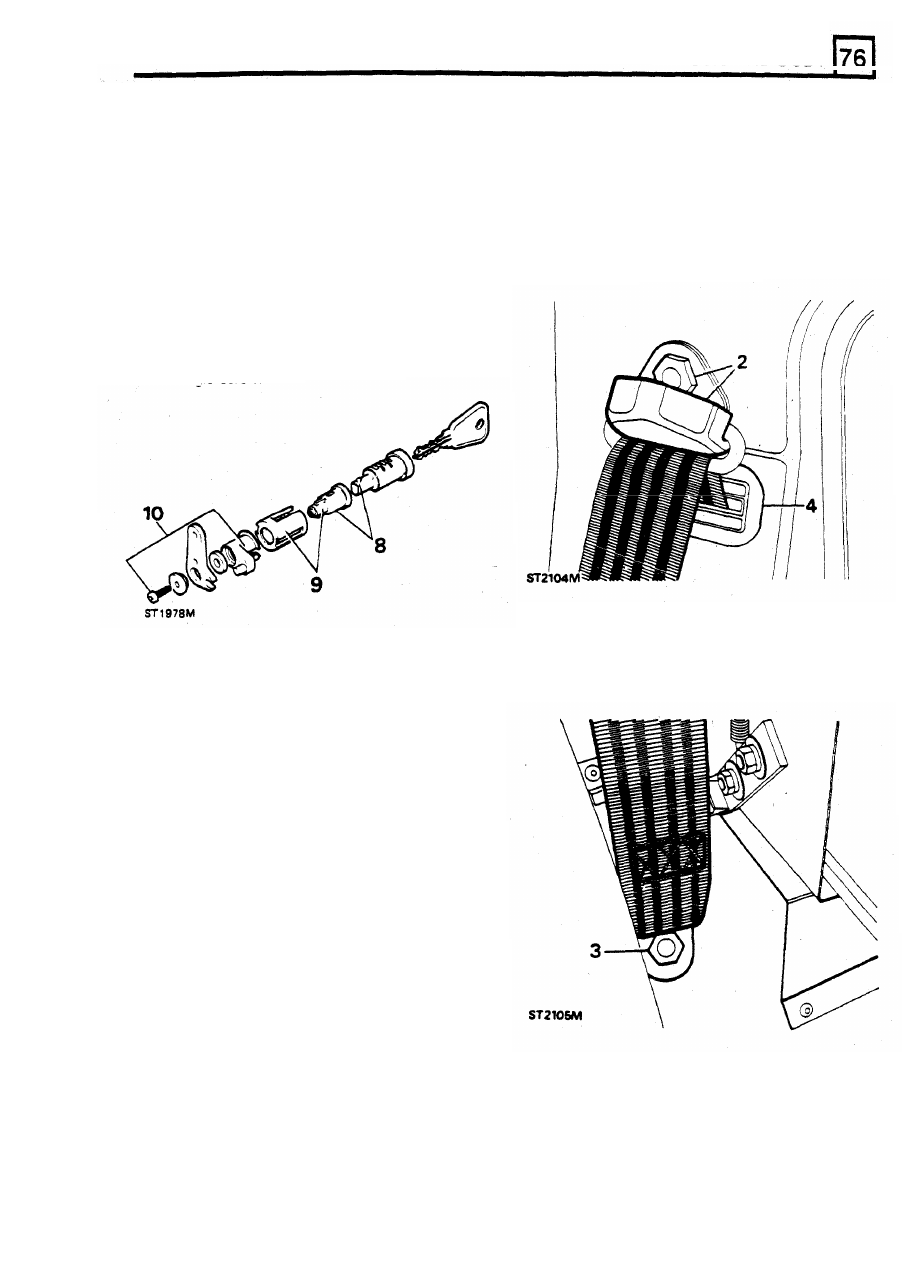

Refit the  lock  barrel

NOTE:  If

new  barrel  is  being  fitted,  check  that

the  number

on  the  barrel  coincides  with  the

Remove

number on the accompanying key.

REMOVING REAR  SIDE WINDOW  TRIM
DEFENDER

110

1 .

To  gain  access  to  the  trim  lower  fixings

8.

Push  the  plastic  retaining  sleeve  over  the

remove  the  rear  seat  and

squab

frame

complete.

2.

Remove  the  plastic  cover  and

the

seat  belt

anchorage bolt from the 'C' post.

barrel  until  the  spring  loaded peg locks

it

into

position.

Fit  the  barrel  and  plastic  sleeve  assembly

to

the  lock

i

ng  sleeve  and  insert  into the  exterior

handle reversing instruction 6.

10.

Assemble  the  lock  lever  components  as
illustrated  and  from  the  inside  of  the  door

panel,

fit

them  to  the  barrel assembly with  the

single screw.

3 .   Remove  the  lower  anchorage  bolt  for  the

same seat belt.

4.

Remove  the  seat  belt  aperture  finisher  from
the  trim  panel  and  remove  the  rear  quarter
light trim

from

the side concerned.

11.  Connect  the  operating

rod

to

the  lock  lever

and

secure  with  the  spring  clip,  reversing

instruction

4.

12.  Fit

the mounting panel

and

weather  protection

sheet.  Fit the door

trim,

regulator handle, door

pull and bezels.

19

REVISED: OCT 1993
