REAR AXLE

AND

FINAL

DRIVE

32.

Fit  the  brake  caliper  and  secure  with  the

retaining  bolts  and  tighten  to  the  correct

torque

(see

section 06-Torque values). Secure

the  brake pipes to  the  axle casing.

33.

Fit  the  road  wheels,  jack-up  the  vehicle,

remove  the  axle  stands,  lower  the  vehicle  to
the  ground  and  tighten  t h e   road  wheel  nuts
evenly  to  the  correct  torque.

REAR AXLE

AND  FINAL DRIVE

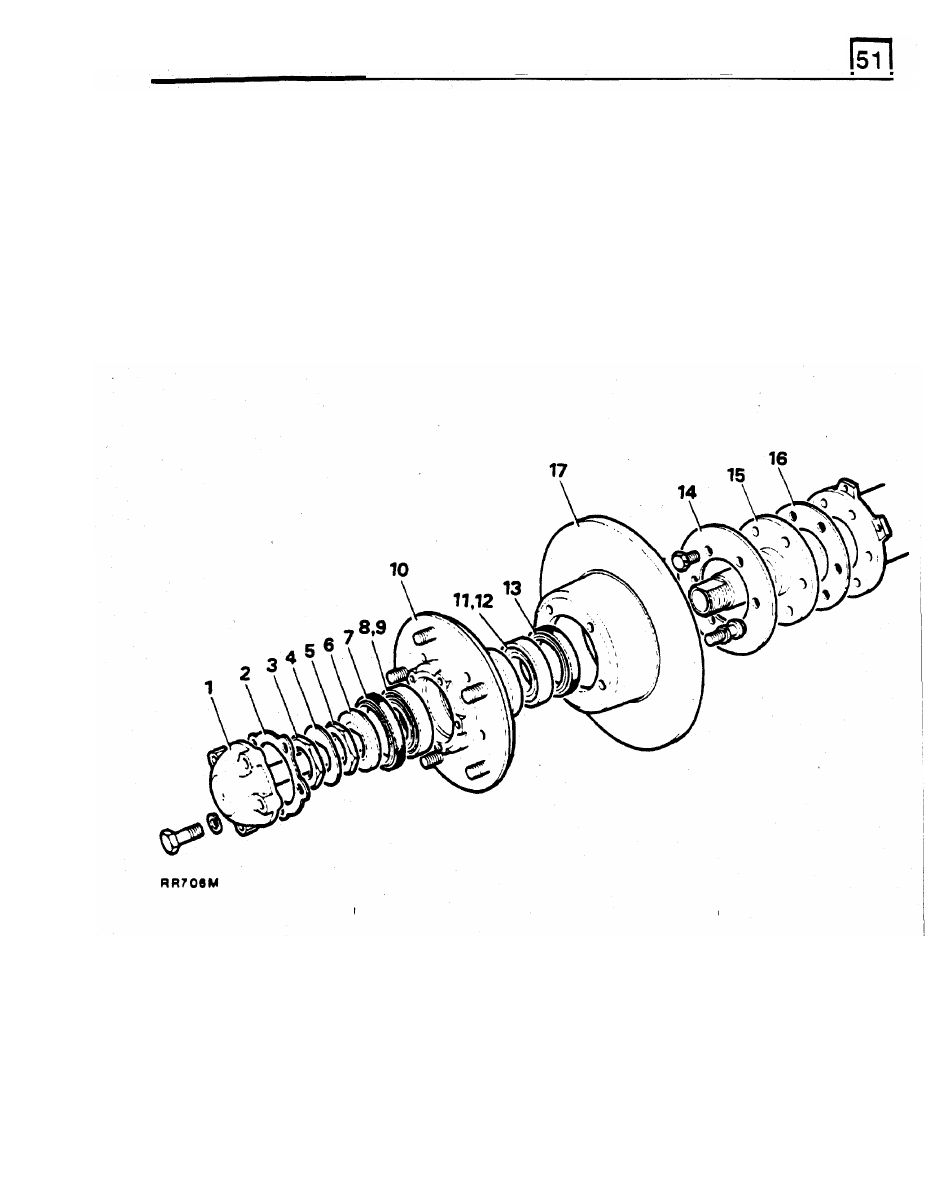

KEY   TO REAR HUB COMPONENTS

1.

Rear axle shaft

1 1 .

Inner bearing cup

2.

Joint  washer

12.

Inner bearing cone

3.  Locknut

13.  Inner oil seal

4.

Lock  washer

14.

Mudshield

5.

Adjusting  nut

15.

Stub  axle

6.

Seal track  spacer

16.

Stub  axle  joint  washer

7.

Outer

oil

seal

17.

Brake disc

8.

Outer  bearing cone

9.

Outer  bearing cup

10.

Hub

FRONT

AXLE

AND FINAL DRIVE

OVERHAUL  FRONT HUB ASSEMBLY

13.  Remove the key washer.

Service  tools:

complete with bearings.

18G134/LRT-99-003  Bearing and oil seal replacer

16.  Mark,

for

reassembly,

the

relationship

18G1349/LRT-54-501  Hub oil seal replacer

between  the  hub  and  brake  disc,  if  original

RO530106/LRT-99-503 Dial  gauge  bracket

hub is

to

be  refitted.

17.

Remove  the  five  bolts  and  separate  the  hub

DISMANTLE

from the brake disc.

14.

Withdraw  the  hub  and  brake  disc  assembly

15.  Remove the  outer  bearing.

1.

Slacken road wheel nuts.

2.

Jack  up the vehicle and lower onto axle stand.

3.

Remove the road wheel.

4.

Slacken the  lock  nuts securing the jump  hose
to  the retaining bracket.

5.

Remove  the

two

bolts  securing  the  brake

caliper,  see  section 70

brake disc  renewal

and  whilst  withdrawing  the  caliper  from  the
brake  disc  release  the  jump  hose  from  the
bracket. Tie the caliper securely to one side.

NOTE:

The  road wheel  retaining  studs  must  not

be

renewed.  Should  any  studs  be unserviceable

new  hub complete with studs must be obtained.

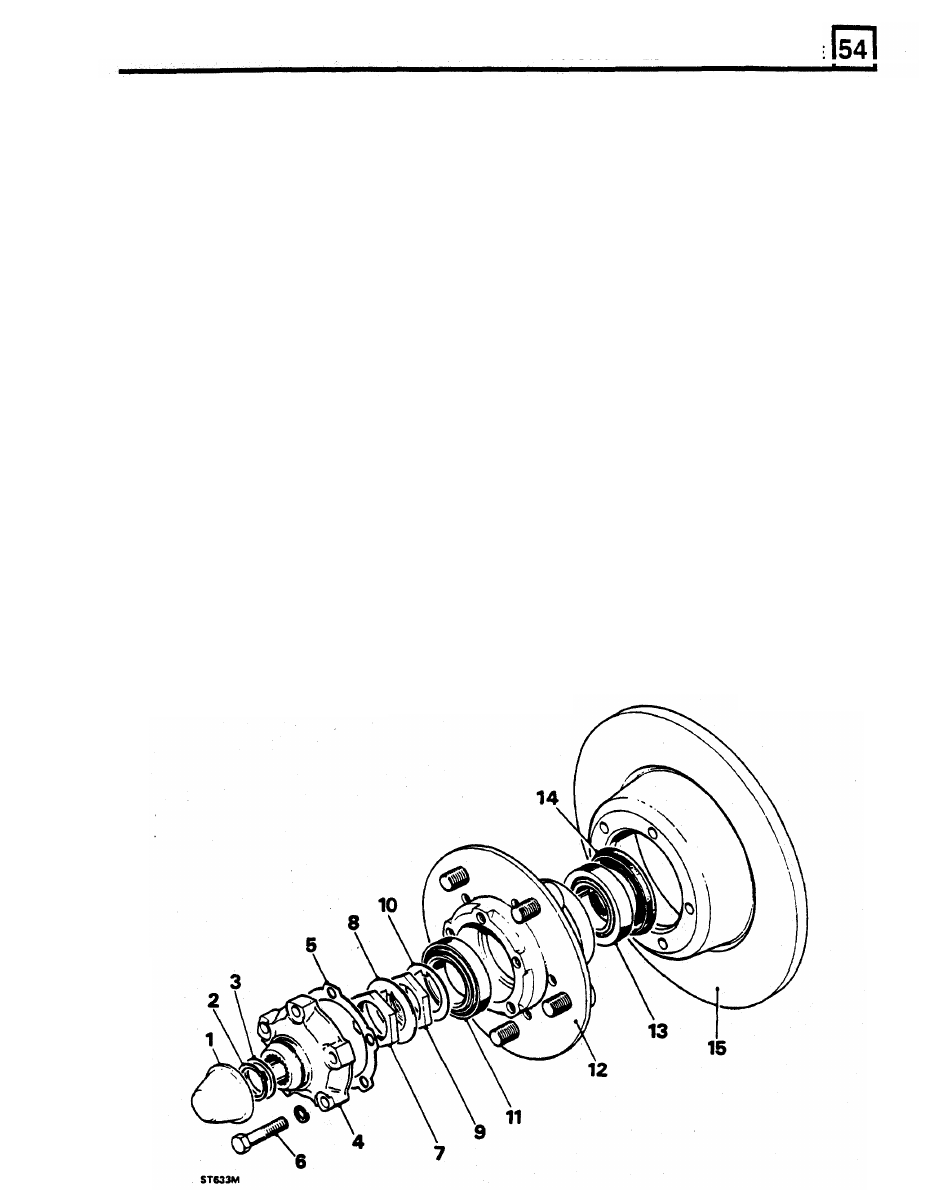

KEY TO HUB ASSEMBLY

1.  Dust cap.

2.

Drive shaft circlip.

3.  Drive shaft shim
4.  Drive member.

NOTE:

Since the  bracket on later vehicles

is

not

open-ended,  the  caliper  must  be  removed

5.

Drive member joint washer.

completely,  which  involves  disconnecting  the

6.  Drive member retaining bolt (five

off).

jump hose.

7.

Lock nut.

8.

Lock washer.

6.  Lever-off the dust cap.

9.  Hub adjusting nut.

7.  Remove the circlip from the drive shaft.

10.

Keyed washer.

8.

Remove the drive shaft shim.

11.

Outer bearing.

9.  Remove  the  five  bolts  and  withdraw  the

12.

Hub.

driving member and joint washer.

13.

Inner bearing.

10.  Bend back the lock washer tab.

14.  Grease seal.

11.  Remove the locknut and tab washer.

15.

Brake disc.

12.  Remove the hub adjusting

nut.

FRONT AXLE

AND FINAL DRIVE

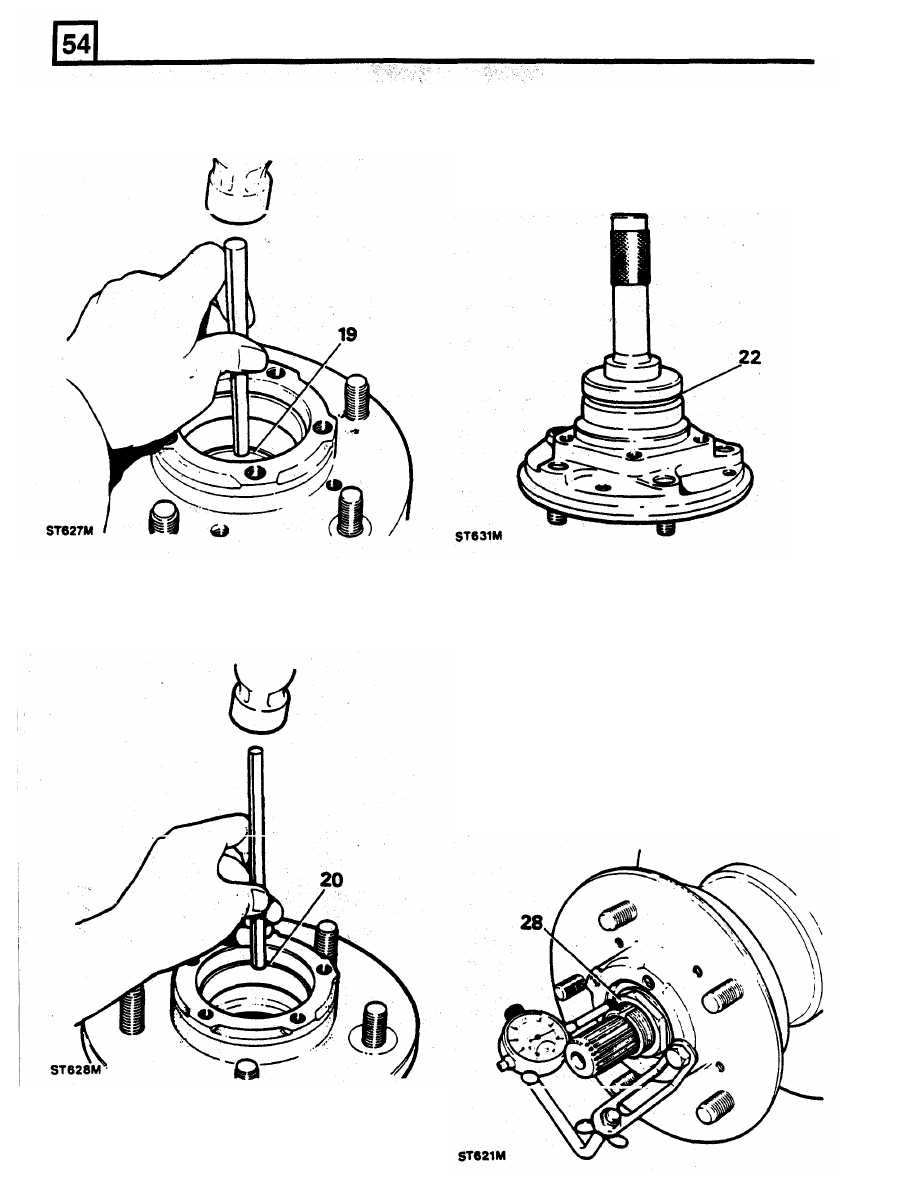

18.  Drift-out  the  grease  seal  and  inner  bearing

from the  hub and discard the seal.

19.

Drift-out the inner and outer bearing tracks.

22.

With  the  lip side  leading

fit

a  new  seal  to  the

hub  using  special  tool  18G1349  grease  seal
replacer  and  drift  18G134.  Drive-in the  seal

so

that

it

is  recessed 4,83  to

5,33

mm  below

the rear face

of

the hub. Apply grease liberally

between the seal lips and springs.

23.  Assemble  the  brake disc

to

the  hub  lining  up

the  marks  made  during  dismantling.  Fit  and
tighten the five retaining bolts to 65

to

80 Nm.

24.  Grease  as

in

instruction 21  and  fit  the  outer

25.  Clean the stub axle and drive  shaft  and fit  the

hub assembly

to

the axle.

26.  Fit the key washer.

27.

Fit  the  hub  adjusting nut  and  tighten by  hand

whilst  rotating  the  hub  until  all  end-play  is
taken up.

28.  Mount a dial gauge using bracket RO530106

and  rest the  stylus

in

a  loaded  condition  on

the adjusting nut.

Assemble

20.  Clean  and  degrease  the  hub  and  drift-in  the

inner and outer  bearing tracks.

bearing  to  the  hub.

21.

Pack  the  hub  inner  bearing  with

grease

recommended in the lubrication chart and fit  to
the  hub.  Use  a  minimum

of

8,5  grams  of

grease.
