ASSEMBLY RENEWAL

SPECIAL TOOLS

CLUTCH

The  major  part

of  clutch  assembly  renewal  is  the

LRT-12-001 Clutch centralising tool

removal  of  the  transmission

to

gain  access  to  the

clutch. Because of the considerable combined weight

Remove

of

the  main gearbox  and transfer  box  and the  off-set

centre

of

gravity,

it

is  vital  that  clutch  replacement

1.

Remove the transmission, see

SECTION

37.

must  only  be  undertaken  by  organisations  or

2.  Mark  the  position  of  the  clutch  cover

to

the

individuals  that  have  the  necessary  experience  and

flywheel to  assist

with

reassembly.

essential equipment

to

enable the transmission to  be

3.

Working  evenly  and  diagonally  remove  the

removed  safely,  without  the  risk

of  personal  injury

clutch cover securing bolts.

and damage

to

the  transmission and vehicle.  Details

4.

Do  not  disturb  the  three  bolts  in  the  clutch

of

the  recommended  transmission  hoist  and  special

cover.

cradles are contained in

SECTION

37.

5.

Remove clutch cover assembly.

6.

Withdraw  the clutch friction plate.

Always  ascertain  the  reason  for  the  necessity  to
renew  the  clutch  before  attempting  to

fit

a  new

assembly. Careful examination of  the clutch and the
associated  components  should  be  carried  out.  This
should

also

include  checking  the  clutch  hydraulic

system

if

the

reason  for  clutch  failure  is  not

immediately apparent. See "Clutch

Fault Diagnosis".

If oil is present on  the clutch lining the source of  the

oil

contamination  should  be  investigated.

If

necessary, the  rear  main  bearing  oil  seal  should  be
renewed as described

in SECTION

12

Excessive  wear  of  the  clutch  due  to  the  vehicle
having been  used continually for  wading  without  the

flywheel  housing plug  being fitted,  would  be  evident
by

rust  on  all  parts  including the  release assembly

and splines of  the primary shaft.

The  clutch cover  and  friction plate should always  be

7.

Reverse items 5 and

6,

aligning the assembly

renewed together.  Also  it would certainly be wise

to

replace  the  release  bearing  and  possibly  the

marks  and  using  the  centralising

tool

8.

Fit  the  cover  securing  bolts,  working  in  a

When fitting  the clutch

it

is

important that

the

splines

diagonal sequence. Finally tightening the  bolts

to

a torque

of  28Nm.

of  the  primary  shaft  are  smeared with  Molybdenum

Disulphide  grease  such  as  Rocol

M.T.S.

1000

to

9.

Refit

the

transmission.

prevent  seizure.

Also  the  friction  plate  must  be

centralised while the cover bolts are evenly tightened

to the correct torque.

Refitting

remainder

of

the mechanism

if any wear

is

present.

LRT-12-001.

CLUTCH DRAGS

Start with check No.  20 and proceed as directed.

POSSIBLE CAUSES

CHECK AND ACTION

Free play at the clutch pedal

Yes

Check3

No

Check2

Clutch pedal tight on the pivot shaft

Yes

Free the clutch pedal and lubricate

No

Check 3.

Clutch release mechanism sticking

Yes

Free the mechanism

No

Check4

Clutch slave or master cylinder pistons seized or sticking

Yes

Repair or renew the cylinder

No

Check 5.

Clutch diaphragm cracked

Yes

Renew the cover plate

No

Check6

6.

Friction plate worn

Yes

Renew the friction plate

No

Check7

No

No

Check 9

No

Check 10

No

Check

11

piston seals leaking

No

Check 12

No

Check

13.

No

Check 14.

No

No

Check

16.

piston seals leaking

No

Check

17

No

Check 18.

No

Check 19

No

Check20

No

Check21

No

Check22

Yes

No

Check 23.

No

Oil on the friction plate linings

Yes

Renew

the

friction

plate and rectify the oil leak

Suspect the friction plate sticking on splines

8.

Engine or gearbox rnountings worn or slack

Yes

Tighten or renew the mountings

Drive shaft joints/propeller shaft joints or splines worn

Yes

Renew components as necessary

10.

Clutch release mechanism sticking or detective

Yes

Free

or

renew the release mechanism.

11.

Clutch slave or master cylinder pistons sticking or

Yes

Repair or renew the cylinder

12  Friction plate cushion springs broken or weak

Yes

Renew the clutch assembly complete.

13.  Riven plate sticking on splines

Yes

Free

the

driven plate.

14  Friction plate distorted

or

oil

on the

linings

Yes

Renew

the

friction

plate and rectify the oil leak

i-

15.

Clutch release mechanism or dutch pedal sticking

Yes

Free

as

necessary.

16.  Clutch slave or master cylinder piston sticking

or

Yes

Repair or renew the cylinder.

17.

Friction plate sticking on splines

Yes

Free

the

friction plate.

18

Friction plate distorted

Yes

Renew the friction plate.

19.  Clutch diaphragm detective

Yes

Renew the cover plate

20

Internal or external clutch fluid leaks

Yes

Repair

or

renew as necessary

21

Friction plate sticking on splines

Yes

Free the friction plate

22.  Oil on

the

friction plate

23

Friction plate distorted

Yes

Renew the friction plate

Suspect a faulty cover plate or damaged flywheel

Renew the friction plate and rectify the oil leak

Suspect a faulty cover plate

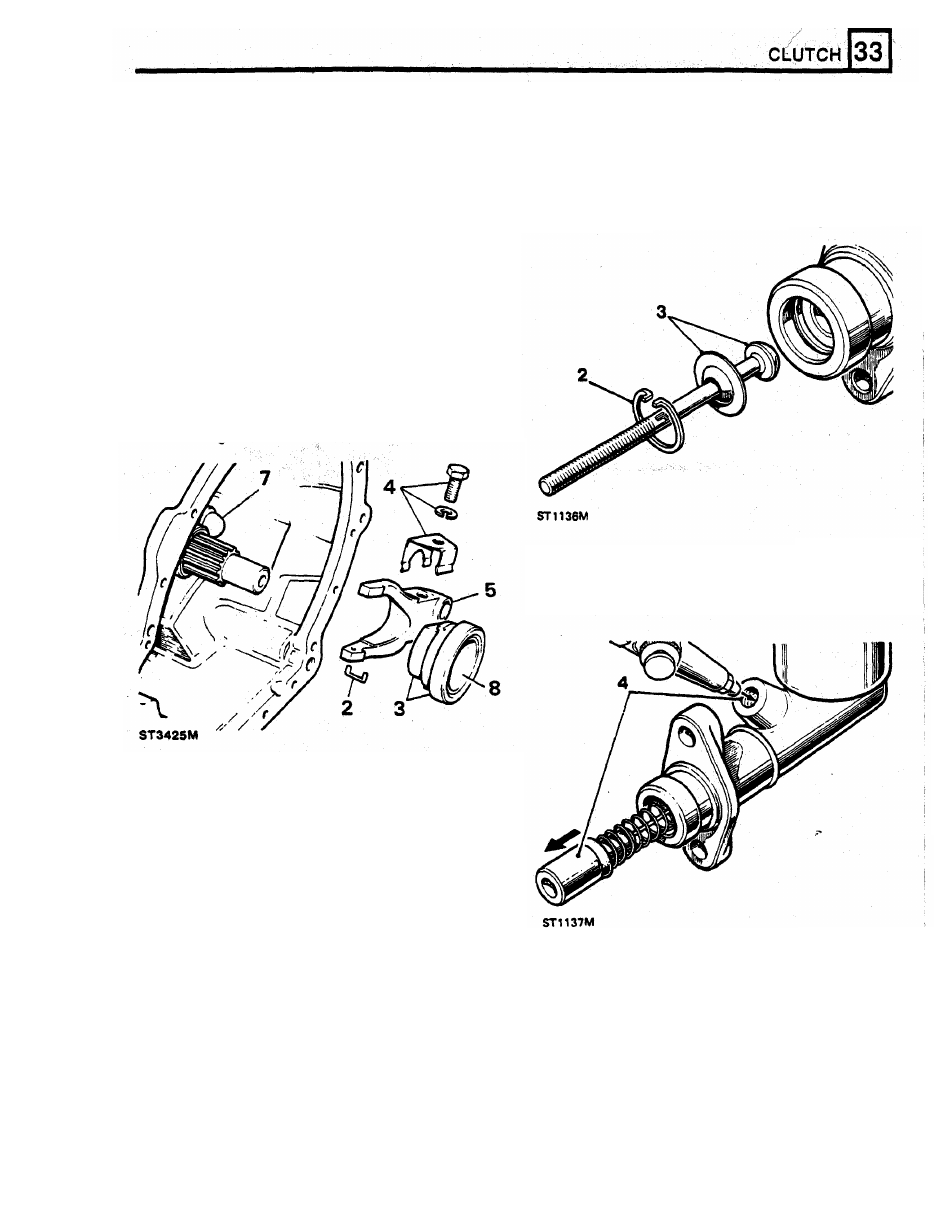

OVERHAUL RELEASE BEARING ASSEMBLY

OVERHAUL MASTER CYLINDER - All models

1.

Remove the clutch slave cylinder from the bell

Dismantle

2.

Withdraw the retaining staple,

if

fitted.

1.

Remove the master cylinder

from

the vehicle.

3.

Remove the release bearing assembly.

2.

Remove the circlip.

4.

Remove spring clip retaining bolt and spring.

3.

Withdraw the push-rod and retaining washer.

5.

Withdraw the release lever.

6.

Discard worn  parts.

7.

Smear  the  pivot  with  grease  and

fit

the

release lever  and  retain  with  the  spring  clip
and bolt.

8.  Smear  the  release  bearing  sleeve  inner

diameter  with  Molybdenum  disulphide  base
grease.

9.

Fit  the  release bearing assembly  and  retain

with  the  staple.  The  staple  is

to

aid  assembly

and  has  no  other  purpose.

It

may  become

dislodged in service, without detriment.

housing.

4.

Withdraw  the  piston  assembly.

If

necessary,

apply  a  low  air  pressure

to

the  outlet

port  to

expel the piston.

10.

Coat  both  sides  of  the  backing  plate  with  a
waterproof joint  compound  such  as  Hylomar
PL32M  and locate the backing plate and  dust
cover in position on the slave cylinder.

11.  Check that the push-rod clip is in position.
12.  Fit  the  slave  cylinder,  engaging  the  push-rod

through the centre of  the  dust  cover  and  with
the bleed screw uppermost.  secure the cylinder
with  the  two  bolts,  tighten  evenly  to  the
correct  torque.

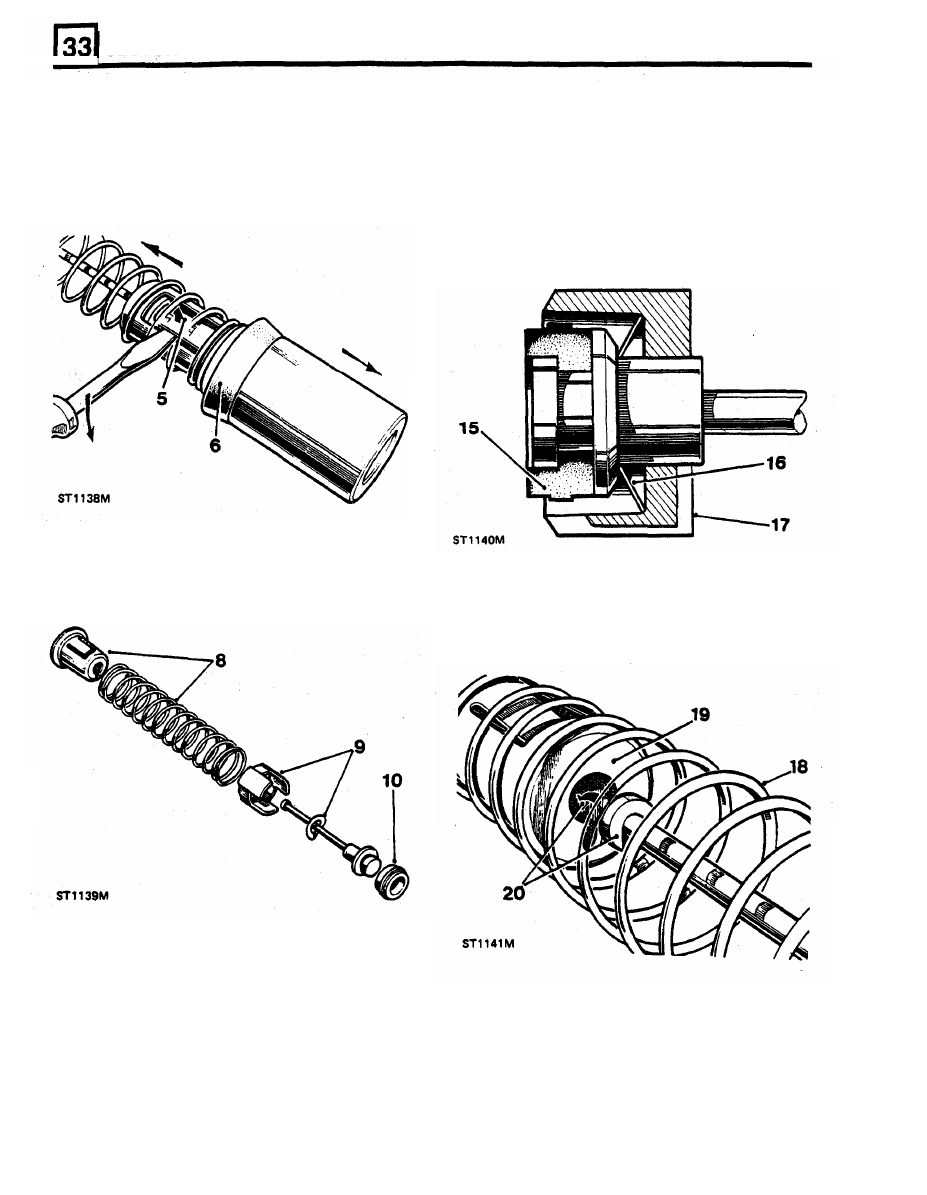

CLUTCH

5.

Prise  the  locking  prong of  the  spring  retainer

Assemble

clear

of  the  piston shoulder  and  withdraw  the

piston.

14.

Smear  the  seals  with  rubber  grease  and  the
remaining internal items with  brake and clutch

stem to  align with  the  larger hole in the  spring

15.

Fit  the  valve  seal,  flat  side  first,  onto the  end

retainer

of the valve stem.

16.  Place  the  spring  washer,  domed  side  first,

over  the small end

of the valve stem.

17.  Fit the spacer, legs first.

6.

Withdraw the piston seal.

7.  Compress  the  spring  and  position  the  valve

fluid.

8.

Withdraw the spring and retainer.

from the valve stem.

9.

Withdraw  the valve  spacer  and  spring  washer

18.

Place the coil spring over the valve stem.

20.

Compress  the  spring  and  engage  the  valve
stem

in

the keyhole slot in the retainer.

10.

Remove the valve seal.

19.

Insert the retainer into the spring.

Inspection

11.

Clean  all  components

in  cleaning  fluid  and

allow

to dry.

12.

Examine the  cylinder  bore and  piston, ensure

that  they  are  smooth

to

the  to

u

ch  w

i

th  no

corrosion,  score  marks  or  ridges.

If

there  is

any doubt, fit  new replacements.

13.

The  seals  should

be

replaced

with

new

21.

Fit the seal, large diameter last, to  the piston.

22.

Insert  the  piston  into  the  spring  retainer  and

engage the locking prong.

components.
