Defender (1993+). Manual - part 35





FUEL SYSTEM

REMOVING FUEL TANK  AND  FUEL PUMP

13.

Finally  remove  the  tank

from

the

vehicle

DEFENDER 110

together  with  the  fuel

pump

and

rear  section

of  the  fuel  feed

pipe.

Place  tank

in

safe

Remove

area.

WARNING:  Ensure  fuel  handling  precautions

NOTE:

fuel  vapour  warning  label  must  be

given

in

section

01

introduction regarding fuel

handling  are  strictly  adhered

to

when  carrying

14.

Disconnect  the

rear

section

of

the

fuel

feed

out following  instructions.

pipe from the  pump.

15.

Remove  the

five

retaining

screws

and

CAUTION:  Before disconnecting  any  part

of

fuel

withdraw  the  fuel

pump

and  sealing  ring  from

system  it  is  imperative  that  all  dust,  dirt  and

the tank.

debris  is  removed  from  around  components  to

16.

Cover  the  pump  aperture  in  the  tank

to

prevent  ingress  of  foreign  matter  into  fuel

prevent  the  ingress  of  foreign  matter  and

system.

escape

of

fuel  vapours.

To

renew  the  pump, it

is

necessary

to

remove  the

fuel tank from the  vehicle.

attached to vehicle.

Refit

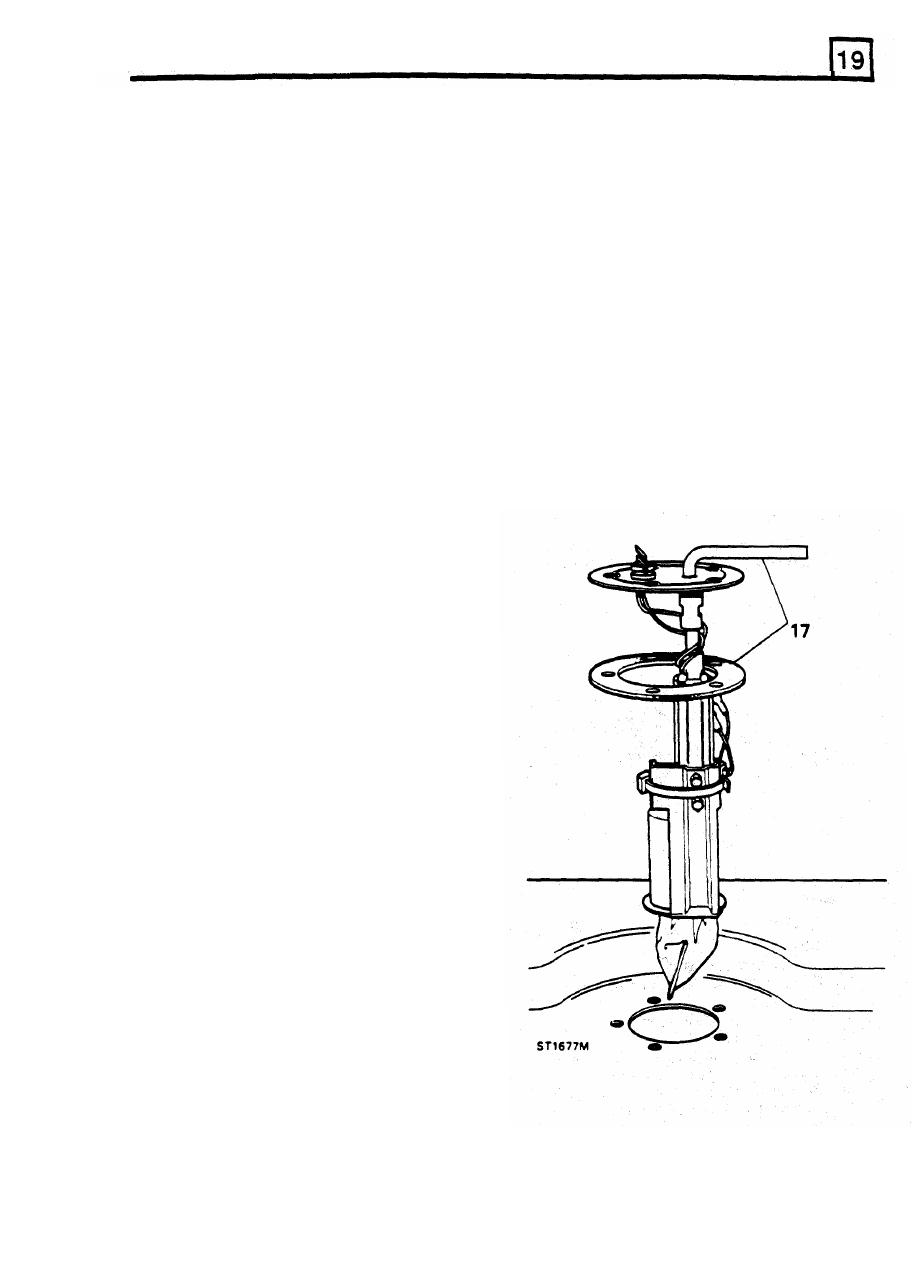

17.

Fit  the  pump  into the  tank  with  a

new

sealing

1.

Move the  vehicle

to

a well  ventilated area and

ring

so  that the  outlet  pipe is  directed towards

disconnect the  battery. Clean the  area  around

the

front

of  the  vehicle  and  the  electrical

the pump.

connections to  the  rear.

2.

Remove the  fuel tank  drain plug and allow  the

fuel to  drain into a suitable receptacle that can
be sealed afterwards

ENSURE TANK IS DRAINED COMPLETELY,
Refit  drain  plug

refer

to  WARNING

concerning fuel handling at  start

of

procedure.

3.

Working  from  the  right  hand  side  of  the

vehicle,  disconnect the  fuel  feed pipe and the
spill return at  the rubber connections.

4.

Disconnect  the  fuel  filler  hose  and  breather
hose from the tank.

5.  Whilst  noting the cable colours, disconnect the

electrical leads from  the fuel gauge unit at

the

left hand side

of

the vehicle.

6.

Disconnect pipes to  expansion tank.

7.

Remove the  eight  nuts and bolts securing

the

anti-roll  bar

to  the  chassis  and  push  the

anti-roll  bar  down

to

provide  access  to  the

tank.

8.

Remove the  left  hand lashing eye to  facilitate
removal of  the fuel tank.

9.

Place a support under the fuel tank. preferably
one  which  will  enable

the

fuel  tank

lo

be

progressively lowered.

10.

Remove  the

two  nuts  retaining

the

forward

end

of the tank.

11

Remove the

two

nuts retaining the  rear  end of

the tank.

12.

Carefully  lower  the  tank  sufficiently  to  enable
the  electrical  leads  to  the  fuel  pump  to  be
disconnected.

RE-ISSUED: FEB

1993

21

FUEL SYSTEM

18.

Offer  up  tank  to  chassis  ana  connect  the
electrical  leads;  black  to  ground

(-)

and  white

to

positive

(+).

Remove

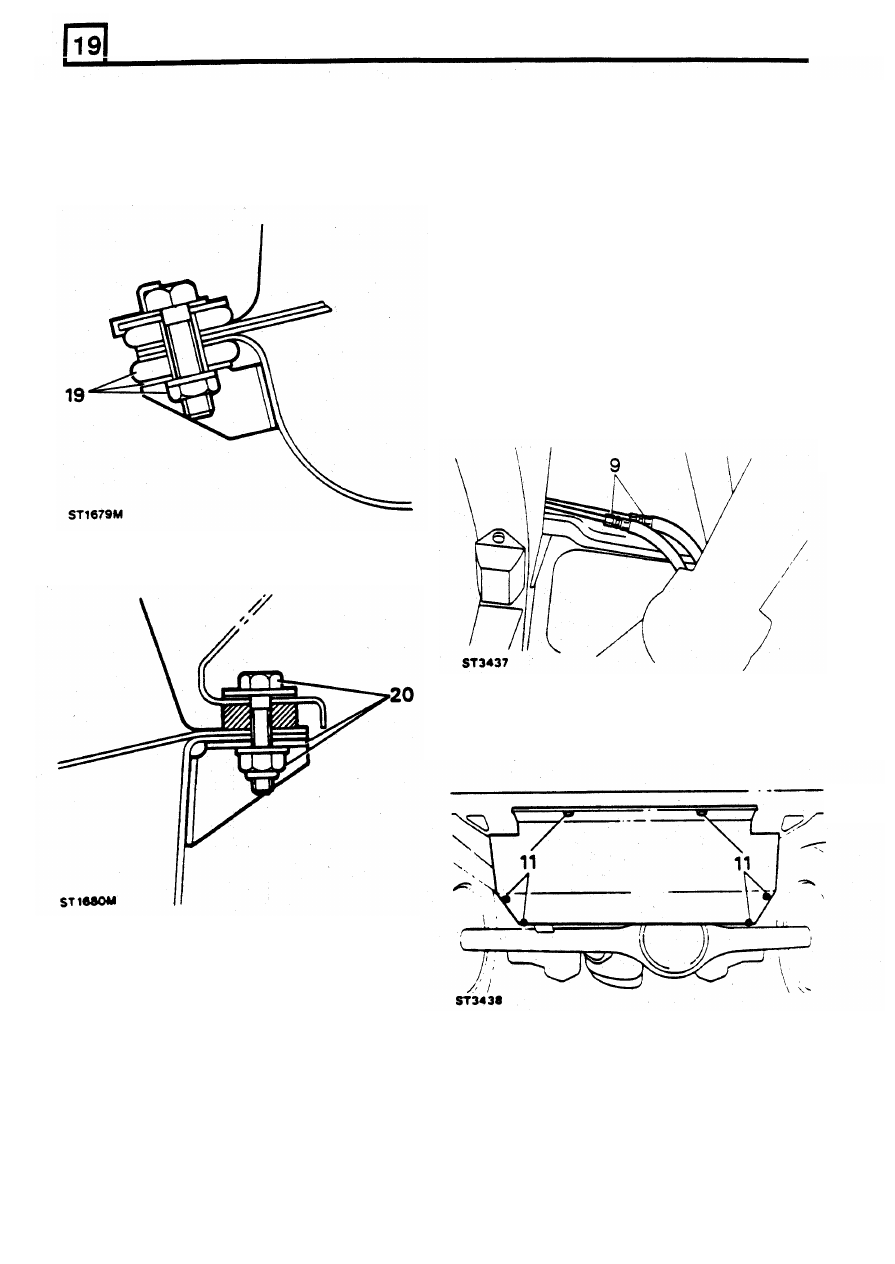

19.

Locate  front

of

tank  on  the  two  captive  bolts

and  secure  with  the  mounting  rubber,

flat

and

WARNING:  During  the  following  operations

spring washers and nut.

ensure  that  the  fuel  handling  precautions  and
warnings

in

Section

of

this  manual  are  being

adhered to.

FUEL TANK  DEFENDER

90

1.  Disconnect battery.

2.  Raise vehicle onto axle stands.
3.  Remove rear step.
4.  Remove spare wheel.
5.  Remove spare wheel carrier.
6.  Drain fuel tank.
7.  Disconnect fuel filler pipe at tank.
8.  Disconnect breather pipe at filler neck.
9.  Disconnect

main

fuel

lines

at

union

connections forward of tank.

20.  Secure  the  rear

of  the  tankwith  the

two

captive bolts, plain washer  and Nyloc  nut.

10.

Disconnect  pipe  to  expansion  tank  using

11.

Loosen  protection  plate/fuel  tank  securing

special

tool  LRT-19-002 on  green  connector.

bolts.

21

Connect  the  fuel  teed  and  expansion  tank

pipes.

22.  Connect the spill return pipe.
23.  Connect  the  fuel  filler  hose and  breather  pipe

to me tank.

24.  Fit the left hand lashing eye.

12.  Support  tank  and  plate,  remove  securing

25.  Fit the anti roll  bar.

13.  Lower  tank  sufficient  to  gain  access  and

26.  Fit the drop plate support bars - if  fitted.

27.  Connect the fuel gage unit leads

disconnect multi-plug

28.  Reconnect  battery  and  check  operation  of

14

Complete  lowering  of  tank  and  withdraw  with

pump and changeover solenoid - if  fitted.

29.  Run engine check all connection for leaks.

bolts.

protection plate.

22

REVISED:

OCT

1993

FUEL SYSTEM

Refitting

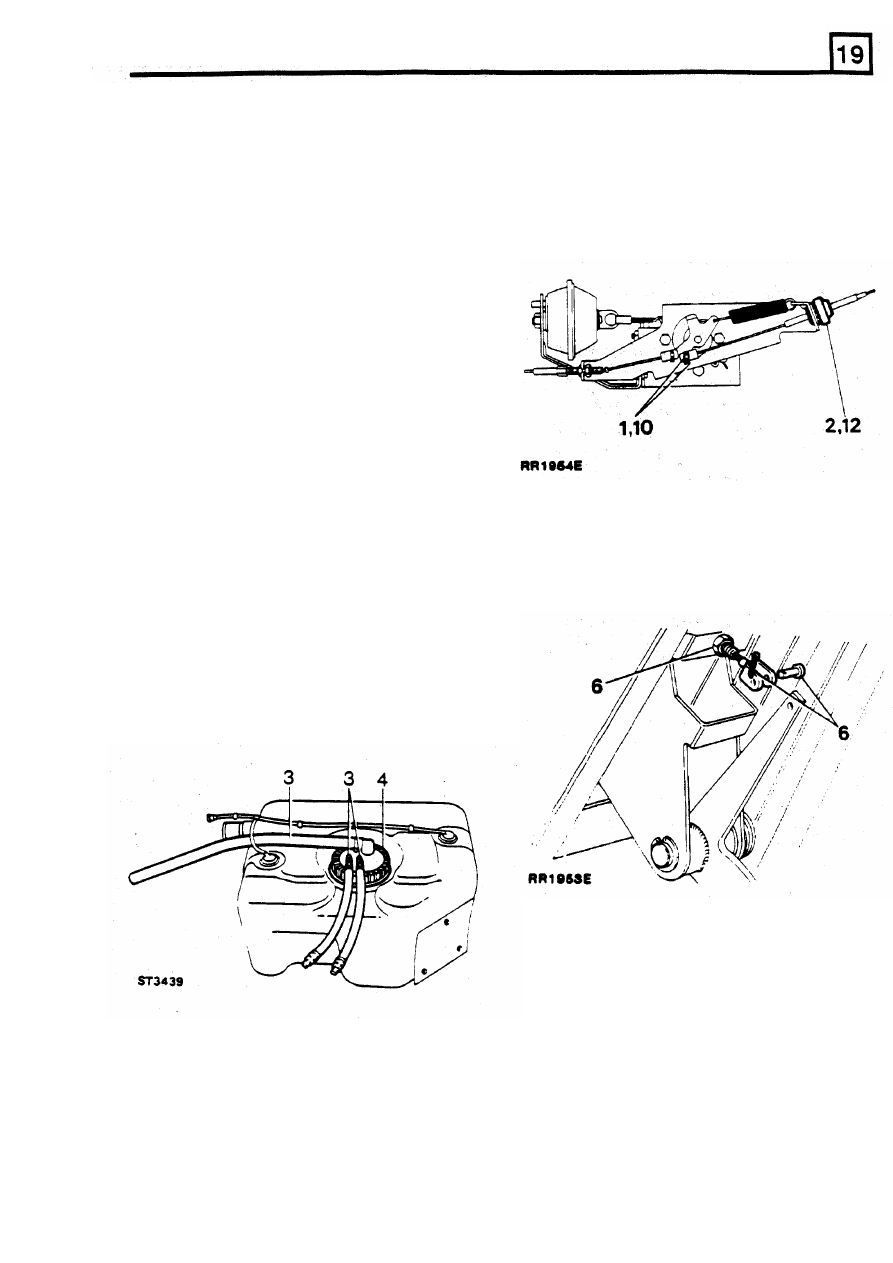

REMOVING ACCELERATOR  CABLE

15.

Position  protection plate  and  fuel  tank  under
rear

of

vehicle.

Remove

16.  Raise  plate  and  tank  sufficient

to

connect

Remove  clevis  pin  securing  accelerator  cable

multi-plug.

to

lever.

17.

Complete raising and secure plate with  bolts.

2.

Carefully  pry  accelerator cable adjustment  nut

18.  Connect  all  fuel  and  breather  pipes  at  their

various  locations/

3.  Remove  accelerator  cable  from  mounting

19.

Refit spare wheel carrier.

bracket.

20.  Refit spare wheel.
21.  Refit rear  step.
22.  Remove vehicle from axle stands.
23.  Replenish fuel tank.

24.

Reconnect battery.

25.  Run engine for  short  period.
26.  Check all disturbed connections for  leaks.

out  of  mounting bracket.

FUEL PUMP/SENDER UNIT

Special tool

LRT-19-001  Fuel  pump remover

Removal

WARNING:.  During  the  following  operations
ensure  that  the  fuel  handling  precautions  and
warnings  in  Section

of  this  manual  are  being

adhered to.

4.

Release  outer  cable  from  retaining  clips  in
engine compartment.

5.  Remove

toe

board from drivers footwell.

6.

Disconnect  cable  from  accelerator  pedal  and
release cable locknut.

7.  Feed  cable  through  bulkhead  grommet  into

engine compartment.

1.  Disconnect battery.

2.  Remove fuel tank.
3.  Disconnect  fuel  and  breather  pipes  from

pump/sender unit.

Refit

8.  Feed  new  accelerator  cable

from

engine

compartment through bulkhead grommet.

9.  Connect cable

to

accelerator  pedal.

10.

Connect cable

to  accelerator  linkage, using

new split pin.

11.

Clip  outer  cable  adjustment  nut  into  mounting

4.

Using  special

tool

LRT-19-001  remove  fuel

bracket.

12.

Adjust  outer  cable

to

give

57

mm

(0 062

in)

5.

Withdraw  pump/sender unit from tank.

free  play  in  inner  cable  Check

accelerator

operation.

pump retaining ring.

Refitting

6.

Refit in  reverse order

to

removal.

REVISED: OCT

1993

23

FUEL

SYSTEM

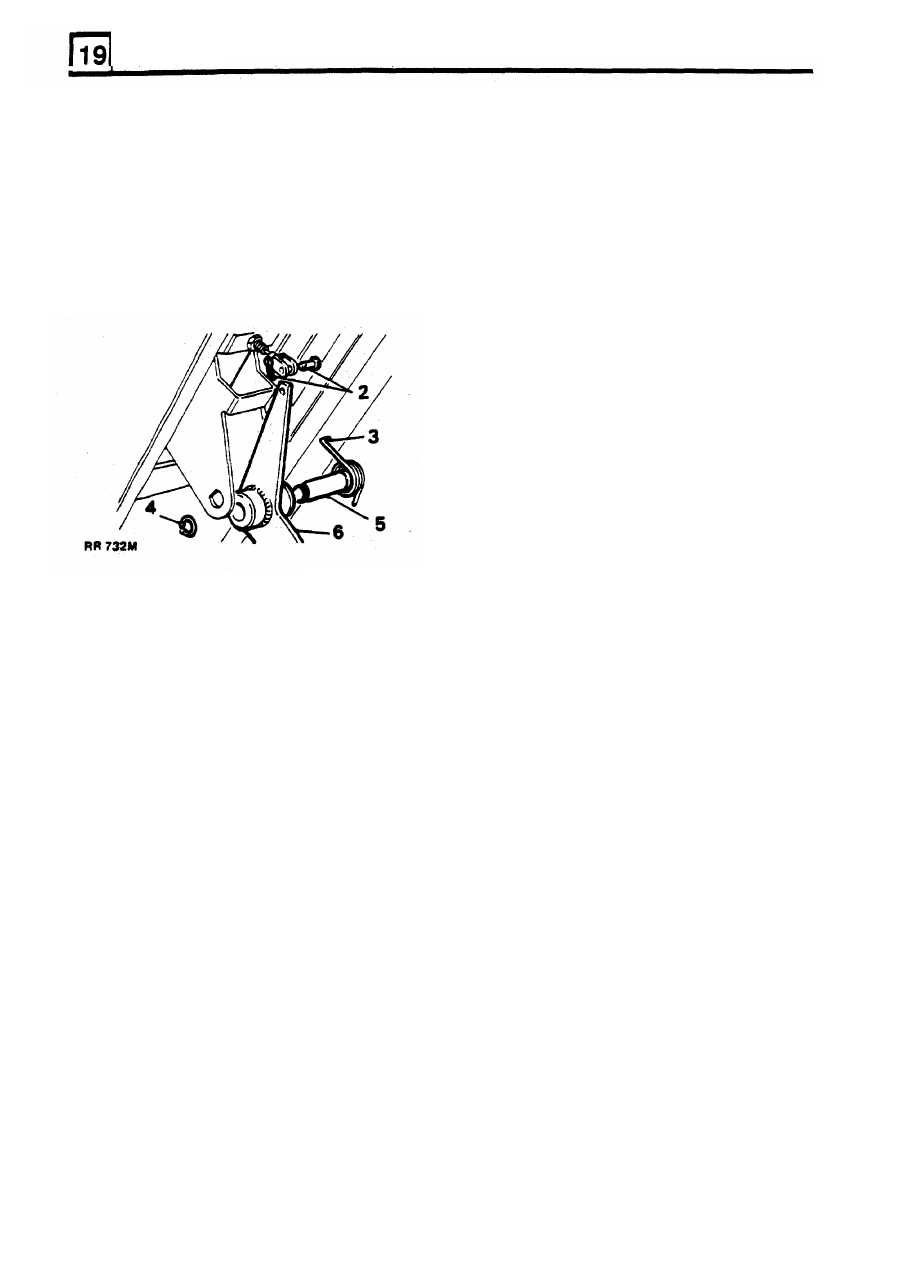

REMOVING ACCELERATOR  PEDAL

Remove

1.

Remove toe board from driver's footwell.

2.

Remove  clevis  pin  securing  throttle  cable

to

accelerator pedal.

3.

Release tension

from

pedal return spring.

4.

Remove circlip from  pedal pivot pin.

5.

Withdraw  pivot pin.

6.

Remove accelerator pedal.

Refit

7.

Lightly grease pivot and clevis pins.

8.

Fit clevis pin using

new split  pin.

9.

Reverse remaining removal instructions.

24

ADDITION:

OCT

1993
