FUEL SYSTEM

DIAGNOSTIC  EQUIPMENT

IGNITION

Electronic Ignition Analsyer
Lucas Part No.

YWB  119

Supplied by  Lucas Complete with instruction manual.

MEMORY CARDS

Land  Rover  Part  Numbers  include

two

memory

card  and  instruction  manual  in  appropriate

language

Suitable for  14CUX ECU

ENGLISH

.....................

RTC 6835

USA

..............................

RTC 6836

FRENCH

......................

RTC 6837

GERMANY

...................

RTC 6838

ITALIAN

.......................

RTC 6839'

SPANISH

.....................

RTC 6840

DUTCH

........................

RTC 6842

JAPANESE

..................

STC  127

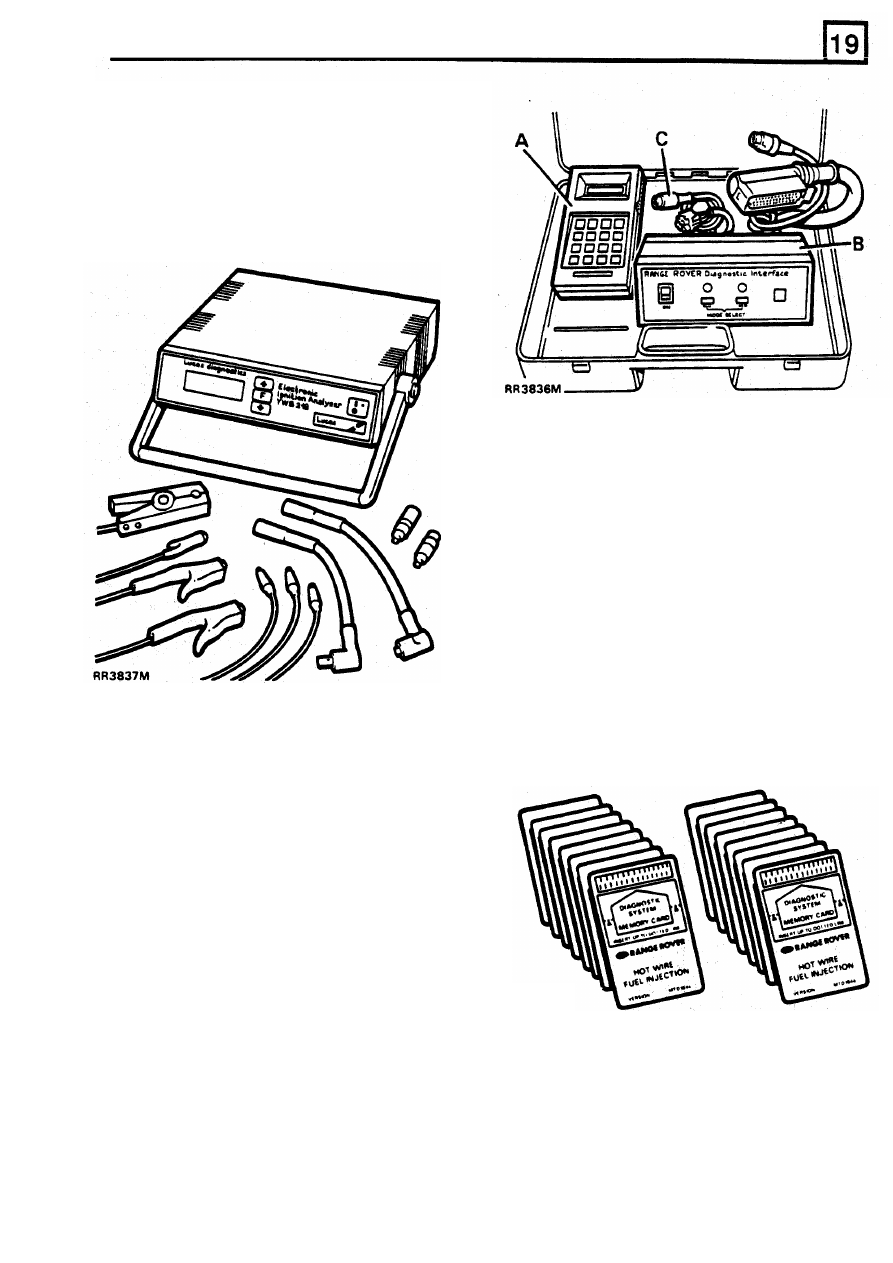

LUCAS MFI DIAGNOSTIC EQUIPMENT
Complete kit Land Rover Part No. RTC 6834

Kit Comprises:-

Hand held tester

Interface unit

Foam lined carrying case

Serial  link  cable  (Spare  part  Lucas
No.  54744753).

Memory cards are supplied separately

see

below

RR3838M

REISSUED: FEB

1993

FUEL SYSTEM

HOT WIRE MULTIPORT FUEL INJECTION

Engine fuel temperature sensor

Description

The  engine fuel  temperature  sensor  is  located in the
fuel  rail forward

of  the  ram  housing. The  engine fuel

The  ’Hot  Wire’  Multiport  Fuel  Injection  system

temperature  sensor  sends  fuel  temperature  data  to

derives

its

name from the  air  flow  meter  which  uses

the  ECM,  the  ECM  on  receiving the  data

will adjust

one  cold  wire  and  one  electrically  heated  wire

to

the  injector  open  time  accordingly  to  produce  good

measure the volume

of  air  entering the engine.

hot starting in high ambient temperatures.

The  function  of  the  system  is  to  supply  the  exact

Idle air control valve

amount

of  fuel  directly  into  the  inlet  manifold

according

to  the  prevailing  engine  operating

The  idle  air  control  valve  is  screwed  into  a  housing

conditions.

attached

to the rear of  the plenum chamber, between

the  plenum  chamber  and  bulkhead.  The  idle  air

To  monitor  these  conditions,  various  sensors  are

control  valve  has  two  windings  which  enable  the

fitted

to

the  engine  to  measure  engine  parameters.

motor  to  be  energised

in

both  directions  thus

Data  from  the  sensors  is  received  by  the  Electronic

opening

or  closing  the  idle  air  control  valve  as

Control Module (ECM), the  ECM

will

then determine

required by the ECM.

the exact amount

of

fuel required at  any condition.

The  bypass  valve  will  open  and  allow  extra  air  into
the  plenum  chamber

to

maintain engine  idle  speed

The  ECM  having  received  data  from  the  sensors

when  the  engine  is  under  increased (Electrical  and

produces  pulses,  the  length

of  which  will  determine

Mechanical) loads.

the simultaneous open time of  each bank of  injectors

The  idle  air  control  valve  will  control  engine  idle

in turn, which will govern the amount

of  fuel injected.

speed when the vehicle

I

stationary.

Electronic control module - ECM

Heated oxygen sensors

The  Multiport  Fuel  Injection system  is  controlled by

The two  heated oxygen sensors  are  located forward

the  ECM  which  is  located  behind  the  front

of  the catalysts mounted

in the exhaust downpipes.

passenger’s  toe  board.  The  control  unit  is  a

The  sensors  monitor  the  oxygen  content  of  the

microprocessor

with

integrated

circuits

and

exhaust  gases  and  provide feedback  information

of

components  mounted on  printed circuit  boards.  The

the  air/fuel  ratio

to  the  ECM.  Each  heated  oxygen

ECM  is  connected to  the  main harness by  a

40

pin

sensor  is heated by  an electrical element

to

improve

plug.

its response time when the ignition is switched on.

Injectors

Fuel  pressure regulator

The  eight  fuel  injectors  are  fitted  between  the

The fuel pressure regulator is mounted in the fuel rail

pressurized fuel  rail and  inlet  manifold. Each injector

at  the  rear  of  the  plenum chamber. The  regulator

is

comprises  a  solenoid  operated  needle  valve  with  a

a  mechanical  device  controlled  by  plenum  chamber

movable plunger rigidly attached

to

the

nozzle valve.

vacuum,

it

ensures  that  fuel  rail  pressure  is

When  the  solenoid  is  energized  the  plunger  is

maintained at  a  constant  pressure  difference of

2.5

attracted off  its  seat  and  allows  pressurized fuel  into

bar above that of the manifold.

the intake manifold.

When pressure exceeds the regulator setting excess
fuel is returned to the fuel tank.

Engine coolant temperature sensor

Fuel pump

The engine coolant temperature  sensor  is located by
the front  left  hand branch

of  the intake manifold. The

The  electric  fuel  pump  is  located

in  the  fuel  tank,

engine  coolant  temperature  sensor  provides  engine

and  is  a  self  priming  ‘wet’  pump,  the  motor  is

coolant  information  to  the  ECM.  The  ECM  on

immersed in the fuel

within

the tank.

receiving  the  signal  from  the  engine  coolant
temperature sensor

will

lengthen slightly the time that

the injectors  are open,  and reducing this time  as the

engine reaches normal operating temperature.

REISSUED: FEB

1993

FUEL

SYSTEM

Mass air flow sensor

The  hot-wire  mass  air  flow  sensor  is  mounted on  a

It

should  be  noted  that  under  high  coolant

bracket  attached

to

the  left  hand  valance,  rigidly

temperatures,  when  the  engine  is  switched

off,

the

connected  to  the  air  cleaner  and  by  hose

to  the

condenser  fans  will  be  activated  and  will  run  for

plenum chamber  inlet neck.

approximately ten minutes.

The  mass  air  flow  sensor  consists  of  a  cast  alloy

body through which  air  flows.  A  proportion

of

this  air

Vehicle speed sensor

flows  through

a  bypass

in

which

two

wire  elements

are  situated: one is a sensing wire and the other  is a

The  vehicle  speed  sensor  is  mounted  on  a  bracket

Compensating  wire.  Under  the  control  of  an

located  on  the  left  hand  chassis  side  member

electronic  module  which  is  mounted  on  the  air  flow

adjacent

to

the  rear  engine  mounting.  The  vehicle

sensor body,  a  small  current  is  passed  through the

speed sensor  provides road speed  data

to

the  ECM.

sensing  wire

to

produce  a  heating  effect.  The

The ECM  in turn detects vehicle  movement from  the

compensating wire  is  also  connected to  the  module

road speed input and  ensures that  idle speed control

but  is  not  heated,  but  reacts

to

the  temperature  of

mode  is  disengaged.  Should  the  vehicle  speed

the air taken in,  as engine intake air  passes over  the

sensor  fail  in  service  the  ECM  idle  speed  control

wires

a cooling effect takes place.

would become erratic.

The  electronic  module  monitors  the  reaction  of  the

The  vehicle  speed  sensor  also  provides  road  speed

wires  in  proportion  to  the  air  stream  and  provides

data

to

the electric speedometer.

output signals in proportion

to

the air  mass flow  rate

which  are  compatible  with  the  requirements  of  the

Inertia fuel shut off switch

ECM.

The  inertia  fuel  shut  off  switch  is

mechanically

Throttle

position

sensor

operated  switch  that  is  normally  closed  and  is
connected to  the  fuel  pump circuit.  In the  event  of  a

The  throttle  position  sensor  is  mounted  on  the  side

sudden impact the inertia fuel  shut  off switch opens,

of  the  plenum  chamber  inlet  neck  and  is  directly

and disconnects the electrical feed to the fuel  pump.

coupled to the throttle butterfly shaft.

The  inertia  fuel  shut  off  switch  is  reset  by  pressing

The  throttle  position  sensor  is  a  resistive  device

down the button.

supplied with  a voltage from  the  ECM.  Movement of

the  throttle  pedal  causes  the  throttle  butterfly  to

Relay modules

open,  thus  rotating  the  wiper  arm  within  the throttle
position sensor which in turn varies the resistance in

Two  multiport  fuel  injection  relay  modules  are

proportion to the  valve position.  The  ECM  lengthens

located  behind  the  front  passenger  toe  board.  The

the  injector  open  time  when  it  detects  a  change  in

main  relay  module  is  energized  via  the  ECM  when

output  voltage  (rising)  from  the  throttle  position

the  ignition  is  switched  on  and  supplies  current  to

sensor.

the  multiport  fuel  injection  system.  The  fuel  pump

In addition the ECM will weaken the mixture when it

relay  module is energized by  the  ECM  which  in turn

detects the  throttle  position  sensor  output voltage  is

operates  the  fuel  pump  to  pressurize  the  fuel

decreasing  under  deceleration  and  will  shorten  the

system.

length of time the injectors are open.
When  the  throttle  is  fully  open,  the  ECM  will  detect
the  corresponding  throttle  position  sensor  voltage
and  will  apply  full  load  enrichment.  This  is  a  fixed
percentage  and  is  independent  of  temperature.  Full
load  enrichment  is  also  achieved  by  adjusting  the
length of the injector open time.
When  the  throttle  is  closed,  overrun  fuel  cut  off  or

idle  speed  control  may  be  facilitated  dependant on
other inputs to the ECM.

The  throttle  position  sensor  is  'self  adaptive',  which

means that adjustment is not possible.  It also means
the the throttle  position  sensor  setting  is  not lost,  for
example, when throttle stop wear occurs.

CAUTION:  D o   not  attempt  t o   adjust  throttle
position sensor.

Condenser fans

REISSUED:

FEB

1993

FUEL SYSTEM

ENGINE  TUNING

MULTI METER  CHECKS

ECM - MFI circuit diagnosis

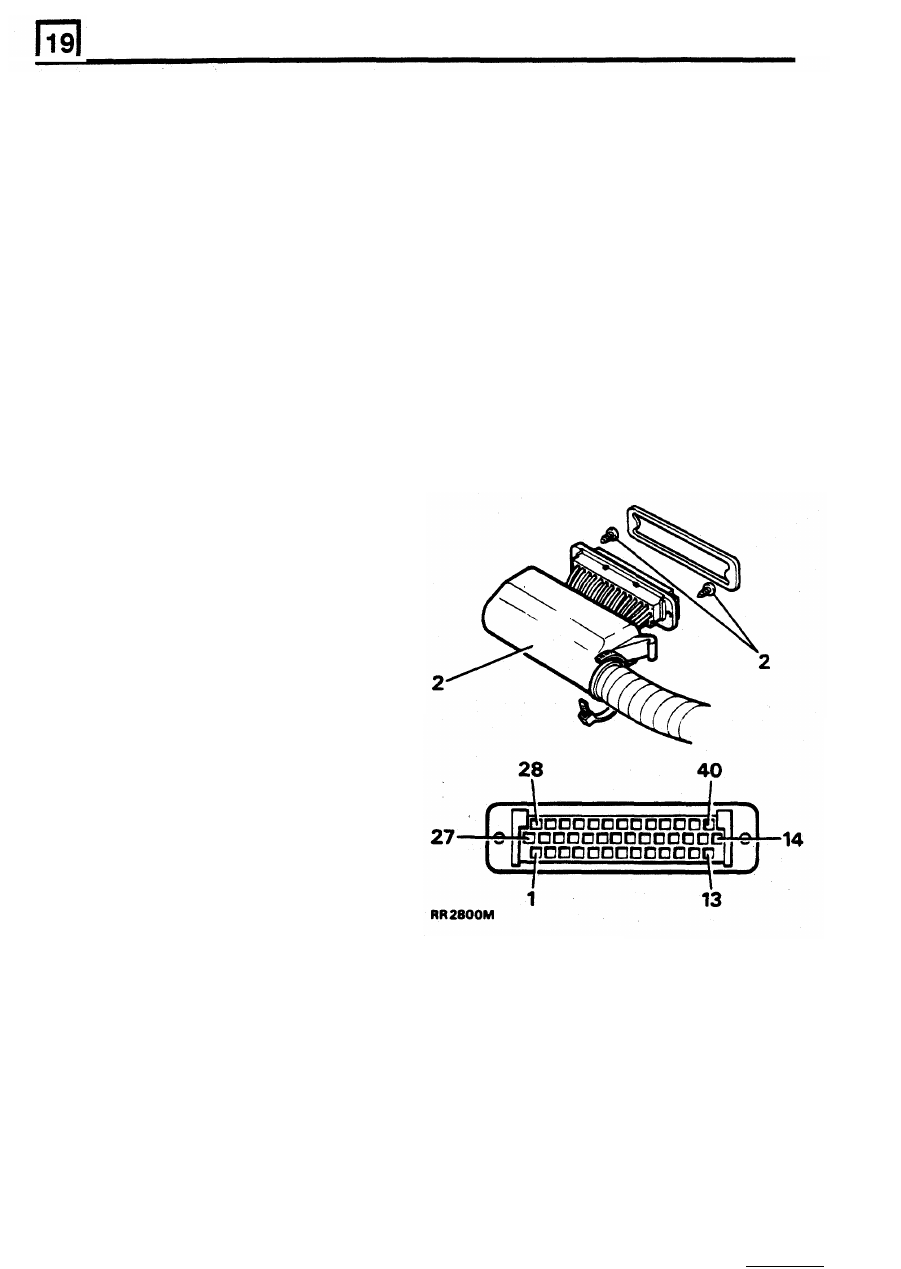

To  carry  out  tests  when  40  way  multi-plug  is

connected to  the  ECM,

it

is necessary to  remove the

Circuit  fault  diagnosis may  be carried out  on all

MFI

two

screws securing the shroud to the plug to enable

vehicles,  using  a  good  quality  Multi  Meter  or  the

the multi-meter probes

to

be inserted into the back

of

hand  held  tester  RTC6834.  The  tester  displays  the

the appropriate pin.

fault  code  and  guides  the  operator  by  visual
prompts, through  a  series  of  diagnostic checks.  Full

CAUTION:  Tests  requiring  plug  to  be  removed

operational  and  diagnosis  instructions  are  provided

from ECM,  must have meter probes inserted into

with the unit memory card.

back  of  plug.  I f  probes  are  inserted  into  plug
sockets,  damage  will  occur to  sockets  resulting

Which  ever  instrument  is  used  to  diagnose  the

i n  poor connections when plug i s  reconnected.

problem,  the  following  Preliminary  Checks  must  be
carried out first.

Testing

Preliminary checks

1.

Release harness plug from ECM.

CAUTION:

If

engine  is  misfiring  or  fails  to start

within

12

seconds  the  cause  must

be  rectified.

Failure to do

so will  result

in

irreparable damage

to  the  catalysts.  After  rectification  the  engine

are moulded onto rear of  plug.

must

be  run

at  1500

rev/min

(no

load)  for

minutes to purge any  accumulation of  fuel

in

the

system.

1.

Check  that  the  inertia fuel  shut

off  switch

is

not tripped.

2.  Check  fuse

in main fuse panel and the fuel

pump fuse in the auxiliary fusebox.

3.

Check

for  ample fuel  in tank.

4.  Check  air  inlet  system  for  possible leaks  into

the inlet manifold.

5.  Check

HT  cables

for  correct  firing  order  and

routing.

2.

Remove  plug  shroud  and  manoeuvre

it

along

harness to  enable meter probes to  be inserted
into back

of  plug.

3.

Only  pin  numbers

1,

13,

14,

27,

28

and  40

6.

Check ignition timing.

ETM A1.

Only  when the  above checks have been carried out,
should circuit diagnosis begin.

For  diagnosis  procedure  using

Multi  Meter

see

The  diagnosis  procedure using  Hand Held Tester  is
contained in the hand held tester  manual.

View of plug - cover removed.
Pins 1 to 13 bottom row.

Pins 14 to 27 centre row.
Pins  28  to  40  top  row.  For  clarity  electrical  leads
omitted.
For diagnostics using a multi meter, see ETM A1

REISSUED:

FEB

1993















Content   ..  28  29  30  31   ..
