DEFENDER

90

Remove

1.

Loosen  filler  cap  to  release  any  pressure  in

2.

Disconnect battery negative terminal.

3.

Disconnect  pipe  connection

to

charcoal

canister,  using  Special  Tool  LRT-19-002,
press down on collet  and pull connector.

4.

Disconnect

pipe

to

fuel

tank

using

tank.

LRS-19-002.

5.

Remove

four

nuts  and  remove  expansion

tank.

ST3440M

RR2872M

Refit

4.

Coat  threads

of

sensor  with  anti-seize

compound.

CAUTION:

To  ensure  efficiency of  sensor

is  not

impaired,

DO

NOT  allow  anti-seize compound

to

come into contact with  sensor nose.

5.  Fit sensor and tighten to a torque of 20 Nm.

using  service  tool  LST-134.

Refit

6.

Connect electrical plugs and battery lead.

6.

Reverse removal instructions.

CHARCOAL CANISTER DEFENDER

110

HEATEDOXYGENSENSOR NOTE:

If crimped hoses

are removed

it

is

essential that  they  are  recrimped on  reassembly

Remove  sensors  from  exhaust

system

only

when

to

ensure a leak free joint.

engine is cold.

Remove

Remove

1.  Disconnect battery negative lead.

2.  Disconnect both purge lines.
3.  Release canister from mounting.

1 .

Disconnect battery negative lead.

2.

Disconnect electrical  plugs from sensors.

3.  Remove

sensors

from exhaust downpipes.

REVISED: OCT

1993

RR2606E

RR3899M

EMISSION CONTROL

Refit

5.

Reverse  removal  procedure  ensuring  pipes
are securely crimped.

CHARCOAL CANISTER

DEFENDER

90

Remove

1.

Disconnect battery negative lead.

2.  Pry

out purge valve.

4.

Loosen

bracket retaining bolt.

Refit

3.

Disconnect pipe.

4.

Reverse  removal  procedure.  Ensure  that

5.

Remove charcoal canister.

canister

is

securely  located  and

both

purge

lines

are fitted correctly

to

canister.

CHARCOAL CANISTER

PURGE VALVE

DEFENDER

110

Remove

1.  Disconnect battery negative lead.

2.  Disconnect two  purge valve pipes.

Disconnect  electrical  connection.

Remove  edge  clip  retaining  purge  valve  and
withdraw purge valve.

Refit

6.  Reverse removal procedure

REVISED: OCT

1993

EMISSION CONTROL

RR595M

POSITIVE CRANKCASE VENTILATION AIR

POSITIVE  CRANKCASE  VENTILATION

INTAKE FILTER

BREATHER FILTER

The  PCV  air  intake  filter  is  located  at  rear  of  left

Remove

hand rocker cover, beneath throttle linkage bracket.

Remove

2.

Unscrew canister and remove.

1.  Release hose clamp, pull hose off  canister

3.

Remove  large  rubber  'O' ring,  inspect

for

1.

Pry  filter cover upwards to release

it.

deterioration.

2.

Remove filter

from

cover  and discard.

4.

Inspect  condition

of

wire  screen  within

canister,  if  necessary,  replace  assembly.  If
filter  unit  is

in

acceptable condition,  clean  as

follows.

3.  Insert new filter into filter cover.

5.

Immerse  canister

in

small  amount  of  solvent

4.

Press  filter  onto  mounting  until  it  clips  firmly

(mineral  spirits),  allow  solvent  to  dissolve

or

into position.

loosen debris.

6.

Remove canister  from  solvent,  allow  to  dry  in
still air.

WARNING:  D o  not  use  compressed  air  to  dry,
clean  or  remove  particles  of  debris  within  the
canister. This could cause fire or personal injury.

Refit

7.  Fit a new ' 0 '  ring to original Canister
8  Screw  canister  into  rocker  cover  securely  -

hand tight only.

Refit hose, tighten hose clamp securely

Refit

RE-ISSUED: FEB 1993

ST3418M

Defender 90 Emissions label -

1994

Model

Year

ST3459M

EMISSION

CONTROL

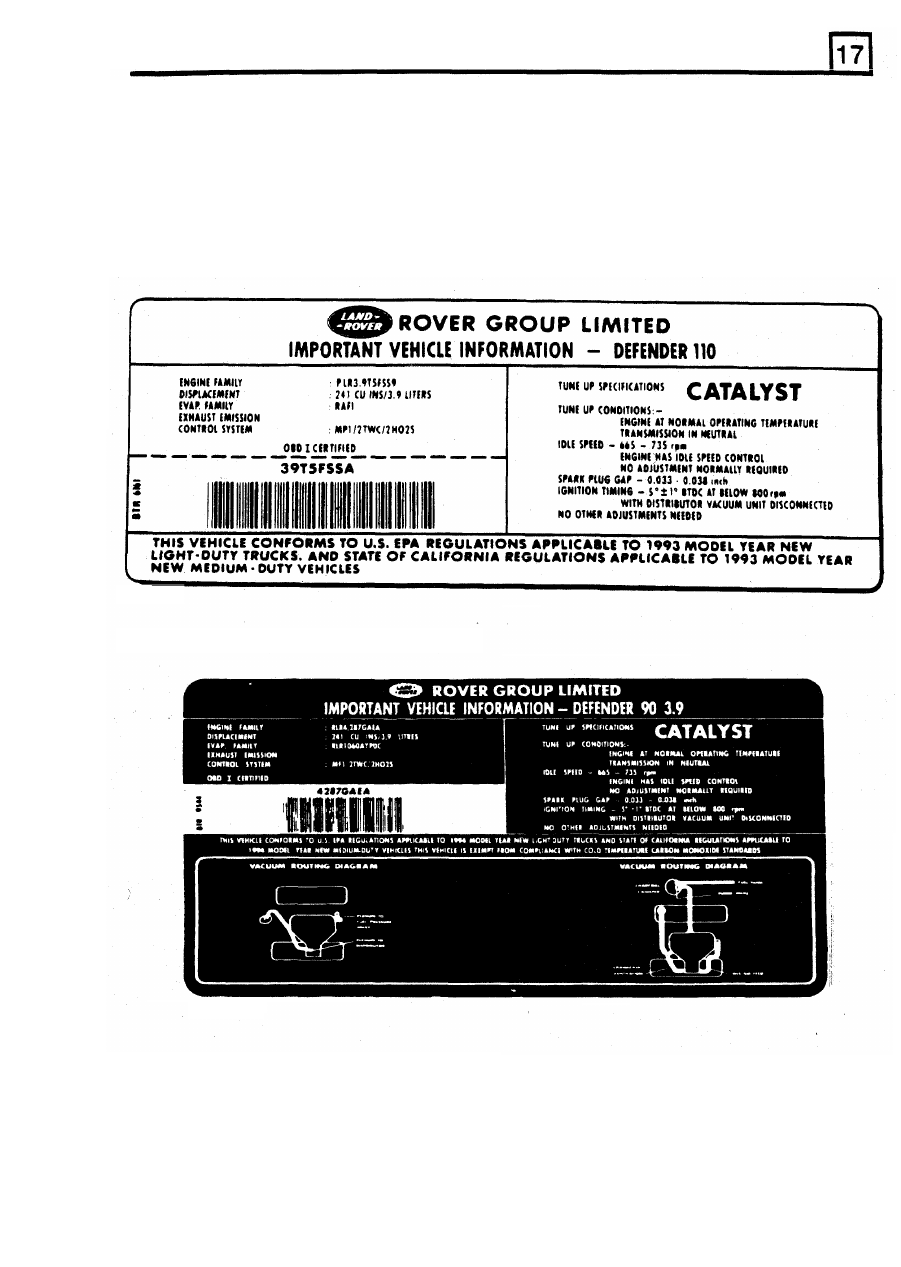

EMISSION LABEL

A vehicle Emission Control  information label  is  located  in the  engine compartment.  On  Defender  110  vehicles  it
is attached to  the  air conditioning  unit.  On  Defender 90  vehicles  it  is adhered to  the  underside of the  hood.  The
label  gives  Engine  Tune  Details  to  ensure  that  correct  emission  levels  are  achieved.  The  label  is  fitted  to

comply with  U.S  Federal and State of California Regulations and should not be removed from  its location within
the vehicle.

Defender

110

Emissions label - 1993

Model Year

REVISED: OCT 1993
