ENGINE

LRT-12-010

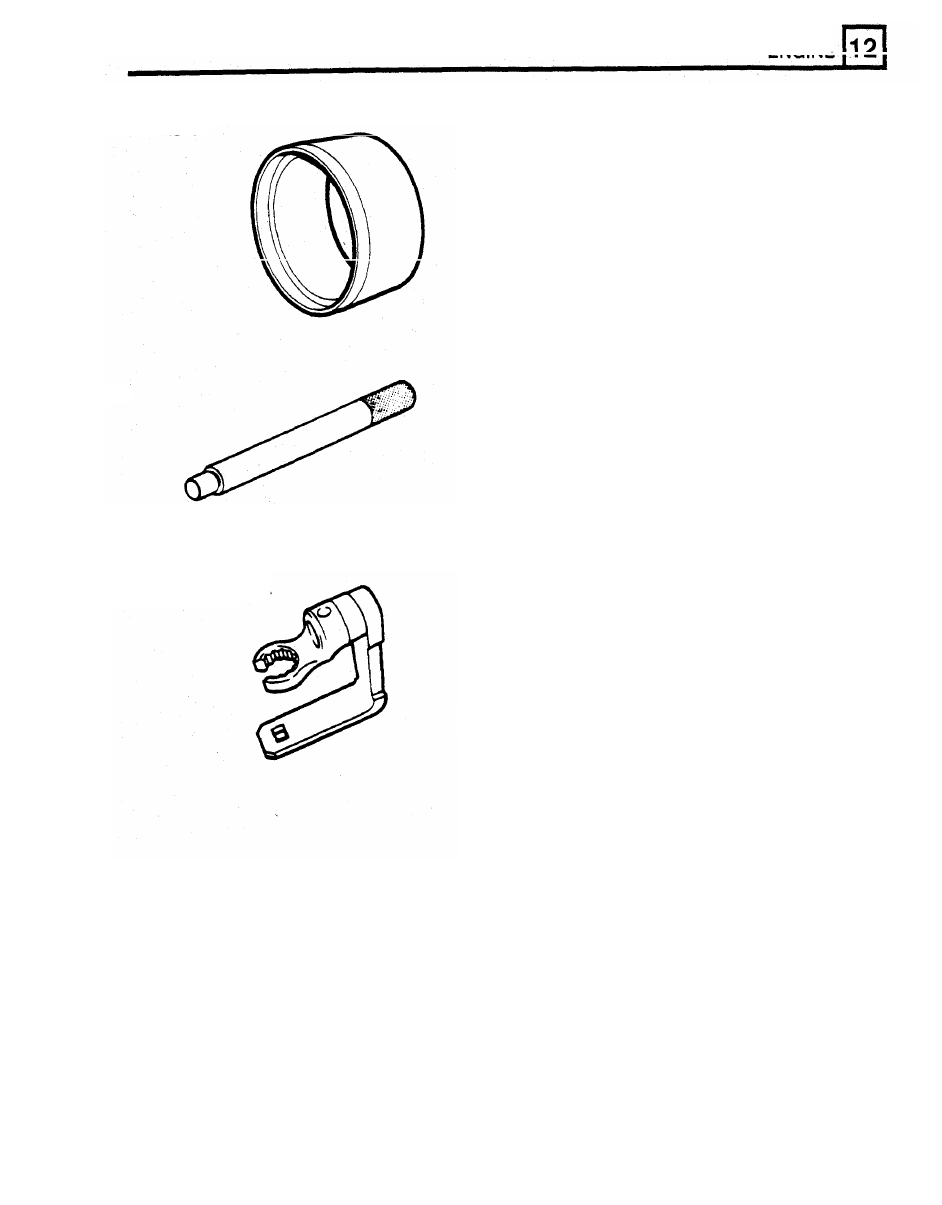

Crankshaft rear seal sleeve

RO1014

LRT-12-037

Drift for valve guide removal

intake and

RO274401A



   exhaust

LRT-12-047

Torque adaptor lambda sensor

LST134

LST134



EMISSION  CONTROL

The  purpose

of

the  crankcase  ventilation  system  is

to

ensure  that  any  noxious  gas  generated  in  the

Three  systems  are  used  to  control  the  vehicle

engine crankcase

is

rendered harmless by burning in

atmospheric emissions these are:

the combustion chambers as follows:
Oil  laden  noxious  gas  in the engine  crankcase  is

Engine crankcase fume emissions.

drawn through  an  oil  separator

located on the right

Fuel tank Evaporative emissions

cylinder  head  rocker  cover,  where  the  oil  is

Engine exhaust gas emissions.

separated  and  returned to the stump. The gas flows
through  a  restrictor

in

the  three  way  connection

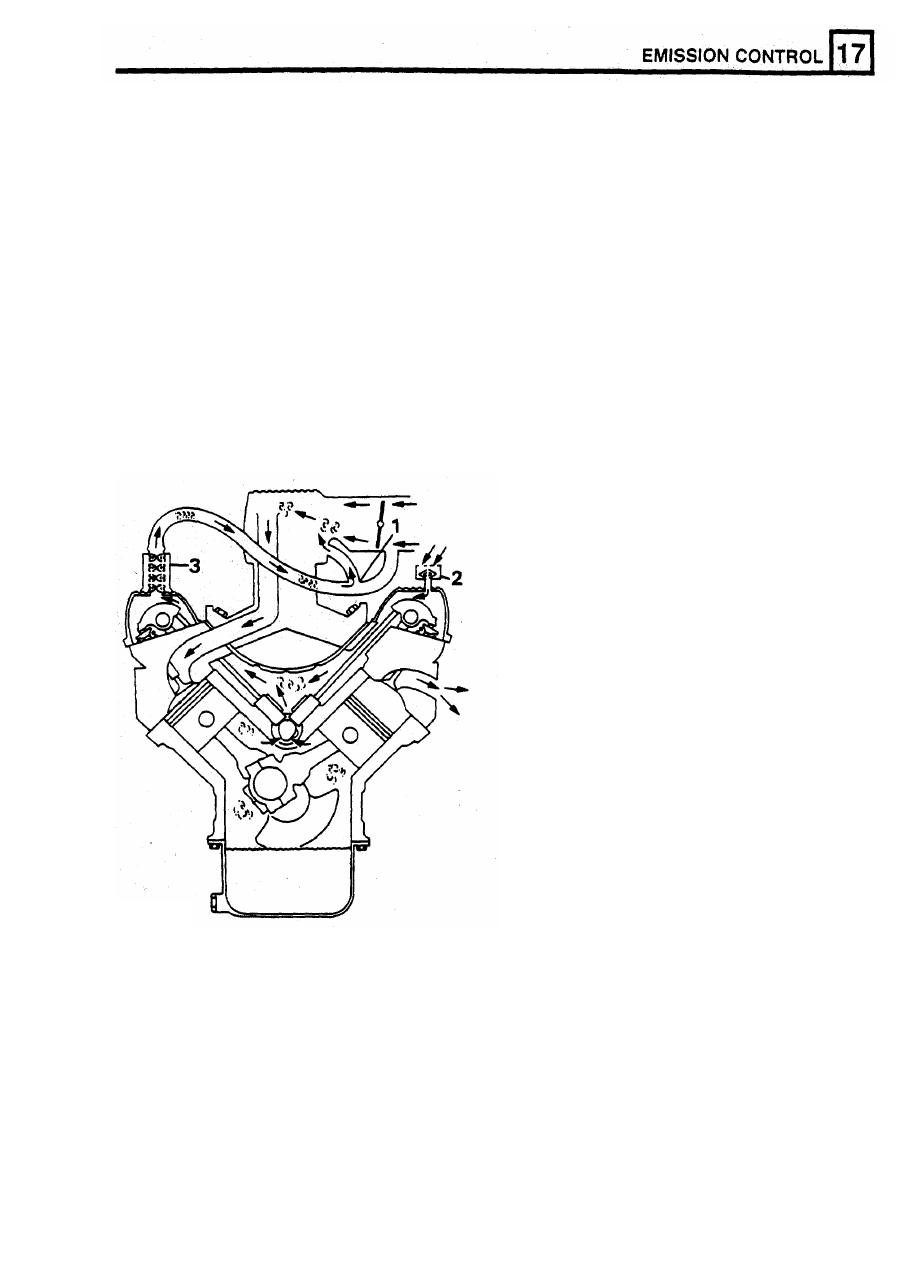

Crankcase  ventilation  system

and  into  the  inlet  plenum  chamber  where  it  drawn
into  the  combustion  chambers  and  burned.  The

The  crankcase  ventilation  system  which  is  an

volume  of  fresh  air  which

is

drawn  from  the

integral  part  of  the  air  supply

to

the  engine

atmospheric  side

of

the  throttle  butterfly  to  mix  with

combustion  chambers,  is  often  overlooked  when

the  gas,  depends on  the  position

of

the  throttle  and

diagnosing

problems

associated

with

engine

the engine speed.

performance.

blocked  ventilation  pipe  or  filter  or

excessive  air  leak  into  the  inlet  system  through  a

The  air  filter

fitted

to

the  left  cylinder  head  rocker

damaged  pipe  or  leaking  gasket  can  effect  the

cover,  must  be  maintained  in  clean  condition  to

mixture, performance and economy of the engine.

ensure  sufficient  air  enters  the  crankcase  under
varying throttle openings and manifold depression, to
prevent excessive crankcase pressure or  depression
developing.

Three way connector

Air  filter

3  Oil separator

REISSUED:

FEB

1993

RR3534M

E MISSION

CONTROL

EVAPORATIVE EMISSION CONTROL

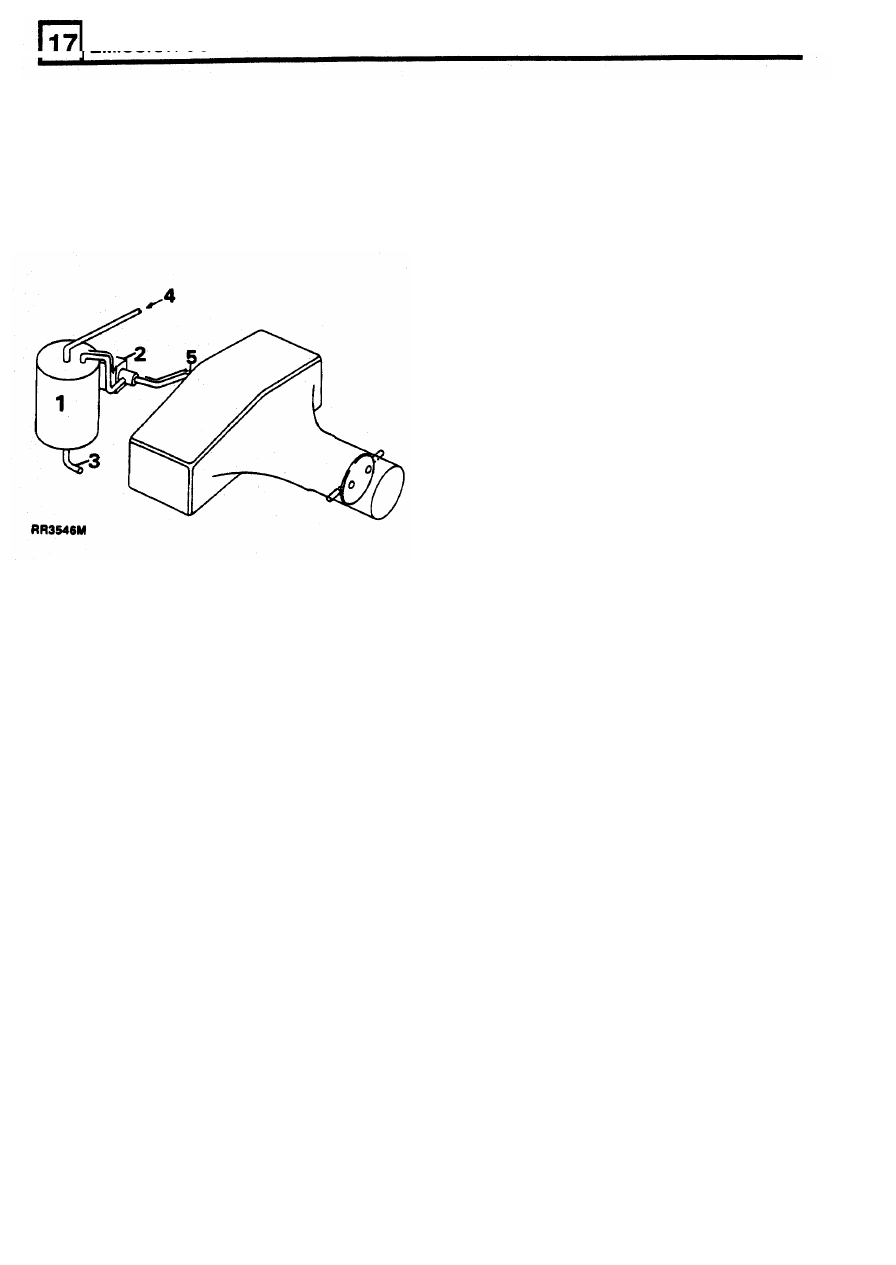

The  opening  of  the  purge  valve  (2),  which

I

controlled  by  the  MFI  ECM  occurs  when  the

Fuel tank evaporative control

following conditions prevail:

The  specification  for  certain  countries  requires  the

When the engine is running at  speeds above

recycling

of

petrol evaporation from the fuel tank.  For

1700 rev/min and temperatures above 54°C  the  ECM

these  countries only,  a  charcoal  canister  and  purge

will  hold open the purge valve as necessary.

valve are installed in the engine compartment.

At

speeds  below  1700  rev/min  the  ECM  will  only

pulse the purge valve open for  short periods.

While the  purge valve (2) is open, engine depression
draws  air  through  vent

(3)

and  fuel  tank  fumes  via

(4)

into the engine combustion chambers, where they

are  burned.  Air  entering  at  (3), passes  through the
charcoal,  where  any  accumulation of  condensed fuel
is also extracted and burned in the engine.

A  permanent  leakage  of  air  into  the  plenum
chamber  through  the  purge  system  will  effect
engine performance.

Fuel tank evaporative control system

The  system  consists  of  a  fuel  separator/expansion
tank  located  at  a  higher  level  than  the  fuel  tank,
between  the  inner  body  side  and  the  right  rear
fender.  The  tank  is vented  to  atmosphere through

relief valve and is connected

to the fuel tank  and the

charcoal  canister  purge  system  in  the  engine

Evaporative purge system

Charcoal canister

compartment.

Purge valve

Charcoal canister air vent

4.  Fuel  purge  connecion  from

separator/expansion  tank

Plenum chamber connection

Operation

When the engine  is not  running, the  purge valve

(2)

seals  the  plenum

chamber

connection

(5).

Any

vapour

entering

the

canister

at

(4)

from

separator/expansion tank,  is  condensed  by  the  air
entering  at

(3)

which  is  then

absorbed

by  the

charcoal.

REISSUED:  FEB 1993

Operation

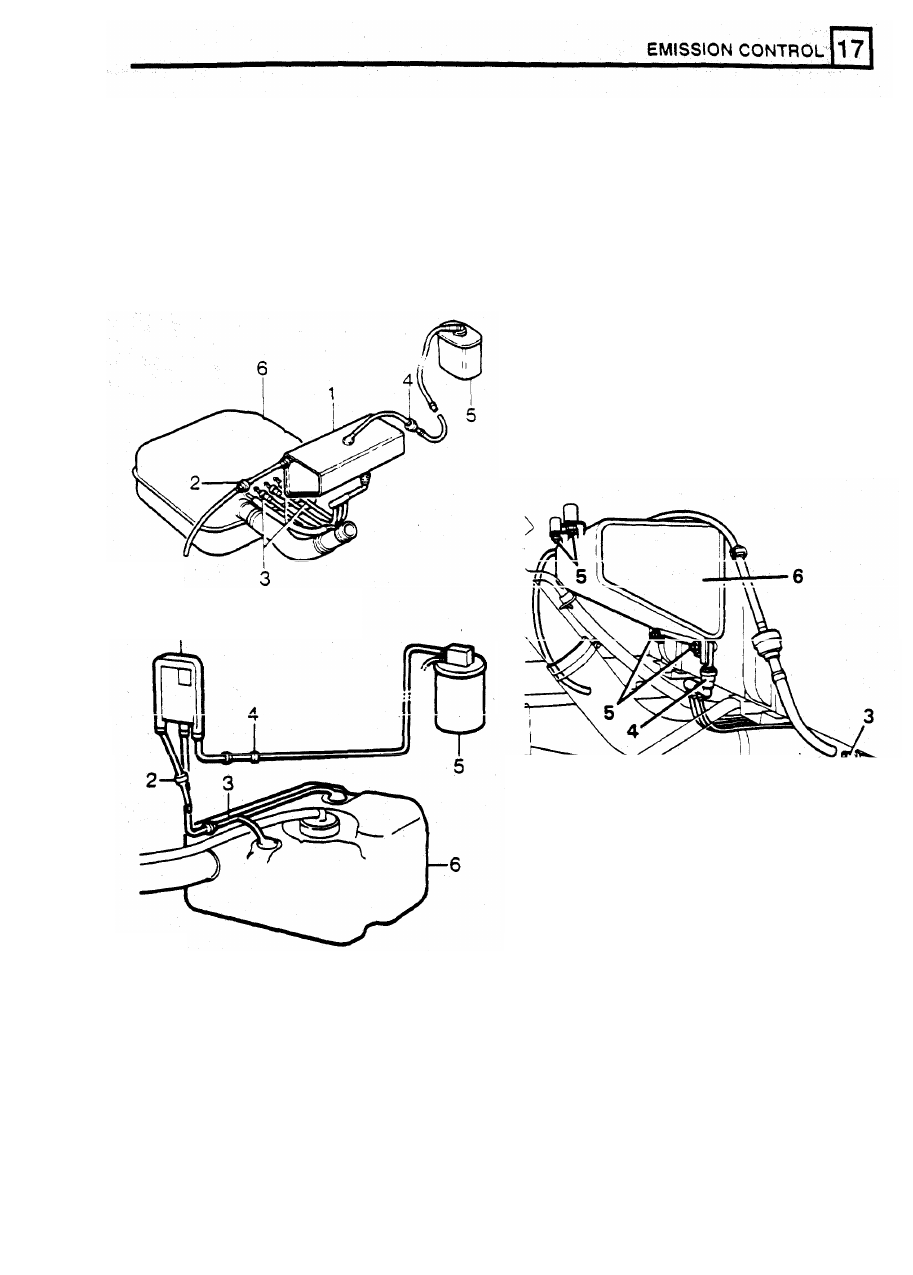

FUEL EXPANSION TANK

As

the temperature rises, fuel vapour  in the fuel tank

IS

allowed

to

vent  into  the  separator/expansion tank

(1)

via  three pipes and a manifold connector

(3).

Any

vapour  which  condenses  into  liquid  fuel  drains

WARNING:

Ensure all  necessay  precautions are

through  pipe

(6)

back  into  the  main  fuel  tank  and

taken against spillage of  fuel when disconnecting

residual  vapour  is  dealt  with  by  the  purge  system

expansion tank  hoses.

connection

(4)

in the engine compartment.

The  atmosphere  relief  valve

(2)

will  only  open  if  a

DEFENDER 110

blockage  occurs  in  the  charcoal  canister

or

purge

system.

Remove

The  fuel  expansion  tank is  located  under  the  wheel
arch of  the  right rear  fender.

1.

Loosen  fuel  tank  filler  cap

to

release  any

2.

Disconnect battery negative lead.

3.

Disconnect  pipe  connection  at  joint  under

chassis member.

4.

Disconnect  evaporative  control  pipes.  Use
LRS-19-002,  press  down  on  collet  and  pull
connector.

pressure in tank.

ST3416M

Defender 110

ST3417M

ST3460M

5.

Remove

four  nuts

and  remove  expansion

tank.

Refit

6.

Reverse removal instructions.

Defender 90

Fuel tank evaporative control system

Fuel

expansion tank

2  Relief

valve

to

atmosphere

Fuel tank vent

Relief valve to charcoal canister

Charcoal Canister

in

engine compartment

Fuel tank

REVISED:

OCT

1993
