Defender (1993+). Manual - part 26





ROCKER  COVER

RIGHT HAND

RENEW

10.

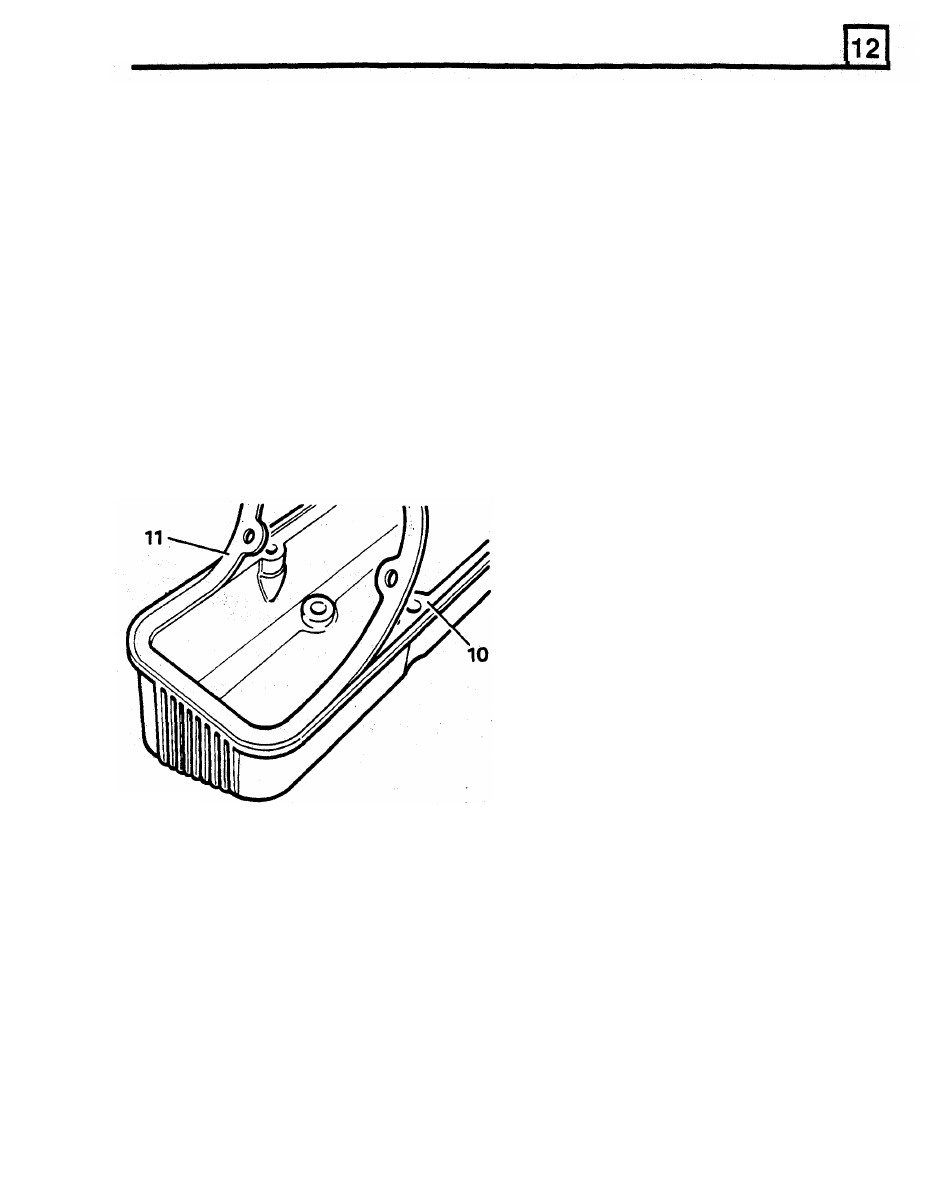

Apply  Bostik  1775  impact  adhesive

to

rocker

cover  seal  face  and  gasket,  using  a  brush to

1.  Disconnect battery negative lead.

ensure  an  even  film.  Allow  adhesive

to

2.

Disconnect  purge  pipe  from  charcoal canister

become touch dry.

at  plenum.

11.  Place  one  end  of  gasket  into  cover  recess

3.

Remove breather pipe from rocker cover.

with  edge  firmly  against  recess  wall,  holding

4.

Remove coolant pipes from inlet manifold.

remainder

of  gasket clear. Work  around cover,

5.  Remove  spark  plug  leads  from  plugs  and

pressing  gasket  into

place ensuring

edge

retaining clips.

6.

Remove four  rocker  cover  bolts.  Moving  fuel

12.

Allow cover to stand for thirty minutes before

13.  Fit rocker cover to cylinder head with four

8.

screws, short screws, inboard, tighten

to

8 Nm.

9.

15.  Fit breather pipe to rocker cover, tighten clip.

pipes aside, remove rocker cover.

fitting.

Remove plug  lead  retaining  clips  from  rocker
cover,

fit to new

rocker  cover.

Clean and

dry

rocker  cover  and  cylinder  head

matng

faces

using  Bostik cleaner 6001.

16.  Fit  breather  pipe  to  inlet  manifold,  tighten

bolts.

17.  Fit  spark  plug  leads

to

plugs  and  retaining

NOTE: Gasket fits  one  way  round  only.  It

Subsequent  movement

will

destroy

18.  Connect  purge  pipe  from  charcoal  canister  at

must  be  fitted  accurately,  first

time.

clips.

bonding.

plenum,  tighten clip.

ROCKER  COVER

LEFT HAND

RENEW

1.

Remove air flow  sensor.

2.  Remove plenum chamber.

3.

Remove dipstick.

4.

Remove  spark  plug  leads  from  plugs  and
retaining clips.

5.  Disconnect

HT lead from coil.

6.

Remove  alternator  heat  shield  from  rocker

cover.

7.

Remove air flow  meter harness clip.

8.

Remove dipstick tube clip.

9.

Remove  four  rocker  cover  bolts,  remove
rocker cover.

11.  Remove  plug  lead retaining  clips  from  rocker

cover, fit

to

new rocker cover.

12.

Clean and dry  rocker cover  and cylinder  head
mating faces, using Bostik cleaner

6001.

NOTE:

Gasket  fits  one  way  round  only.

It

must

be  fitted  accurately,  first  time.

Subsequent

movement

will

destroy

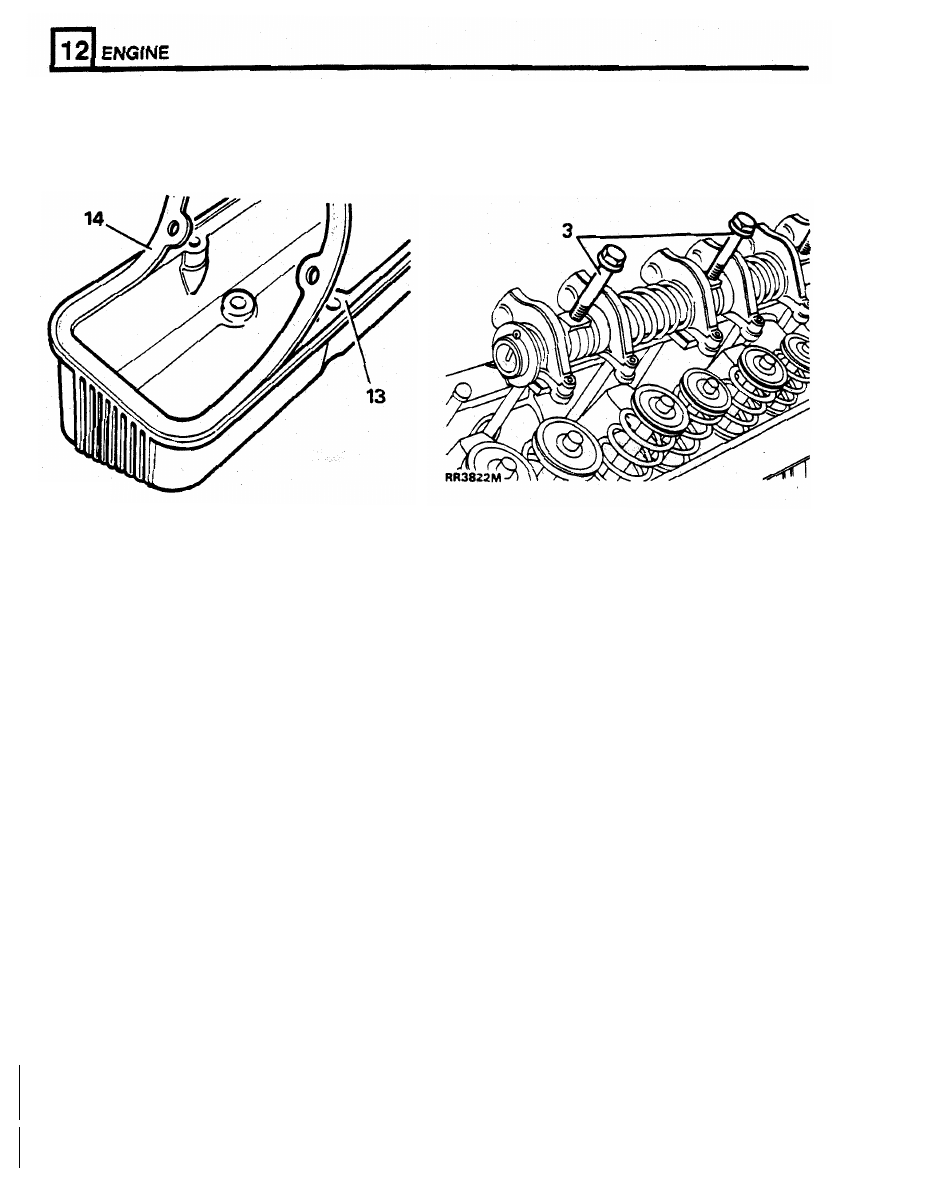

13.  Apply  Bostik  1775  impact  adhesive  to  rocker

cover  seal  face  and  gasket,  using a  brush

to

ensure  an  even  film.  Allow  adhesive  to
become  touch  dry,  approximately  fifteen
minutes.

10.  Discard gasket

bonding.

RR3820M

ENGINE

firmly contacts recess wall.

14.  Position  fuel  pipes.

14.

Place  one  end  of  gasket  into  cover  recess

with

edge  firmly  against  recess  wall,  holding

remainder of  gasket clear. Work  around cover,

pressing  gasket  into  place  ensuring  edge
firmly contacts recess wall.

2.

Loosen four rocker shaft fixings

ROCKER SHAFT

RENEW

1.

Remove rocker covers as required,

RR3821M

15.  Allow  cover  to  stand for  thirty  minutes  before

3.

Remove rocker shaft assembly.

fitting.

16.  Fit  rocker  cover  to  cylinder  head  with  four

NOTE:  Each  rocker  shaft  i s   notched  at

screws,  short screws inboard, tighten to 8 Nm.

ONE  end.  Notch  must  be  uppermost  and

17.  Locate and tighten dipstick tube clip.

towards  front  of  engine  on  right  hand  side,

18.  Fit and tighten air flow meter harness clip.

towards  rear  on  left  hand  side.

19.  Fit alternator heat shield to rocker cover.

20.  Connect HT lead to coil.

4.  Clean  rocker  pedestal  locations  on  cylinder

21.  Connect  spark  plug  leads  to  plugs  and

head.

retaining clips.

5.  Fit  rocker  shaft  assembly,  locating  push  rods

22.  Fit dipstick.

to rockers.

23.  Fit plenum chamber.

6.  Tighten rocker shaft fixings to 38 Nm.

24.  Fit air flow meter.

7.  Fit rocker covers.

ENGINE

HYDRAULIC TAPPETS RENEW

CRANKSHAFT PULLEY ASSEMBLY

1.  Remove rocker shafts.

1.

Remove  viscous  coupling,  see

viscous

2.  Remove inlet manifold.

3.  Remove  push  rods,  retain  in  removal

2.  Remove water pump drive belt.

coupling, fan blades, pulley and fan cowl.

3.  Remove alternator drive belt.

Remove power steering pump drive belt.

5.  Raise vehicle on ramp.
6.  Remove bell housing bottom cover.
7.  With  assistance  to  stop  flywheel  rotation,

remove  crankshaft  pulley  assembly  retaining
bolt.

sequence.

8.  Remove crankshaft pulley assembly.
9.  If  required:  Place  assembly  in  vice  and

remove pulleys.

10.  Fit pulleys to torsional vibration damper.
11.  Lubricate seal face of assembly.

13.  With  assistance  to  stop  flywheel  rotation,  fit

retaining bolt, tighten to 280 Nm.

14.  Reverse instructions 1 to 6.

12.  Fit pulley assembly.

4.

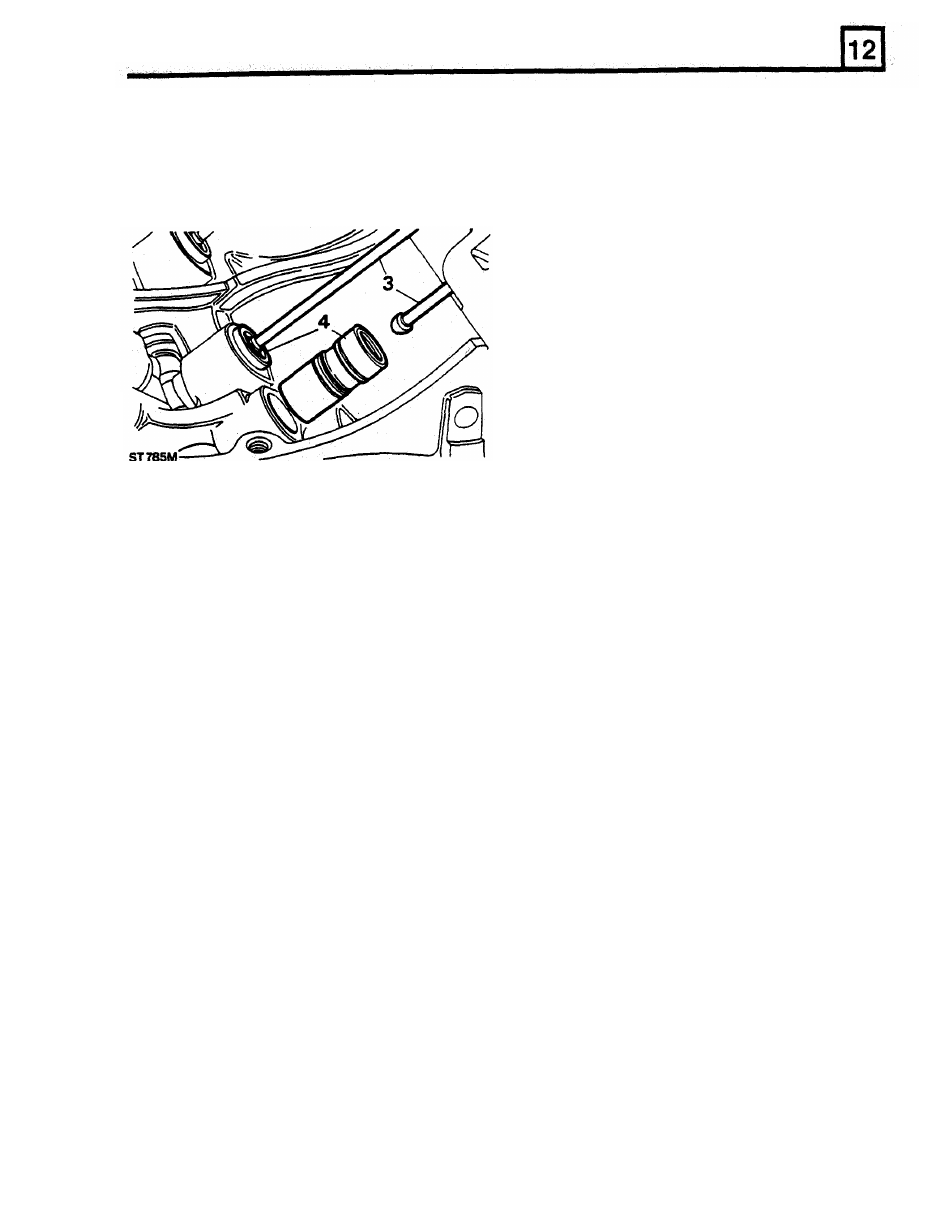

Remove hydraulic tappets

5.

Fit tappets, push rods and rocker assemblies.

6.

Fit inlet manifold.

7.  Reverse remaining removal procedure.

FRONT

COVER OIL SEAL

RENEW

1.

Remove crankshaft pulley,

2.  Remove  eight  screws  and  remove  mud

excluder.

3.  Fit  button

of

18G1328

to

crankshaft,

fit

extractor

to seal.

4.  Turn centre bolt

of

extractor

to

remove seal.

5.  Remove seal from  extractor.

6.

Clean seal seating.

7.

Lubricate outside diameter of  seal.

8.  Locate seal in front  cover.

9.

Fit adaptor 18G1291/5 to  18G1291/4.

10.

Fit

tool

to seal.

11.  Fit  and  tighten  centre  bolt

to

crankshaft,

tighten centre locknut to seat seal.

12.

Slacken locknut and remove

tool.

13.

Lubricate seal lip.

14.  Fit mud excluder and tighten screws.
15.  Fit crankshaft pulley assembly.

ENGINE

FRONT

COVER GASKET

29.  Clean  threads  of  cover  fixing  bolts,  apply

1.  Remove crankshaft pulley.

30.  Fit  timing  cover,  fit  fixing  bolts,  tighten  to  28

2.  Remove water pump pulley.

Nm.

3.  Release distributor cap clips.

31.  Fit alternator support strut to front cover.

4.  Release plug leads from plugs and clips.
5.  Place cap and leads to one side.

Nm.

6.  Turn engine until No.  1  piston is at T.D.C.
7.  Check position of rotor arm.

34.  Lubricate distributor O ring.

8.  Remove fixings securing power steering pump

35.  Fit distributor in position marked.

bracket to water pump bracket.

36.  Align  oil  pump  drive,  if  distributor  does  not

9.  Remove  power  steering  pump  bracket  from

seat correctly.

water pump.

37.  Fit distributor clamp, tighten to 20 Nm.

tensioner.

bracket.

Loctite 372 to threads.

32.  Tighten  sump  to  timing  cover  fixings  to  10

33.  Tighten sump fixings to 10 Nm.

10.  Remove  clips  securing  wiring  to  alternator

38.  Locate  alternator  tensioner  on  water  pump

11.  Disconnect distributor feed wire.

39.  Connect heater hose, tighten clip.

12.  Pivot  power  steering  pump  away  from  front

40.  Connect oil pressure switch.
41.  Connect bottom hose, tighten clip.

13.  Disconnect vacuum pipe from distributor.

42.  Connect vacuum pipe to distributor.

14.  Remove water pump bottom hose.

43.  Loosen  power  steering  pump  pivot,'  lower

15.  Disconnect oil pressure switch.

pump.

16.  Disconnect heater hose at water pump.

44.  Connect distributor feed wire.

17.  Remove alternator tensioner from water pump,

45.  Connect wire ties to alternator tensioner.

move tensioner aside.

46.  Fit  power  steering  pump  bracket  to  water

18.  Mark distributor position to front cover.

pump, tighten to 28  Nm.

19.  Remove distributor clamp, remove distributor.

47.  Fit power steering pump to bracket.

20.  Remove fixings sump to front cover.

48.  Position distributor cap.  Fit plug leads to plugs

21.  Loosen four adjacent sump fixings.

and clips.

22.  Remove  alternator  support  strut  from  front

49.  Clip distributor cap in position.

23.  Loosen  remaining  front  cover  fixings  and

51.  Fit crankshaft pulley.

24.  Remove front cover gasket.

53.  Check ignition timing.

54.  Refill cooling system.

cover, tighten pivot to retain in position.

cover, move strut aside.

remove front cover.

52.  Tension drive belts correctly.

50.  Fit water  pump pulley, tighten

to

10 Nm.

Refit

25.

Clean timing cover, clean block face.

26.  Lightly grease gasket faces.

27.

Fit new gasket to block face.

28.  Apply

hylosil to sump gasket.
