ENGINE

6.

Heat water  and  observe temperature  at  which

thermostat opens.

4.

Fit  distributor

to

engine, check  that  centre  line

of

rotor  arm  is  now  in  line  with  number  one

8.  Clean

intake and

manifold and thermostat housing

9.  Fit  thermostat  with jiggle pin uppermost.

NOTE:

Airlocks

may

develop

in  cooling

positioned,

with

consequent

loss

of

coolant and possible overheating.

10.

Fit  housing with  new  gasket,  tighten two  bolts

to

correct torque, 28  Nm.

system

if

thermostat

is

incorrectly

reset oil pump drive tongue, repeat operation.

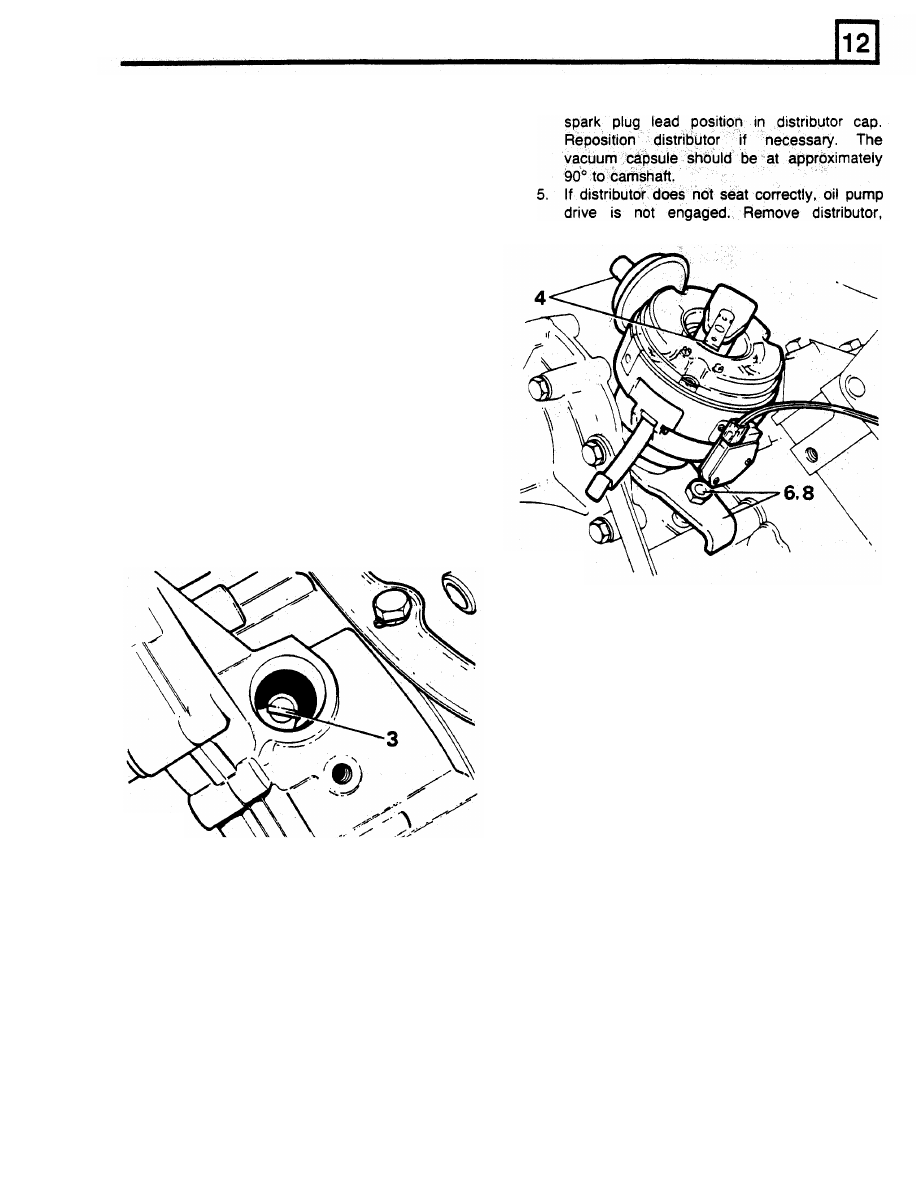

FIT

DISTRIBUTOR

1.

Turn crankshaft

to

bring number one  piston

to

6°

BTDC  on  compression stroke  (both valves

closed number one cylinder).

2.  Turn  distributor  drive  until  rotor  arm  is

approximately

30"

anti-clockwise from  number

one spark  plug lead position on cap.

3.  Turn  oil  pump  and  distributor  drive  shaft until

tongue is in approximate position illustrated.

RR178E

6.

Fit clamp and nut, leave loose.

7.

Rotate  distributor  until  peak  on  pick-up  lines
up  with a  peak  on  reluctor  ring.  Remove rotor
arm for  better view.

CAUTION:  On  no  account  must  engine  be
started before this operation is carried out.

8.  Secure distributor  in this position by tightening

clamp nut.

ST859M

7.  Disard  thermostat  if  faulty.

mating faces.

ENGINE

RR1876E

9.

Fit

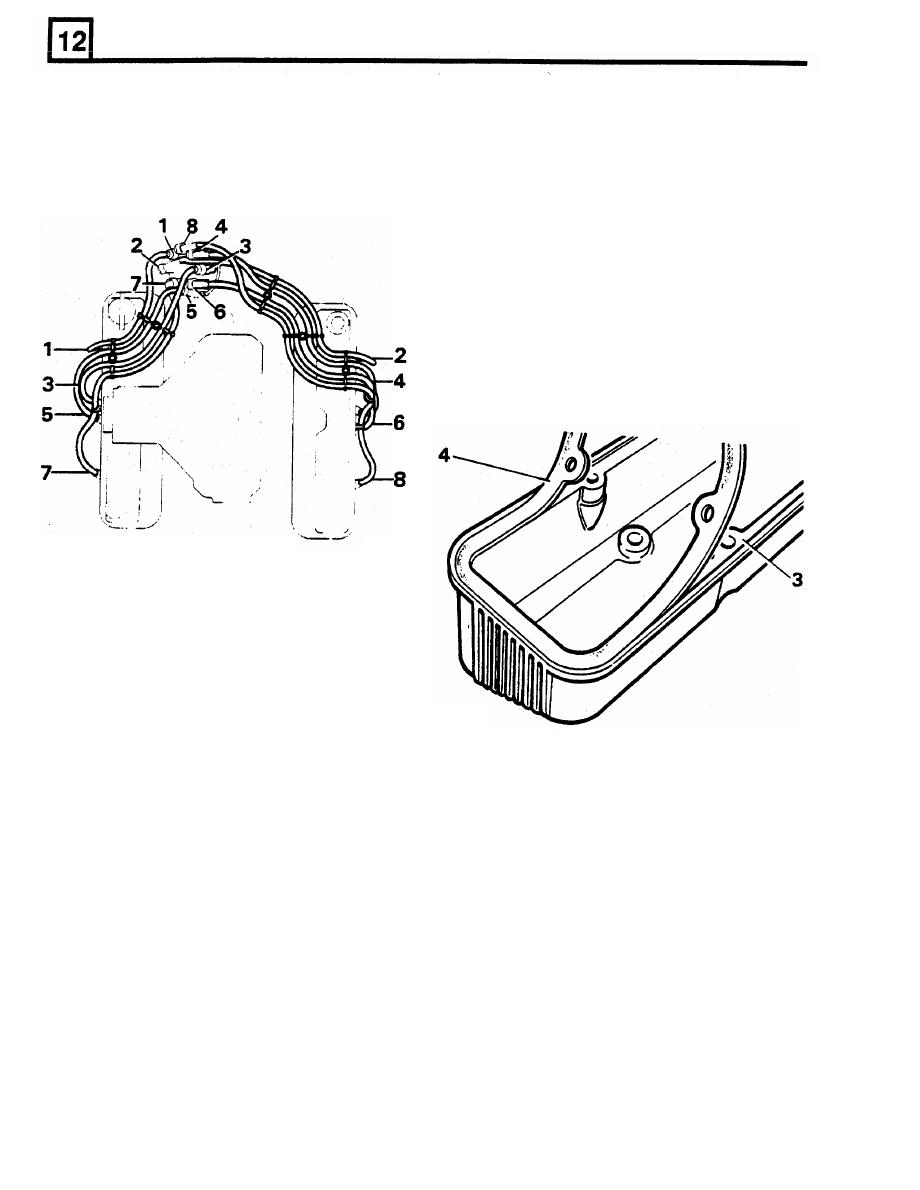

distributor  cap  and  spark  plugs.  Connect

H.T.

leads as shown in illustration RR1876E.

NOTE:  This distributor setting  is to enable

1.

An  oil baffle is

fitted

inside each rocker cover,

engine  to

be  started.  When  engine  is

Remove

two

screws  to  remove  baffle  for

refitted  the  ignition  timing  must

be  set

cleaning.

using electronic equipment.

2.

Remove  old  gasket  and  sealant  from  covers

and  cylinder  heads.  Clean  and

dry  gasket

mounting  face,  using  Bostik  cleaner

6001.

Apply  Bostik

1775

to  seal  face  and  gasket,

use  a  brush

to

ensure  an  even  film.  Allow

adhesive

to

become  touch-dry,  approximately

fifteen minutes.

NOTE:  The  gasket  fits  one  way  only,

it

must

be

fitted  accurately  first  time.

Subsequent

movement  would  destroy

bond.

FIT ROCKER COVERS

ST853M

3.

Fit  pilot  studs  in  rocker  cover  fixing  holes  to

guide  gasket  onto  cover  and  into  recess.

Press  gasket  into  place  ensuring  that  outer
edge firmly contacts recess wall.

4.

Allow covers to stand for thirty minutes  before
fitting.

5.  Secure  rocker  covers  to  cylinder  heads  with

short  screws  inboard,  long  screws  outboard.
Tighten

to correct torque, 9

Nm.

ENGINE

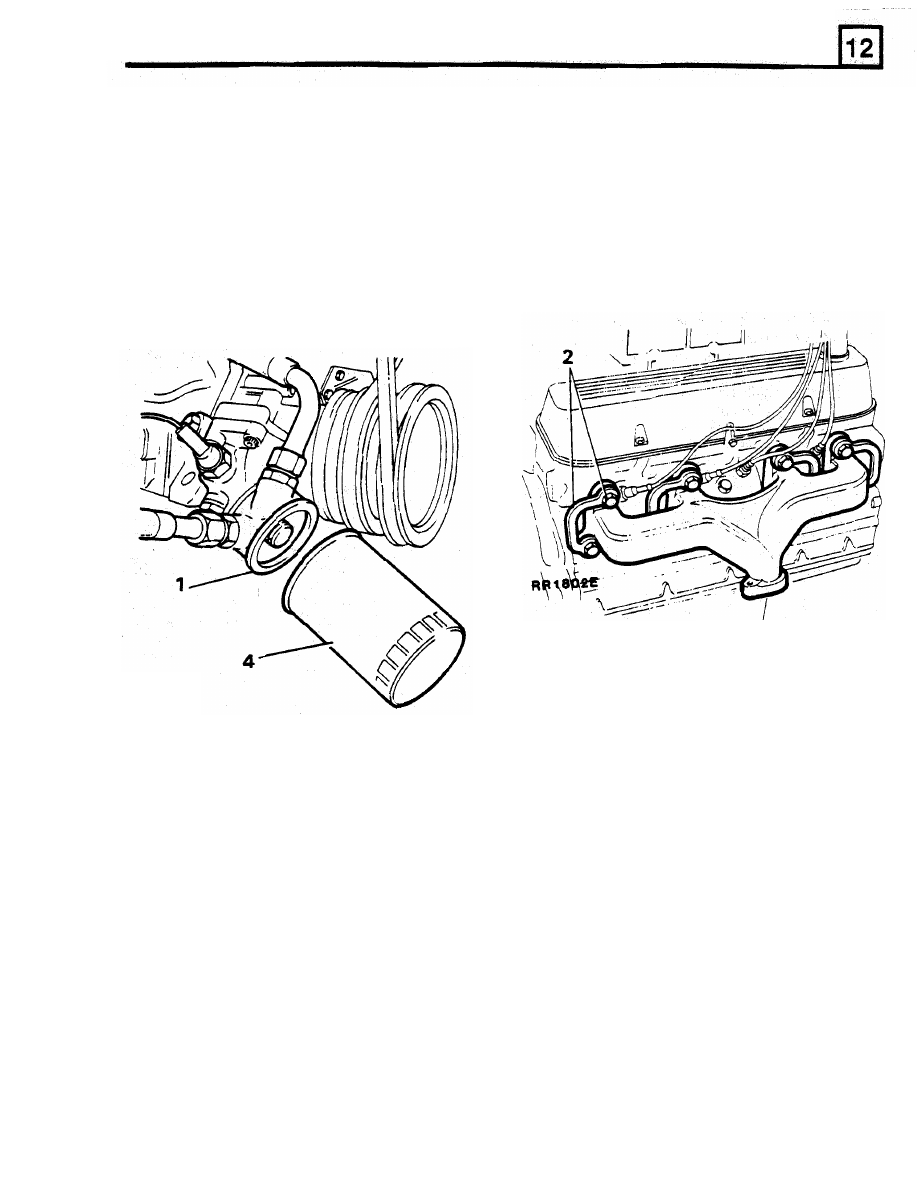

FIT ENGINE

OIL FILTER

FIT EXHAUST MANIFOLD

1.

Clean oil cooler adaptor mating face.

1.

Ensure  mating  surfaces  of  head  and  exhaust

2.

Coat  sealing  ring  of  new  filter  with  clean

manifold  are  clean.  Fit  new  gaskets

to

engine oil.

exhaust  manifold.  Coat  threads  of  bolts  with

3.

Fill filter  with  new oil as far  as possible, noting

anti-seize compound.

angle at  which filter  is

to

be fitted.

2.

Position manifold on  cylinder  head and

fit

new

4.

Screw  on  filter  until  sealing  ring  touches

lockplates, securing

bolts

and  plain  washers.

mating face,  then tighten a further  half turn by

The  plain  washers  are fitted

between manifold

hand only.

DO NOT OVERTIGHTEN.

and lockplates. Evenly tighten  manifold  bolts

5.  Refill engine with  specified grade and quantity

to correct torque. 20 Nm. Bend  over  lock  tabs.

of oil.

MISCELLANEOUS AND  NON-STANDARD ITEMS

Fit  remaining  items  of  equipment,  miscellaneous
hoses, pipes, filters, clips and brackets in position.

RR2618S

ENGINE

CYLINDER HEAD GASKETS

RENEW

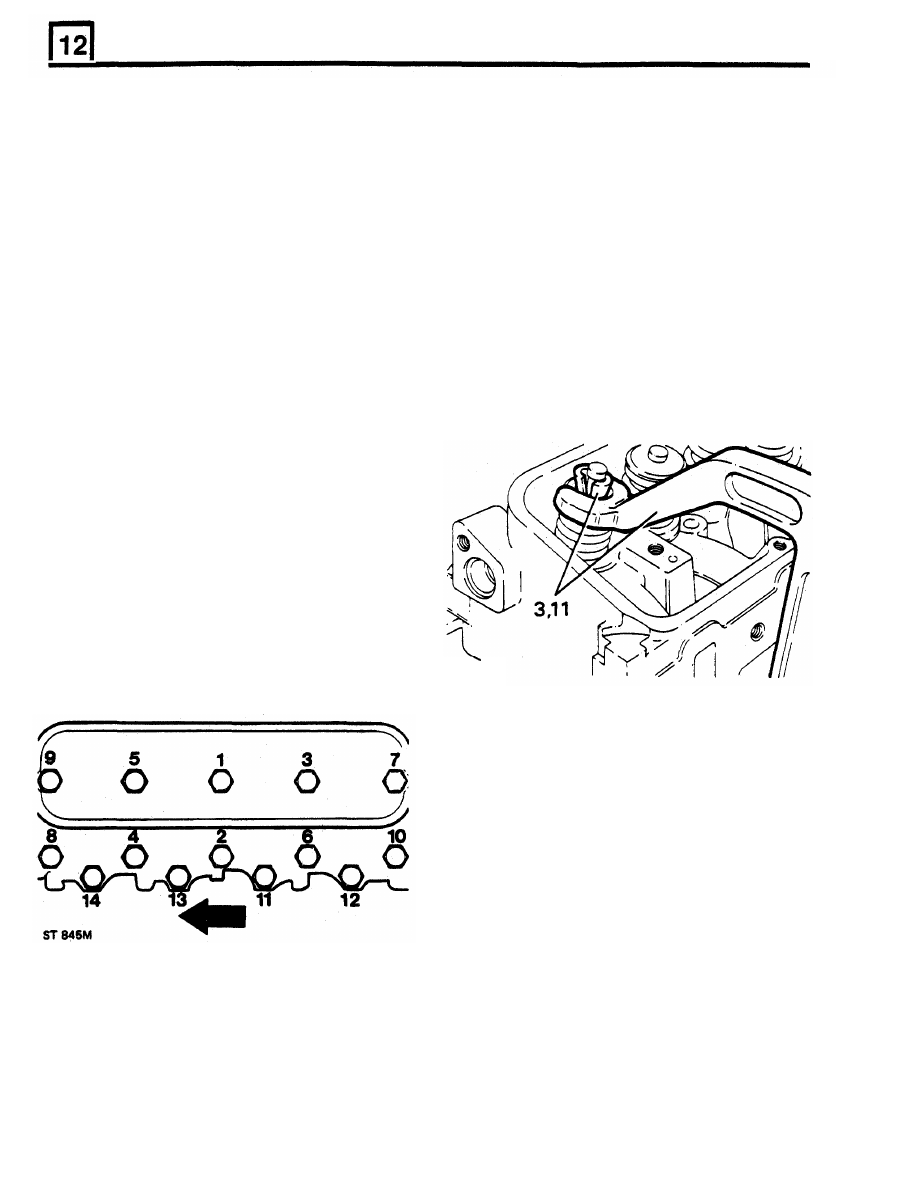

23.  Tighten  bolts  progressively  in  sequence,  see

illustration number  ST845M.  Finally  tighten

to

1.  Drain cooling system.

torque:

2.  Remove inlet manifold.

Outer row 60  Nm

3.  Remove alternator.

Centre row

90

Nm

4.  Remove rocker shafts.

Inner row

90

Nm.

5.

Remove push rods.

24.  When  all  bolts have been tightened,  re-check

6.  Remove power steering pump belt.

for  correct torque.

7.  Remove alternator bracket.

25.  Reverse instructions 12

to

1.

8.  Remove both exhaust manifolds.

9.

Remove air  cleaner  assembly.

CYLINDER HEADS

RENEW

10.  Remove air  flow meter.
11.  Remove  earth  leads  from  rear

of

left  hand

1.

Remove cylinder heads and gaskets.

cylinder head

2.  Remove spark  plugs.

12.  Right  hand  cylinder  head

remove  breather

3.  Using  spring  compressor  18G  106A,  remove

pipe from lifting bracket.

13.  Loosen

cylinder

head

bolts,

reversing

tightening sequence.

14.  Remove cylinder heads.

15.

Remove cylinder head gaskets.

16.  Clean exhaust mating faces.
17.  Clean head and block faces.

18.  Fit  new  cylinder  head  gaskets,  word  TOP

uppermost.

DO NOT use sealant.

19.

Oil cylinder bores.

20.

Clean  threads  of  head  bolts  and  coat  with
Loctite 572.

21.  Locate cylinder heads on block.
22.  Locate  cylinder  head  bolts

in  position

illustrated.
Long bolts

1, 3, and 5.

Medium

bolts

2,

4,

6, 7, 8,

and 10

Short bolts

11,

12,

13,

and  14

valves, collets, springs and caps.

RR3819M

4.

From  left  hand  cylinder  head,  remove  earth

lead studs.

5.  Remove PAS pump pivot stud.
6.  Right  hand  cylinder  head,  remove  rear  lifting

bracket.

7.  Fit  lifting  bracket  to  new  right  hand  cylinder

head.

8.

Fit

PAS  pump  pivot  stud,  earth  lead studs

to

new left hand cylinder head.

9.  Regrind valves.

10.  Lubricate valve  stems,

fit

valves, springs,  and

caps. Fit new seals

to

inlet valve stems only.

11.  Using

spring

compressor

18G

106A,

compress  springs,

fit

collets.  Tap  valve  to

check correct collet seating.

10.  Fit spark plugs.
11.  Fit cylinder heads with new gaskets.

NOTE:  Left  hand  cylinder  head  illustrated,
arrow points to front of

vehicle.
