MAINTENANCE

ALTERNATOR  DRIVE BELT

RESET EMISSION MAINTENANCE REMINDER

Before adjusting the alternator drive  belt, ensure that

the  steering pump drive belt  is correctly tensioned.

positive  drive  tensioner  is  fitted  to  provide  greater

accuracy  when  setting  the  alternator  belt.  The
tensioner  eliminates  the  need to  lever  the  alternator

when adjusting the belt tension.

The  emission  maintenance  reminder  is  designed  to
activate  at  52,500  and

105,000

miles  respectively

and  will  illuminate  a  red  'Service  Engine'  warning
light in the instrument panel.

The  control  unit

IS

located  behind  the  instrument

panel,

1.

Loosen  the  alternator  pivot  bolt  and  the  bolt

The  control  unit  colour  is  brown,  mounted  on

securing the alternator to the tensioner.

brown

plug,

'EMISSION

MAINTENANCE

2.  Loosen  the

two

tensioner  nuts  and  the  bolt

REMINDER' is  embossed in white on the side of

the

securing  the  tensloner  to  the  water  pump

unit.

tamperproof label is attached to  the top

of

the

bracket.

unit.

3.

Rotate

the

tensionerlead  screw

either

anti-clockwise  to  slacken

or

clockwise  to

The  emission  maintenance reminder  must  be  reset

tighten  the  drive  belt  until  the  correct  tension

after  the  required maintenance has been carried out

is obtained.

and  a  new  tamperproof  label fitted  by  a Land Rover

of

North America  dealer. This  Emission maintenance

reminder  is  part  of  the  Emission  Control  System,
refer to  section 17.

The unit

can

be reset as follows:

1.

Remove the  fixings  and  lower the  lower  dash
panel.

2.

Identify the control unit and remove

it

from the

plug.

3.

Remove  the  tamperproof  label  to  reveal  the
access hole for resetting.

NOTE: Where  possible the

belt tension

should

be

checked  using

a  recognised  tensioning  gauge.

The

correct

tension  using

a  Clavis

gauge

is  152

to  158

Hz.

Tighten  the  alternator  pivot  bolt.  the  two  bolts
securing  the  tensioner and  the two  tensioner
nuts  Recheck the belt tension.

5.

If  a  new  drive  belt  has  been  fitted.  run  the

engine  at  fast  idle  for  3  to  5  minutes,  stop
engine and recheck belt tension.

26

REVISED: OCT 1993

MAINTENANCE

4.

Using  a  small

thin

metallic  probe,  place  the

probe  into  the  access  hole  and  momentarily
electrically  short  between the  reset  pins within

the unit.

5.

Refit the control unit to the plug, switch on the

ignition, the

’SERVICE  ENGINE’

warning  light

in the  instrument panel

will

initially  light  up  as

part  of  the  unit’s  inbuilt  check  feature,  if  the
unit  has  been

reset

correctly  the  warning  light

will  go

out  after  a  few  seconds.  Should  the

warning  light  remain  illuminated,  repeat  the
resetting procedure.

6.  Fit a new tamperproof label.

7.

Endorse the Passport to service.

REISSUED:

FEB

1993

27

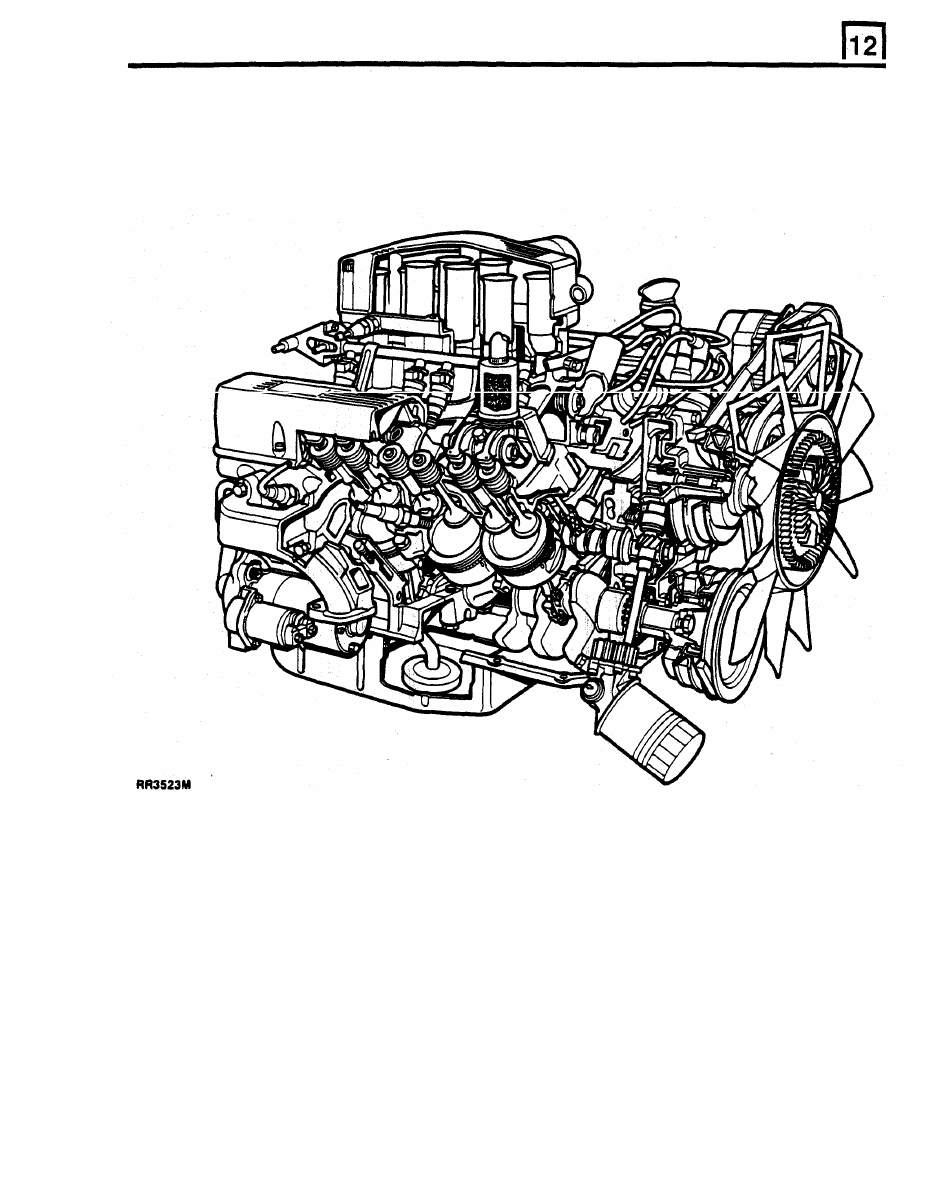

DESCRIPTION

The

V8

engine  has  cast  aluminium cylinder  heads  and  cylinder  block. The

two

banks

of

steel  cylinder  liners

which  are  pressed  down  to  stops  in  the  block,  are  set  at  90°  to  one  another.  The  three  ringed aluminium
pistons transmit the  power through the connecting rods

to  a

cast

iron

five  bearing crankshaft, which  drives the

centrally  located camshaft via an inverted tooth chain.

The  electronic  ignition  distributor  and  lubrication  oil  pump  are  driven  by  a  skew  gear  off  the  front

of  the

camshaft.  The  overhead inlet  and  exhaust  valves  are  operated  by  rocker  shafts,  pushrods and  self  adjusting
hydraulic tappets.

Multipoint fuel  injection  ensures  that  engine  performance, economy  and  exhaust  emissions  are  automatically

correct

for the demands

of  highway and off road operation.

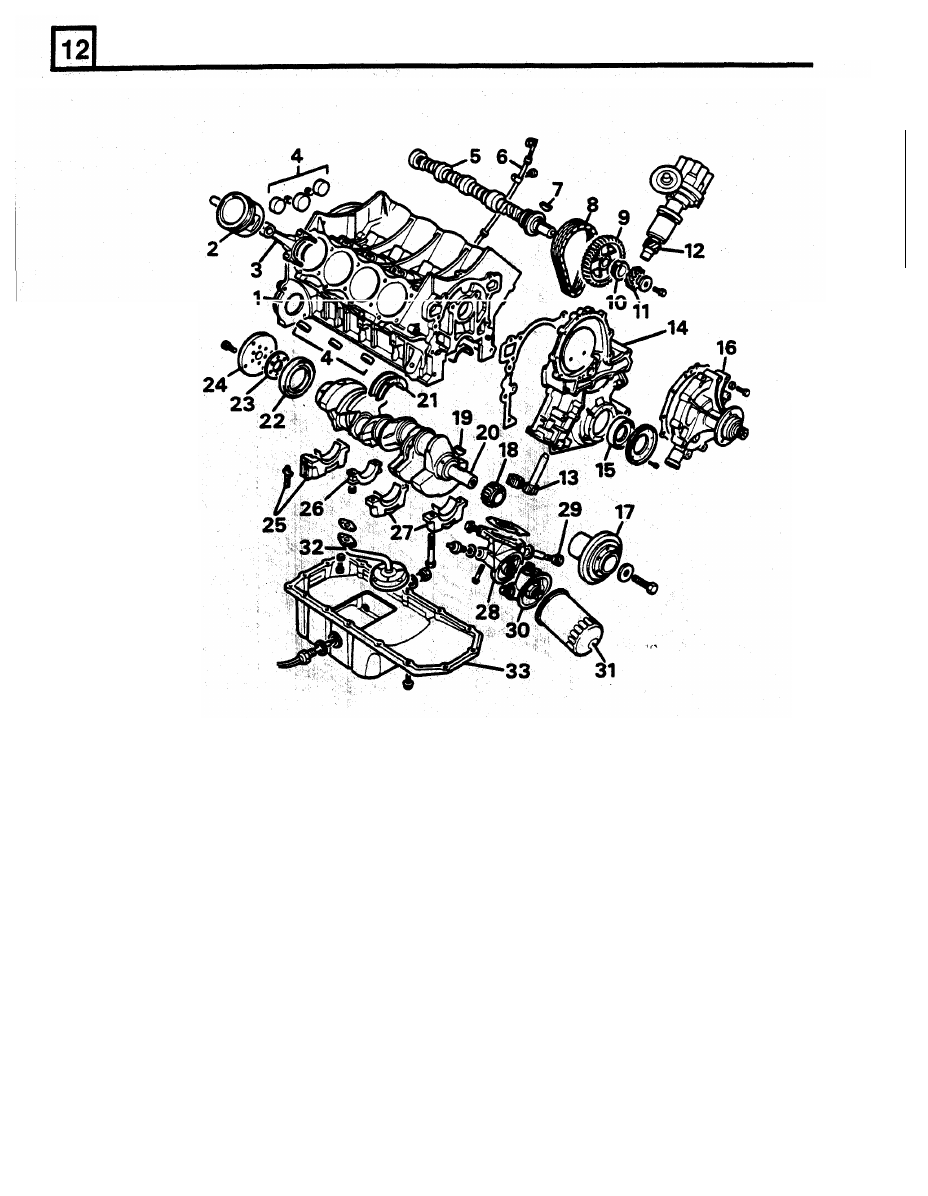

ENGINE

ENGINE

RR3627M

1.

Cylinder block

19.  Crankshaft sprocket key

2.  Pistons and gudgeon pins (8)

20.  Crankshaft

4.  Core plugs

22.  Crankshaft rear oil seal

5.  Camshaft

23.  Spacer

6.  Dipstick

24.  Adaptor plate

7.  Camshaft key

25.  Rear main bearing cap, shell and side seals

8.  Timing chain

26.  Connecting rod caps

9.  Camshaft sprocket

27.  Main bearing caps and shell bearings

3.  Connecting  rods  (8)

21.

Centre

main

bearing

shells

(2)

10.  Distance piece

28.  Oil pump cover

11.  Distributor/oil pump drive gear

29.  Oil pressure refief valve

12.  Distributor

30.  Oil cooler/filter adaptor

13.  Oil pump gears

31.  Oil filter

14.

.  Front  Cover

32.

Oil  pump  suction  pipe/strainer

15.  Front cover oil seal

33.  Sump

16.  Water pump
17.  Crankshaft damper/pulley
18.  Crankshaft sprocket
