Defender (1993+). Manual - part 14





MAINTENANCE

ST445

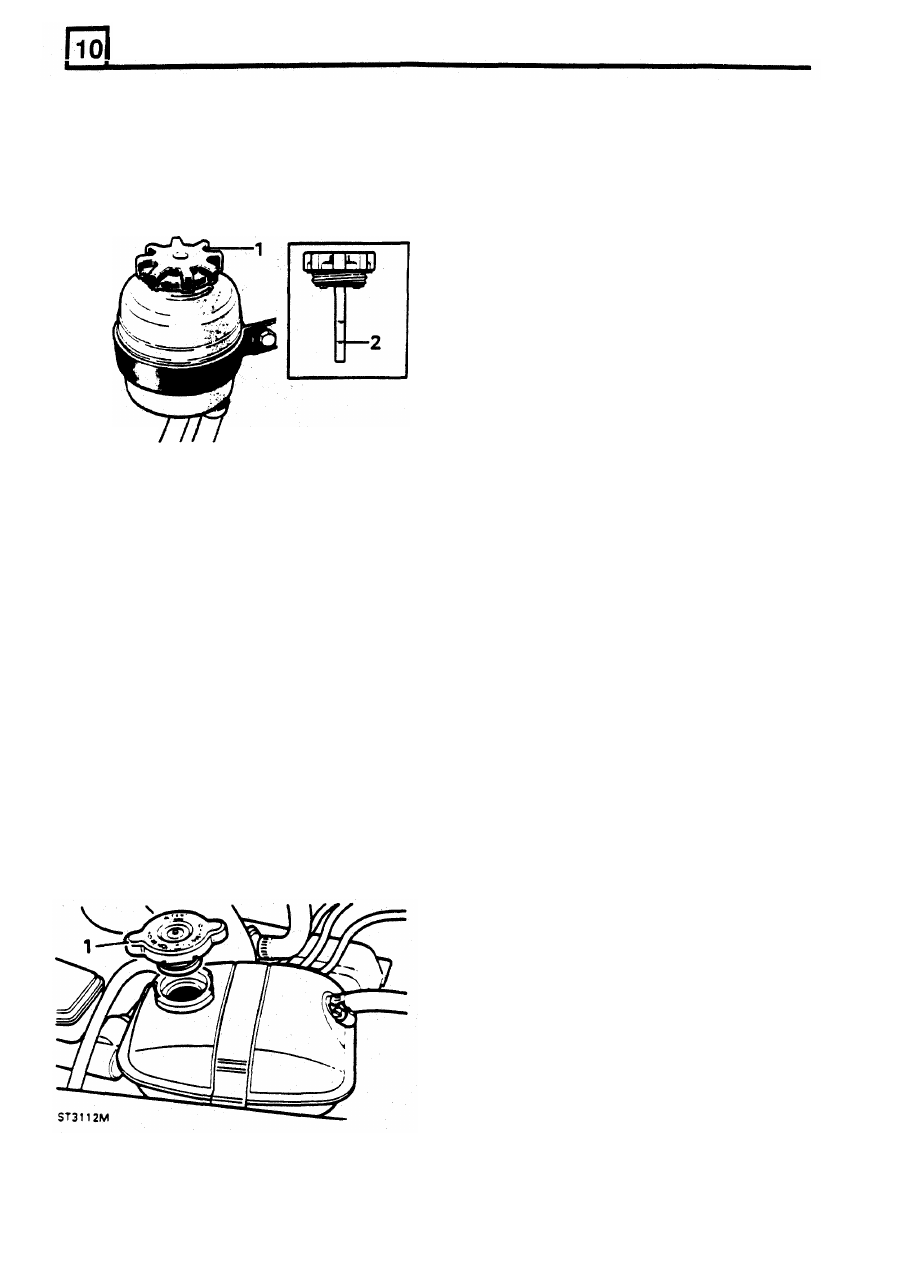

POWER  STEERING FLUID RESERVOIR

WARNING:

Do

not remove the filler cap when the

engine  is  hot  because  the  cooling  system  is
pressurised and personal scalding could result.

1.

Clean and remove the reservoir cap.

2.

Check  that the fluid

I

up to  the lower  mark on

the  dip

stick.

Top-up

if

necessary  and  refit

cap.

1.

When  removing  the  filler  cap,  first  turn

i t

little  way  very  gently and  gauge  any  pressure
that  may  be  behind

it.

Allow  all  pressure  to

escape slowly  before fully  releasing the  cap.

2.

With

cold  engine,  the  coolant  level  should

be  just  to  the  top  of  the  level  indicator  post
situated in  the  expansion tank  below  the  filler
hole.

BATTERY

Check Specific Gravity

The  specific  gravity  of  the  electrolyte  should  be
checked  using  a  battery  hydrometer.  The  readings
should be as follows:
Temperate  climate

below

26.5°C

(80°F)

as

commissioned  for  service,  fully  charged  1.270  to

1.290 specific gravity.

CHECK COOLING SYSTEM COOLANT

As  expected  during  normal  sewice,  three-quarter
charged 1.230 to 1.250 specific gravity.

Refer to  the  'COOLING  SYSTEM'  section  for details

If  the  specific  gravity  should  read  between  1.190  to

of  anti-freeze  and  to  SECTION  09  for  anti-freeze

1.210,  half-charged,  the  battery  must  be  bench

protection quantities.

charged  and  the  electrical  equipment  in  the  car

With  a  cold  engine,  the  expansion  tank  should  be

should be checked.

approximately half full.

Tropical

climate

above

26.5°C

(80°F)

as

commissioned  for  service,

fully

charged  1.210  to

WARNING:  Do  not remove the filler cap when the

1.230  specific gravity.

engine  i s   hot  because  the  cooling  system  is

As  expected  during  normal  sewice,  three-quarter

pressurised and personal scalding could result.

charge 1.170 to 1.190 specific gravity.

If  the  specific gravity  should  read  between  1.130  to

1.  To  remove  the  filler  cap,  first  turn  it

1.150,  half-charged,  the  battery  must  be  bench

charged  and  the  electrical  equipment  on  the  car
should be checked.

anti-clockwise a quarter of a turn and allow all
pressure  to  escape,  before  turning  further  in
me same direction to lift i t  off. When replacing
the  filler  cap  it  is  important that  it  is  tightened
down  fully,  not just to the first  stop.  Failure to
tighten  the  filler  cap  properly  may  result  in
water  loss,  with  possible  damage  to  the
engine through overheating.

22

REVISED:

OCT

1993

MAINTENANCE

Check and Top-Up Electrolyte Level

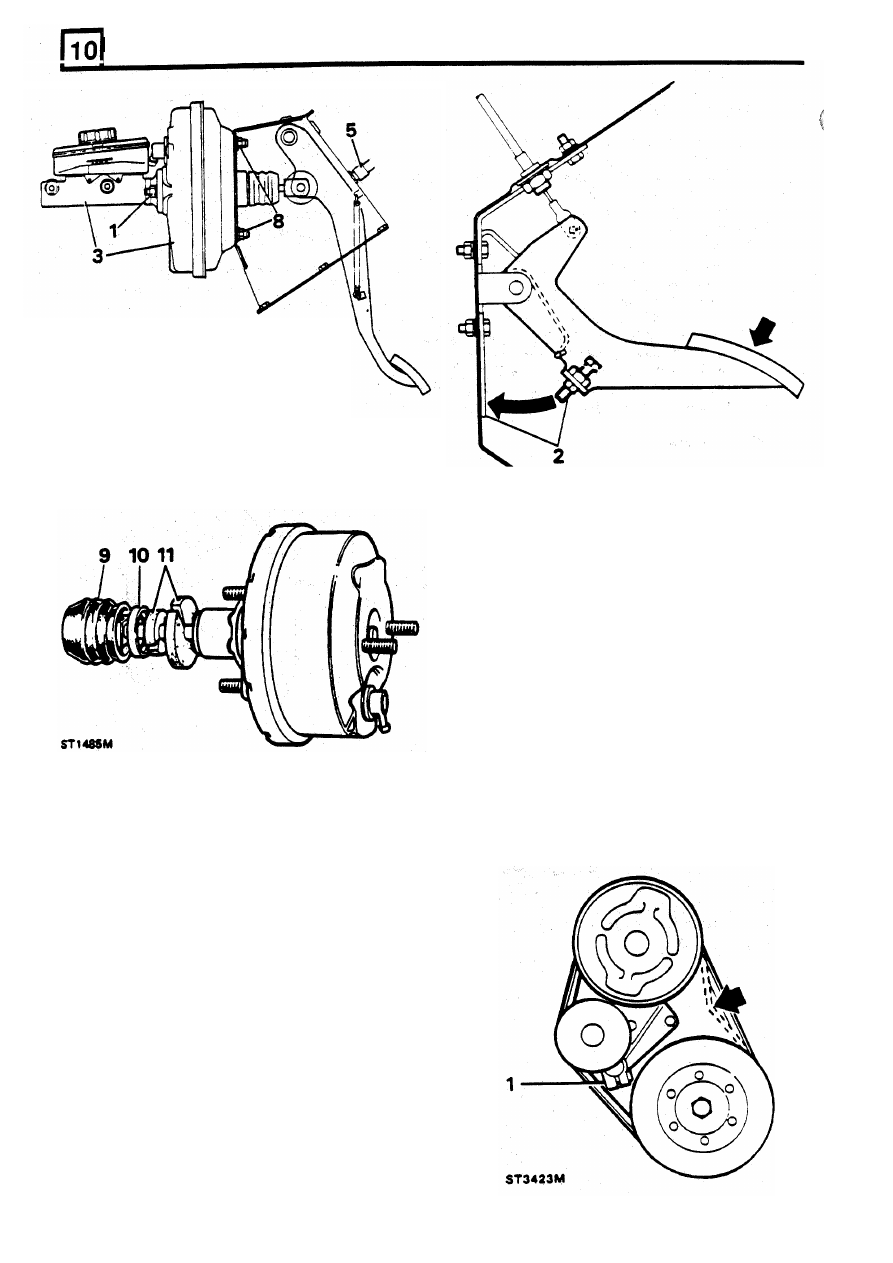

RENEW

BRAKE

SERVO

FILTER

1.

Wipe  all  dirt  and  moisture  from  the  battery

1 .

Remove the  nuts  securing the  master cylinder

top.

to the servo.

2.

Remove  the  filler  cover,  If  necessary  add

2.

Release  the  clip  retaining  the  brake  pipe  to

sufficient distilled  water  to  raise  the  level  to
the top of  separators.

the clutch pipe.

3.  Separate the master cylinder from

the

servo.

Disconnect the vacuum hose from  the  servo.

switch at the rear

of

the pedal box.

pedal box.

withdraw  the clevis pin and washer

Replace the filler  plugs or  manifold lid.

3.

Avoid  the  use  of  a  naked  light  when

5.

Disconnect  the  Lucars  from  the  stop  lamp

4.

In  hot  climates

it

will

be  necessary  to  top  up

6.

Remove  the  blanking  grommets  from  the

5.

In  very  cold  weather

it

is  essential  that  the

7.  Remove  the  split  pin  from

the

clevis  and

examining the cells.

the battery at  more frequent  intervals.

vehicle  is  used  immediately  after  topping up,

to

ensure that  the  distilled  water  is thoroughly

mixed

with

the  electrolyte.  Neglect

of

this

precaution  may  result  in  the  distilled  water

freezing and causing damage to the battery.

Battery terminals

6.  Remove  battery  terminals,  clean,  grease  and

refit.

7.  Replace  terminal  screw:  do  not  overtighten.

Do

not  use  the  screw

for

pulling  down  the

terminal.

8.  Do  NOT  disconnect  the  battery  cables  while

the  engine

IS

running

or

damage  to  alternator

semiconductor  devices  may  occur.  It

is

also

inadvisable  to  break

or

make  any  connection

in  the  alternator  charging  and  control  circuits
while the engine

is

running.

9.  It

is

essential

to

observe  the  polarity

of

connections

to

the  battery,  alternator  and

regulator,  as  any  incorrect connections made

when

reconnecting  cables

may

cause

irreparable  damage

to  the

semiconductor

devices.

CAUTION: If

new

battery is fitted to the vehicle,

it  should

bo

the

same

type  as  fitted  to  the

vehicle  when  new.  Alternative batteries may  vary

in sire and terminal positions and this could be

possible  fire  hazard  if  the  terminals

or

leads

come  into  contact  with  the  battery  clamp

assembly. When  fitting a new  battery ensure that
the  terminals  and  leads  are  clear  of  the  battery
clamp assembly.

8.

Remove  the  four  nuts  securing  the  servo  to

the pedal box  and remove the servo

RE-ISSUED: FEB

1993

23

MAINTENANCE

ST1533M

9.

Pull back the dust cover.

10.

Release the end-cap.

11.

Cut the filters  to  remove them from the shaft.

DRIVE BELT TENSIONING

WARNING:

Do  not  attempt

to

check  belt tension

or  make  adjustments  with  the  engine  running.
Serious

injury

could result.

Each  drive  belt  should  be  tight  enough  to  dnve
without  undue strain on the  bearing.  Using moderate
finger  pressure  at  the  point  indicated

in

the

illustration,  belts  should deflect

0.5  mm

per  25  mm.

Deflection  beyond  this  limit  may  cause

loud

whining or  knocking noise and intermittent drive.

FAN/WATER PUMP DRIVE BELT ADJUSTMENT

1.

Loosen

the

jockey  wheel  securing  bolt  and

12.

Clean  the  filter  seating  and  fit  the  new  filters

adjust  the  wheel  position  until  the  correct

noting  that  they  must  be  cut  to  fit  over  the

tension is obtained.

shaft

2.  Tighten  the  securing  bolt  and  recheck  the

Fit  the  end-cap  and  dust  cover  and  refit  the

deflection.

servo  and  master  cylinder  to  the  vehicle
reversing  the  removal  procedure.  Use  a new
split pin to secure the clevis.

13

14

Test the brakes

THROTTLE PEDAL ADJUSTMENT

1.

After  renewing  the  throttle  cable.  remove  any

slack  in the  cable  by  adjustment of the  cable
adjuster at me engine end.

2.  Depress the throttle pedal, by hand, to the full

extent  of  the  throttle  linkage,  and  adjust  the

pedal  stop  screw  to  take  up  all  clearance
between  the  screw  and  scuttle  panel.  Make

sure  that  no strain  is  placed  upon the  throttle
linkage.

24

REVISED: OCT

1993

ST1835M

ST3424M

MAINTENANCE

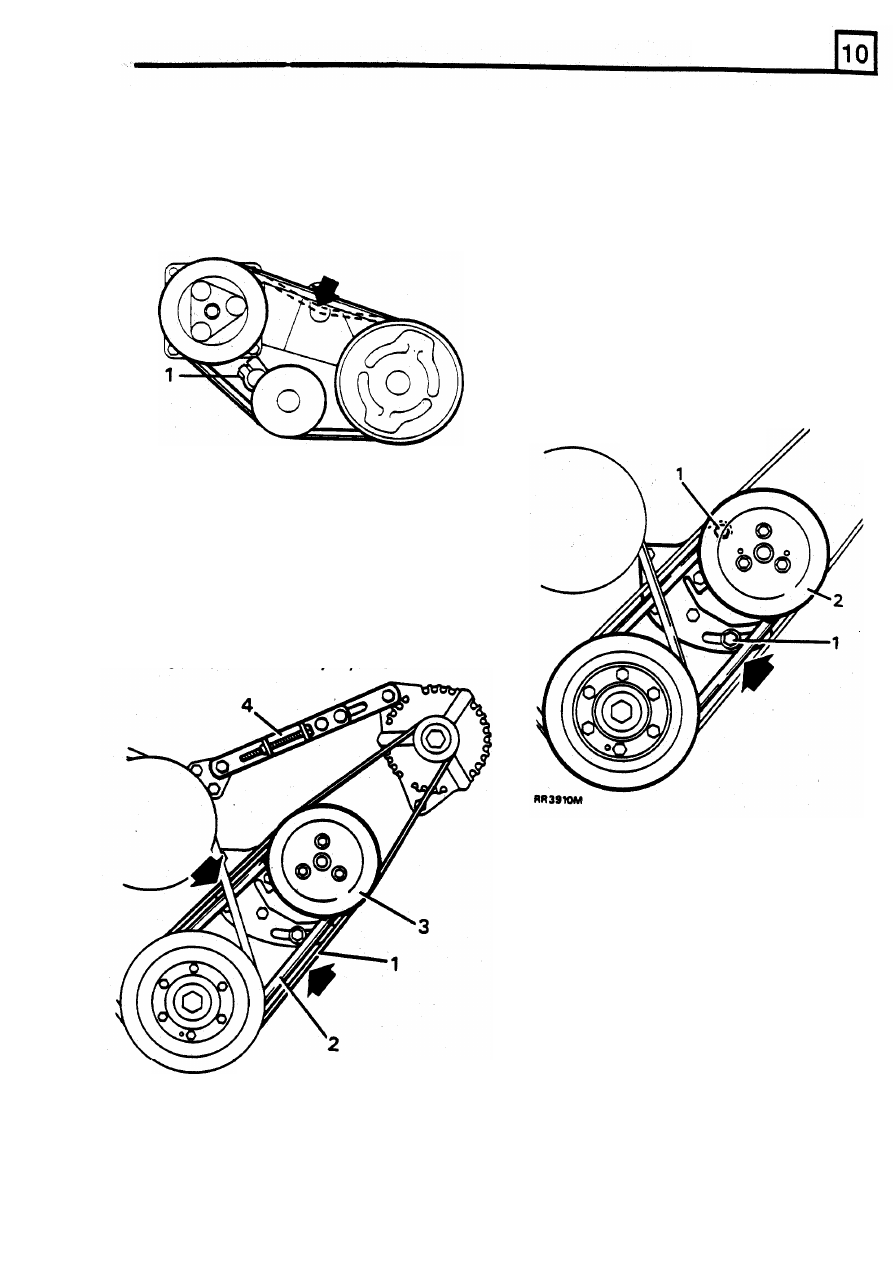

AIR  CONDITIONING  COMPRESSOR  DRIVE  BELT
DEFENDER

110

ADJUSTMENT

POWER  STEERING PUMP DRIVE BELT

Before adjustment of the  steering  pump belt

is

carried

out,

the  alternator  drive  belt  must  be  loosened  to

facilitate accurate adjustment.

1 .

Loosen  the  Jockey wheel  securing  bolt  and

adjust  the  wheel  position  until  the  correct

1.

Loosen  the  steering  pump  pivot  nut  and

tension  is  obtained.  Tighten  the  securing  bolt

adjustment bolt.

2.

Ensure  the  pump

I

free  to  rotate

on

the

mounting.

DO

NOT

lever  pump, loosen fixings

further if  necessary.

3.

Carefully  lever  against  the  pump  bracket  to
tension the  belt. Where  access  is  restricted, a
lever

with

one end  cranked  5°  to  10°  may  be

fed  down  between  the  water  pump  and
distributor.  Place the lever  against the steering
pump  bracket,  carefully  levering  from  the
water  pump/front  cover

and  recheck  the  deflection

ALTERNATOR  AND  POWER  STEERING  PUMP
DRIVE BELT ADJUSTMENT

An  additional  pulley,  bolted  to  the  front  of  the
steering  pump  pulley  is  used  as  a  guide  for  the

alternator  drive  belt.  Before  adjustment  of  the
steering pump  belt  is  carried  out,  the  alternator  belt
must

be

loosened  to  facilitate  accurate  adjustment.

Before adjusting  the  alternator  drive  belt  ensure  the

steering pump belt is correctly adjusted.

CAUTION:

Do

not

lever  against  the  steering

pump

casing.

Damage

to

the  casing  may  result

in

oil

leaks.

4.

Check  the  belt  tension at  the  mid-point  of

the

longest  span,  the  belt  should  deflect  0.5  mm

per

25

mm

of

belt

run between pulley centres

Tighten the steering pump adjustment bolt  and
pivot nut.

5.

Recheck the belt tension.

6.

Carry out alternator  belt tensioning

1 .

Alternator  drive belt

2.

Steering pump drive belt

3.

Steering pump and guide pulley

Alternator drive belt tensioner

REVISED: OCT

1993

2 5

RR3909M
