Defender Electric Diagrams. Manual - part 257





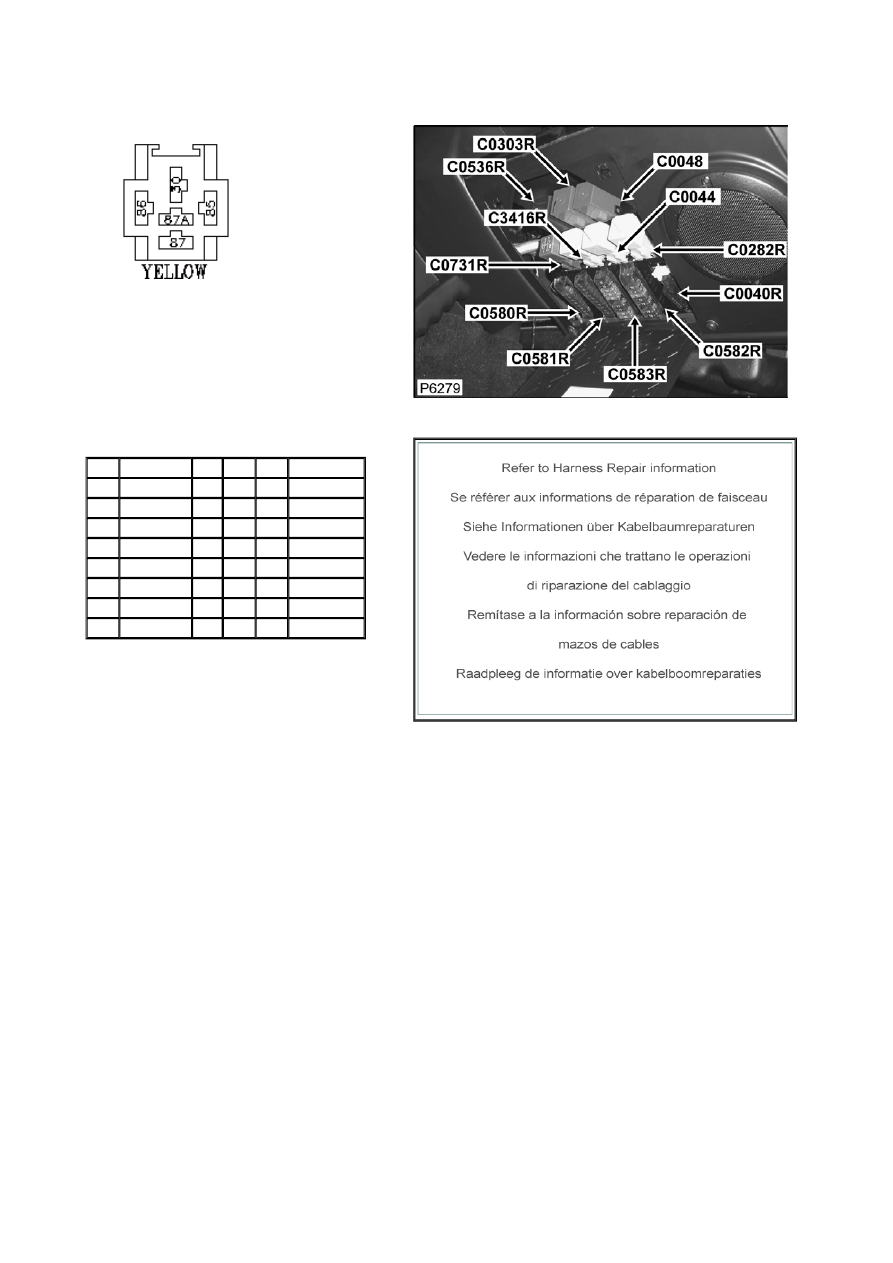

Connector: C3416R

Description: Relay-Window-lift

Location: Underside of steering column





Part No.:

AFU3271



Colour: YELLOW

Cavities: 5WY

Harness:

MAIN LH + RH HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

30

YPL10081

4.0D NR

247R C0571

30

YPL10081

4.0D NR

95R

C0571

85

AFU3119

0.5D WG

247R C0285

85

AFU3119

0.5D WG

95R

C0285

86

AFU3120

1.5D B

247R C0289

86

AFU3120

1.5D B

95R

C0289

87

YPL10081

4.0D NS

247R S/JOINT SJ15

87

YPL10081

4.0D NS

95R

C0580R

Service Repair Kits

Electrical Wiring Diagrams

Defender (LHD)

VIN: 751063 >

Electrical Wiring Diagrams

Defender (LHD)

Published by Technical Communications, Land Rover

Publication Part No. JLR 13 30 21_2E,   08 2008

BY APPOINTMENT TO

HER MAJESTY QUEEN ELIZABETH II

MANUFACTURERS OF LAND ROVER VEHICLES

LAND ROVER, WARWICK

BY APPOINTMENT TO

HIS ROYAL HIGHNESS THE PRINCE OF WALES

MANUFACTURERS OF LAND ROVER VEHICLES

LAND ROVER, WARWICK

BY APPOINTMENT TO

HIS ROYAL HIGHNESS THE DUKE OF EDINBURGH

MANUFACTURERS OF LAND ROVER VEHICLES

LAND ROVER, WARWICK

CONTENTS

1

ABBREVIATIONS

 ............................................................................................................................................................  2

USING THIS PUBLICATION

Health and safety  .................................................................................................................................  3
Using this publication  ..........................................................................................................................  3
Section numbering ...............................................................................................................................  3
Circuit sheet numbering .......................................................................................................................  3
Understanding the circuit diagrams  .....................................................................................................  3

206-09 - ANTI-LOCK CONTROL

 ............................................................................................................................................................  5

303-06 - STARTING SYSTEM

Starting and charging - D4 ...................................................................................................................  7

303-14 - ELECTRONIC ENGINE CONTROLS

D4 ........................................................................................................................................................  9

412-01 - CLIMATE CONTROL

 ..........................................................................................................................................................  13

412-02 - AUXILIARY CLIMATE CONTROL

Windshield heater  ..............................................................................................................................  15
Rear window heater  ...........................................................................................................................  16
Non air conditioning  ..........................................................................................................................  17

413-00 - INSTRUMENT CLUSTER AND PANEL ILLUMINATION

 ..........................................................................................................................................................  18

413-01 - INSTRUMENT CLUSTER

 ..........................................................................................................................................................  20

413-06 - HORN

 ..........................................................................................................................................................  23

413-07 - CLOCK

 ..........................................................................................................................................................  24

414-01 - BATTERY, MOUNTING AND CABLES

Header joints ......................................................................................................................................  25
Battery junction box ...........................................................................................................................  30
Splices ...............................................................................................................................................  36
Ground distribution ............................................................................................................................  44

415-00 - INFORMATION AND ENTERTAINMENT SYSTEM

 ........................................................................................................................................................... 50

417-01 - EXTERIOR LIGHTING

Rear fog guard lamps ......................................................................................................................... 51
Turn signal indicators and hazard flashers ......................................................................................... 53
Trailer socket  ..................................................................................................................................... 56
Stop and reverse lamps  ..................................................................................................................... 58
Headlamp levelling  ............................................................................................................................. 61
Head/Side lamps  ................................................................................................................................ 62

417-02 - INTERIOR LIGHTING

 ........................................................................................................................................................... 65

418-00 - MODULE COMMUNICATIONS NETWORK

Diagnostic socket ............................................................................................................................... 67

419-01 - ANTI-THEFT SYSTEM

Active ................................................................................................................................................. 68
Passive ............................................................................................................................................... 71

501-10 - SEATING

Heated - front ..................................................................................................................................... 72

501-11 - GLASS, FRAMES AND MECHANISMS

Window lift ......................................................................................................................................... 73

501-12 - INSTRUMENT PANEL AND CONSOLE

Cigar lighter  ....................................................................................................................................... 74
 ........................................................................................................................................................... 75

501-16 - WIPERS AND WASHERS

Rear ................................................................................................................................................... 76
Front .................................................................................................................................................. 77
