Defender Electric Diagrams. Manual - part 256





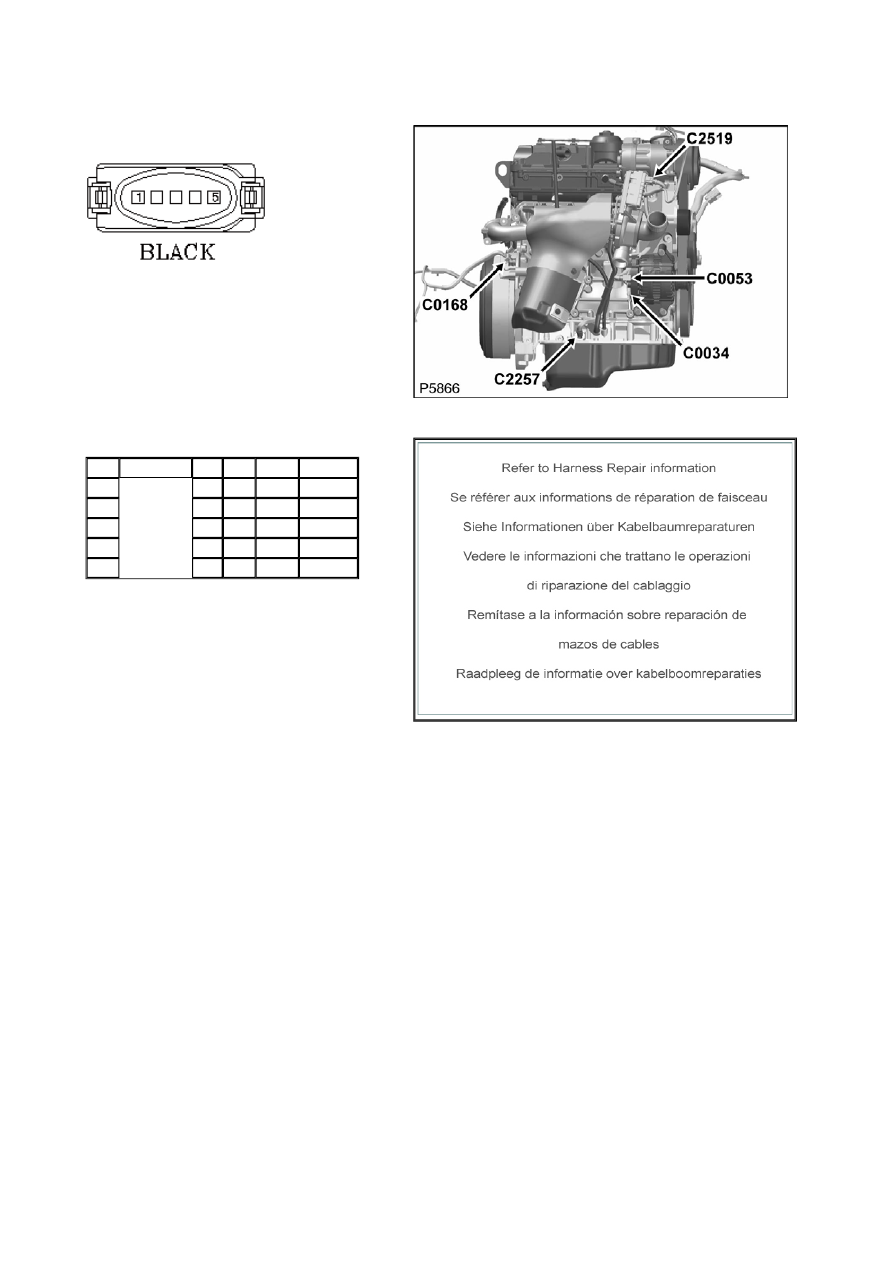

Connector: C2519

Description: Actuator-Vane VGT

Location: RH side of engine





Part No.:

YPC909760



Colour:

Cavities:

Harness:

ENGINE DIESEL PUMA HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT

DESTN

1

1.5

ON

EN_H9 C2518

2

1.5

OW

EN_H9 C2518

3

0.5

GW

EN_H9 S/JOINT 4

4

0.5

O

EN_H9 C0411

5

0.5

GP

EN_H9 S/JOINT 5

Service Repair Kits

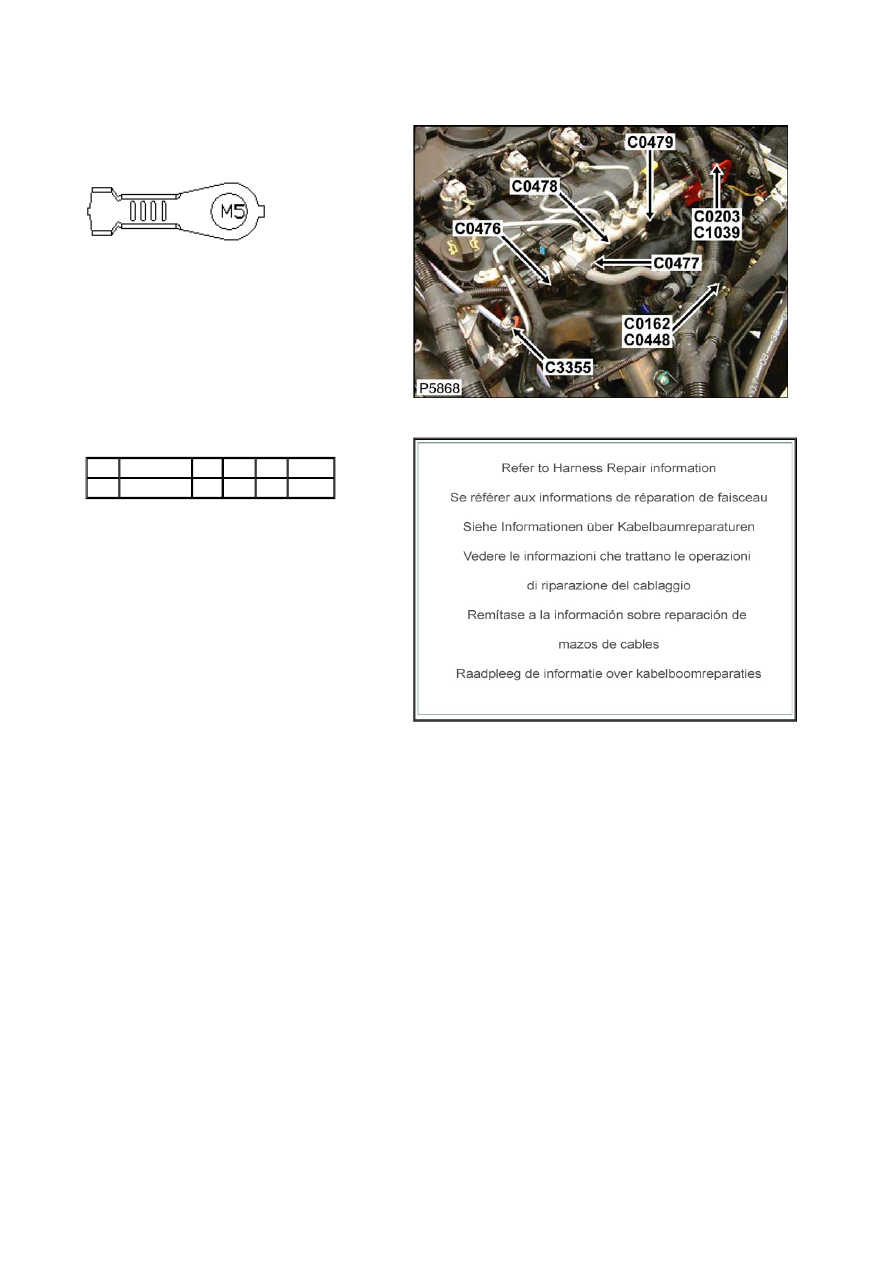

Connector: C3355

Description: Engine harness to glow plug harness

Location: LH side of engine





Part No.:

YPG10012



Colour: TIN PLATED

Cavities: 1WY

Harness:

ENGINE DIESEL PUMA HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

-

6.0

NU

254

C0203

Service Repair Kits

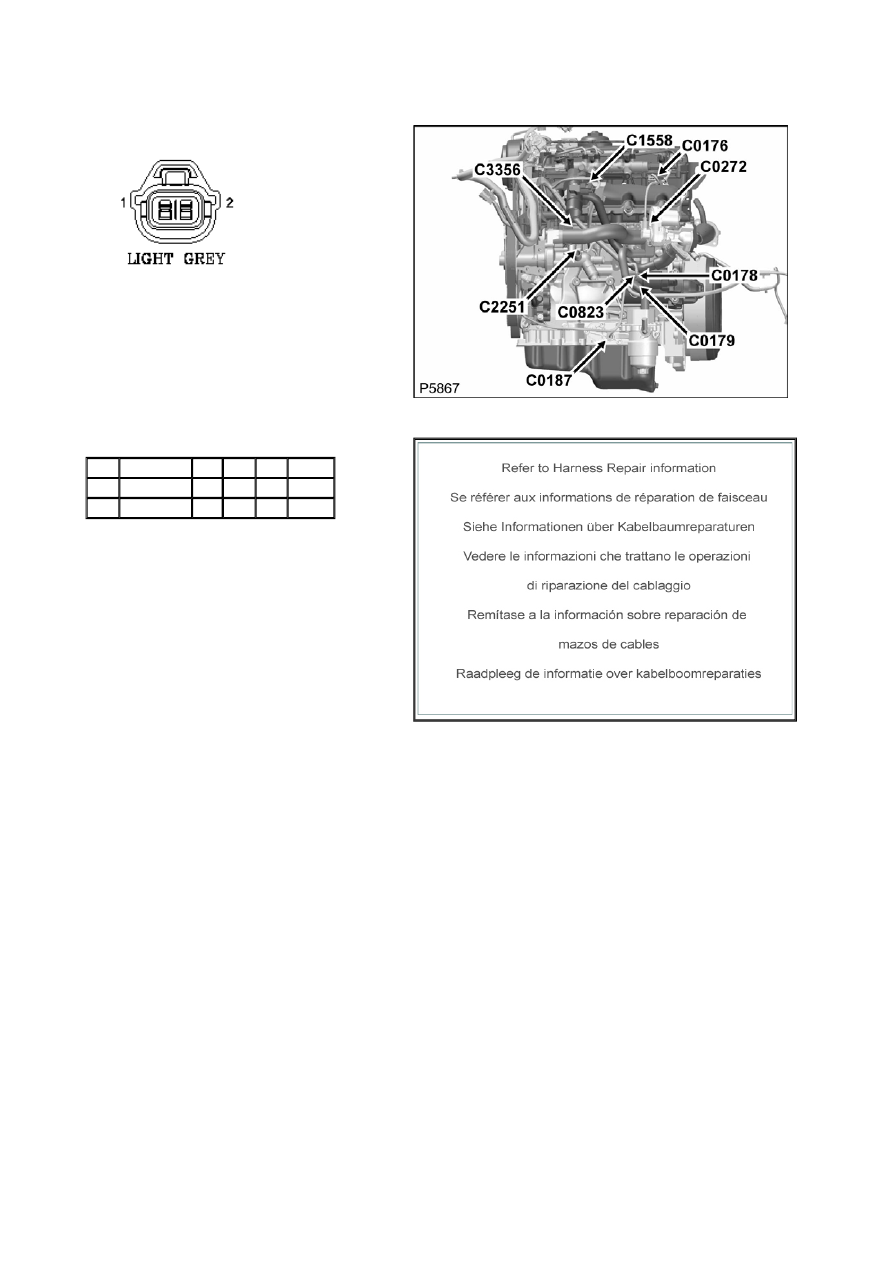

Connector: C3356

Description: Valve-Control-Fuel volume

Location: LH side of engine





Part No.:

YPC911150



Colour: LIGHT GREY

Cavities: 2WY

Harness:

ENGINE DIESEL PUMA HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

YPL10020

0.75 OY

254

C2518

2

YPL10020

0.75 O

254

C2518

Service Repair Kits

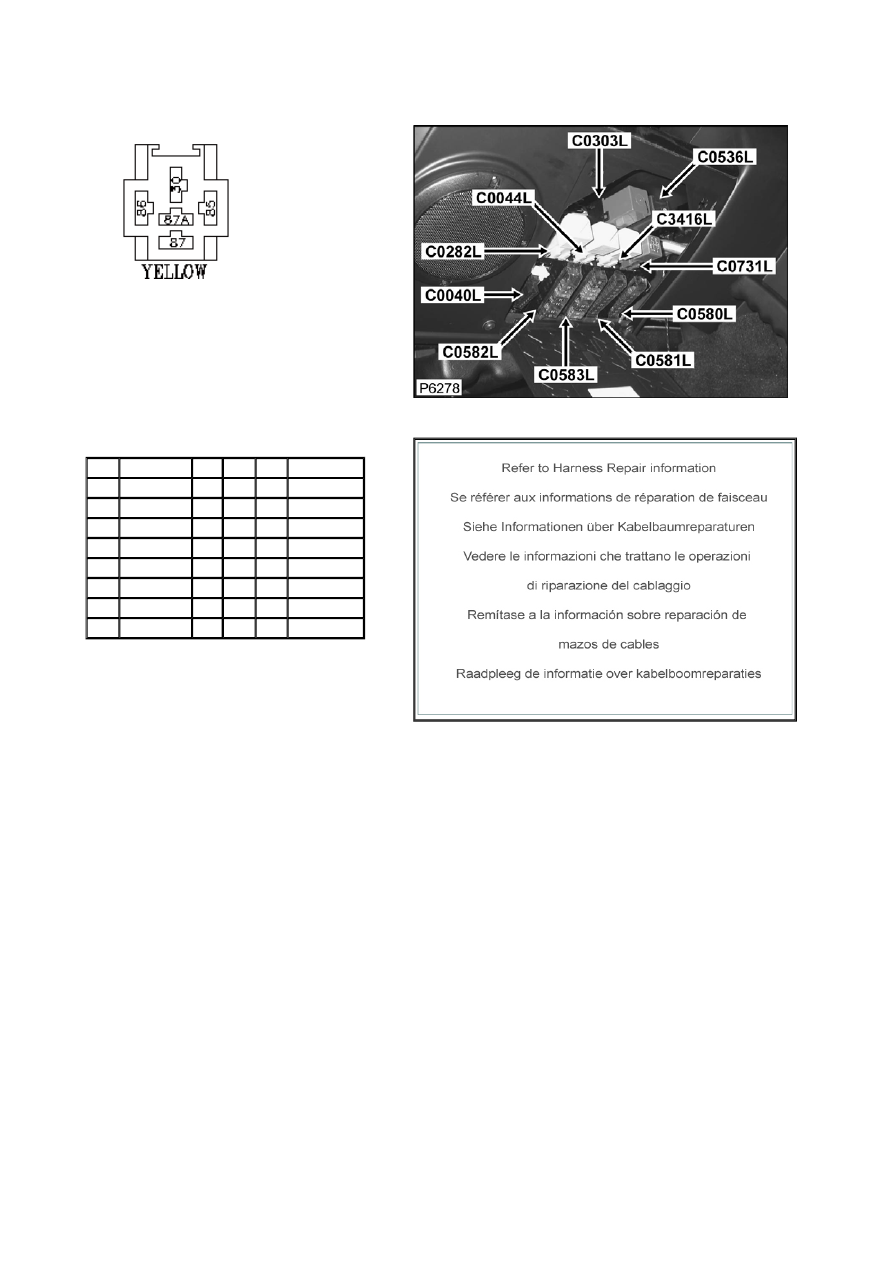

Connector: C3416L

Description: Relay-Window-lift

Location: Underside of steering column





Part No.:

AFU3271



Colour: YELLOW

Cavities: 5WY

Harness:

MAIN LH + RH HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

30

YPL10081

4.0D NR

247L C0571

30

YPL10081

4.0D NR

95L

C0571

85

AFU3119

0.5D WG

247L C0285

85

AFU3119

0.5D WG

95L

C0285

86

AFU3120

1.5D B

247L C0289

86

AFU3120

1.5D B

95L

C0289

87

YPL10081

4.0D NS

95L

C0580L

87

YPL10081

4.0D NS

247L S/JOINT SJ16

Service Repair Kits
