Connector: C0667L

Description: Switch-Clutch pedal

Location: Rear LH side of engine compartment





Part No.:

YPC107790



Colour: BLACK

Cavities: 2WY

Harness:

MAIN LH + RH HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

YPF10017

0.5D BW

254L C0872

2

YPF10017

0.5D GO

139L CTAP

Service Repair Kits




CSA

0.50- 1.00 CSA

Cavities: 1,2

VDK500010 SRK ITEM GENERAL

1

VDK500090 SRK ITEM JPT ASYM EXTRACT TOOL

1

VDK500100 SRK ITEM JPT SYM EXTRACT TOOL

1

YMI001100

SRK ITEM JPT FAMILY 0.75CSA

1

YPQ000100 SRK ITEM

1

YQD000210 SRK ITEM R/B

1

YRV000040 SRK ITEM PIDG RED

1

YRW000390 SRK ITEM

1

YRW500010 SRK ITEM

1

YRW500080 SRK ITEM JPT ASYMMETRICAL FAMILY 1

YRW500090 SRK ITEM JPT SYMMETRICAL FAMILY

1

VUB500300



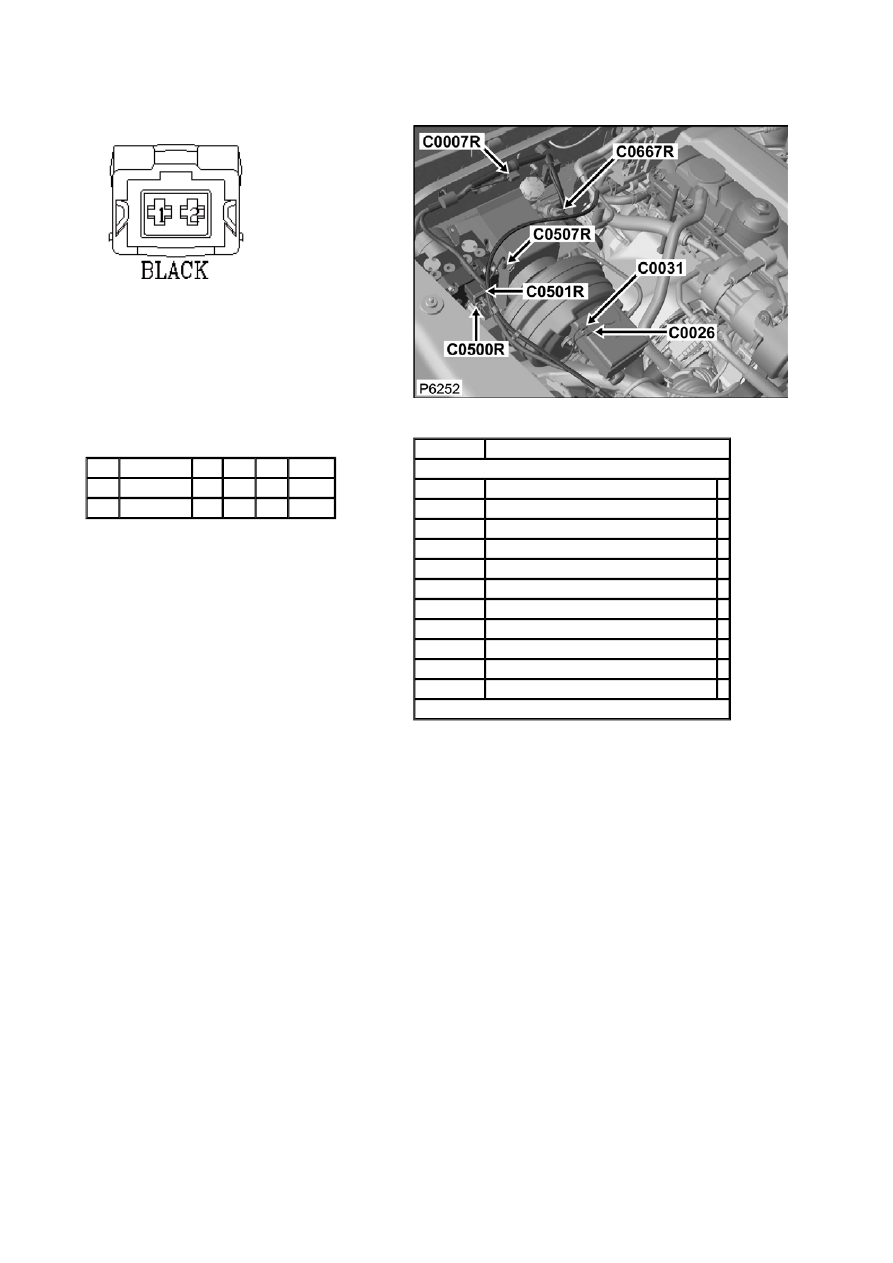

Connector: C0667R

Description: Switch-Clutch pedal

Location: Rear RH side of engine compartment





Part No.:

YPC107790



Colour: BLACK

Cavities: 2WY

Harness:

MAIN LH + RH HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

YPF10017

0.5D BW

254R C0872

2

YPF10017

0.5D GO

200R CTAP

Service Repair Kits




CSA

0.50- 1.00 CSA

Cavities: 1,2

VDK500010 SRK ITEM GENERAL

1

VDK500090 SRK ITEM JPT ASYM EXTRACT TOOL

1

VDK500100 SRK ITEM JPT SYM EXTRACT TOOL

1

YMI001100

SRK ITEM JPT FAMILY 0.75CSA

1

YPQ000100 SRK ITEM

1

YQD000210 SRK ITEM R/B

1

YRV000040 SRK ITEM PIDG RED

1

YRW000390 SRK ITEM

1

YRW500010 SRK ITEM

1

YRW500080 SRK ITEM JPT ASYMMETRICAL FAMILY 1

YRW500090 SRK ITEM JPT SYMMETRICAL FAMILY

1

VUB500300



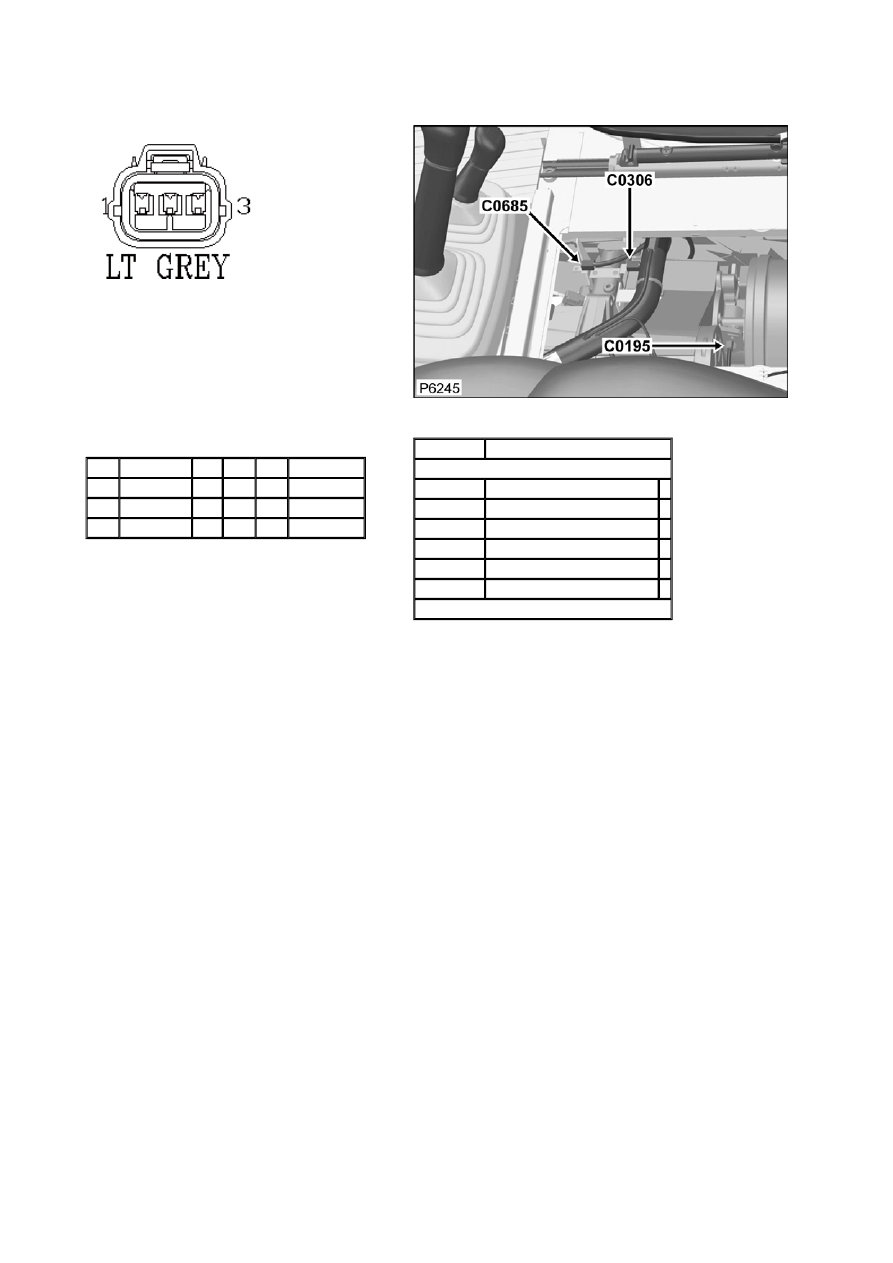

Connector: C0685

Description: Switch-Transmision-High-Low

Location: Top of transfer box





Part No.:

YPC10181



Colour: LIGHT GREY

Cavities: 3WY

Harness:

MAIN LH + RH HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

DBP8548

0.5D WB

139L C1040L

1

DBP8548

0.5D WB

200R C1040R

3

DBP8548

0.5D B

499

S/JOINT SJ13

Service Repair Kits




CSA

0.30- 1.25 CSA

Cavities: 1,3

YMI000010

SRK ITEM 090 FAMILY 1.5CSA 1

YPQ000100 SRK ITEM

1

YQD000210 SRK ITEM R/B

1

YRV000040 SRK ITEM PIDG RED

1

YRW000390 SRK ITEM

1

YRW500010 SRK ITEM

1

VUB001120



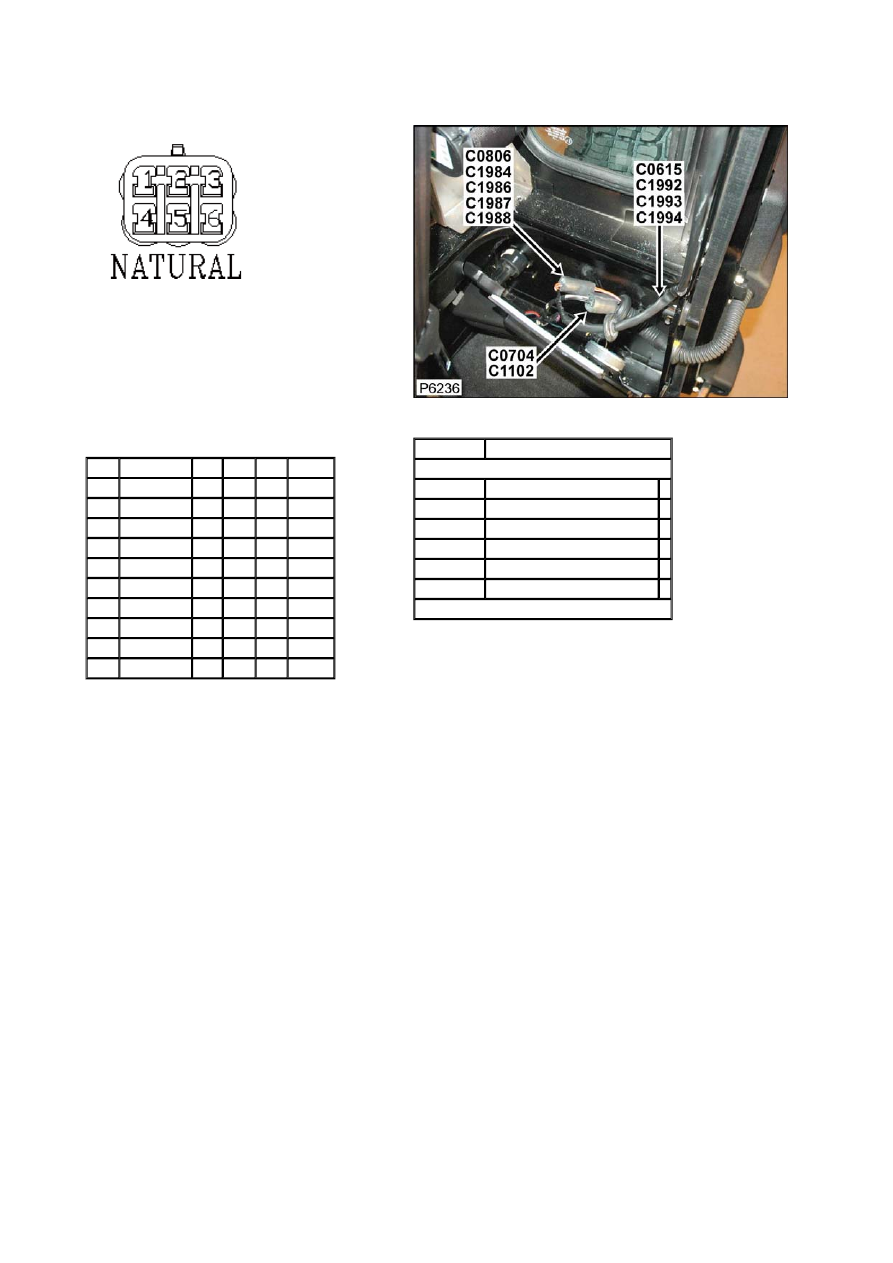

Connector: C0704

Description: Chassis harness to tail door harness

Location: RH 'D' post





Part No.:

AFU3563



Colour: NATURAL

Cavities: 6WY

Harness:

CHASSIS HARNESS



Wire Chart

CAV  TERMINAL  CSA  COL  CCT  DESTN

1

YPL10027

1.5D WB

771

C1759

1

YPL10027

1.5D WB

770

C0390

2

YPL10027

1.5D GP

771

C1759

2

YPL10027

1.5D GP

770

C0390

3

DBP8548

1.0D BG

771

C1759

3

DBP8548

1.0D BG

770

C0390

4

DBP8548

1.0D WG

771

C1759

4

DBP8548

1.0D WG

770

C0390

6

YPL10027

1.5D B

771

C0837

6

YPL10027

1.5D B

770

C0837

Service Repair Kits




CSA

0.30- 1.25 CSA

Cavities: 3,4

YMI000010

SRK ITEM 090 FAMILY 1.5CSA 1

YPQ000100 SRK ITEM

1

YQD000210 SRK ITEM R/B

1

YRV000040 SRK ITEM PIDG RED

1

YRW000390 SRK ITEM

1

YRW500010 SRK ITEM

1

VUB001120
