Defender Electric Diagrams. Manual - part 163

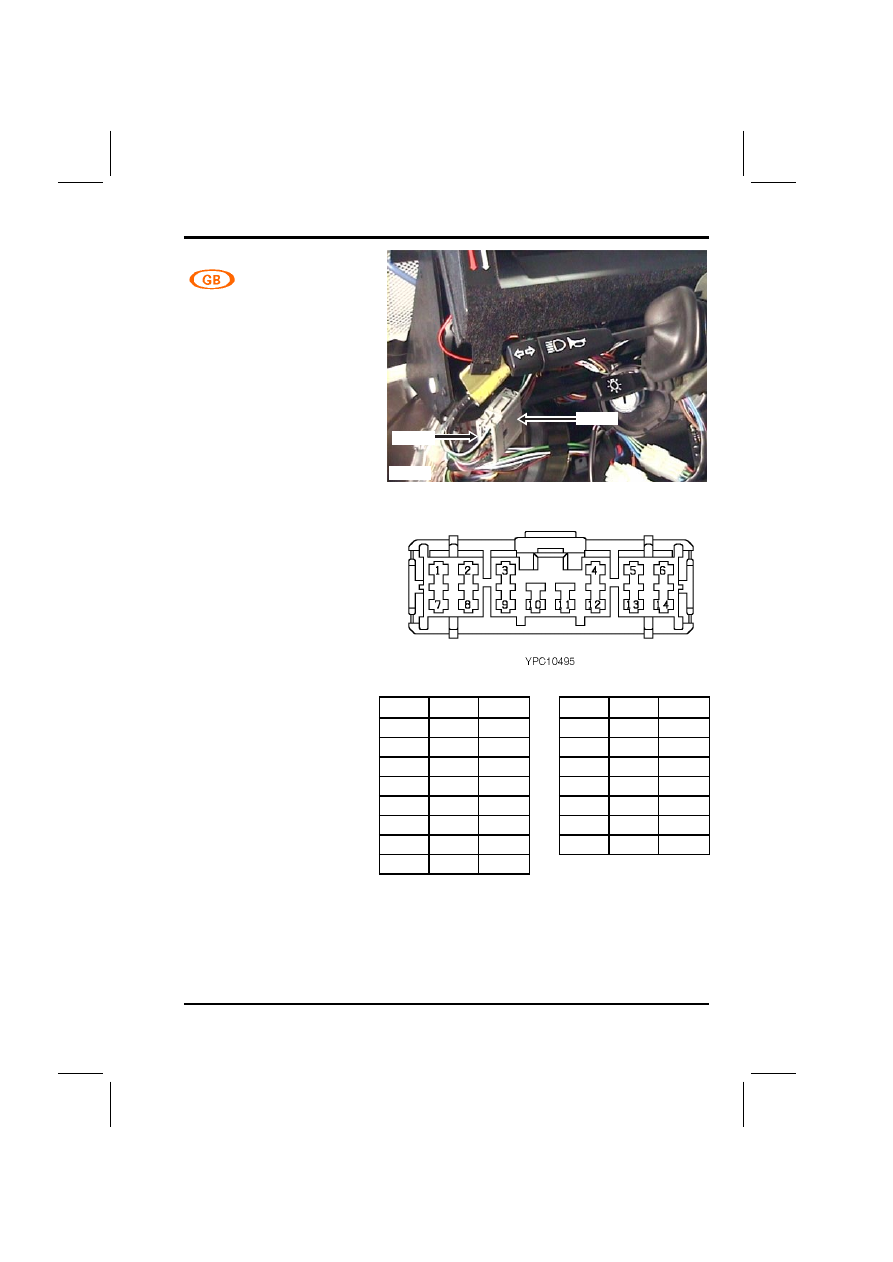

C1037

CONNECTOR

DEFENDER 1999 MY

Warning lamp - Hazard

Female
NATURAL

Adjacent steering column

P5652

C0096

C1036

C1037

Cav

Col

CCT

1

BR

ALL

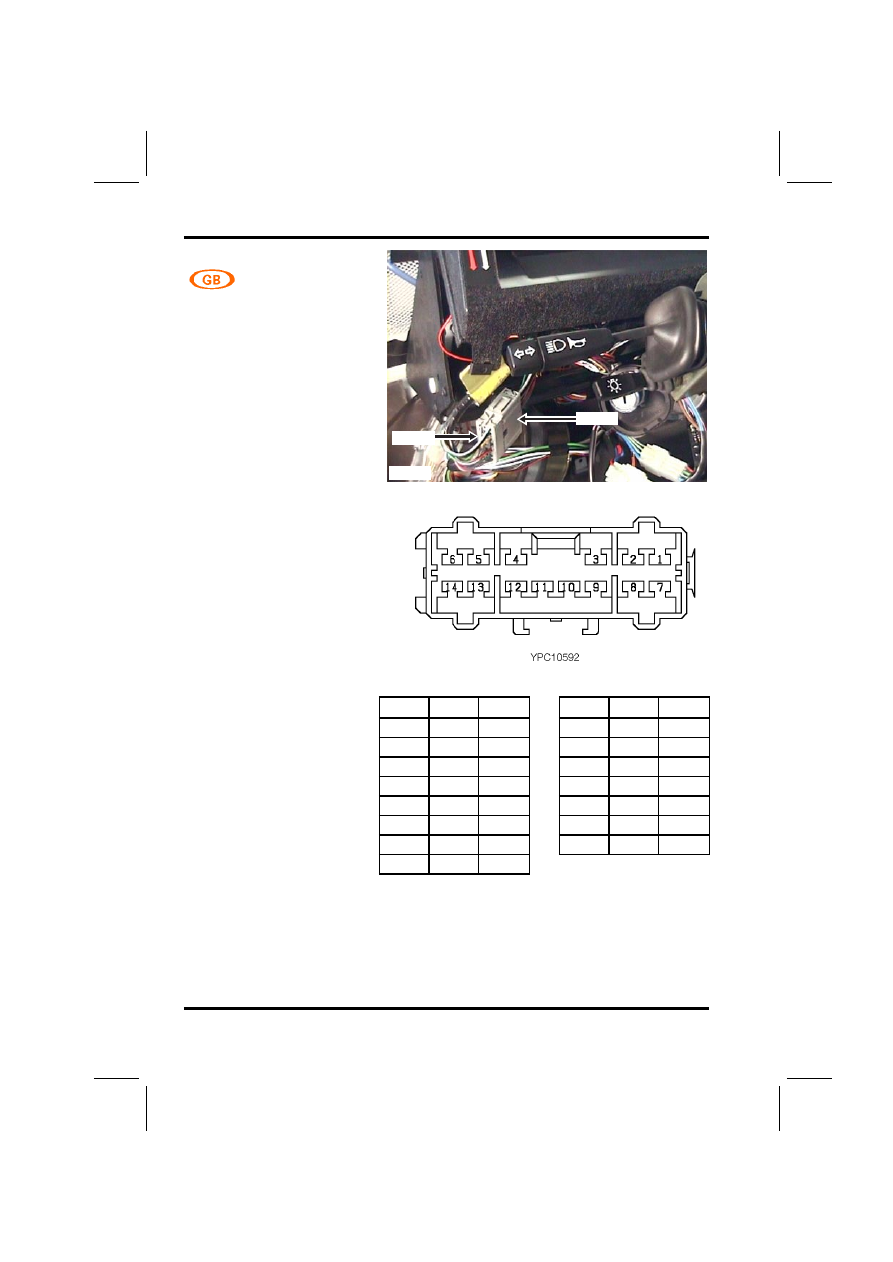

CONNECTOR

C1040

DEFENDER 1999 MY

Main harness to instrument
pack harness

Female
LIGHT GREY

Behind instrument pack

P5774

C1040

C1048

Cav

Col

CCT

1

WG

3

2

B

3

3

YK

21

4

RO

3

5

GB

3

6

PN

3

7

SB

3

8

GU

21

Cav

Col

CCT

8

GU

27

9

B

3

10

BR

3

11

NU

21

11

NU

24

12

WO

3

13

K

17

C1048

CONNECTOR

DEFENDER 1999 MY

Main harness to instrument
pack harness

Male
LIGHT GREY

Behind instrument pack

P5774

C1040

C1048

Cav

Col

CCT

1

WG

ALL

2

B

ALL

3

YK

ALL

4

RO

ALL

5

GB

ALL

6

PN

ALL

7

SB

ALL

8

GU

22

Cav

Col

CCT

8

LGU

21

9

B

ALL

10

BR

ALL

11

NU

ALL

12

WO

ALL

13

K

ALL

14

WS

23

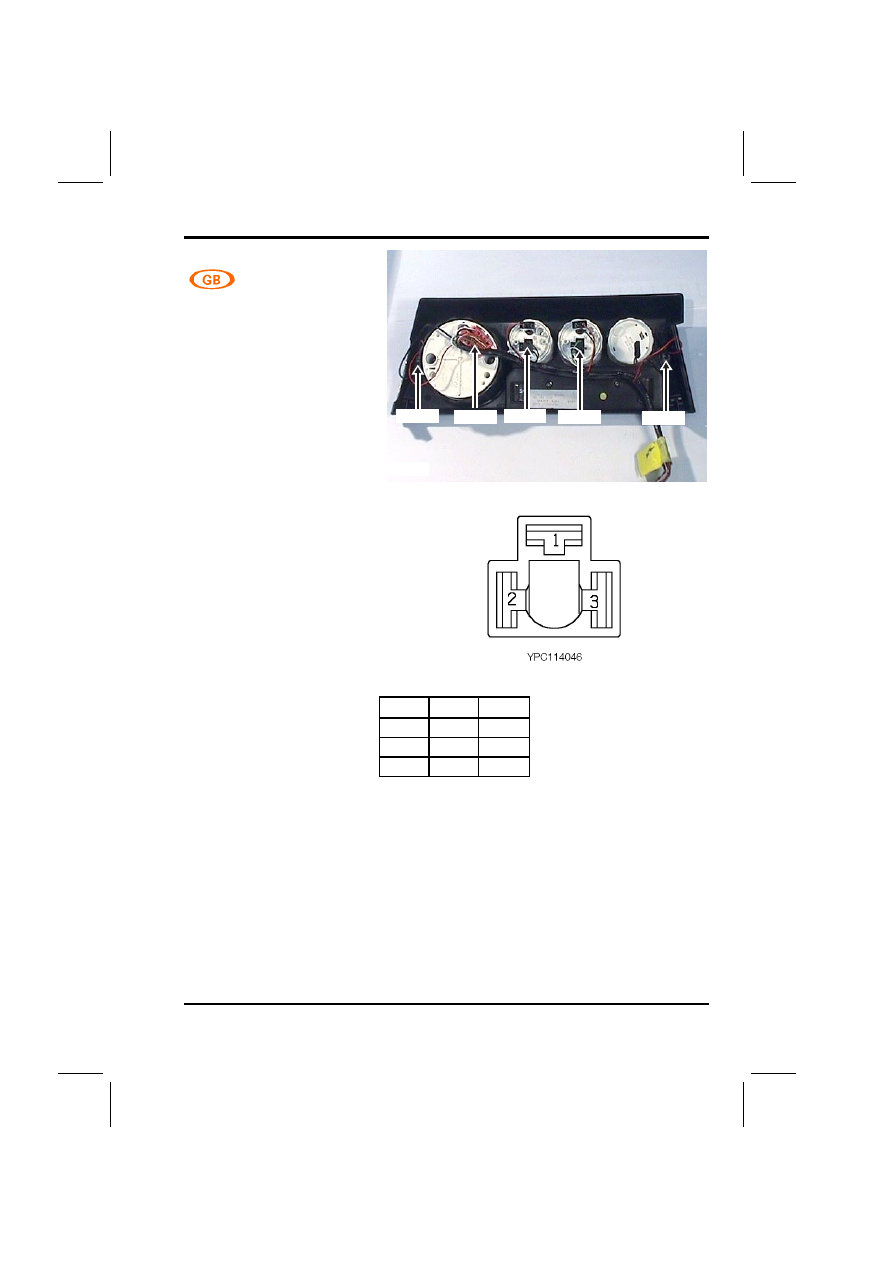

CONNECTOR

C1052

DEFENDER 1999 MY

Gauge - Coolant
temperature

Female
BLACK

Behind instrument pack

P5761

C1294

C1061 C1054

C1052

C1200

Cav

Col

CCT

1

B

ALL

2

LGU

ALL

3

WG

ALL
