Defender Electric Diagrams. Manual - part 146

C0455

CONNECTOR

DEFENDER 1999 MY

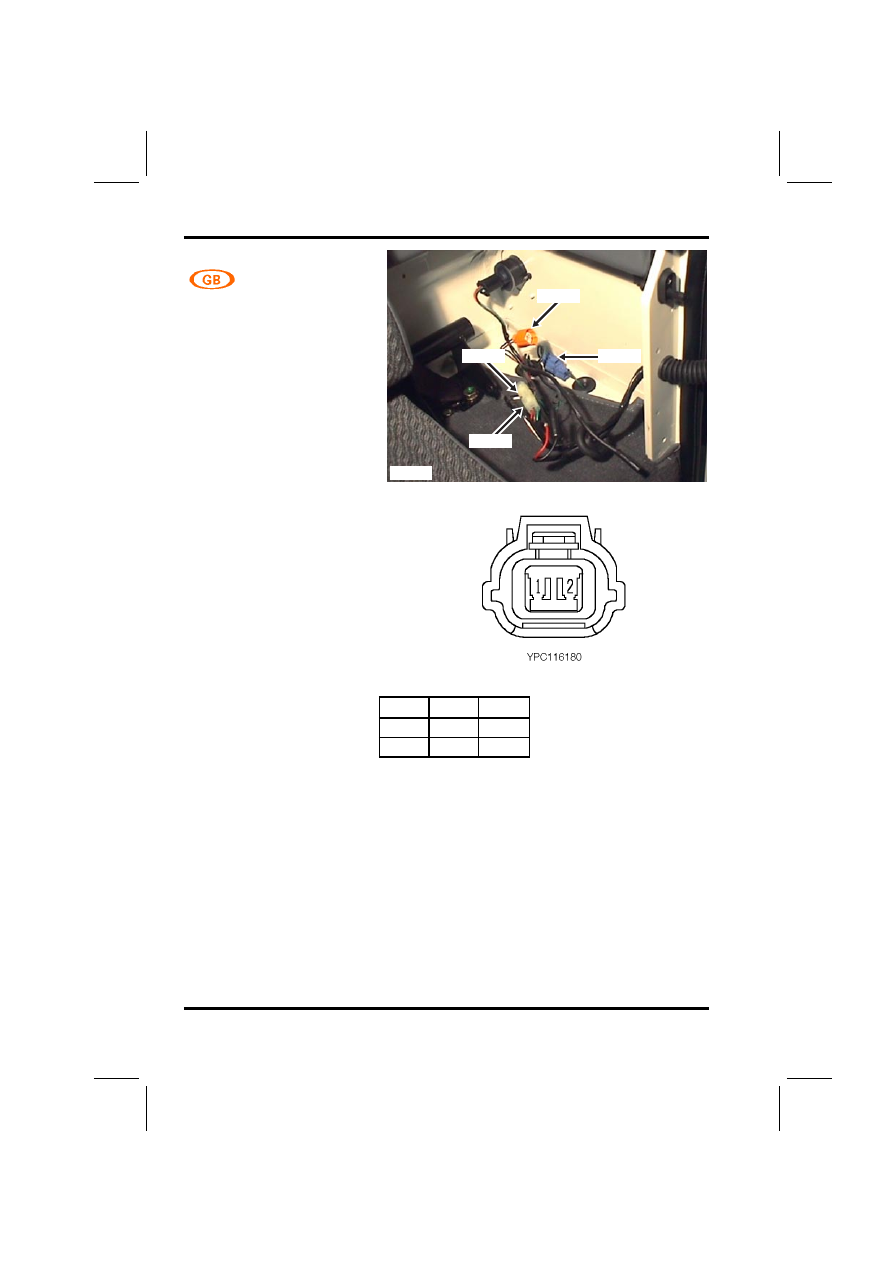

Lamp - Reverse - RH

Female
GREY

LH side of taildoor

P5601

C0512

C0455

C0704

C1102

Cav

Col

CCT

1

B

ALL

2

GN

ALL

CONNECTOR

C0472

DEFENDER 1999 MY

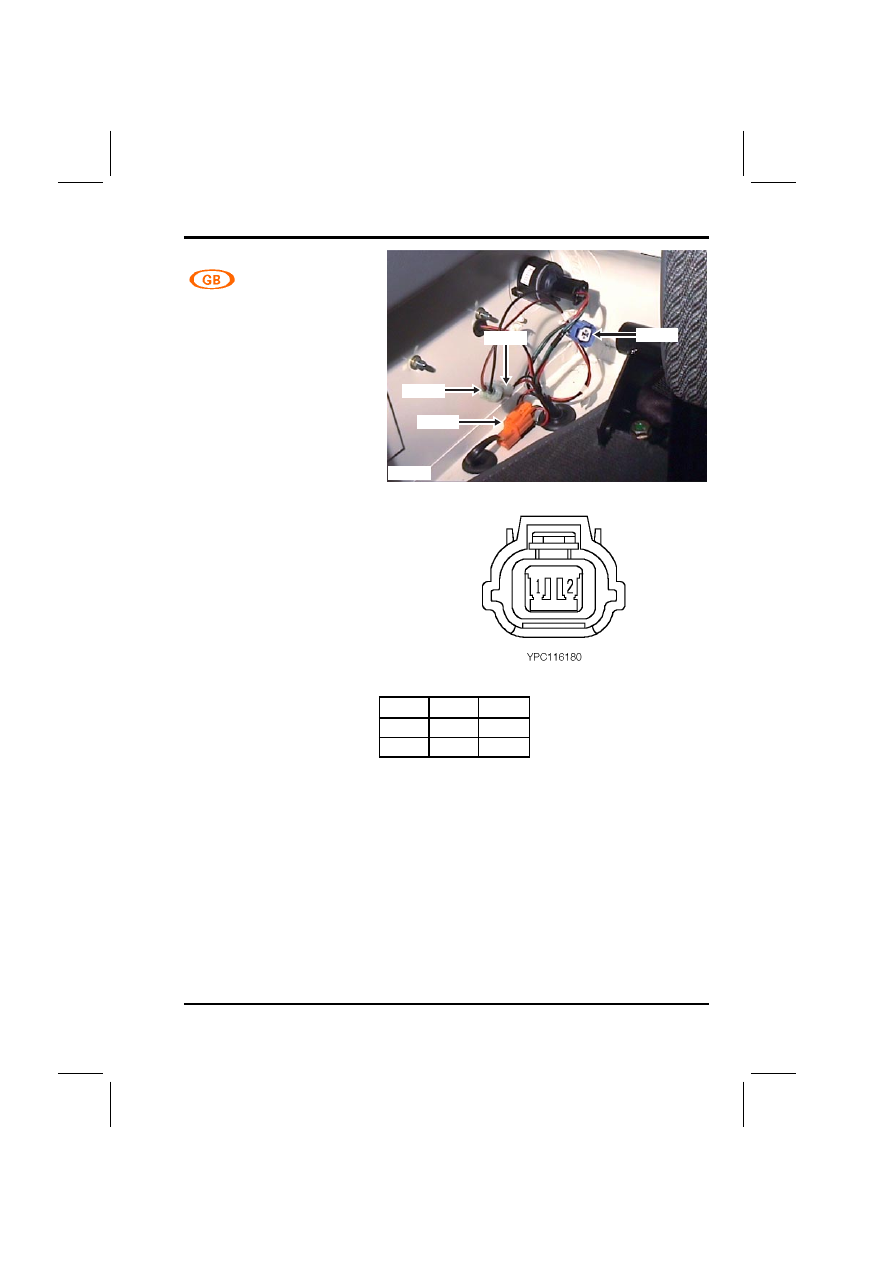

Lamp - Reverse - LH

Female
GREY

LH rear of vehicle

P5600

C0472

C0515

C0139

C0138

Cav

Col

CCT

1

B

ALL

2

GN

ALL

C0476

CONNECTOR

DEFENDER 1999 MY

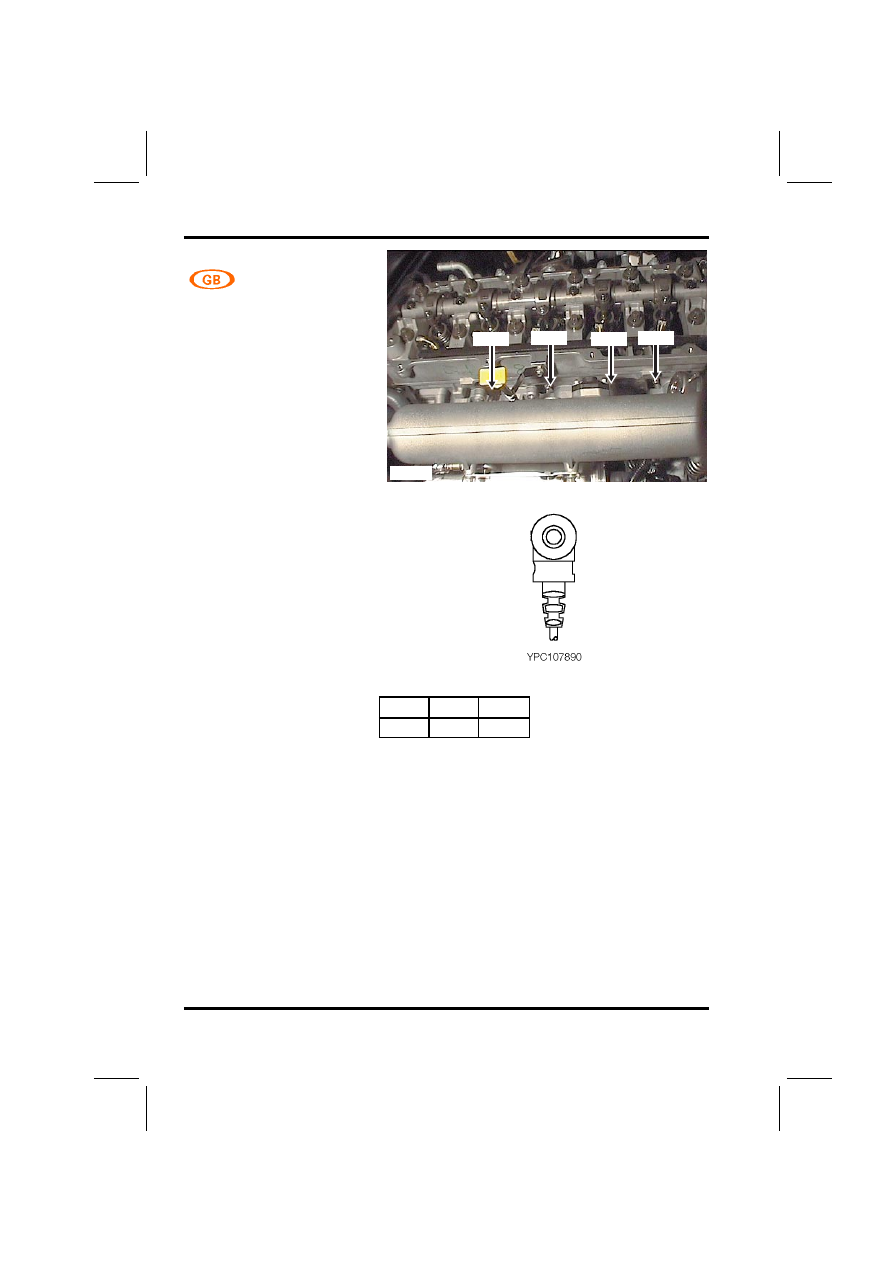

Glow plug - Td5

Female
BLACK

Top of engine - RH side

C479

C478

C477

C476

P5402

Cav

Col

CCT

1

B

ALL

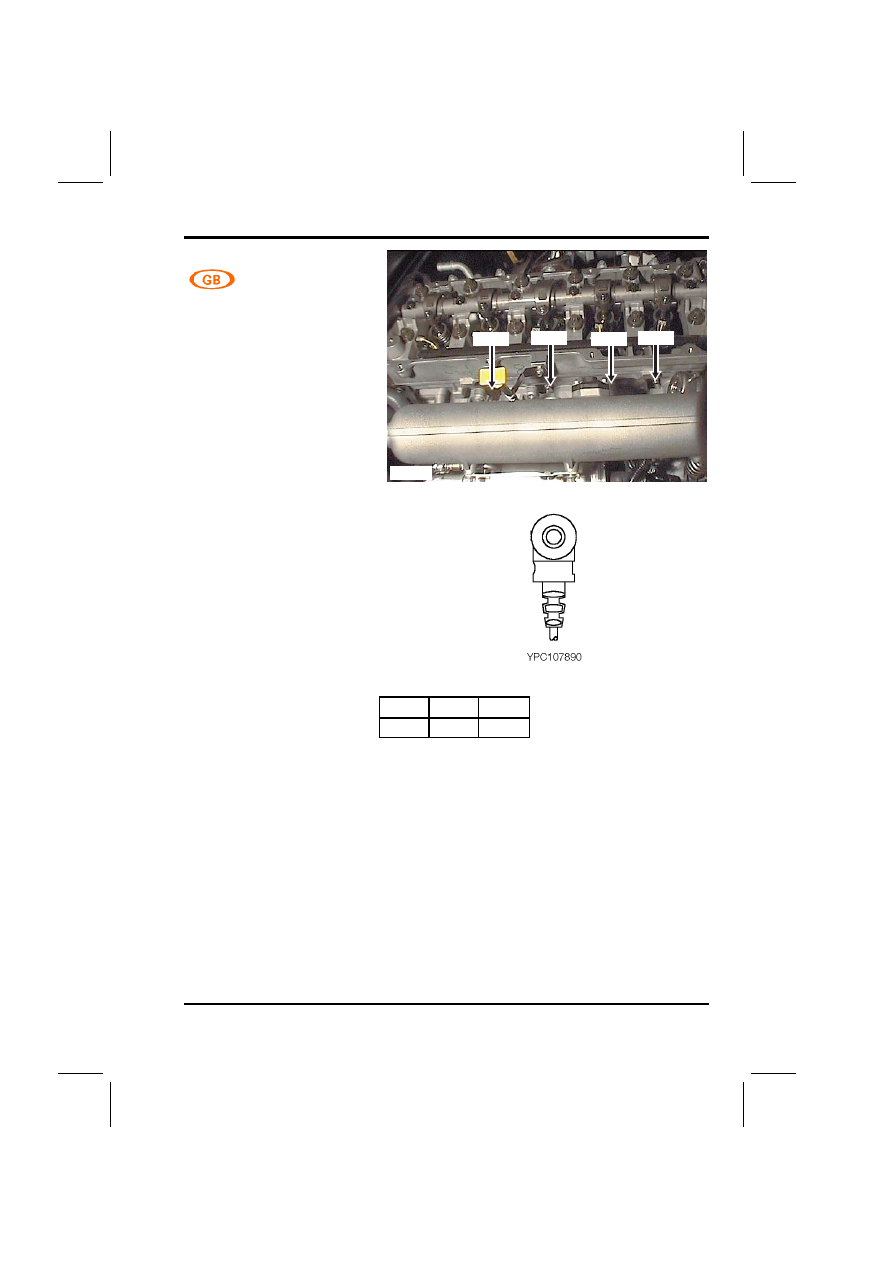

CONNECTOR

C0477

DEFENDER 1999 MY

Glow plug - Td5

Female
BLACK

Top of engine - RH side

C479

C478

C477

C476

P5402

Cav

Col

CCT

1

B

ALL
