Defender Electric Diagrams. Manual - part 137

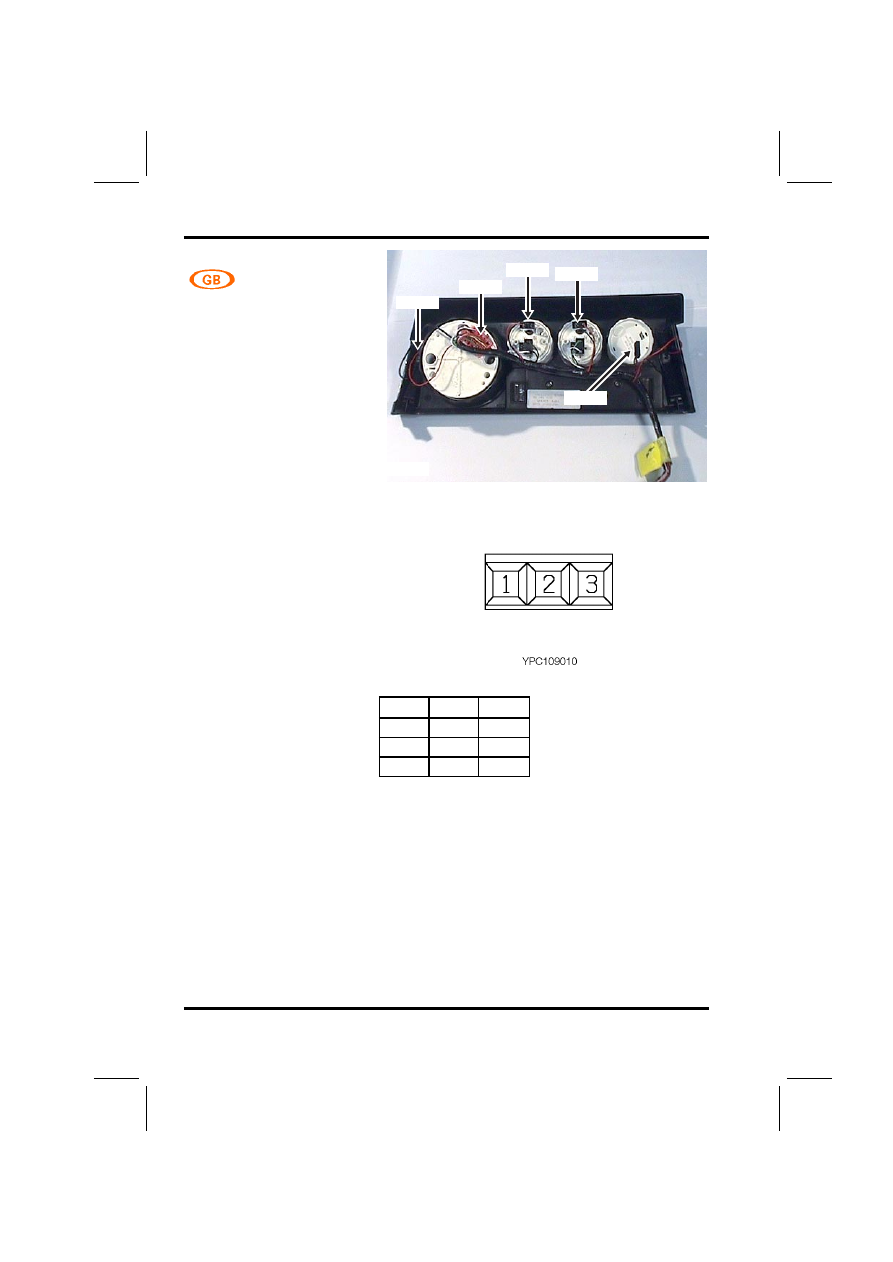

C0232

CONNECTOR

DEFENDER 1999 MY

Clock - Analogue

Female
BLACK

Behind instrument pack

P5818

C1199

C1060

C1055 C1053

C0232

Cav

Col

CCT

1

RO

ALL

2

B

ALL

3

PN

ALL

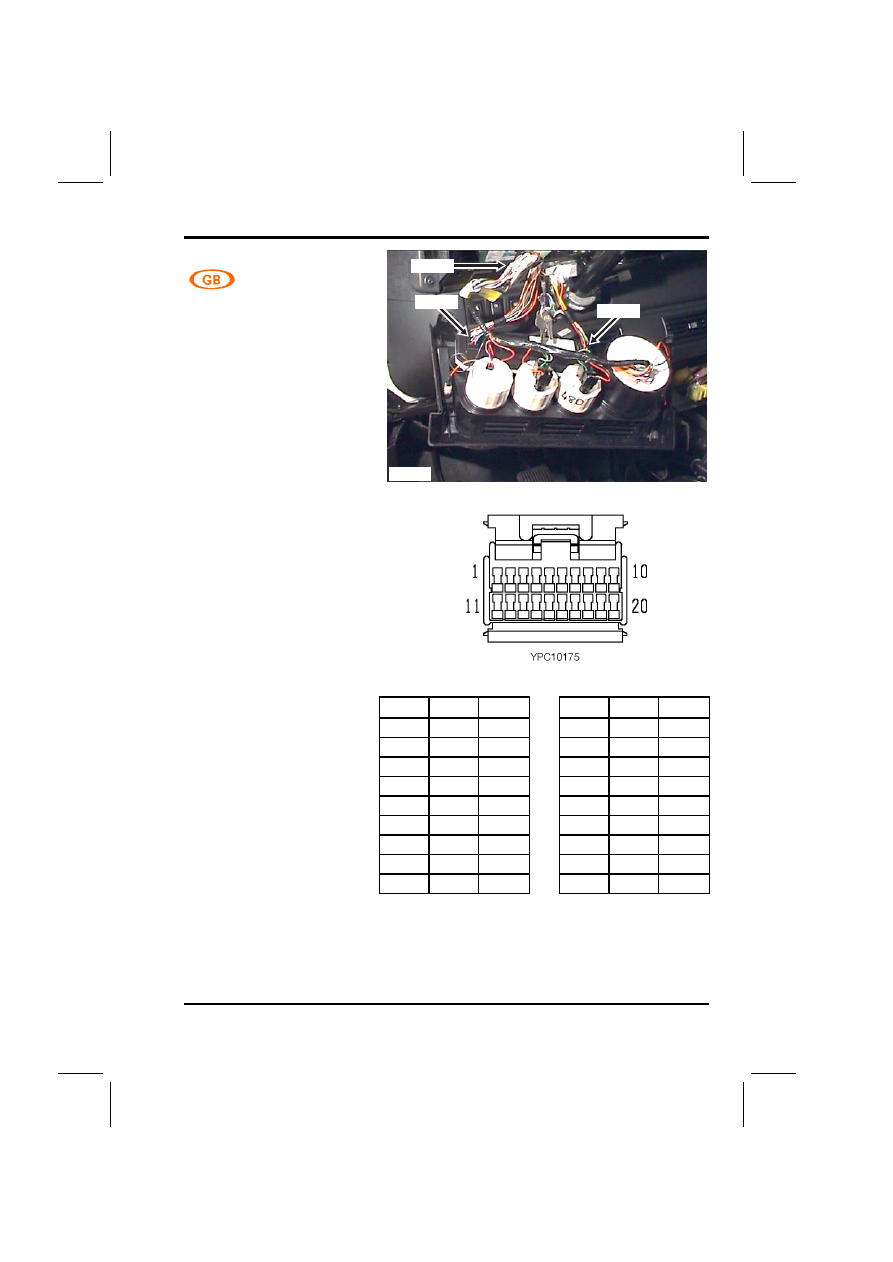

CONNECTOR

C0233

DEFENDER 1999 MY

Instrument Pack

Female
BLACK

Behind instrument pack

P5648

C0230

C0140

C0233

Cav

Col

CCT

1

UW

3

2

GW

ALL

3

WO

ALL

4

RY

ALL

5

O

ALL

6

BK

4

7

BU

ALL

8

WB

ALL

9

BR

ALL

Cav

Col

CCT

10

LGP

ALL

11

UW

4

11

RS

21

12

BY

ALL

13

WN

ALL

16

WG

ALL

17

YN

ALL

18

GR

ALL

20

RO

ALL

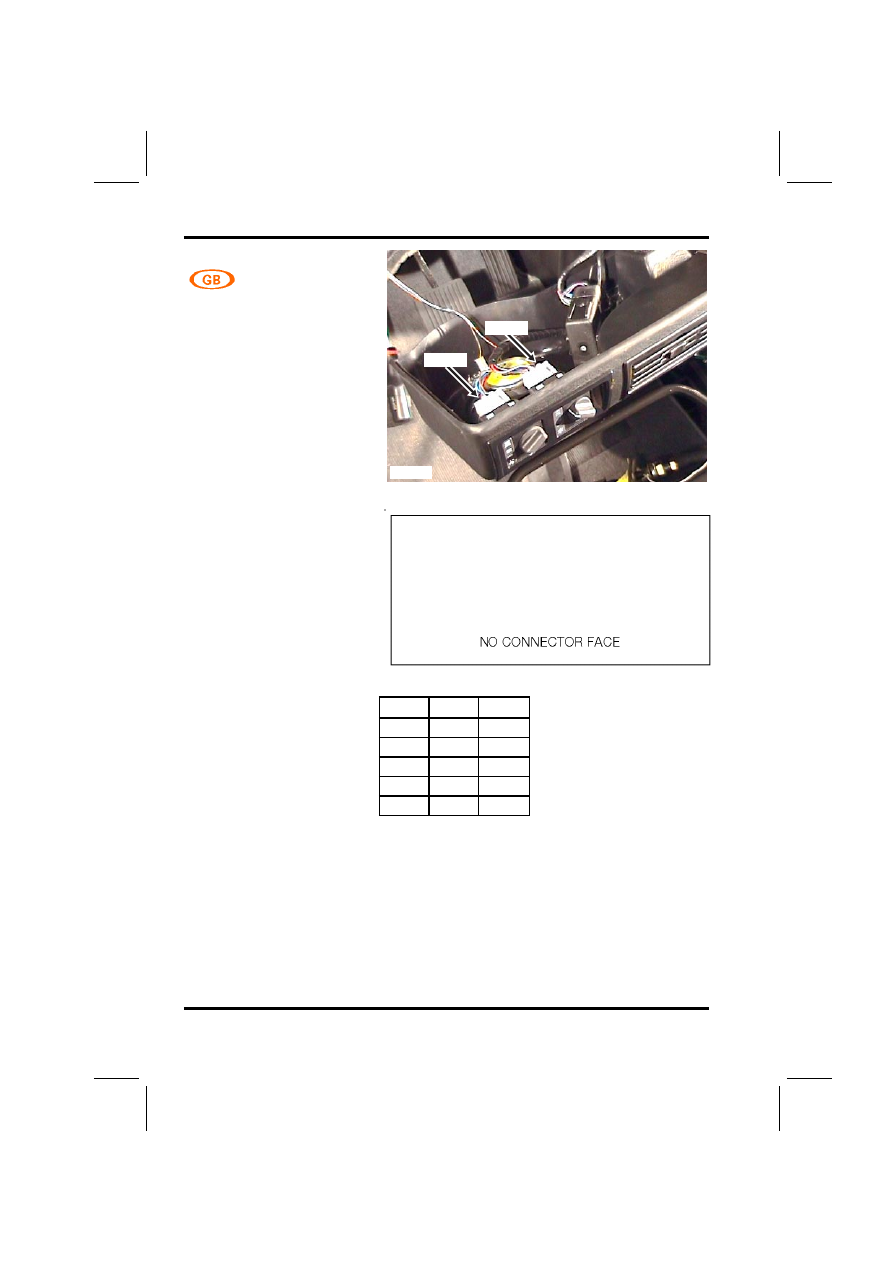

C0275

CONNECTOR

DEFENDER 1999 MY

Switch - Temperature
control

Female
WHITE

Behind LH side of fascia

P5819

C1494

C0275

Cav

Col

CCT

2

RW

1

3

BU

1

4

RB

1

5

B

1

6

UN

1

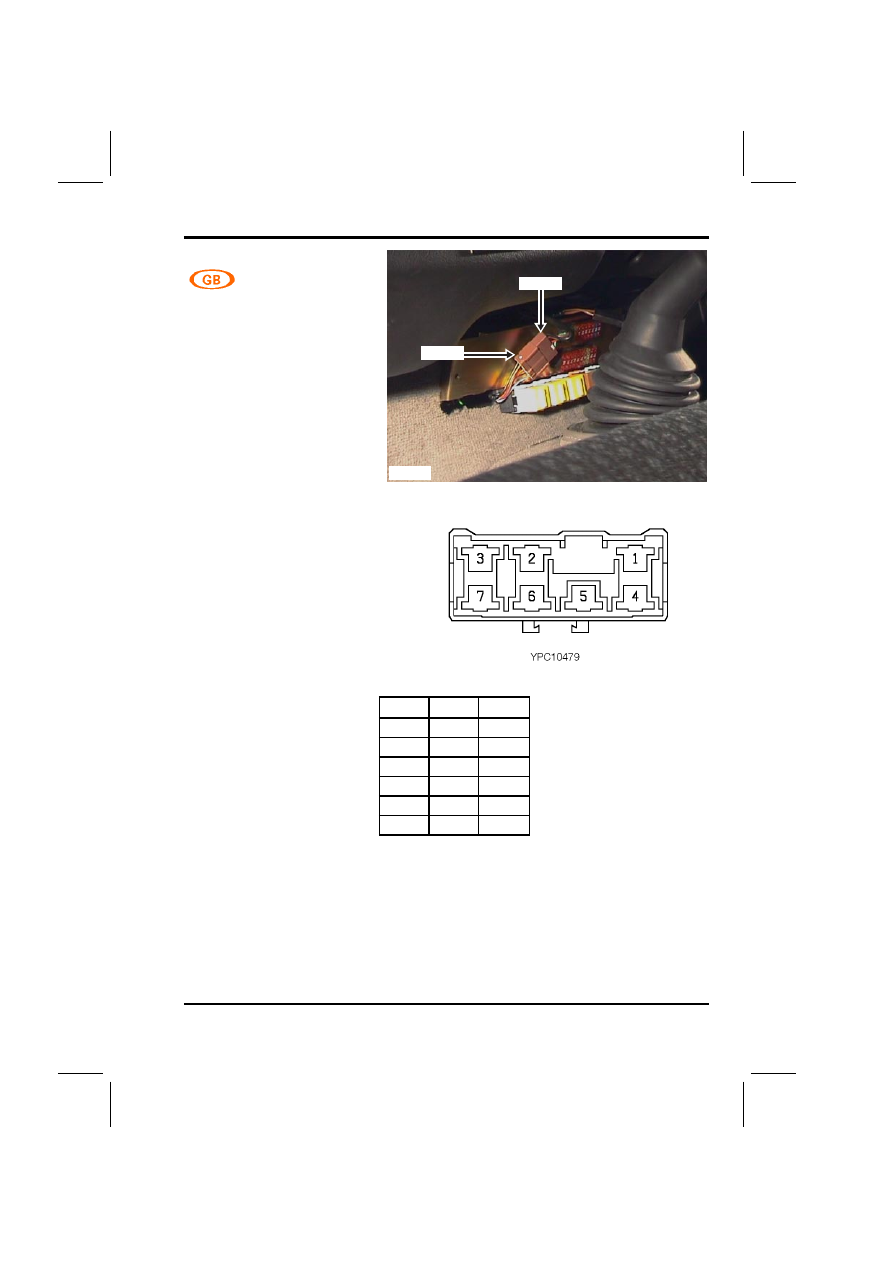

CONNECTOR

C0277

DEFENDER 1999 MY

Main harness to air
conditioning (A/C) harness

Male
BROWN

Beneath centre console

P5643

C0786

C0277

Cav

Col

CCT

1

GW

1

3

SR

1

4

BW

1

5

RB

1

6

N

1

7

BU

1
