Defender Electric Diagrams. Manual - part 129

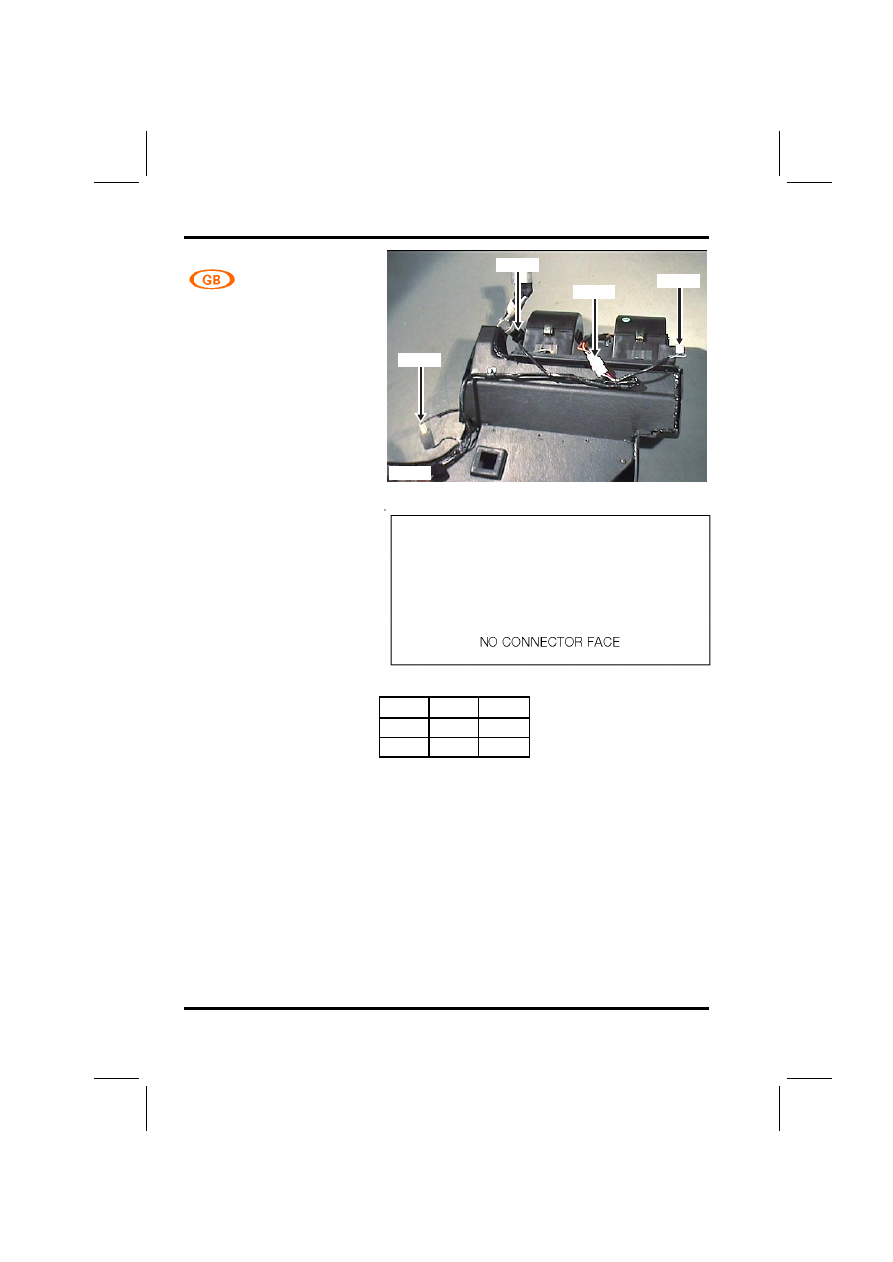

C0123

CONNECTOR

DEFENDER 1999 MY

Switch - Inertia

Female
BLACK

Top of bulkhead - centre

P5568

C0123

C0362

C0550

Cav

Col

CCT

1

NLG

21

3

N

21

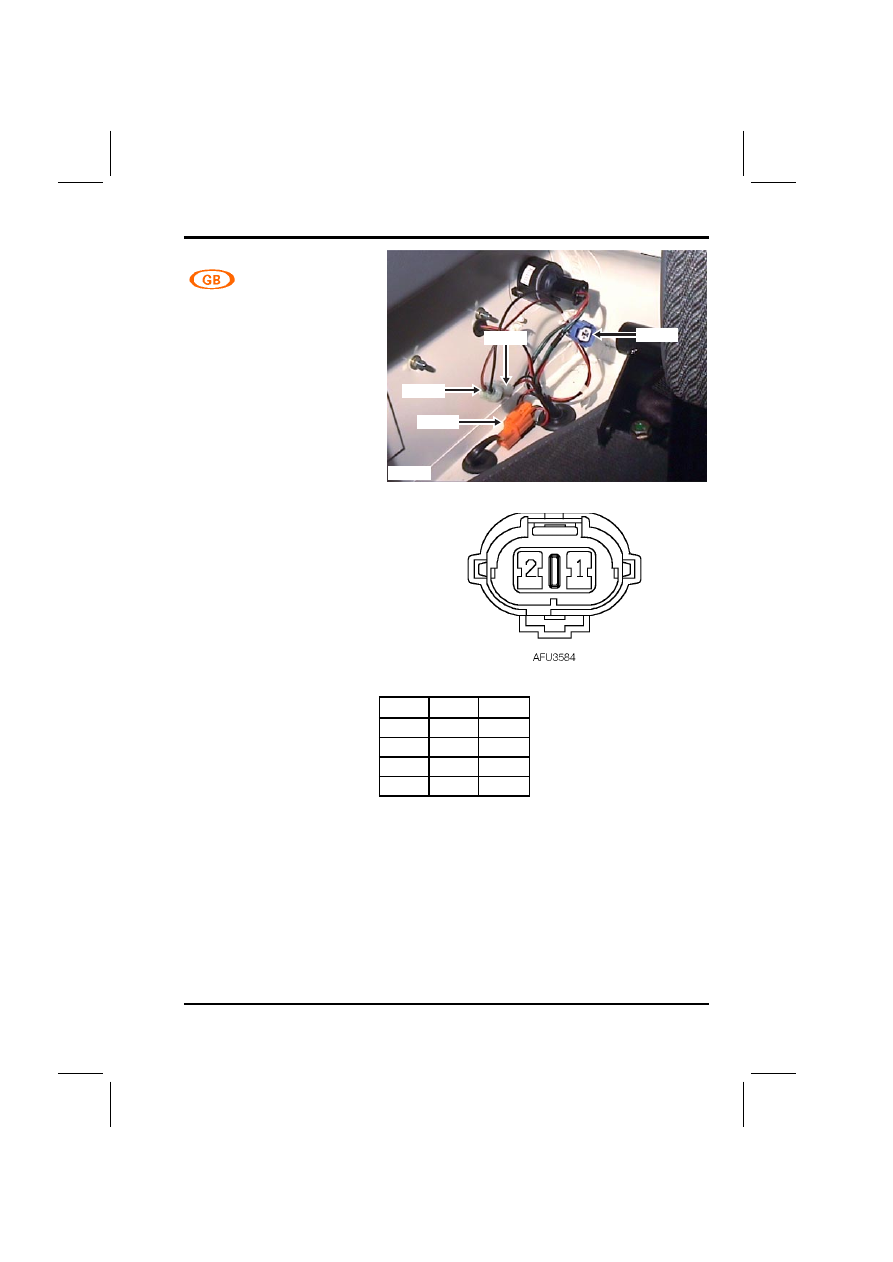

CONNECTOR

C0125

DEFENDER 1999 MY

Lamp - Tail - RH

Female
BLACK

RH rear of vehicle

P5522

C0125

Cav

Col

CCT

1

B

ALL

2

GP

ALL

3

RO

ALL

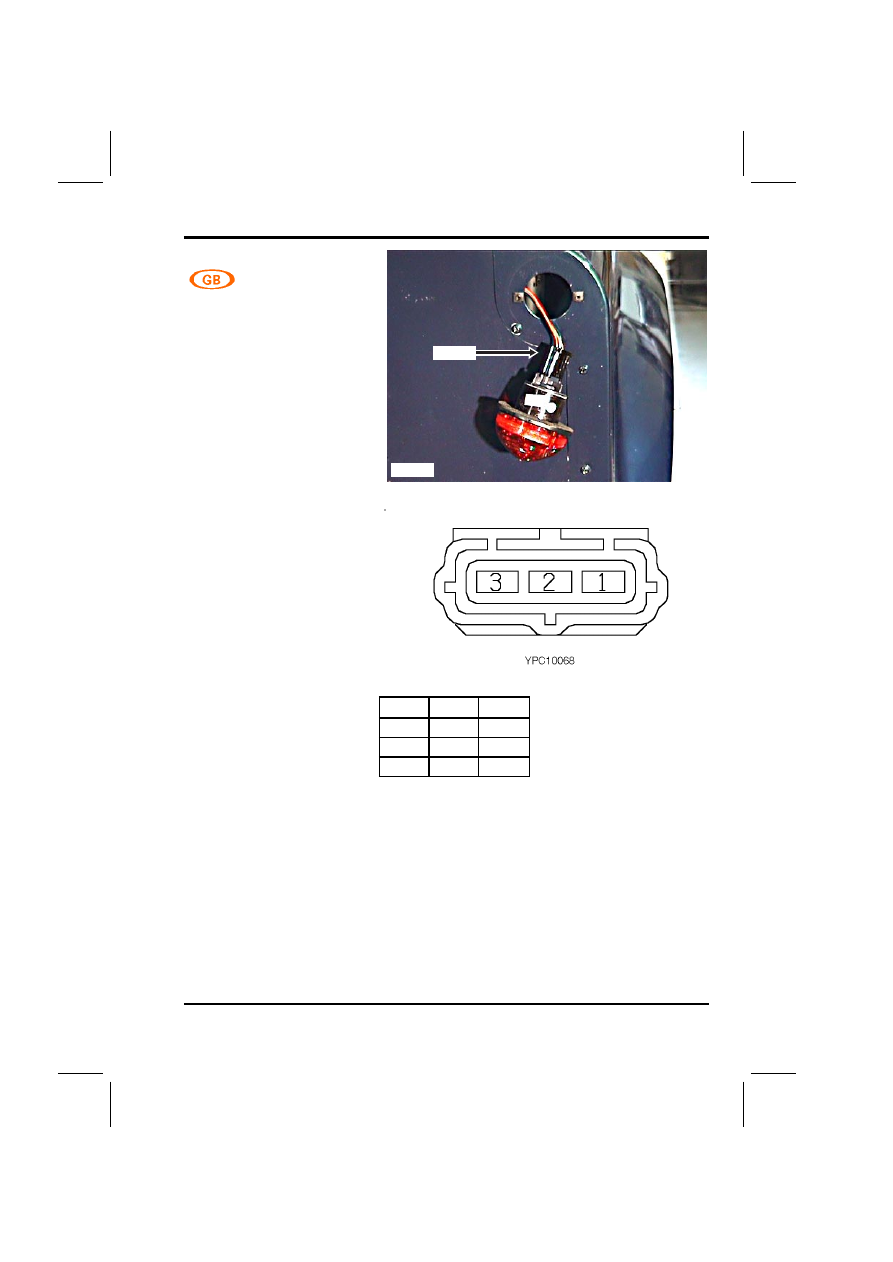

C0134

CONNECTOR

DEFENDER 1999 MY

Sensor - Temperature - Air
conditioning (A/C)

Female
WHITE

Behind RH side of fascia

P5766

C0134

C0279

C0023

C0068

Cav

Col

CCT

1

P

1

2

BW

1

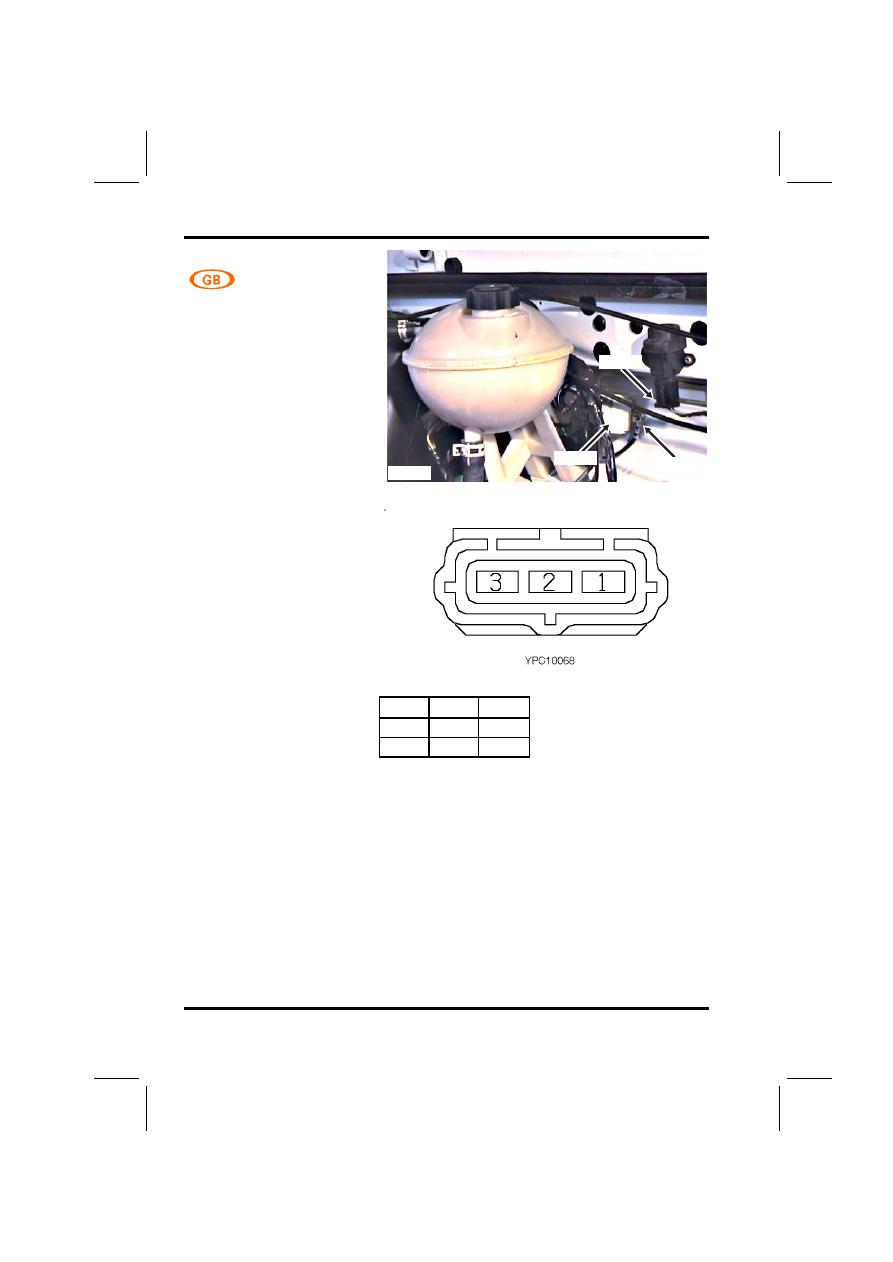

CONNECTOR

C0139

DEFENDER 1999 MY

Lamp - Number plate

Male
NATURAL

Behind LH rear trim panel

P5600

C0472

C0515

C0139

C0138

Cav

Col

CCT

1

RB

7

1

RB

8

1

B

9

2

B

ALL
