Defender Electric Diagrams. Manual - part 123

C0058

CONNECTOR

DEFENDER 1999 MY

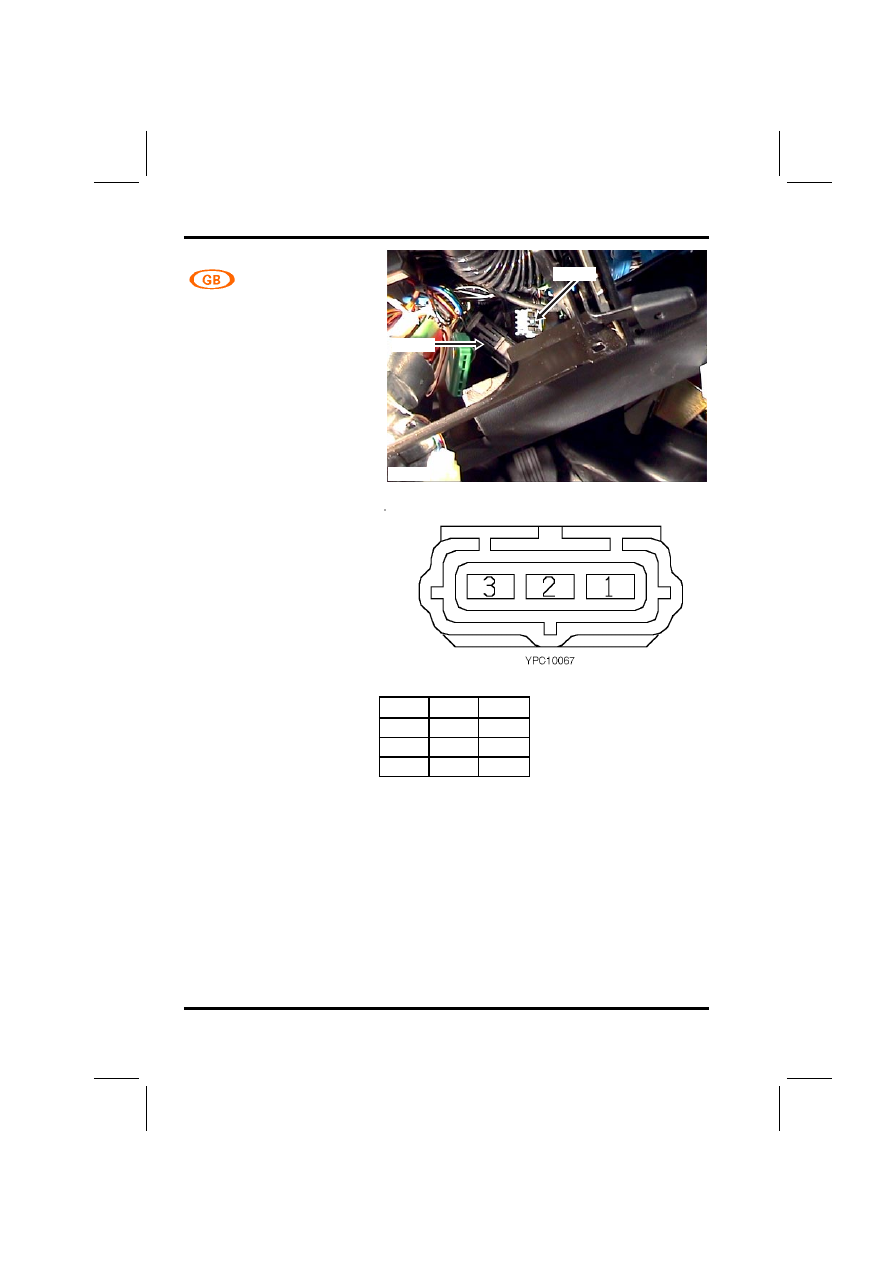

Switch - Blower motor

Female
BLACK

Behind instrument pack

P5770

C0058

C1311

Cav

Col

CCT

1

GS

ALL

2

GY

ALL

3

B

ALL

CONNECTOR

C0061

DEFENDER 1999 MY

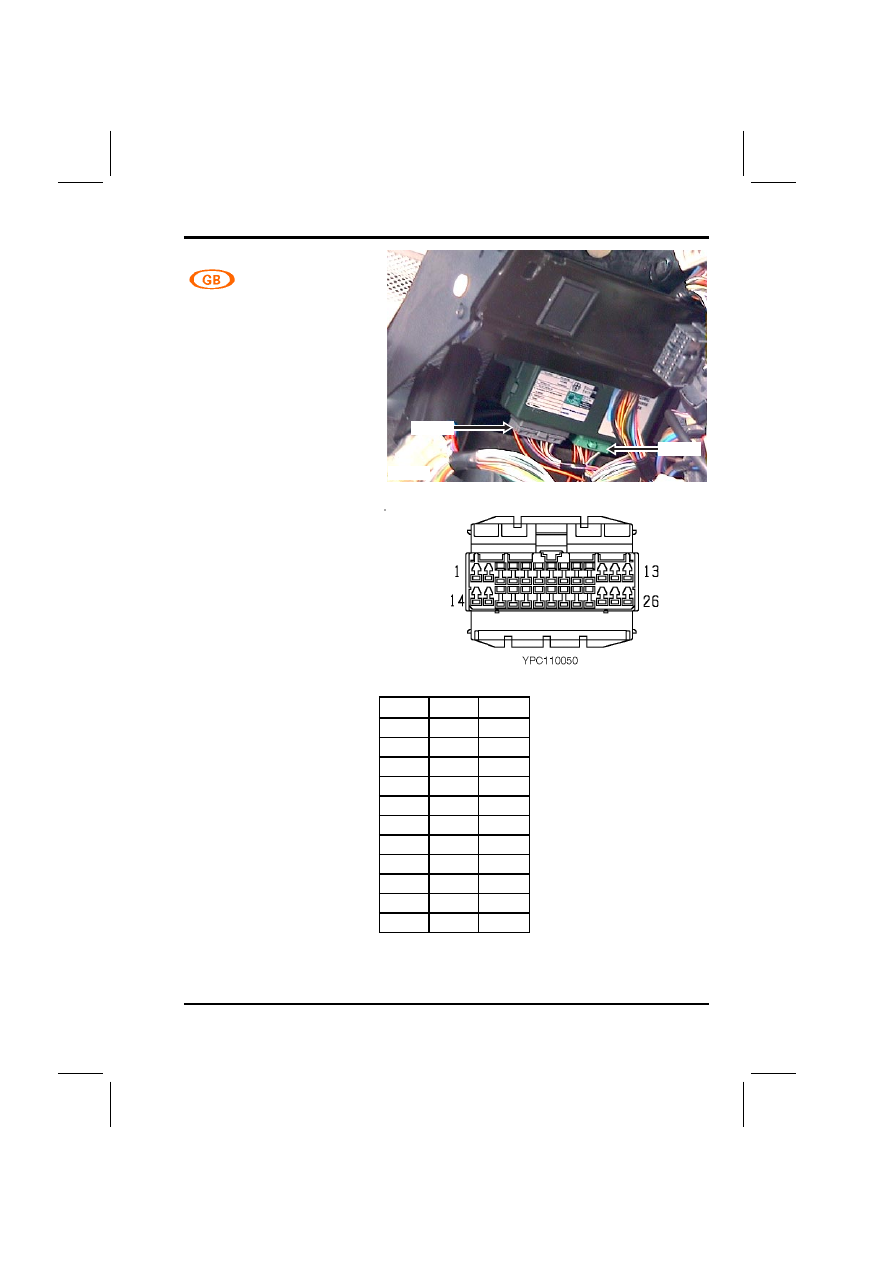

ECU - Alarm

Female
GREY

Behind instrument pack

P5769

C0061

C0057

Cav

Col

CCT

1

PW

ALL

3

WB

ALL

5

SW

ALL

9

OU

ALL

10

WG

ALL

14

LGS

21

16

PU

ALL

17

OLG

ALL

20

BN

ALL

25

PN

ALL

26

OS

ALL

C0063

CONNECTOR

DEFENDER 1999 MY

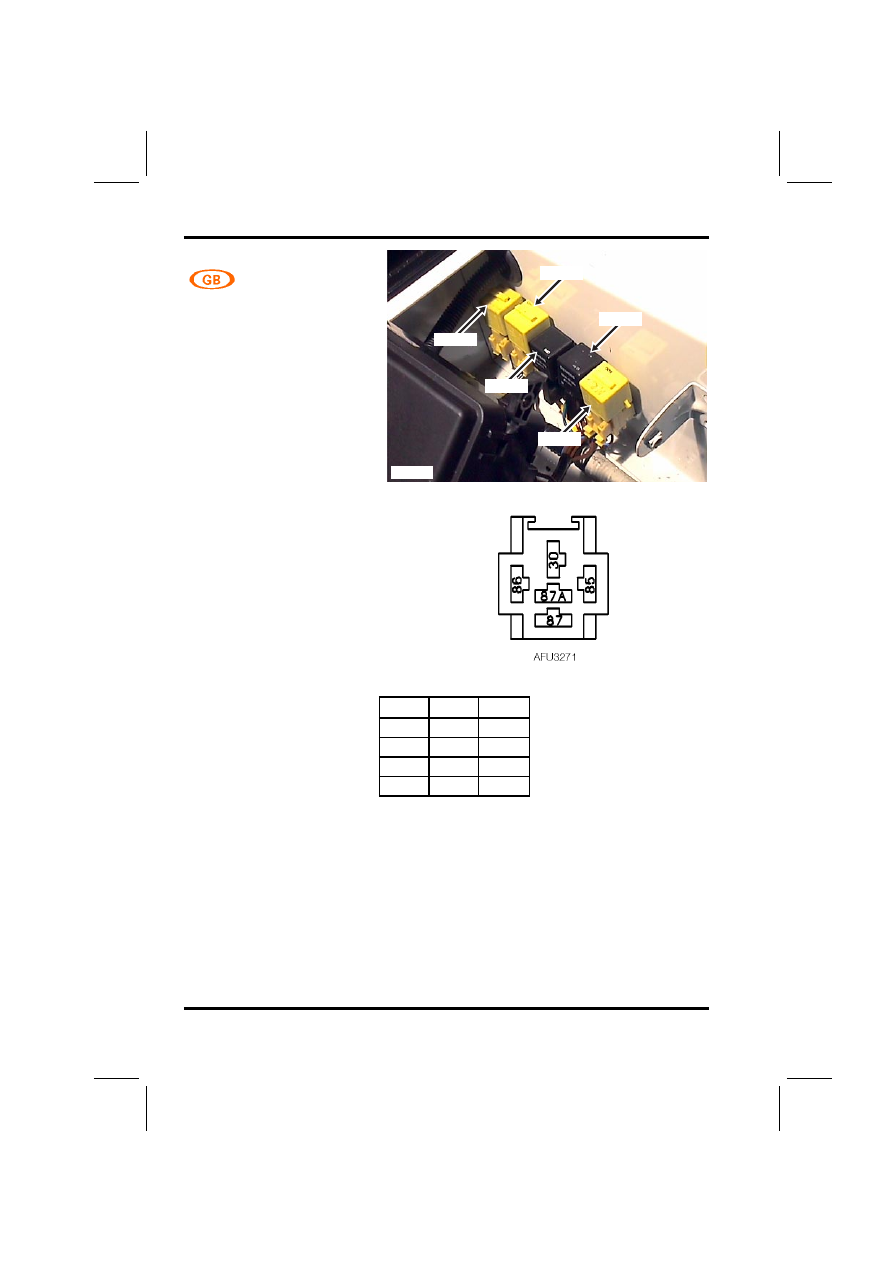

Relay - main

Female
YELLOW

Beneath RH seat

P5596

C1268

C0019

C0508

C0215

C0063

Cav

Col

CCT

30

NLG

21

85

N

21

86

UR

21

87

NO

21

CONNECTOR

C0064

DEFENDER 1999 MY

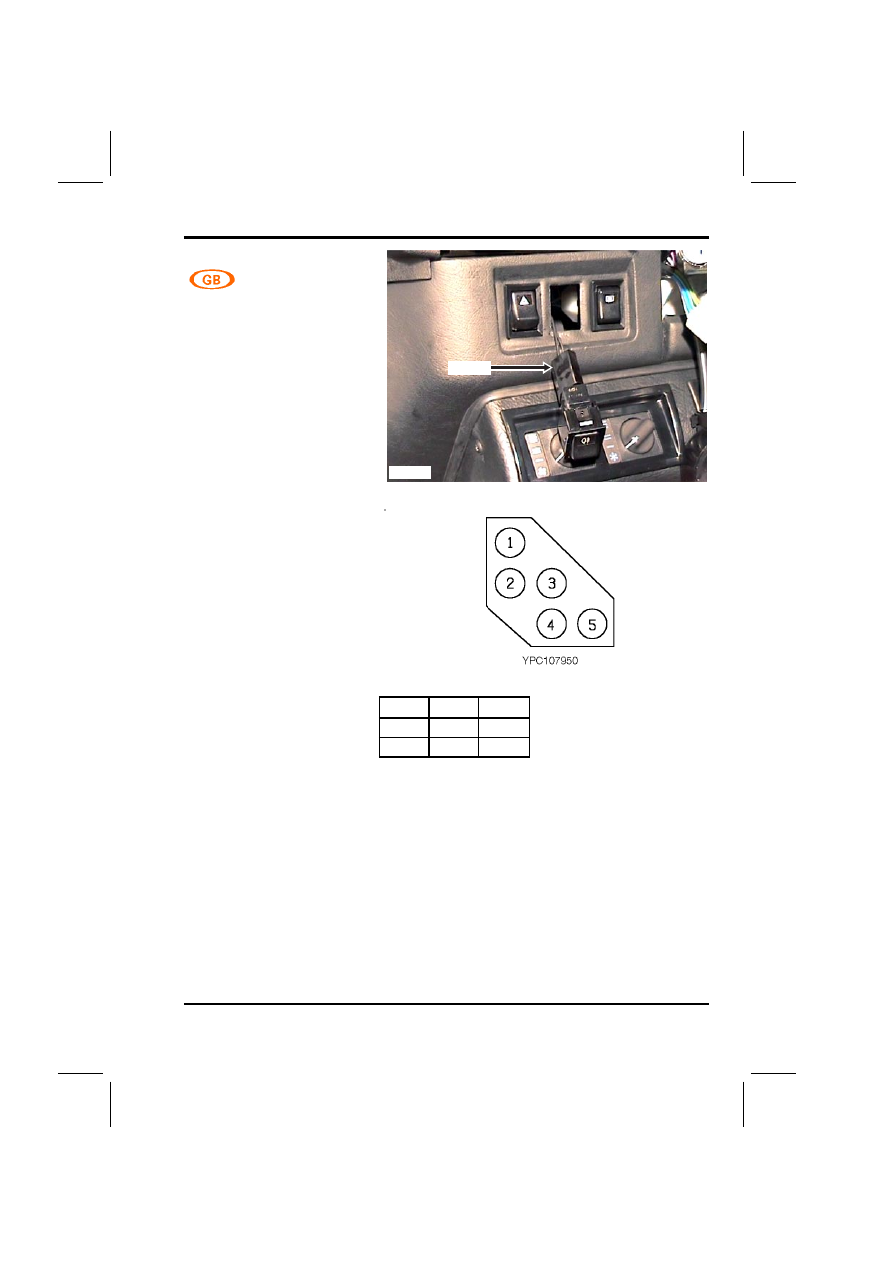

Switch - Fog guard lamp -
Rear

Female
BLACK

Adjacent steering column

P5653

C0064

Cav

Col

CCT

2

BS

ALL

3

B

ALL
