Defender Electric Diagrams. Manual - part 83





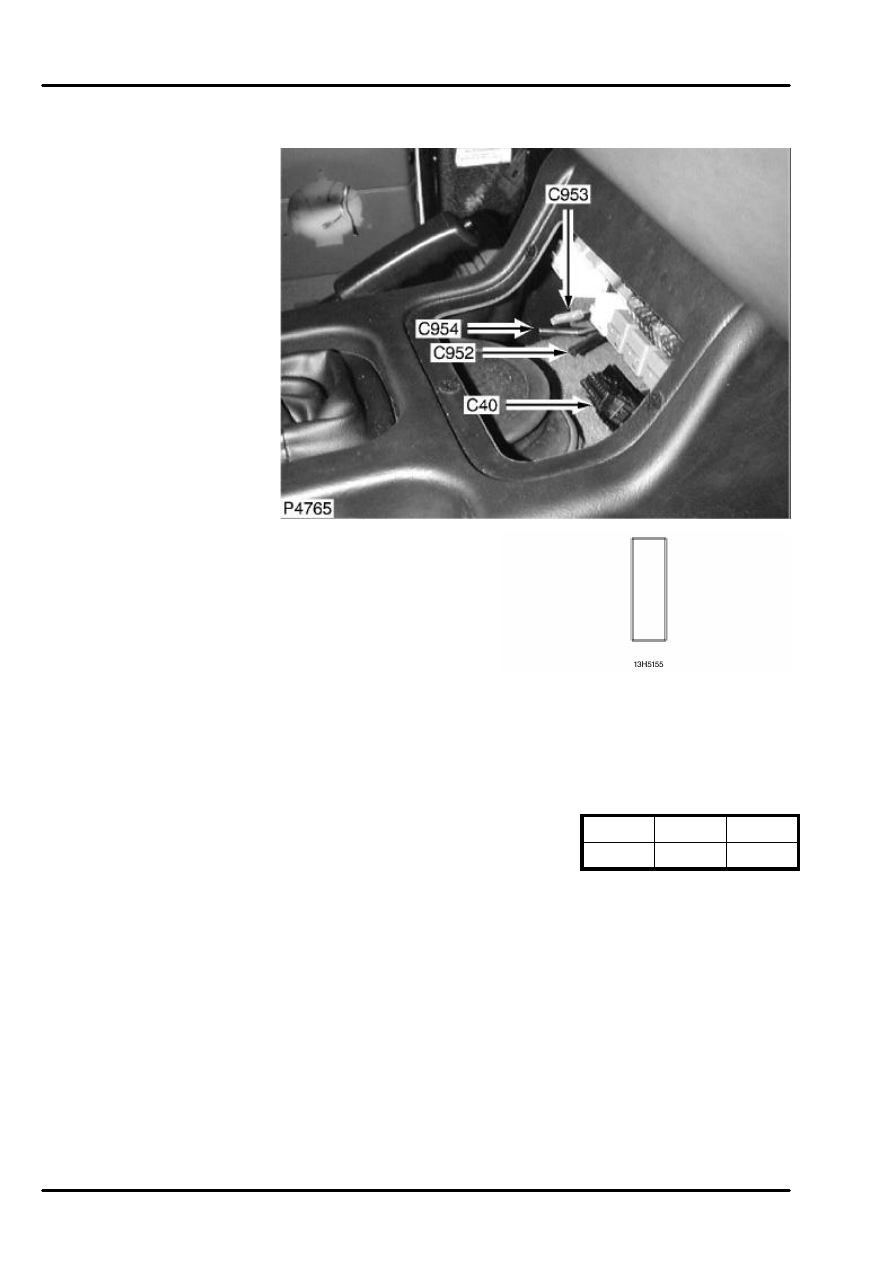

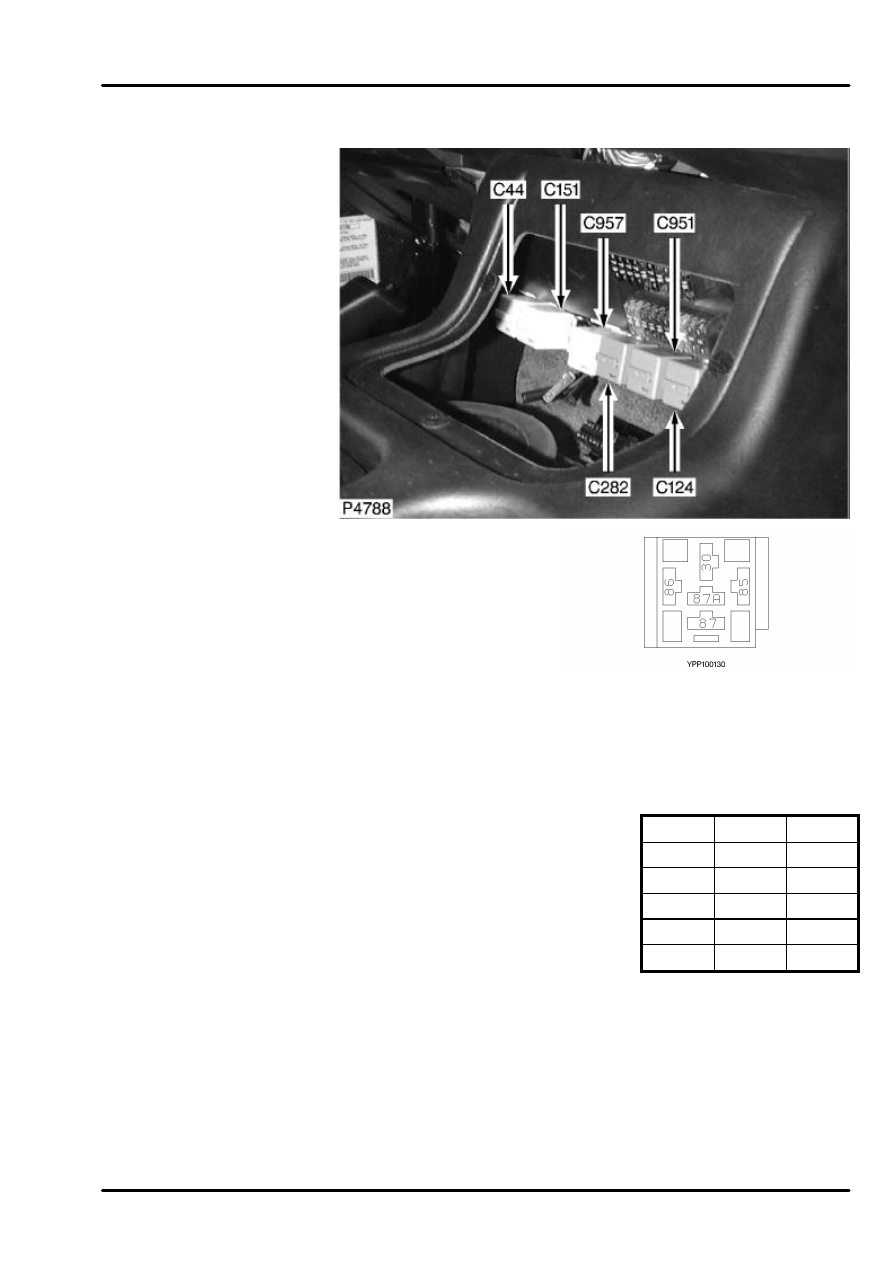

CONNECTOR DETAILS

DEFENDER 90 NAS

C951

C951
ILLUMINATION
RELAY
5 Way

GREEN
Behind front of center
console

Cav

Color Cct

30

RK

ALL

85

B

ALL

86

RB

ALL

87

RW

ALL

87A

G

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C952

C952
SPARE
1 Way
Female
BLACK
Behind front of center
console

Cav

Color Cct

1

P

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C953

C953
SPARE
1 Way
Female
NATURAL
Behind front of center
console

Cav

Color Cct

1

GO

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C954

C954
SPARE
1 Way
Female
BLACK
Behind front of center
console

Cav

Color Cct

1

P

ALL
