CONNECTOR DETAILS

DEFENDER 90 NAS

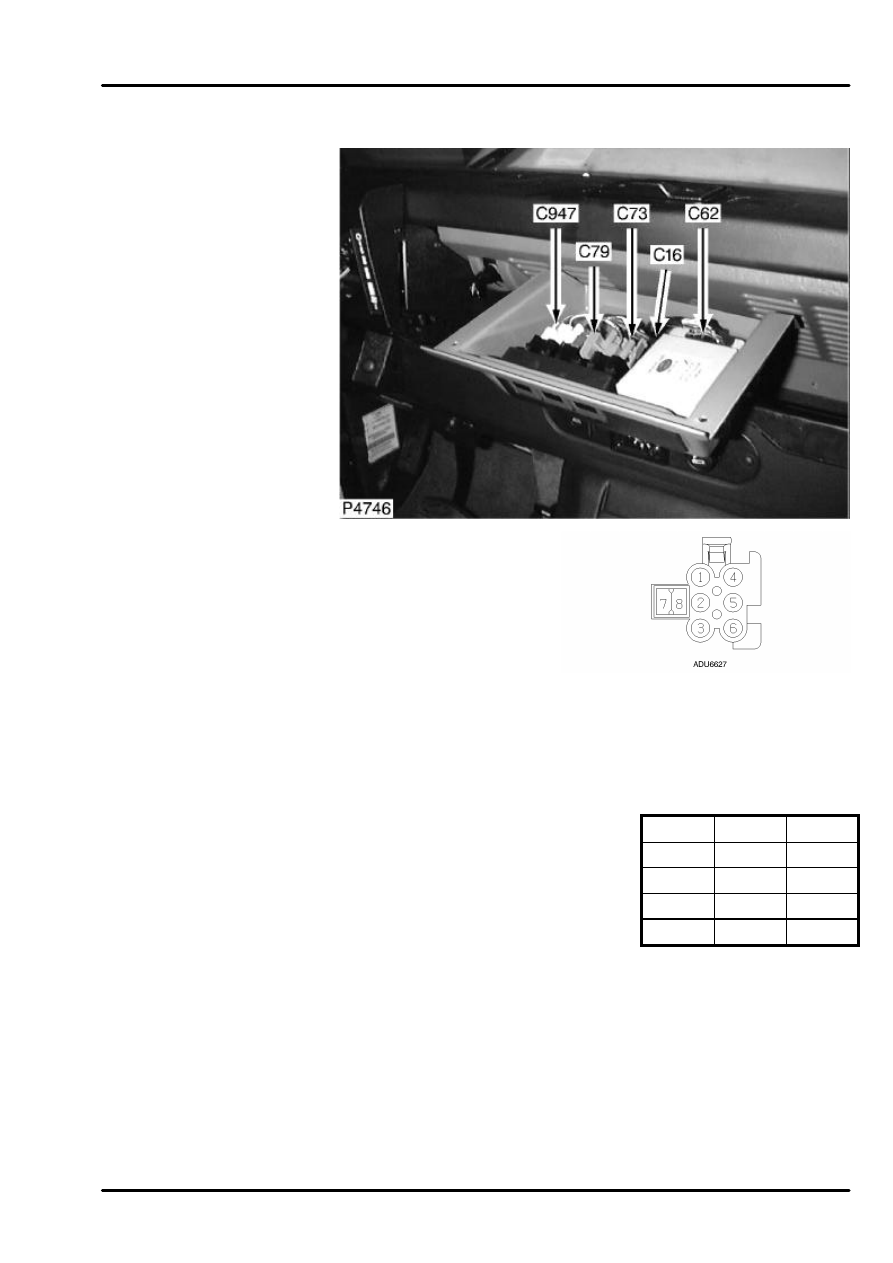

C947

C947
HEATED REAR
SCREEN
7 Way
Female
WHITE
Behind dash trim panel

Cav

Color Cct

2

B

ALL

5

WR

ALL

7

RW

ALL

8

B

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

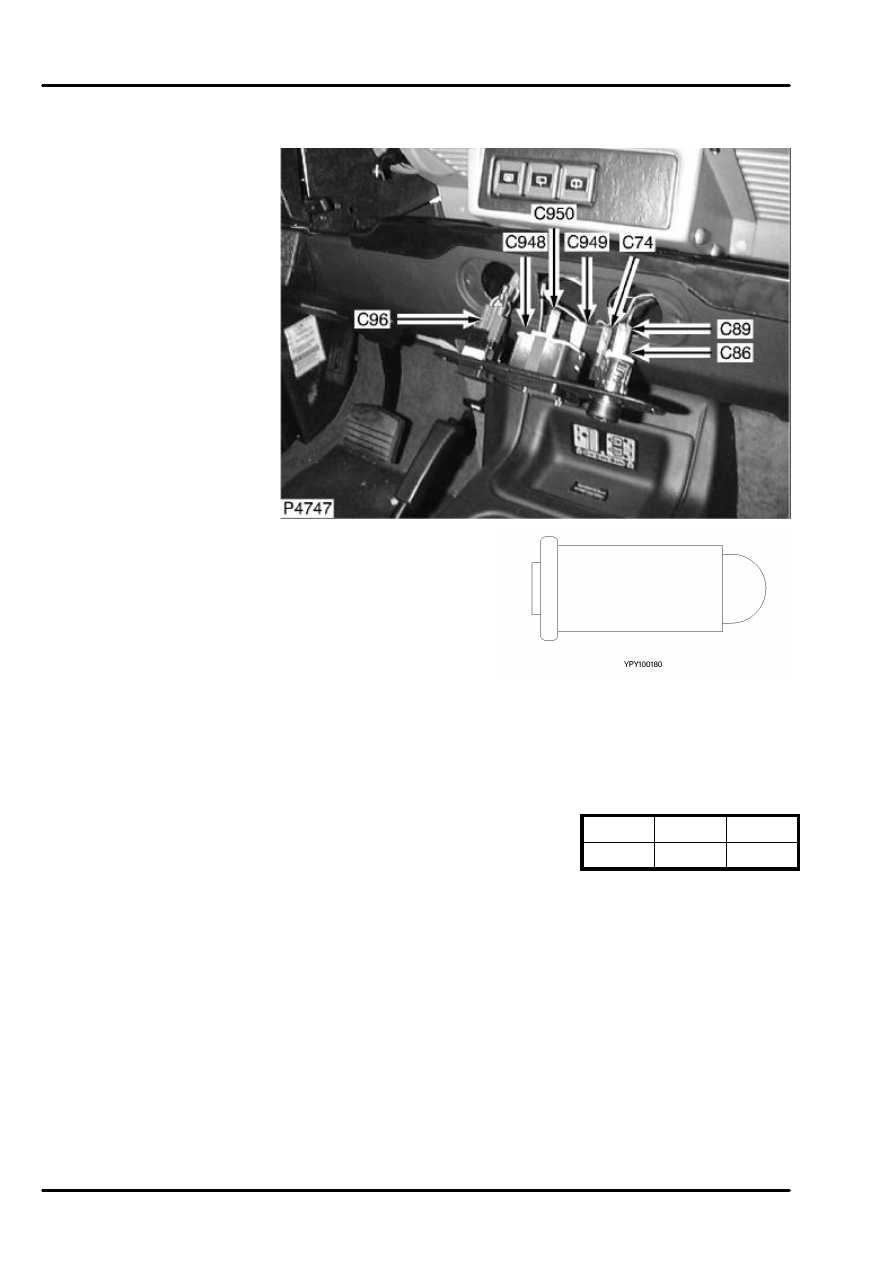

C948

C948
BULB HOLDER
2 Way
Female
BLACK
Behind dash trim panel

Cav

Color Cct

1

RW

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

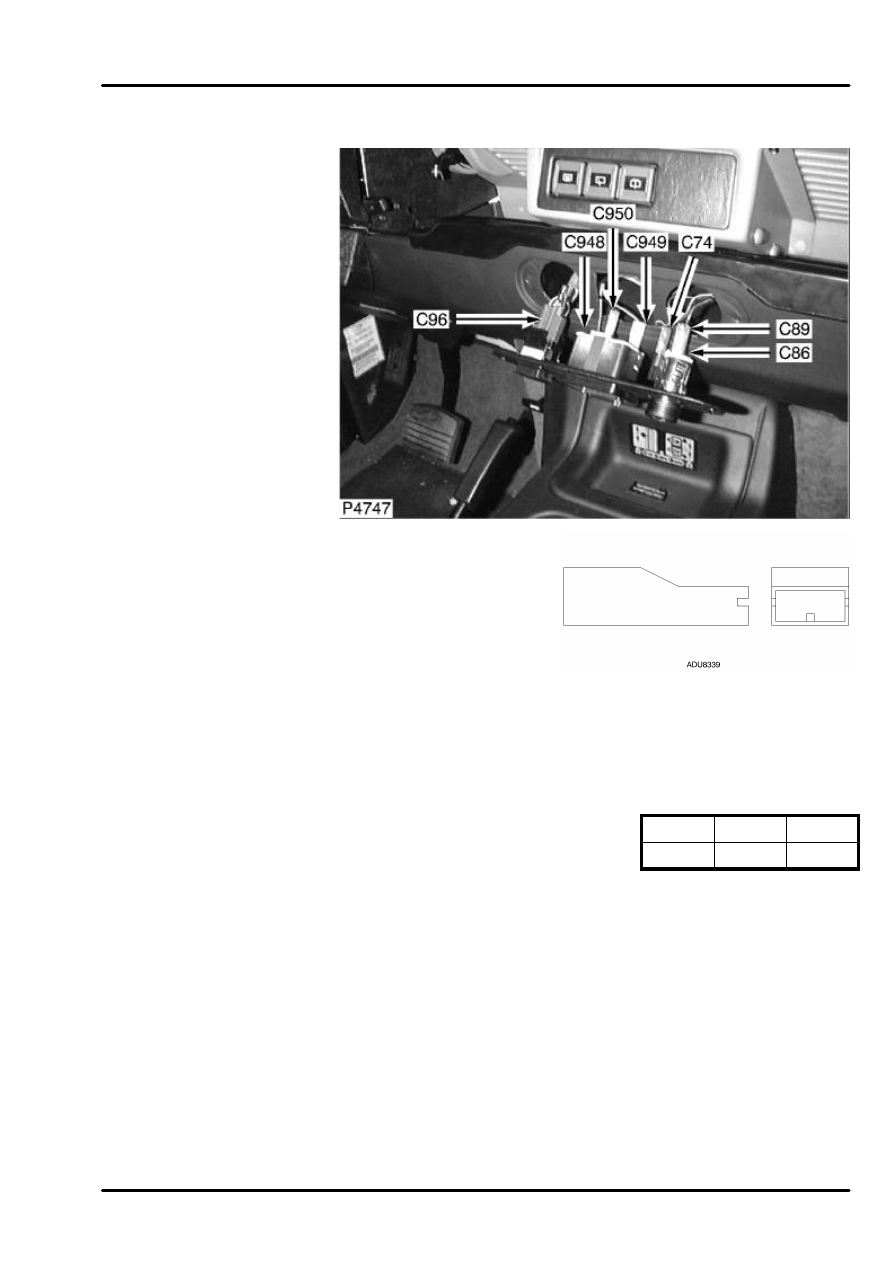

C949

C949
CLOCK
1 Way
Female
NATURAL
Behind dash trim panel

Cav

Color Cct

1

P

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C950

C950
CLOCK
1 Way
Female
NATURAL
Behind dash trim panel

Cav

Color Cct

1

B

ALL
