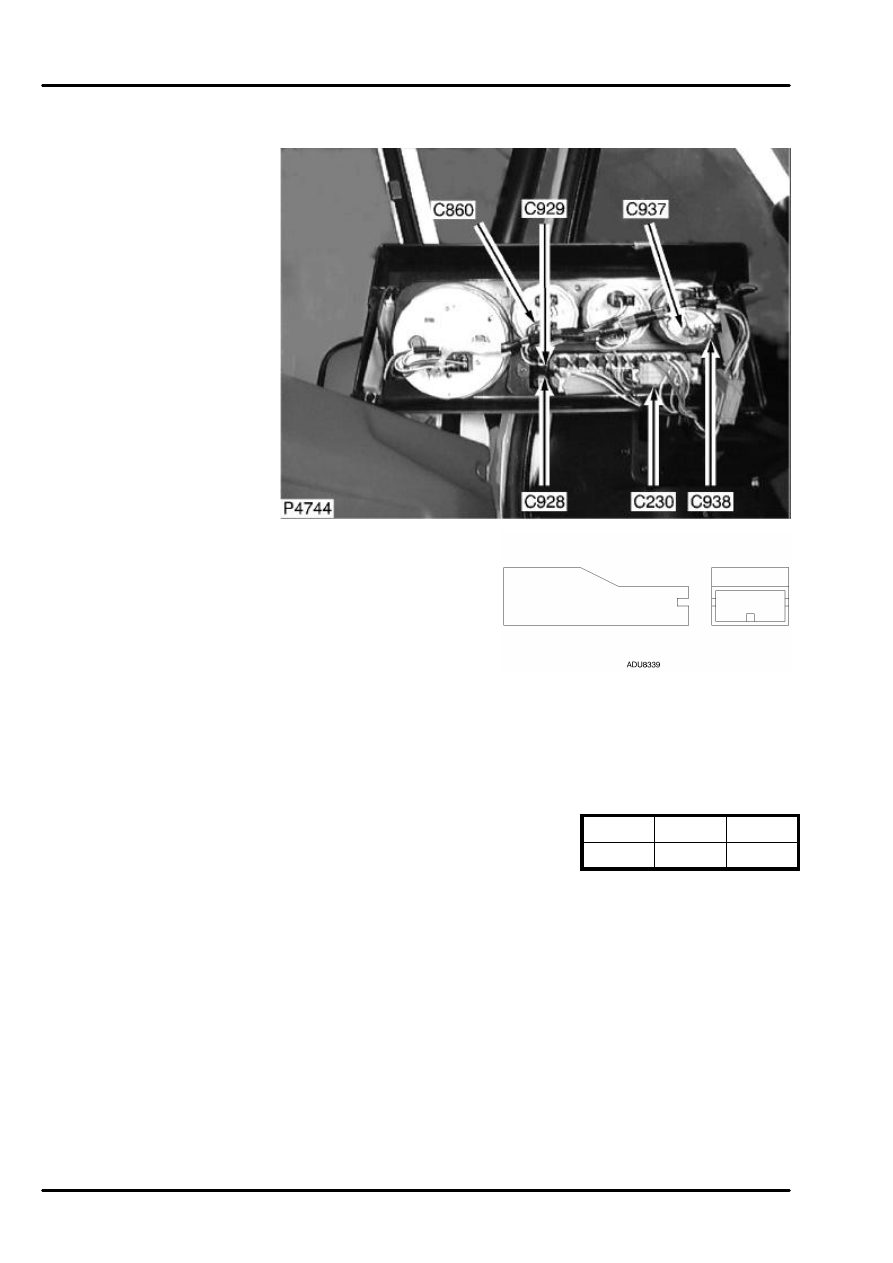

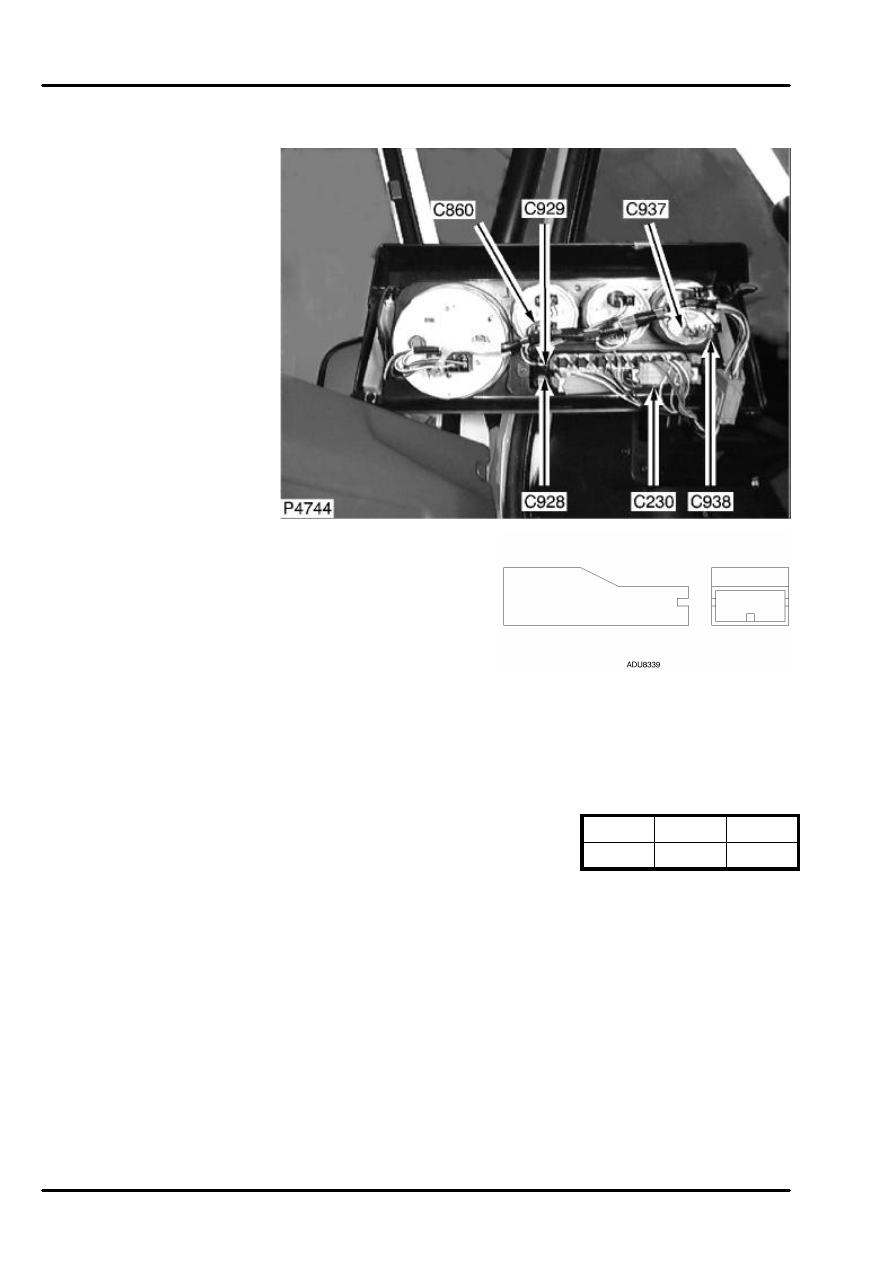

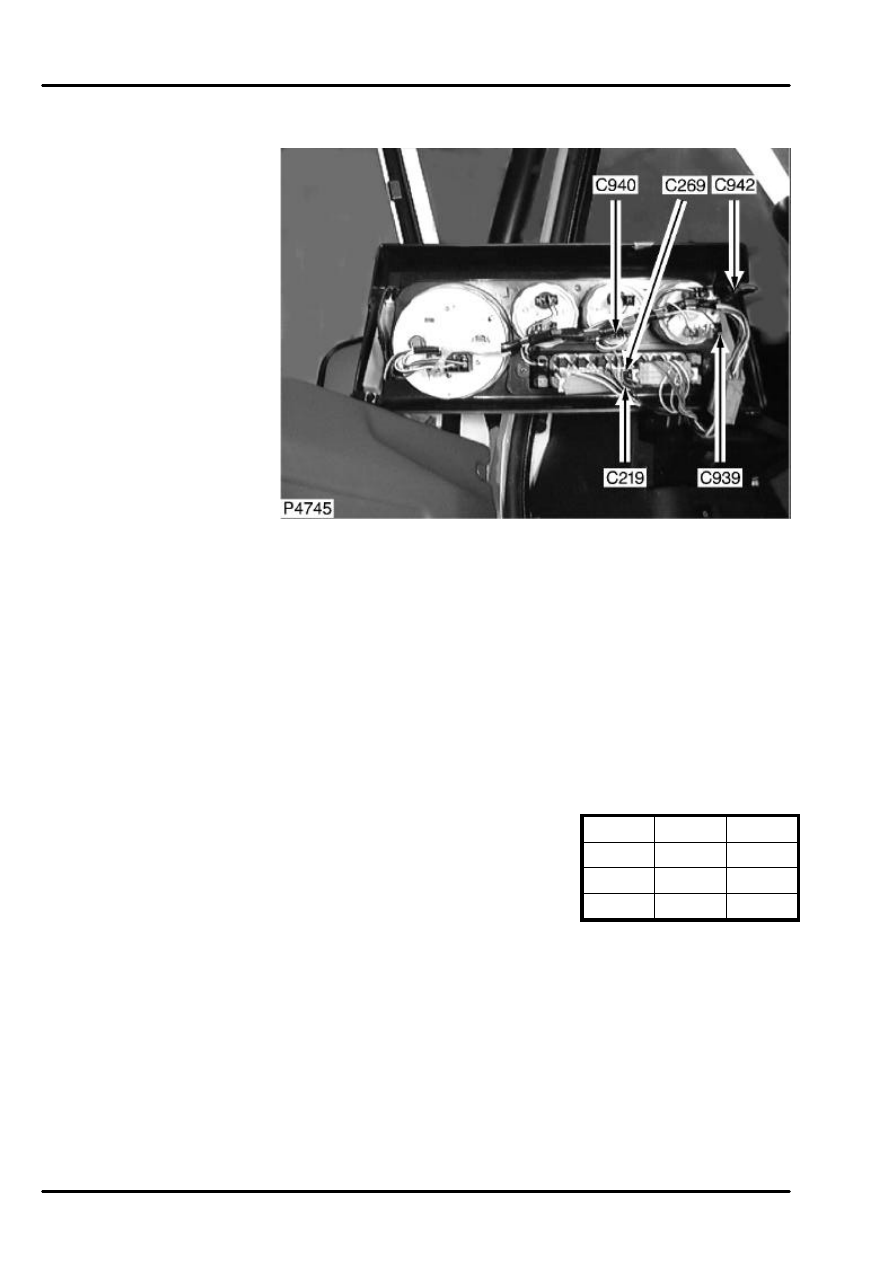

   CONNECTOR DETAILS

DEFENDER 90 NAS

C938

C938
TACHOMETER
1 Way
Female
NATURAL
Behind instrument pack

Cav

Color Cct

1

WG

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C939

C939
TACHOMETER
1 Way
Female
BLACK
Behind instrument pack

Cav

Color Cct

1

B

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

REV: 9/97

C940

C940
TEMPERATURE
GAUGE

Behind instrument pack

No connector face view

Cav

Color Cct

1

B

ALL

2

WG

ALL

3

GU

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C941

C941
HEATER
ILLUMINATION - RH

Behind instrument pack

t:\compuset\erl\faceview\51101215.tif

Cav

Color Cct

1

RW

ALL

2

B

ALL
