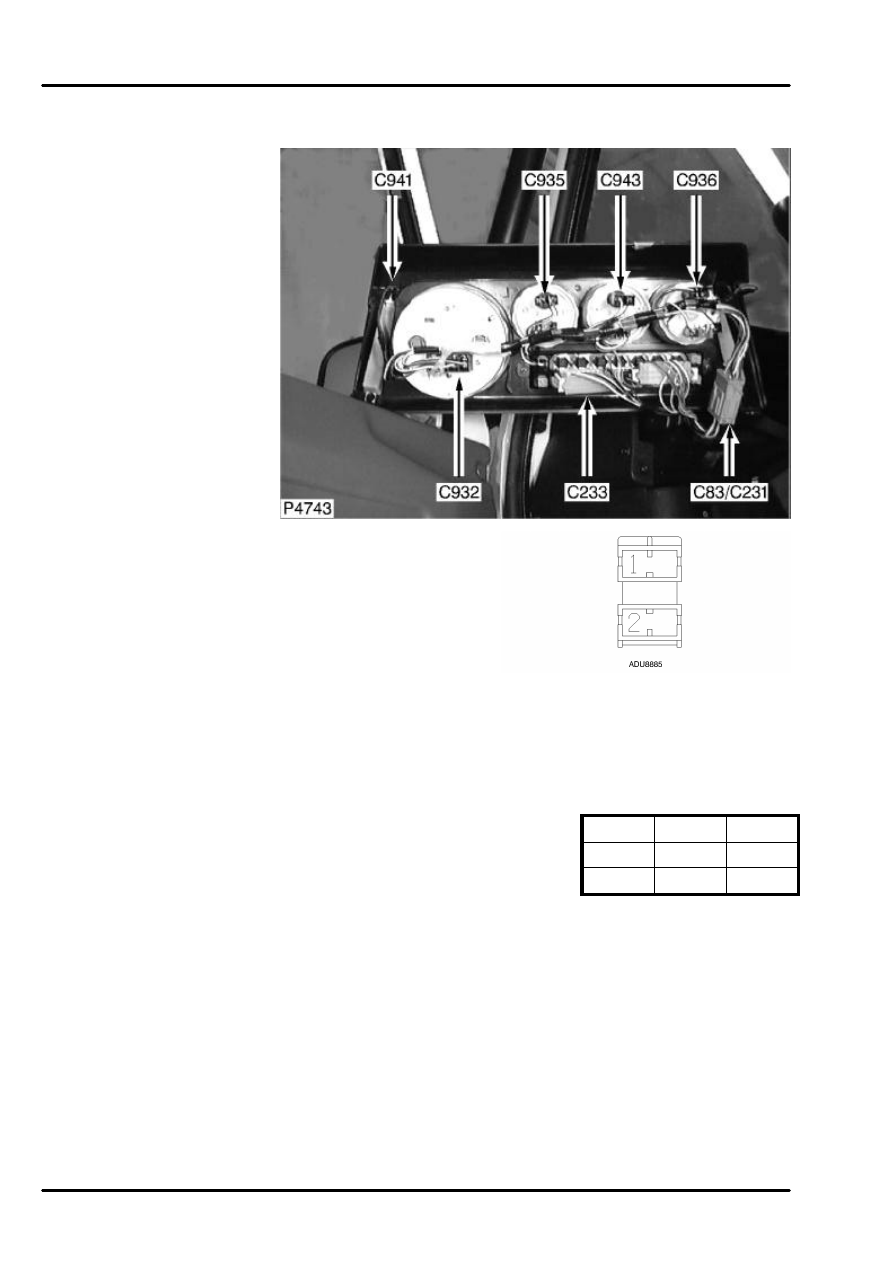

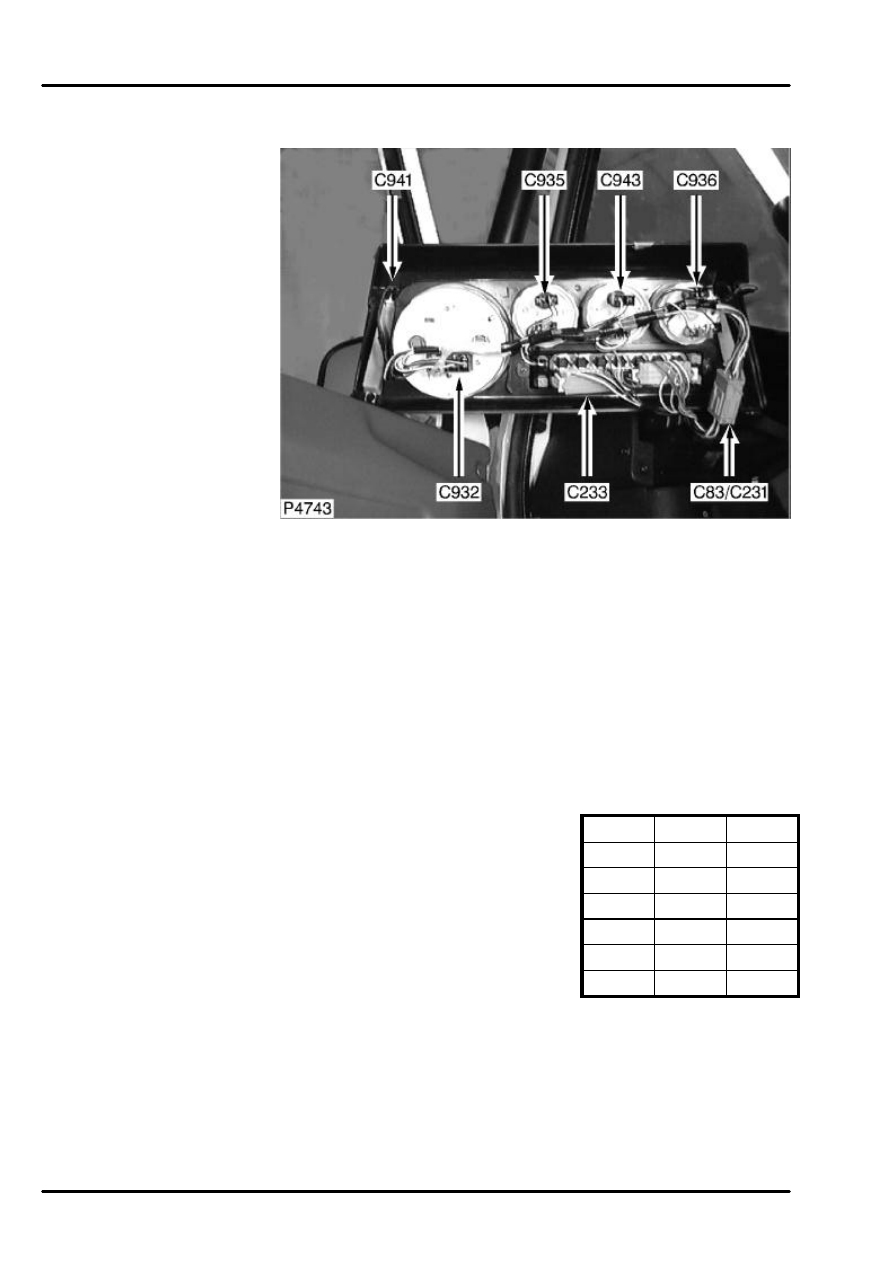

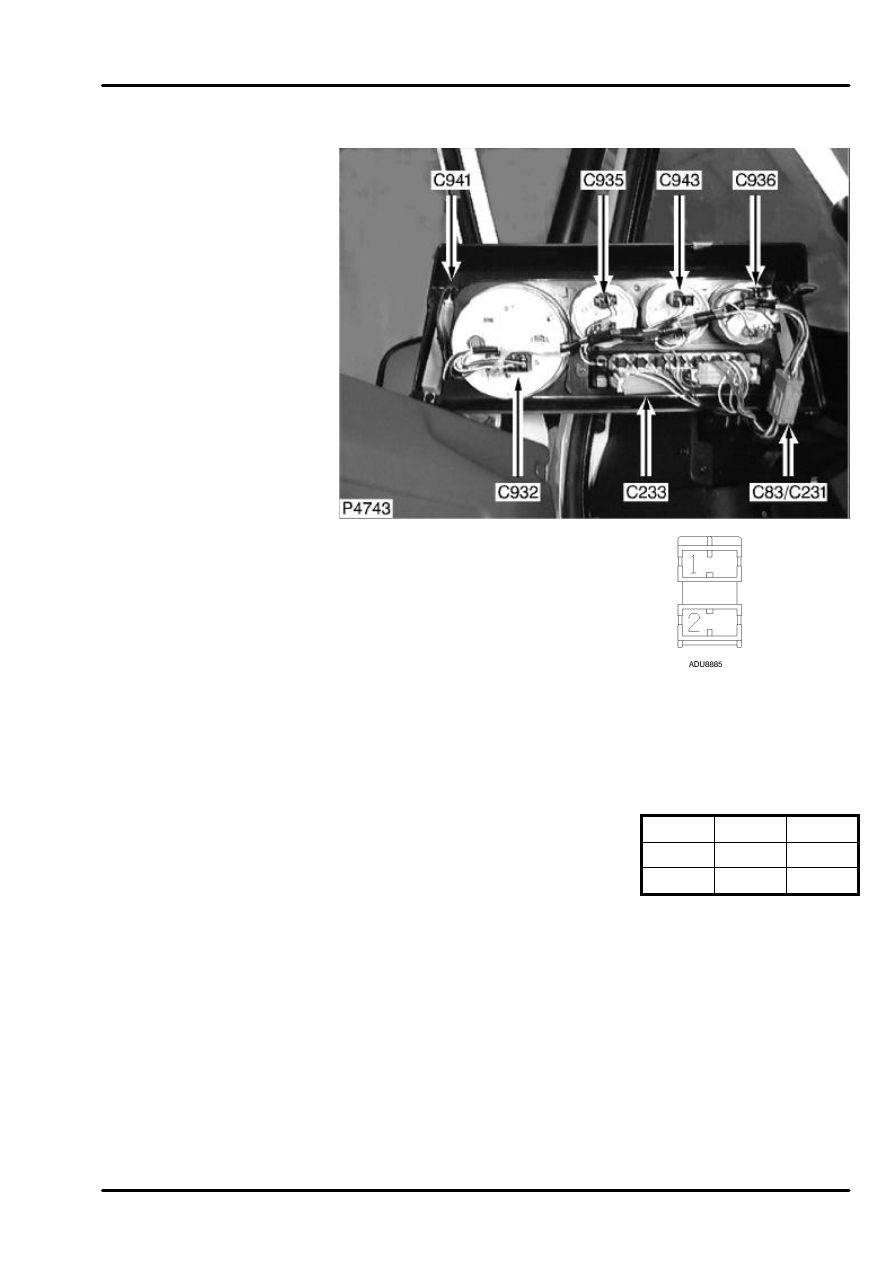

   CONNECTOR DETAILS

DEFENDER 90 NAS

REV: 9/97

C932

C932
SPEEDOMETER
8 Way
Female
Black
Behind instrument pack

No connector face view

Cav

Color Cct

1

RW

ALL

2

WG

ALL

3

B

ALL

4

BR

ALL

5

B

ALL

7

YK

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C935

C935
FUEL GAUGE
ILLUMINATION
2 Way
Female
BLACK
Behind instrument pack

Cav

Color Cct

1

RW

ALL

2

B

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C936

C936
TACHOMETER
ILLUMINATION
2 Way
Female
BLACK
Behind instrument pack

Cav

Color Cct

1

RW

ALL

2

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C937

C937
TACHOMETER
1 Way
Female
RED
Behind instrument pack

Cav

Color Cct

1

WS

ALL
