Defender Electric Diagrams. Manual - part 77

   CONNECTOR DETAILS

DEFENDER 90 NAS

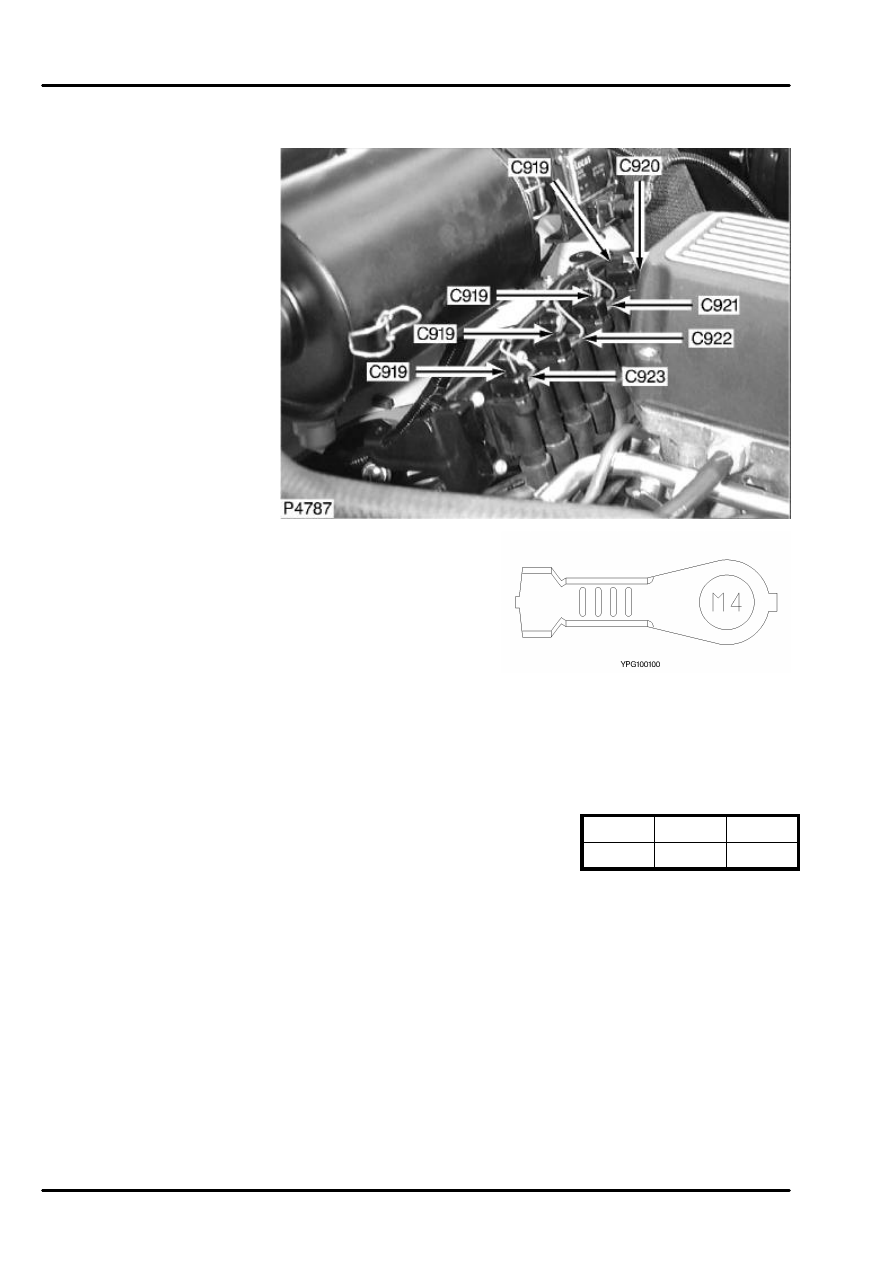

C921

C921
NEGATIVE - COIL 5-8

TIN-PLATE
Top rear of engine -
center

Cav

Color Cct

1

G

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

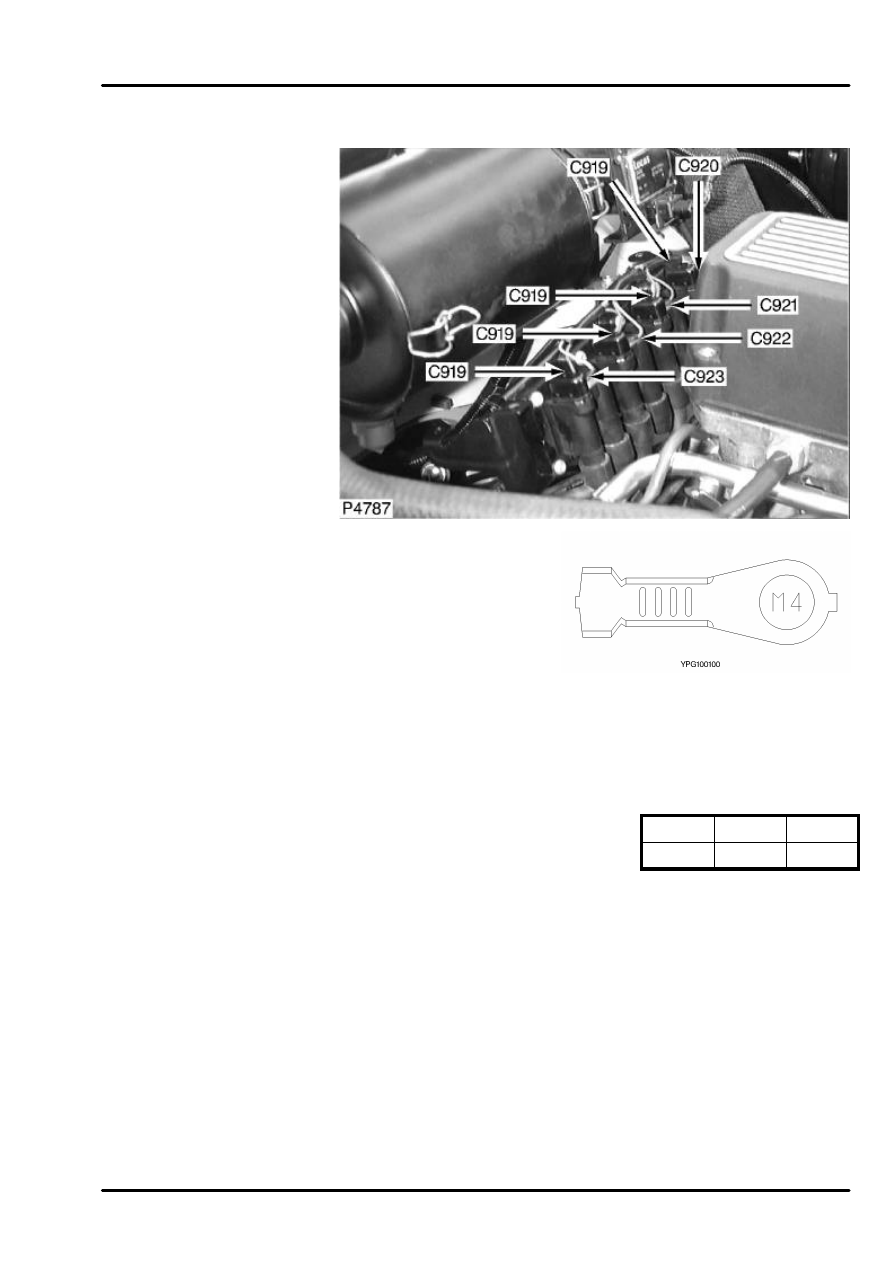

C922

C922
NEGATIVE - COIL 4-7

TIN-PLATE
Top rear of engine -
center

Cav

Color Cct

1

P

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C923

C923
NEGATIVE - COIL 2-3

TIN-PLATE
Top rear of engine -
center

Cav

Color Cct

1

O

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C924

C924

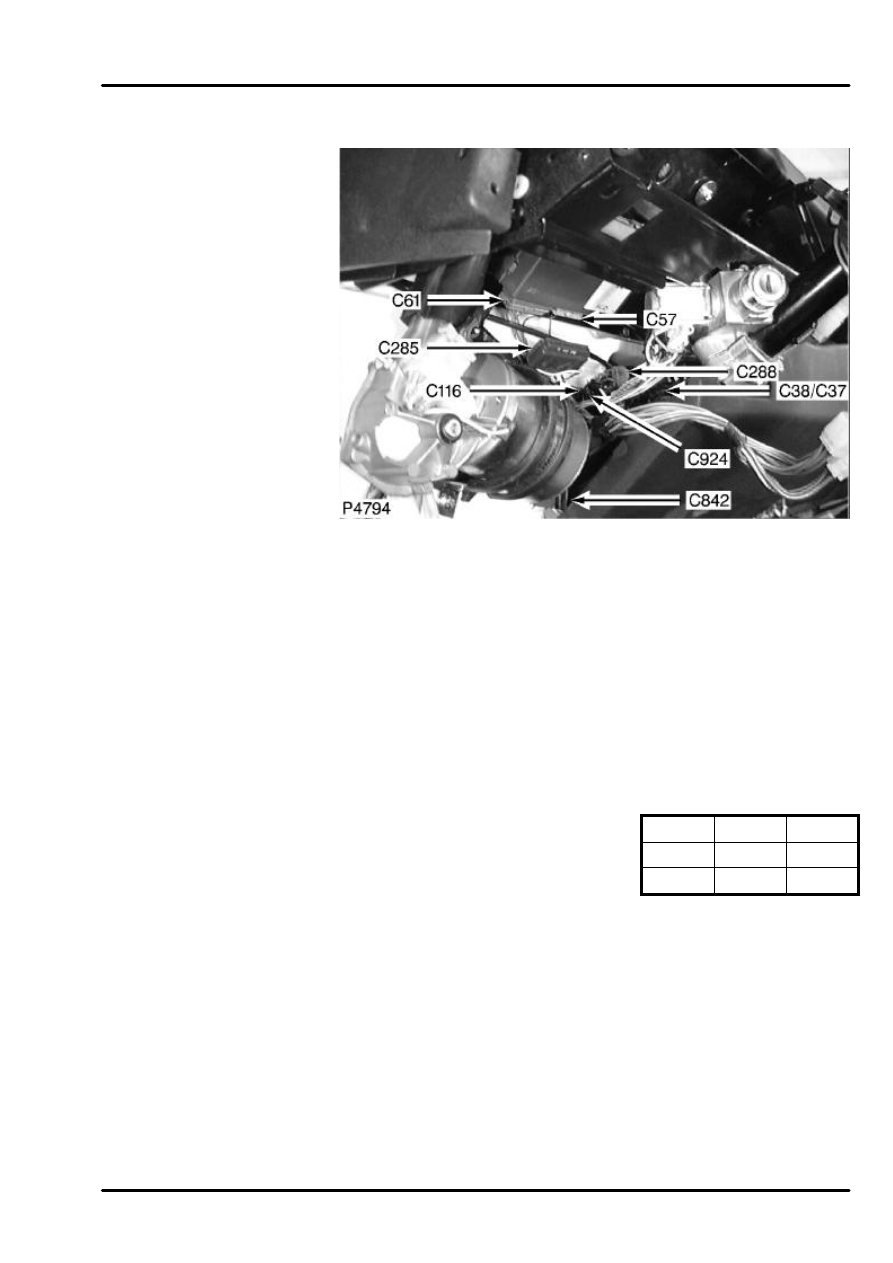

DIODE

BLACK
Behind dash trim panel

t:\compuset\erl\faceview\YQP10003.tif

Cav

Color Cct

1

BY

ALL

2

BR

ALL
