   CONNECTOR DETAILS

DEFENDER 90 NAS

REV: 9/97

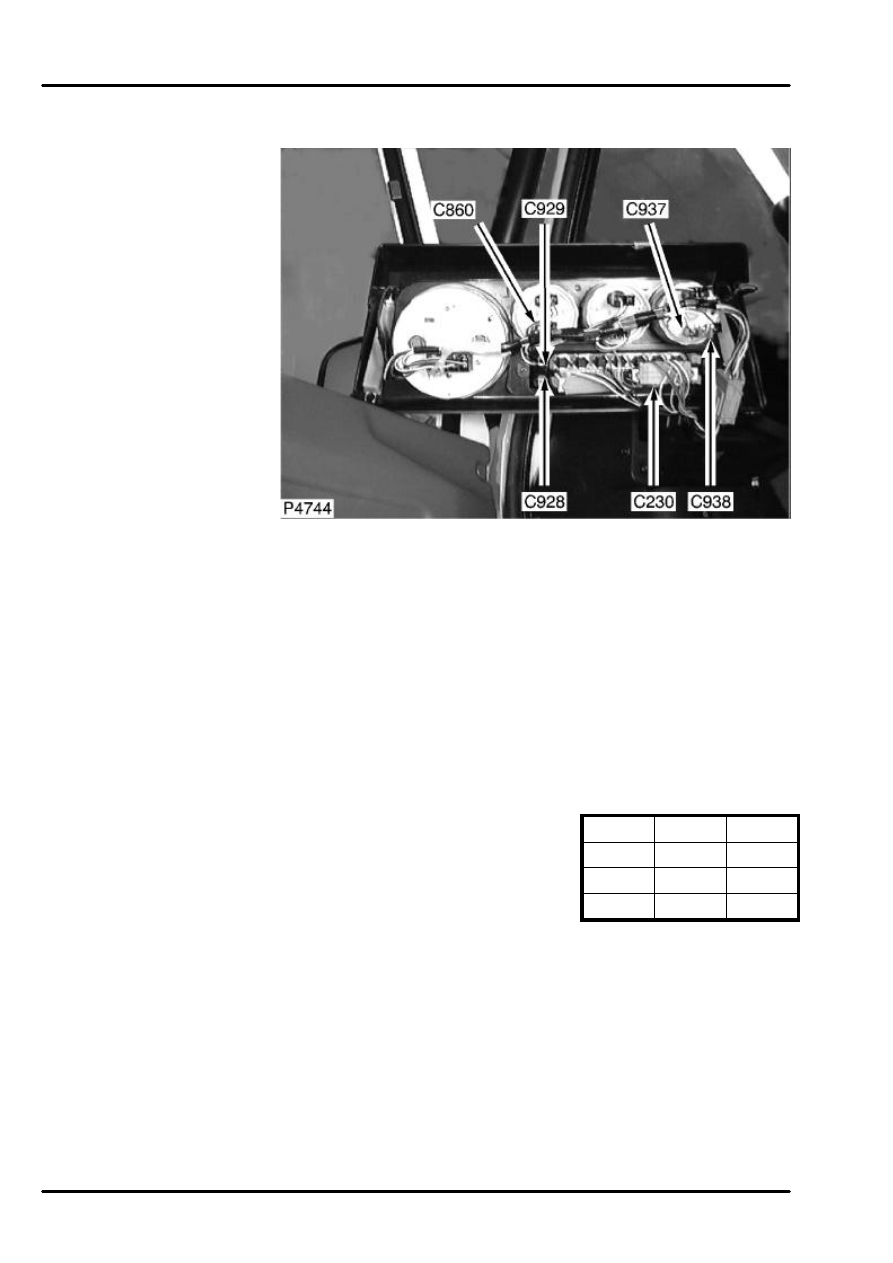

C860

C860
FUEL GAUGE

Behind instrument pack

No connector face view

Cav

Color Cct

1

B

ALL

2

WG

ALL

3

GB

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

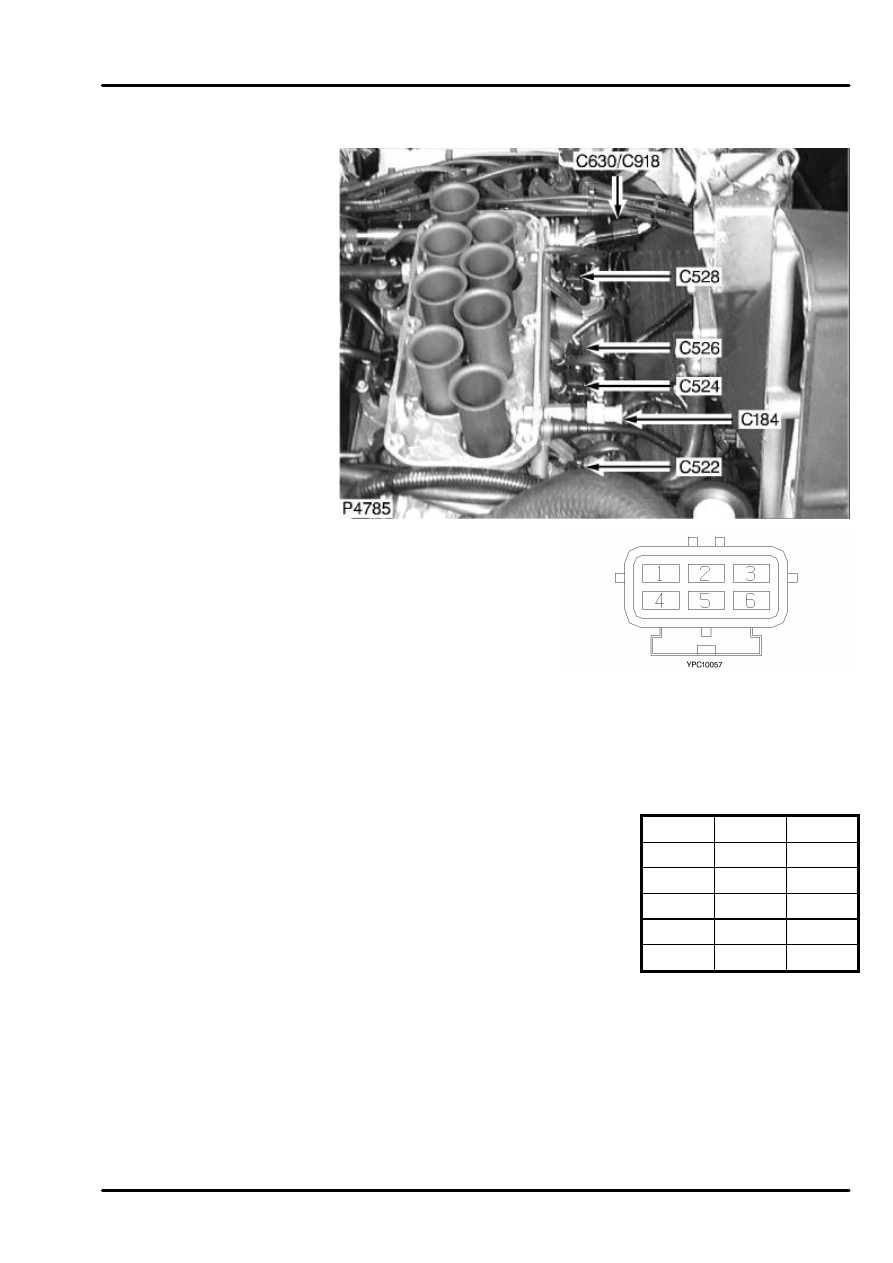

C918

C918
COIL HARNESS TO
ENGINE HARNESS
6 Way
Male
BLACK
Top of engine - LH side

Cav

Color Cct

1

U

ALL

2

P

ALL

3

O

ALL

4

G

ALL

5

R

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

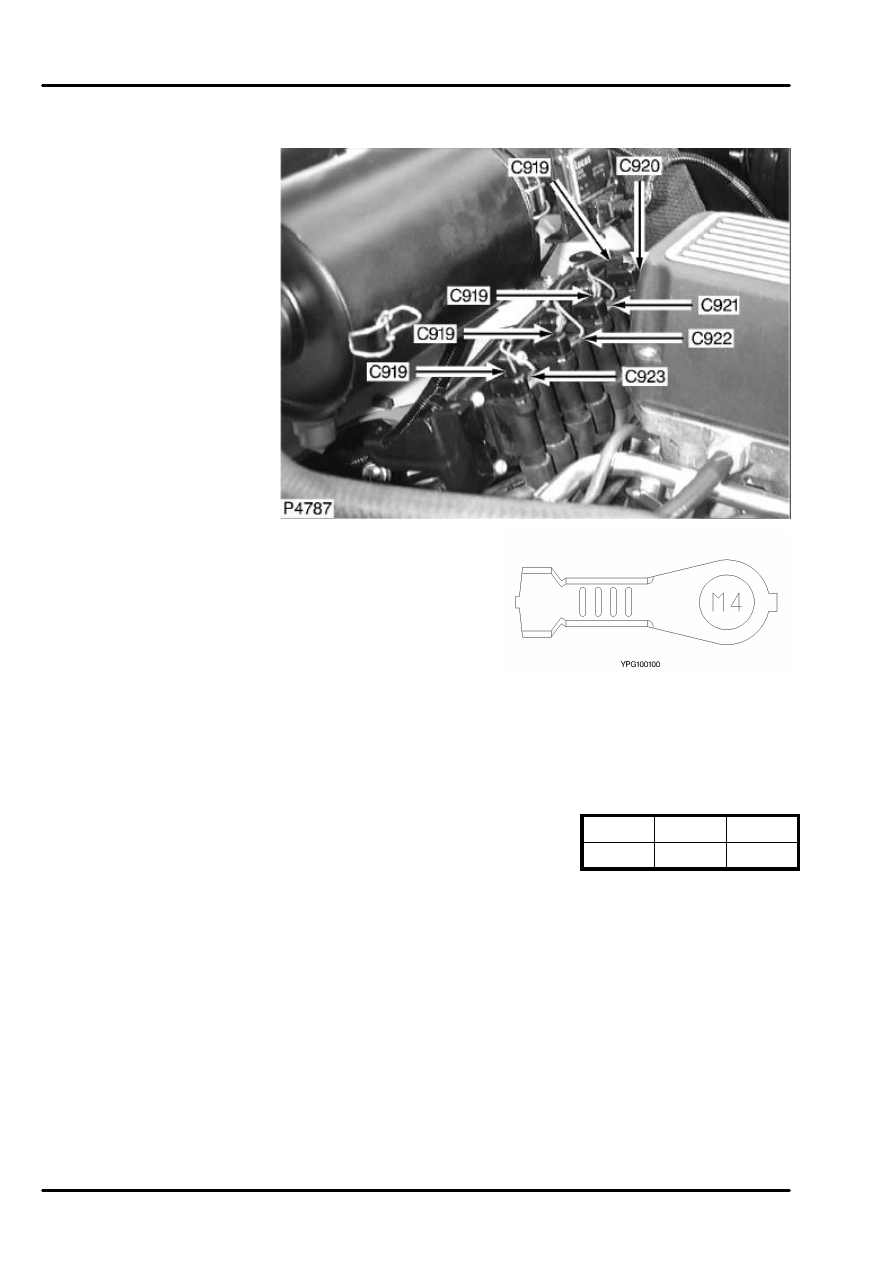

C919

C919
COIL FEED

TIN-PLATE
Top rear of engine -
center

Cav

Color Cct

1

R

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

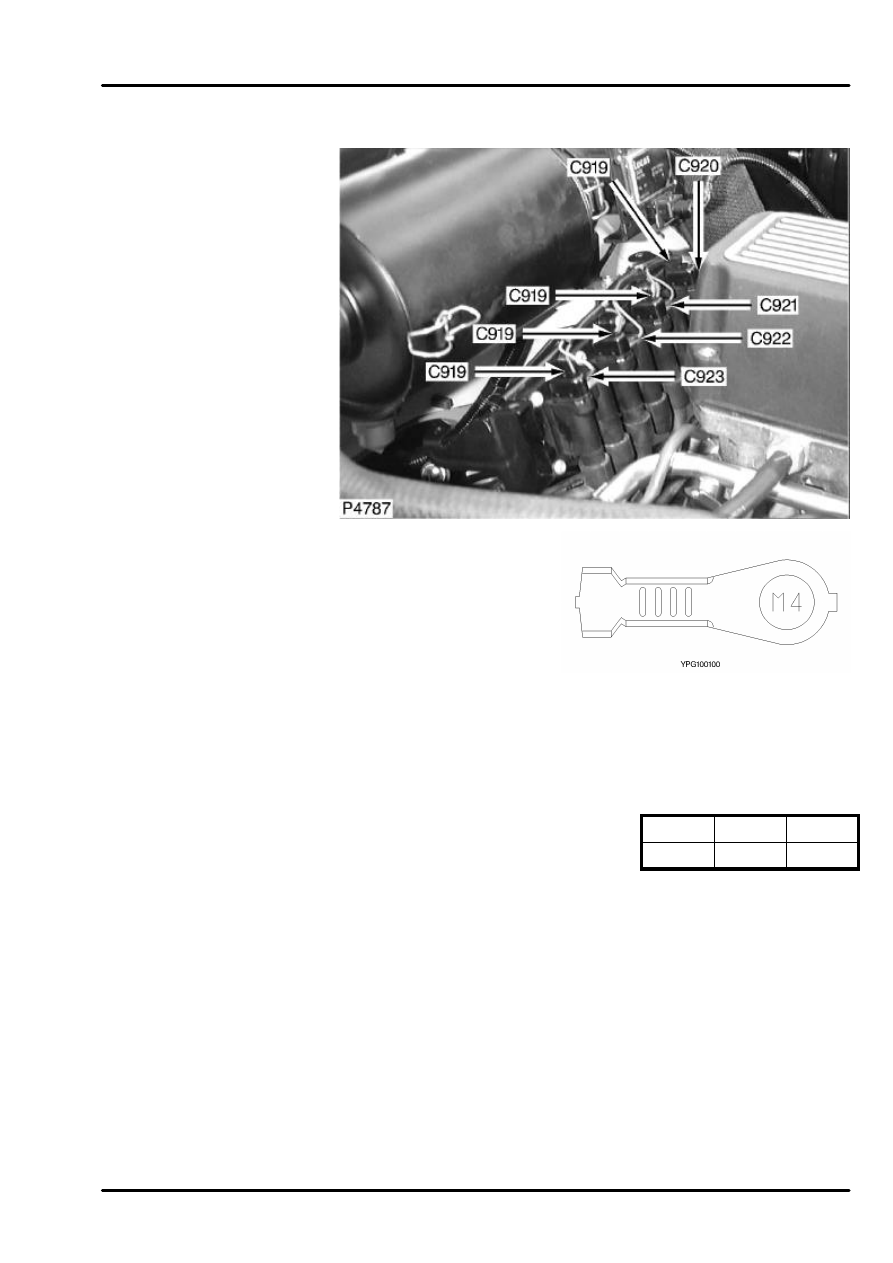

C920

C920
NEGATIVE - COIL 1-6

TIN-PLATE
Top rear of engine -
center

Cav

Color Cct

1

U

ALL
