Defender Electric Diagrams. Manual - part 73

CONNECTOR DETAILS

DEFENDER 90 NAS

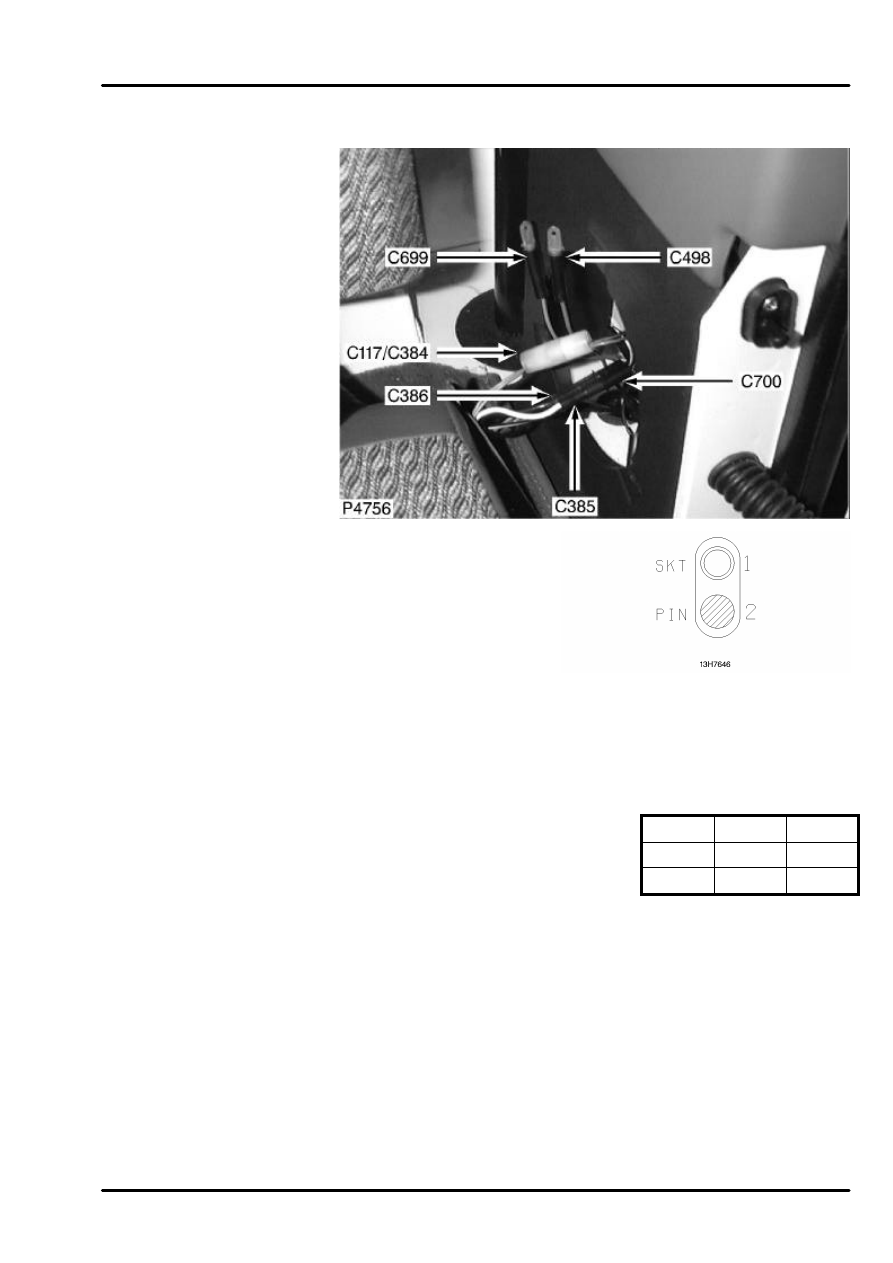

C700

C700
REAR WASHER
2 Way

BLACK
Behind RH rear speaker

Cav

Color Cct

1

WB

ALL

2

B

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

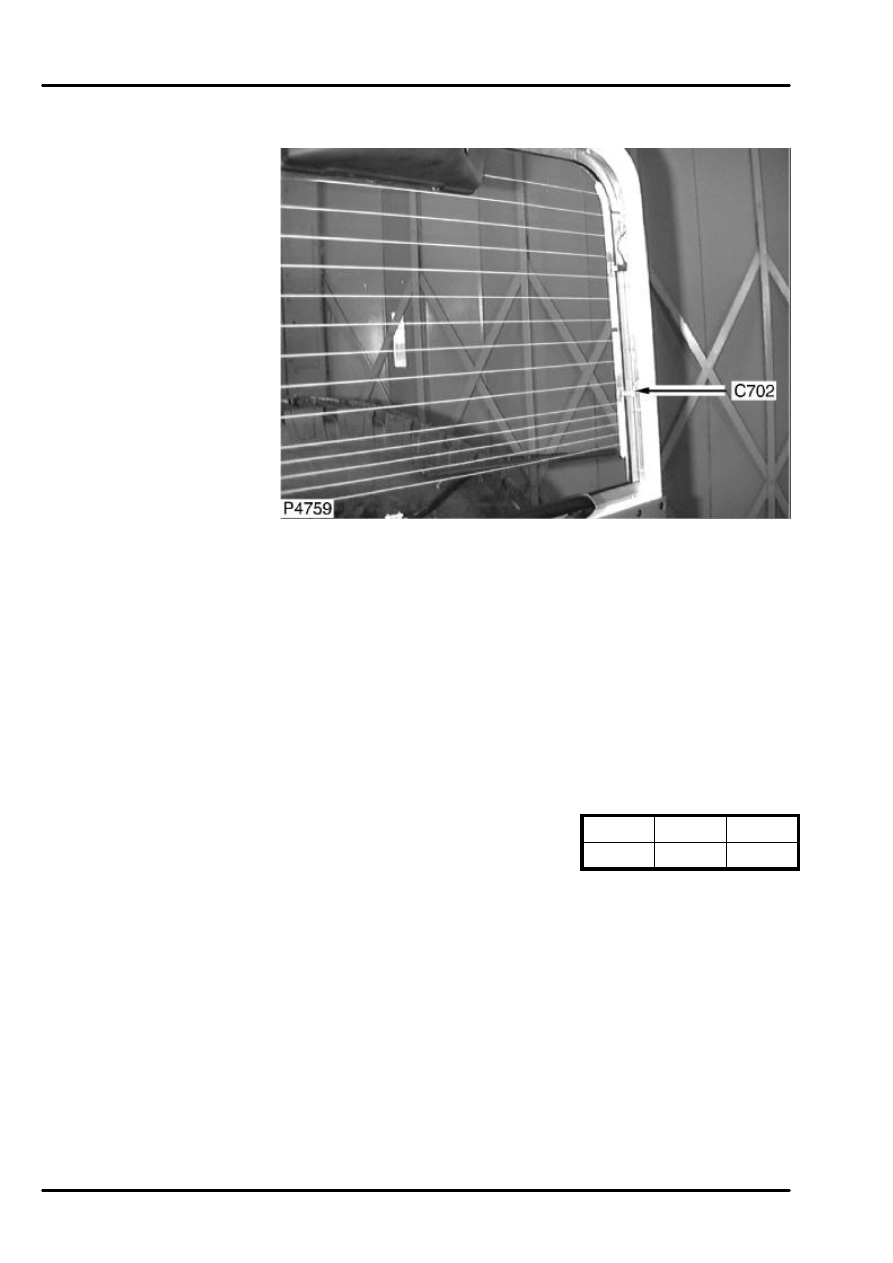

C702

C702
HEATED REAR
WINDOW

LH side of taildoor

t:\compuset\erl\faceview\51102253.tif

Cav

Color Cct

1

WB

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

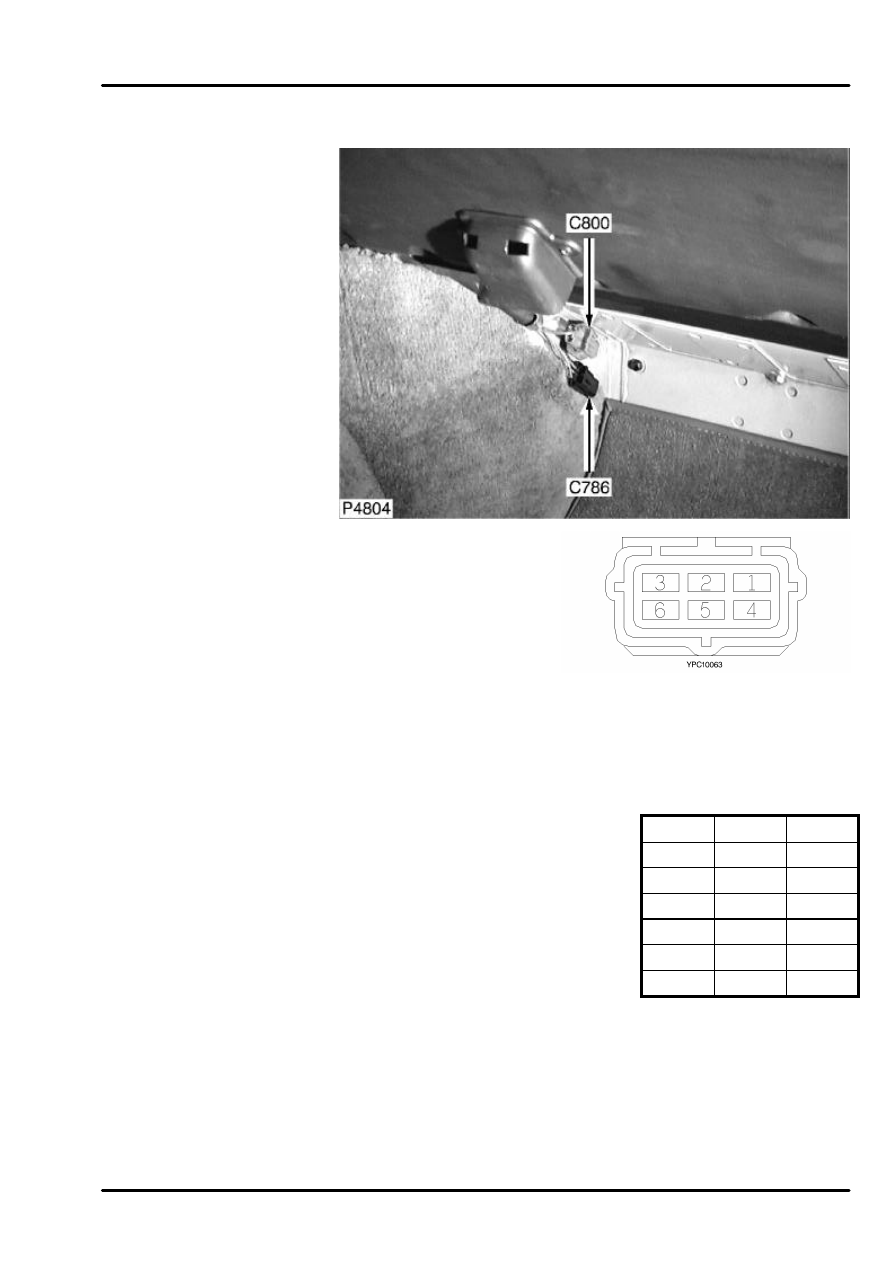

C786

C786
MAIN HARNESS TO
AIR CONDITIONING
HARNESS
6 Way
Female
BLACK
Passenger's footwell

Cav

Color Cct

1

G

ALL

2

GW

ALL

3

YB

ALL

4

BS

ALL

5

PB

ALL

6

NO

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

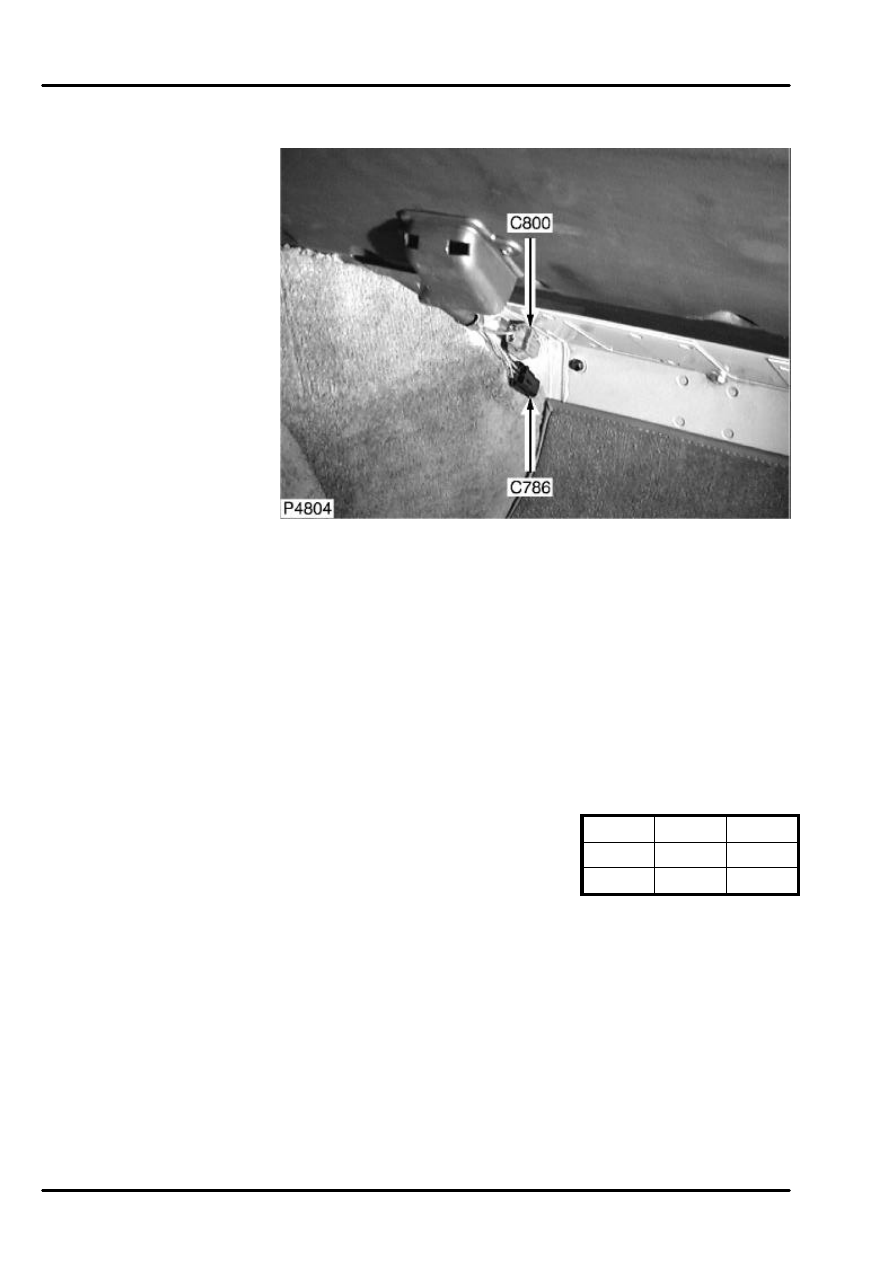

C800

C800
MAIN HARNESS TO
AIR CONDITIONING
HARNESS

Passenger's footwell

Cav

Color Cct

1

NW

ALL

2

NS

ALL
