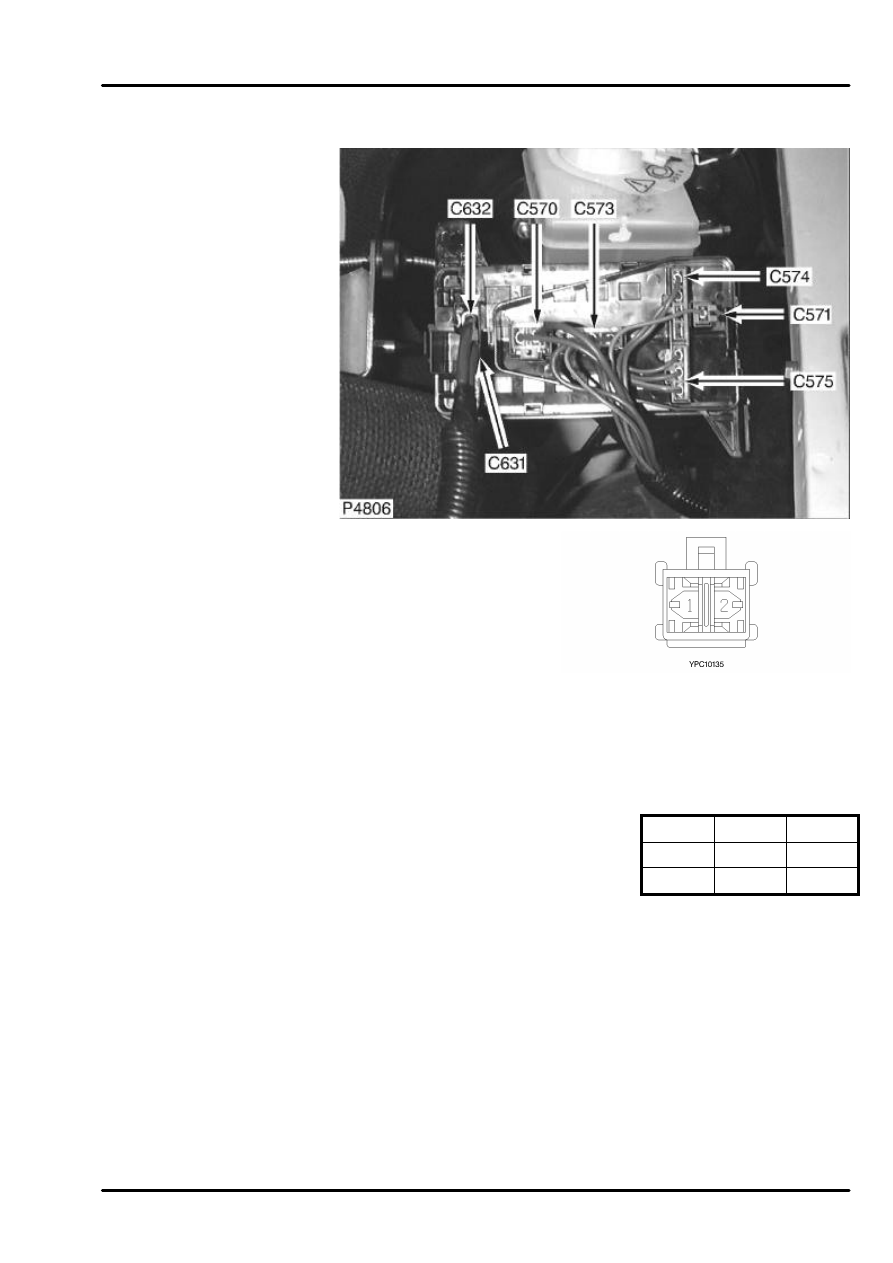

CONNECTOR DETAILS

DEFENDER 90 NAS

C570

C570
FUSE BOX - ENGINE
COMPARTMENT
2 Way
Female
NATURAL
LH side of engine
compartment

Cav

Color Cct

1

NP

ALL

2

N

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C571

C571
FUSE BOX - ENGINE
COMPARTMENT
1 Way
Female
NATURAL
LH side of engine
compartment

Cav

Color Cct

1

P

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C573

C573
FUSE BOX - ENGINE
COMPARTMENT
3 Way
Female
NATURAL
LH side of engine
compartment

Cav

Color Cct

2

N

ALL

3

NS

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C574

C574
FUSE BOX - ENGINE
COMPARTMENT
4 Way
Female
NATURAL
LH side of engine
compartment

Cav

Color Cct

3

P

ALL

4

P

ALL
