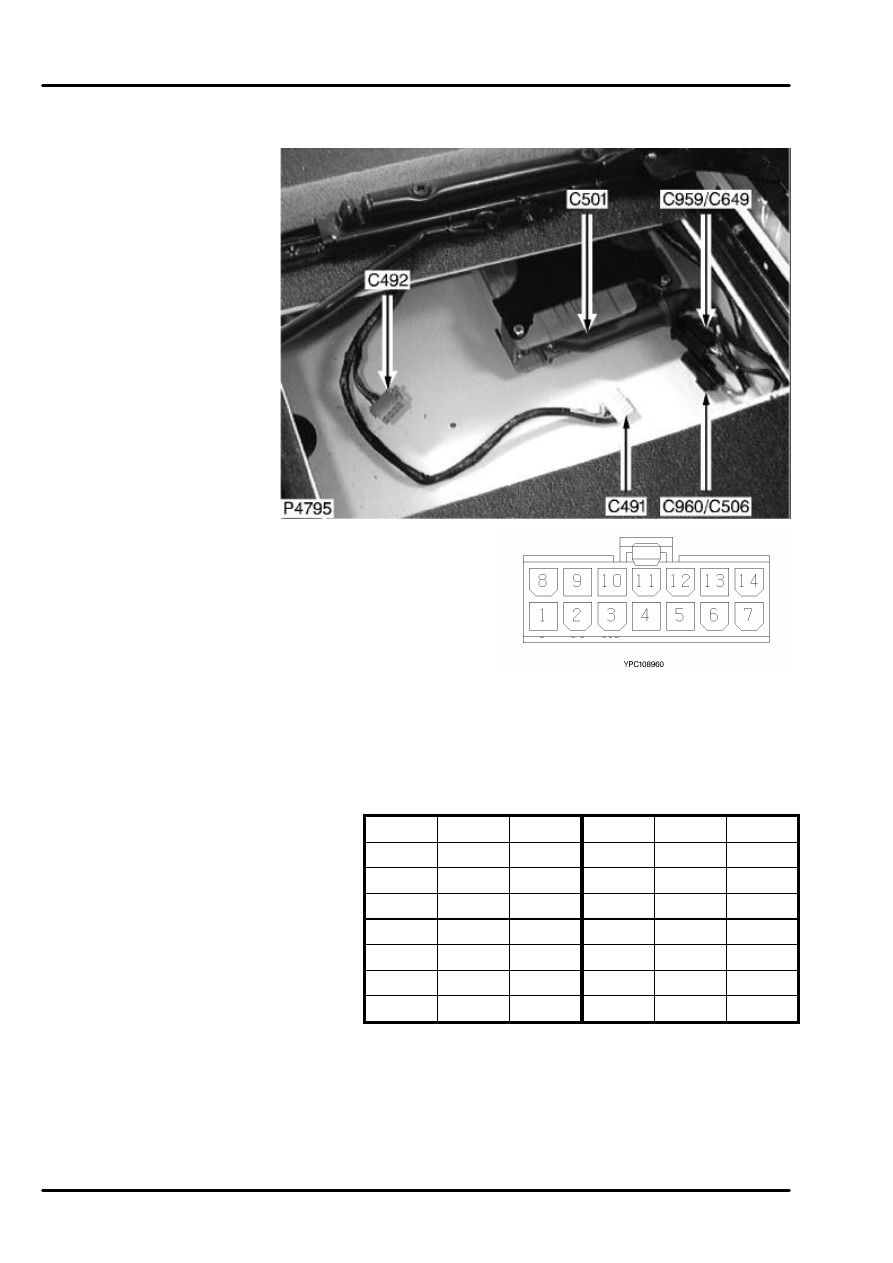

   CONNECTOR DETAILS

DEFENDER 90 NAS

C491

C491
POWER AMPLIFIER
14 Way
Female
NATURAL
Beneath front passenger's
seat

Cav

Color Cct

Cav

Color Cct

1

WLG

ALL

8

B

ALL

2

WLG

ALL

9

B

ALL

3

YP

ALL

11

BU

ALL

4

BG

ALL

12

BN

ALL

5

BW

ALL

13

BO

ALL

6

BY

ALL

14

BR

ALL

7

BK

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C492

C492
POWER AMPLIFIER
8 Way
Female
BROWN
Beneath front passenger's
seat

Cav

Color Cct

1

BW

ALL

2

BN

ALL

3

BK

ALL

4

BR

ALL

5

BY

ALL

6

BO

ALL

7

BG

ALL

8

BU

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C498

C498
TRAILER
1 Way
Female
BLACK
Behind RH rear speaker

Cav

Color Cct

1

P

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C499

C499
TRAILER
CONNECTION
7 Way
Male
BLACK
Below RH rear wheelarch

Cav

Color Cct

1

RO

ALL

2

GP

ALL

3

GW

ALL

4

GR

ALL

5

B

ALL

7

RB

ALL
