Defender Electric Diagrams. Manual - part 55

   CONNECTOR DETAILS

DEFENDER 90 NAS

C392

C392
CHASSIS HARNESS TO
MAIN HARNESS
6 Way
Male
WHITE

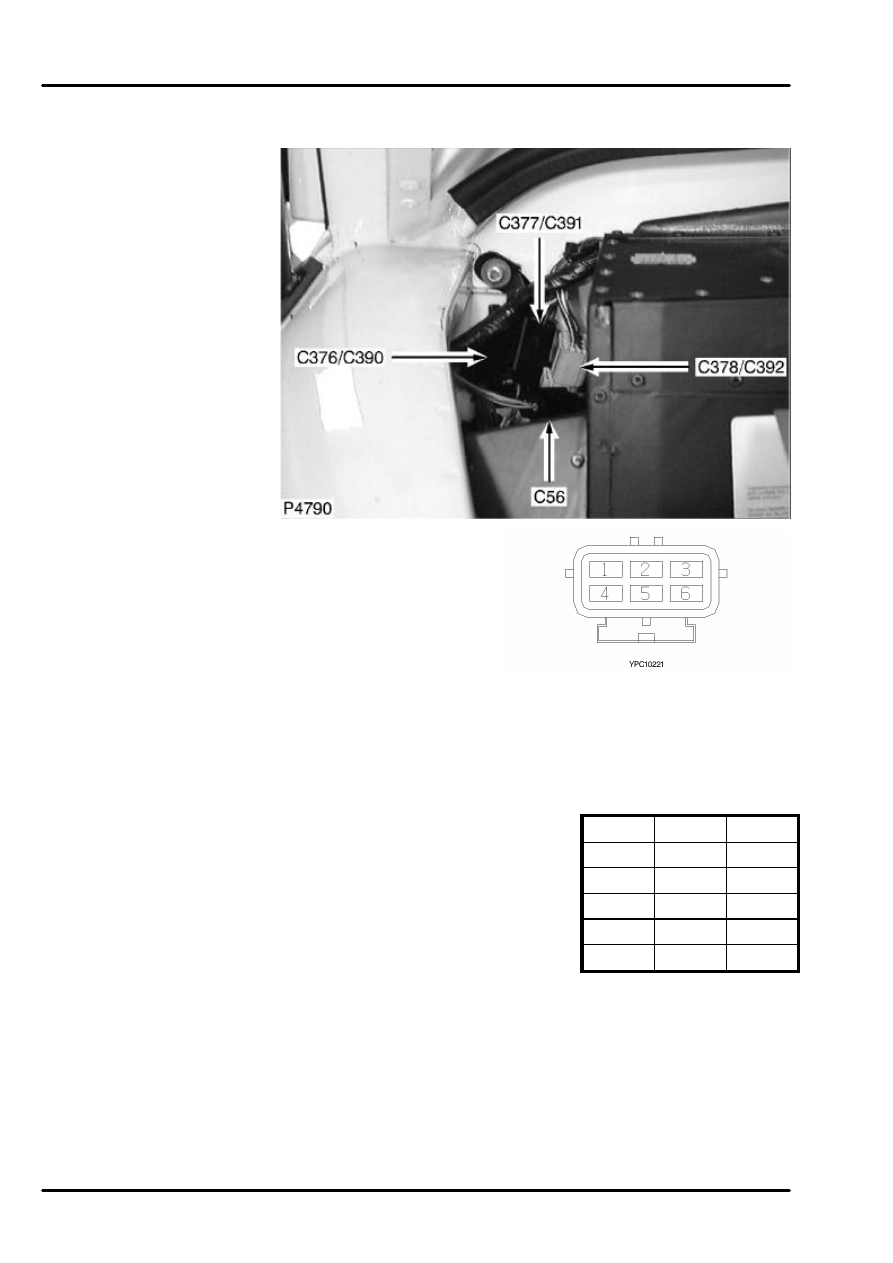

Under bonnet, RH inner
fender

Cav

Color Cct

1

WB

ALL

2

PU

ALL

3

G

ALL

4

NLG

ALL

6

PW

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C393

C393
CHASSIS HARNESS TO
MAIN HARNESS
4 Way
Female
NATURAL

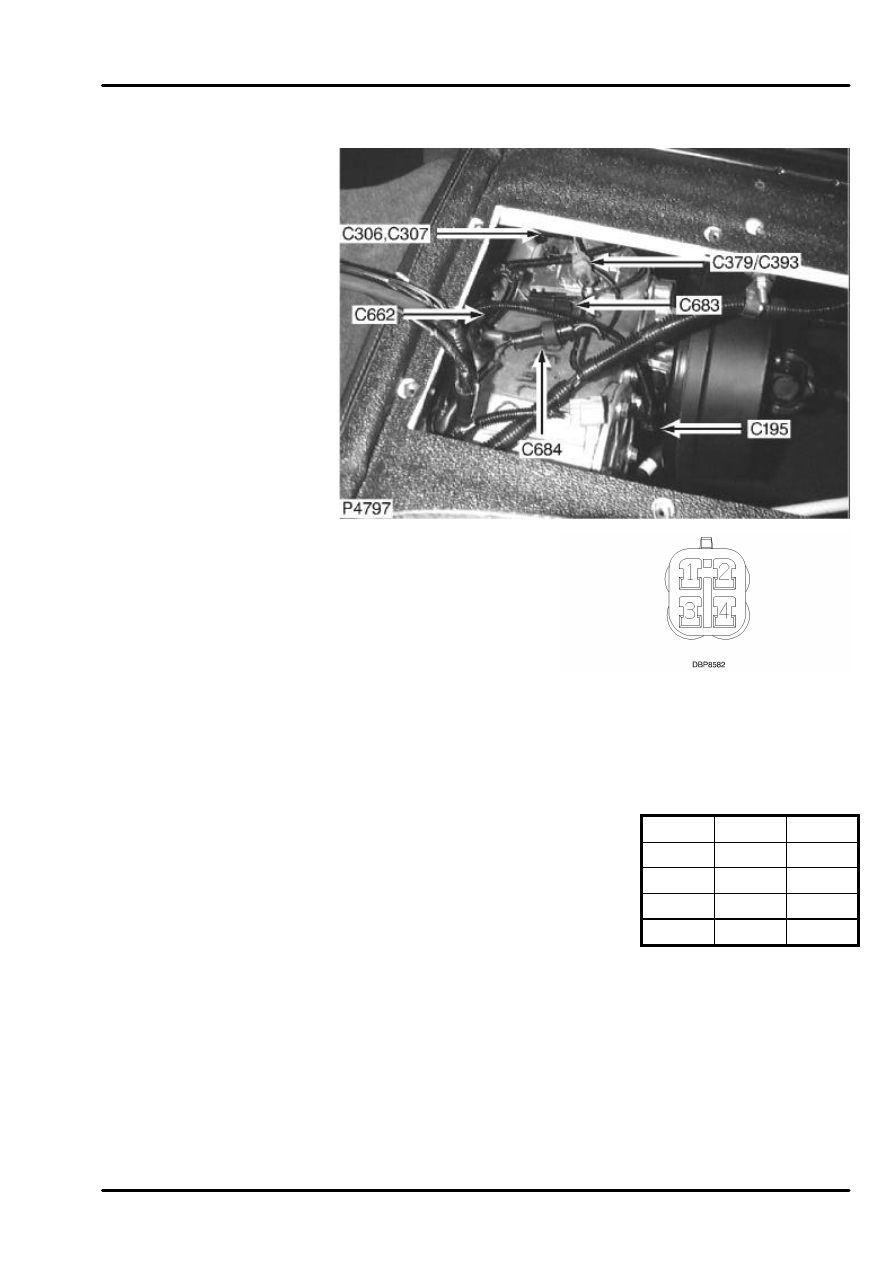

Above gearbox

Cav

Color Cct

1

BW

ALL

2

BG

ALL

3

BN

ALL

4

BU

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C400

C400
SIDE MARKER - RH
2 Way
Female
BLACK

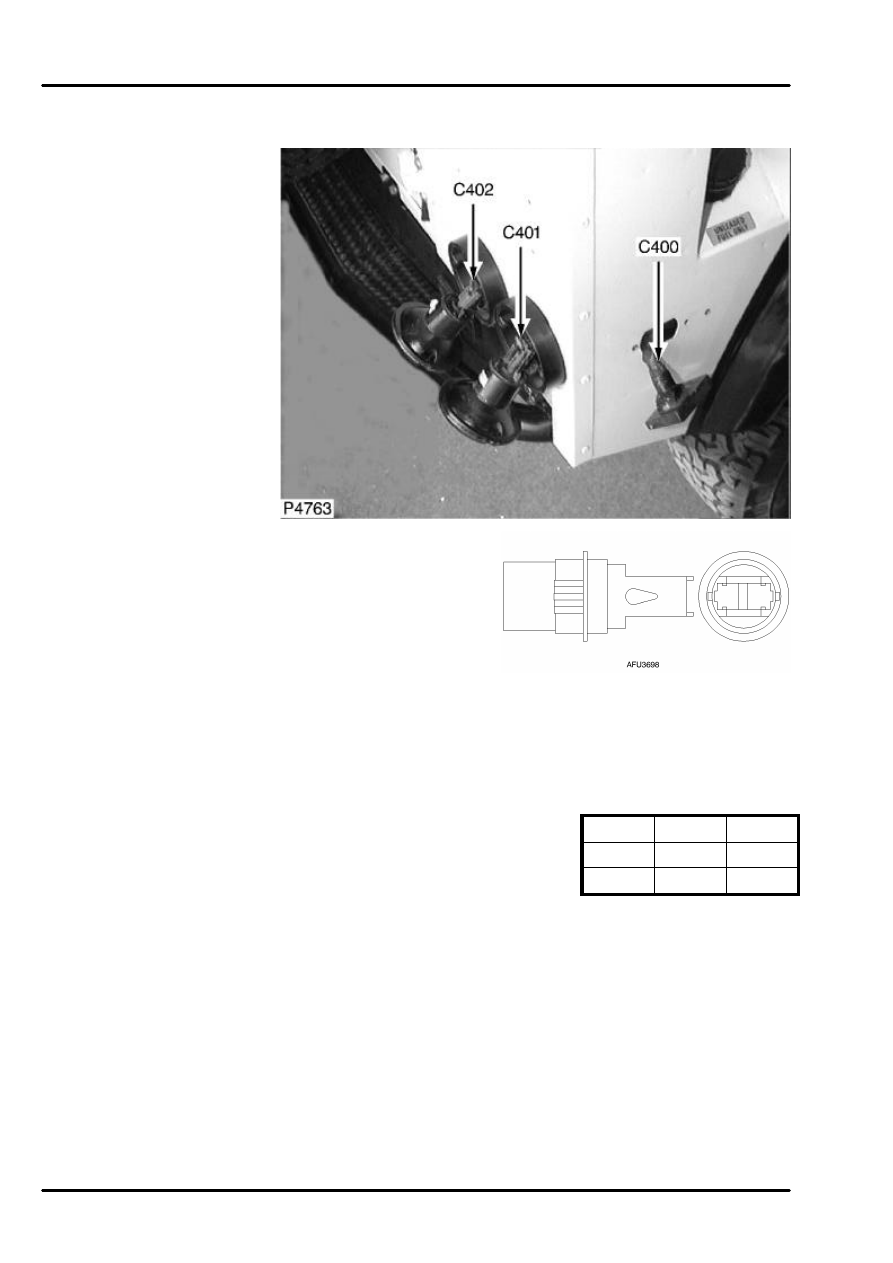

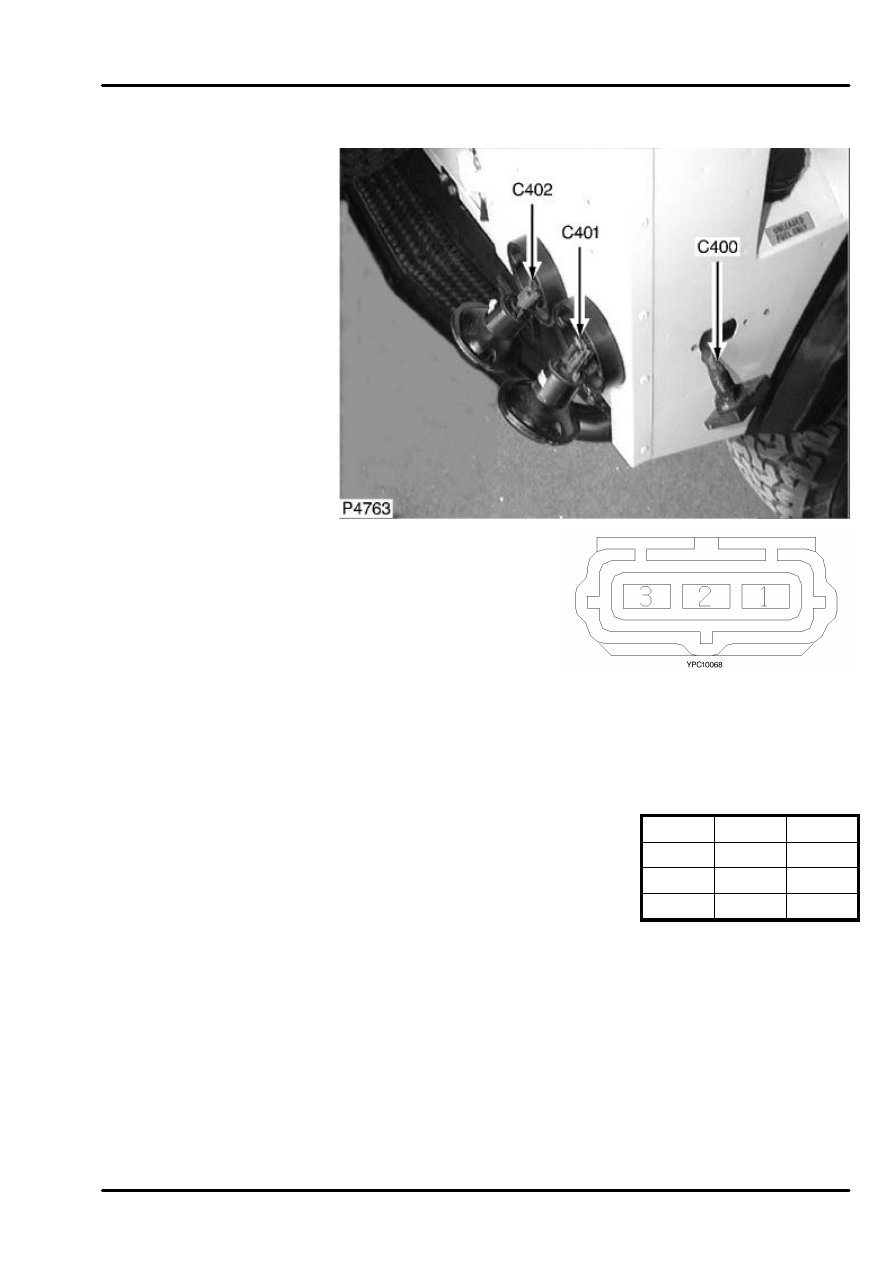

Behind lamp

Cav

Color Cct

1

RO

ALL

2

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C401

C401
STOP/TAIL LAMP - RH
3 Way
Female
BLACK
Behind lamp

Cav

Color Cct

1

B

ALL

2

GP

ALL

3

RO

ALL
