Defender Electric Diagrams. Manual - part 54

   CONNECTOR DETAILS

DEFENDER 90 NAS

C386

C386

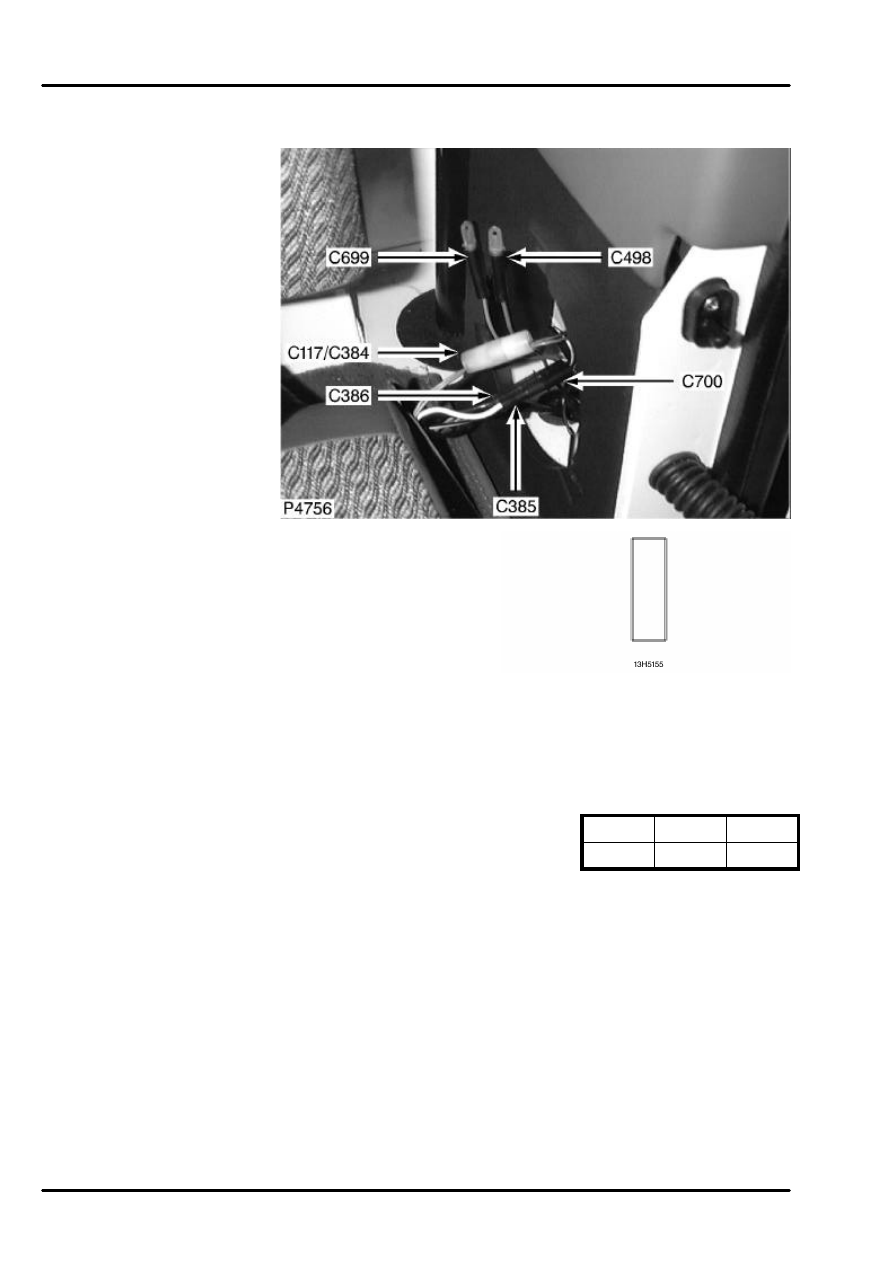

TAILGATE HARNESS
TO CHASSIS HARNESS
1 Way
Female
BLACK
Behind RH rear speaker

Cav

Color Cct

1

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C388

C388

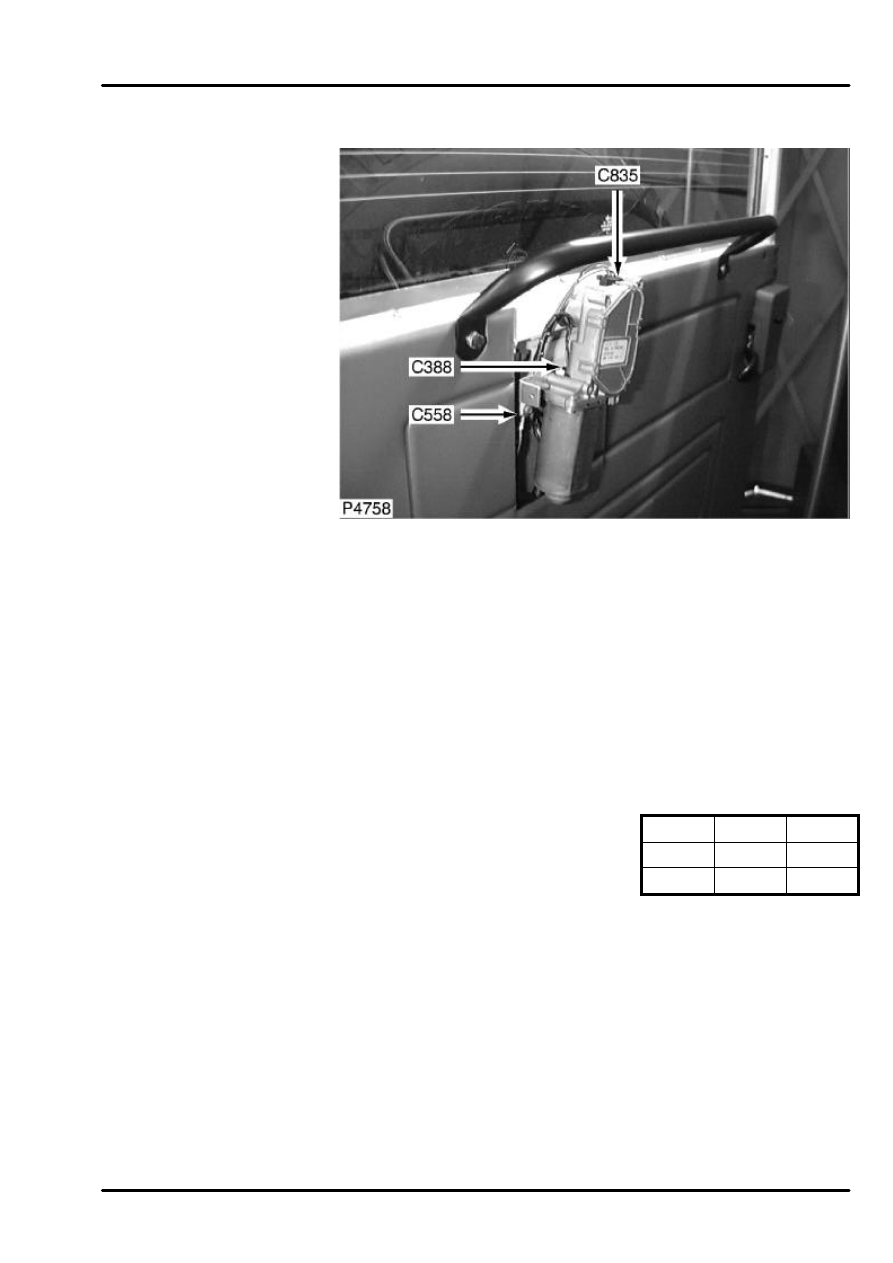

REAR WIPER MOTOR
2 Way
Female
BLACK
Center of taildoor, behind
trim panel

Cav

Color Cct

1

B

ALL

2

NY

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C390

C390

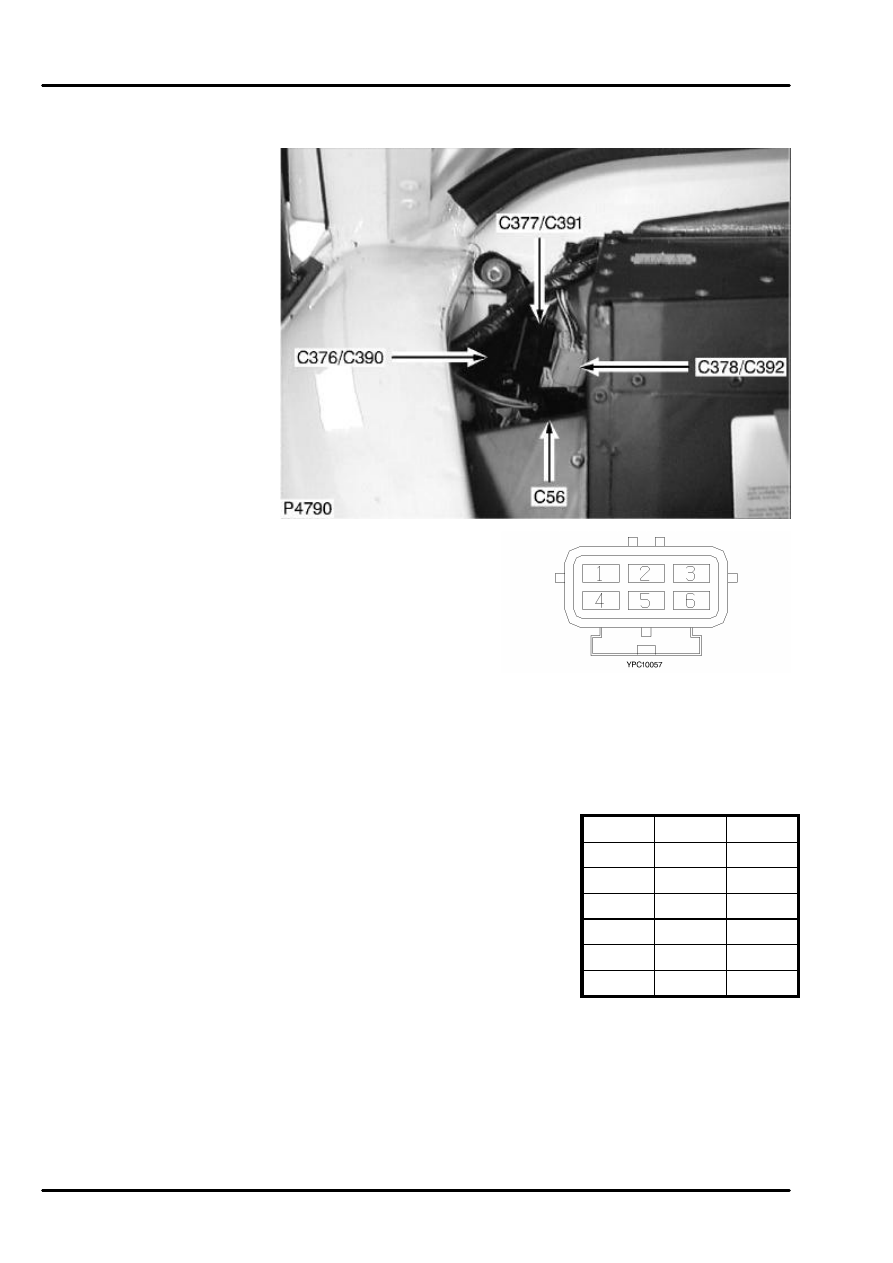

CHASSIS HARNESS TO
MAIN HARNESS
6 Way
Male
BLACK
Under bonnet, RH inner
fender

Cav

Color Cct

1

GP

ALL

2

RO

ALL

3

GN

ALL

4

GR

ALL

5

GW

ALL

6

RB

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C391

C391
CHASSIS HARNESS TO
MAIN HARNESS
3 Way
Male
BLACK
Under bonnet, RH inner
fender

Cav

Color Cct

1

GB

ALL

2

WP

ALL

3

P

ALL
