   CONNECTOR DETAILS

DEFENDER 90 NAS

C47

C47

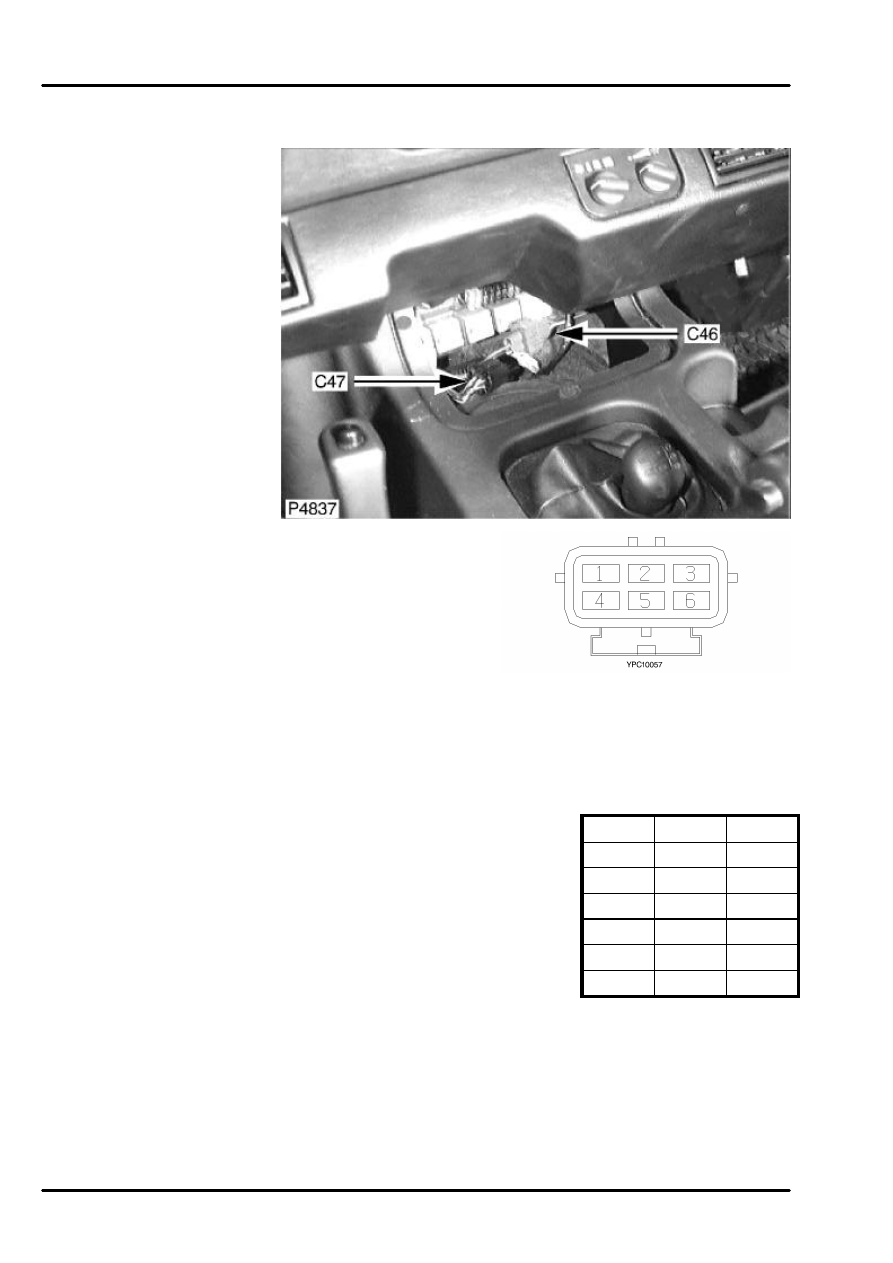

AIR CONDITIONING
HARNESS TO MAIN
HARNESS
6 Way
Male
BLACK
Beneath front console

Cav

Color Cct

1

G

ALL

2

SB

ALL

3

YW

ALL

4

UB

ALL

5

UW

ALL

6

SU

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C48

C48

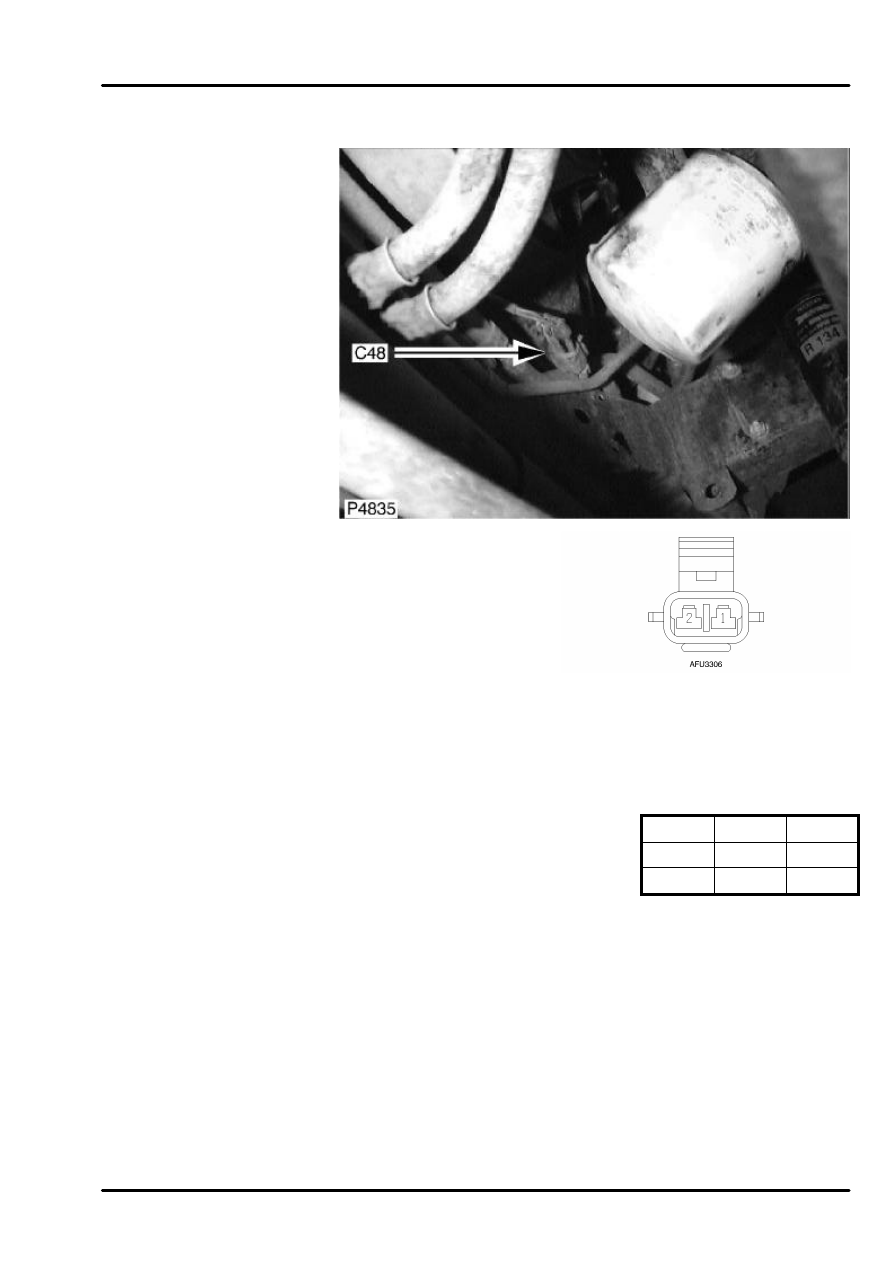

CONDENSER FAN
2 Way
Female
BLACK
Behind radiator

Cav

Color Cct

1

UP

ALL

2

B

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C49

C49

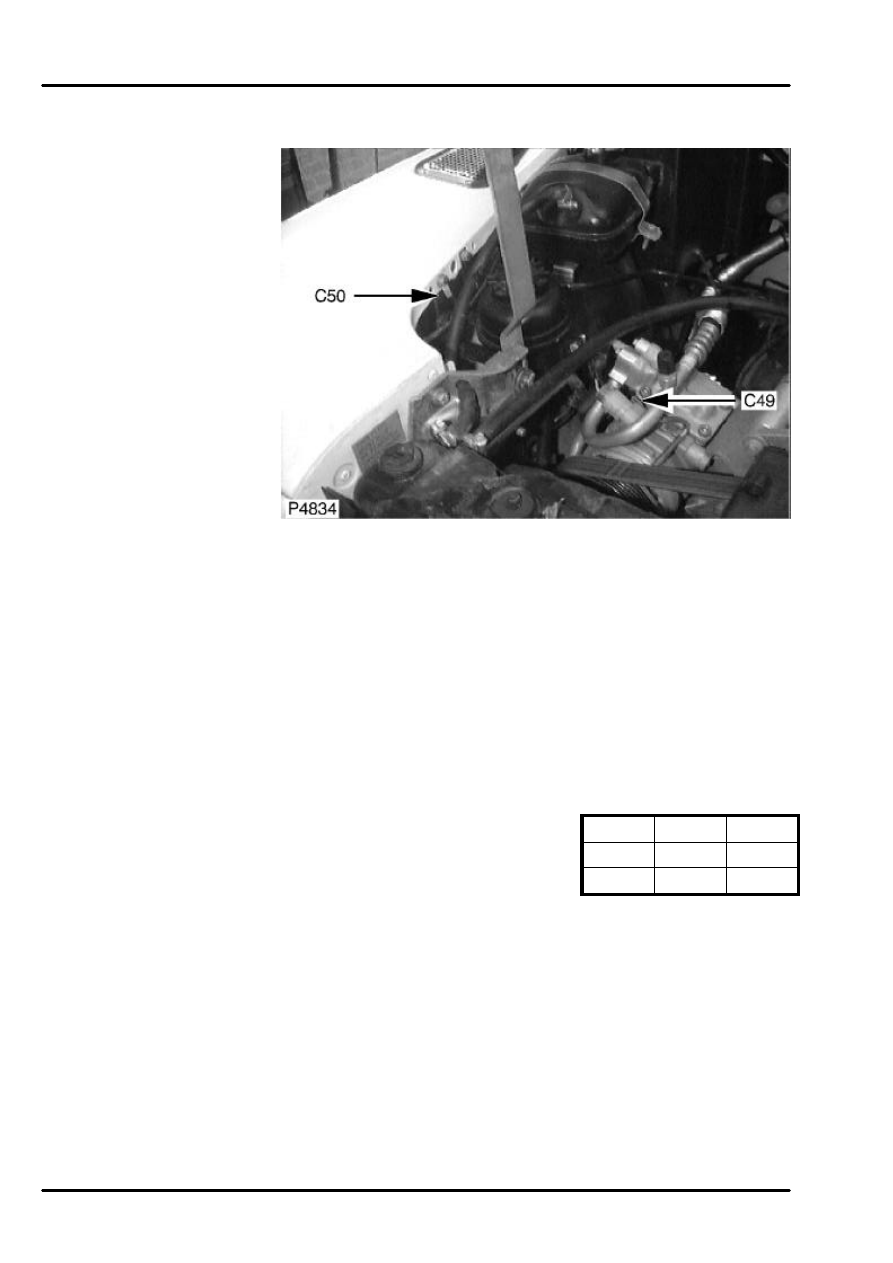

COMPRESSOR
CLUTCH
2 Way
Female
NATURAL
Front RH side of engine

t:\compuset\erl\faceview\AFU3692.tif

Cav

Color Cct

1

NK

ALL

2

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

C50

C50

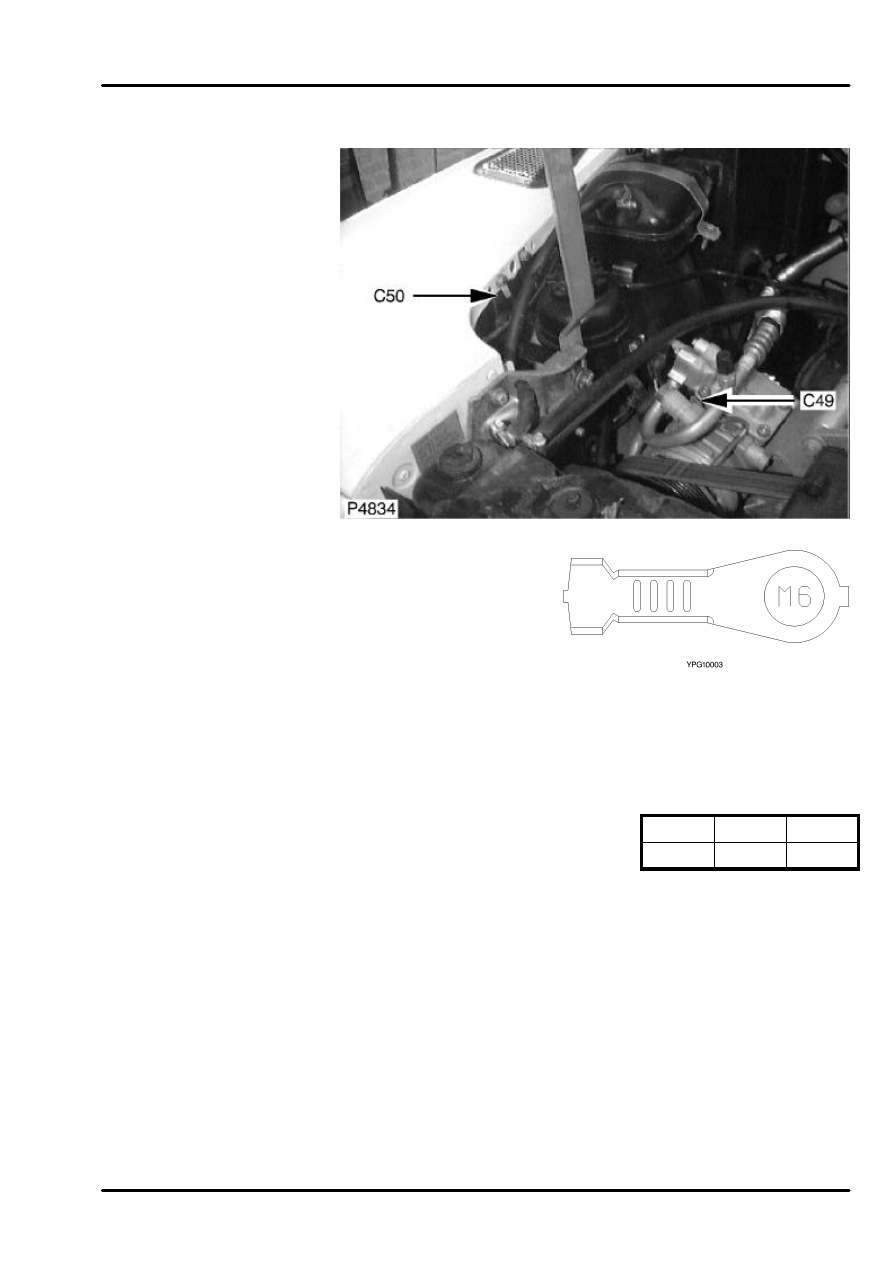

GROUND EYELET
1 Way

TIN-PLATE
Front of engine
compartment RH side

Cav

Color Cct

1

B

ALL
