Defender Electric Diagrams. Manual - part 25

   CONNECTOR DETAILS

DEFENDER 90 NAS

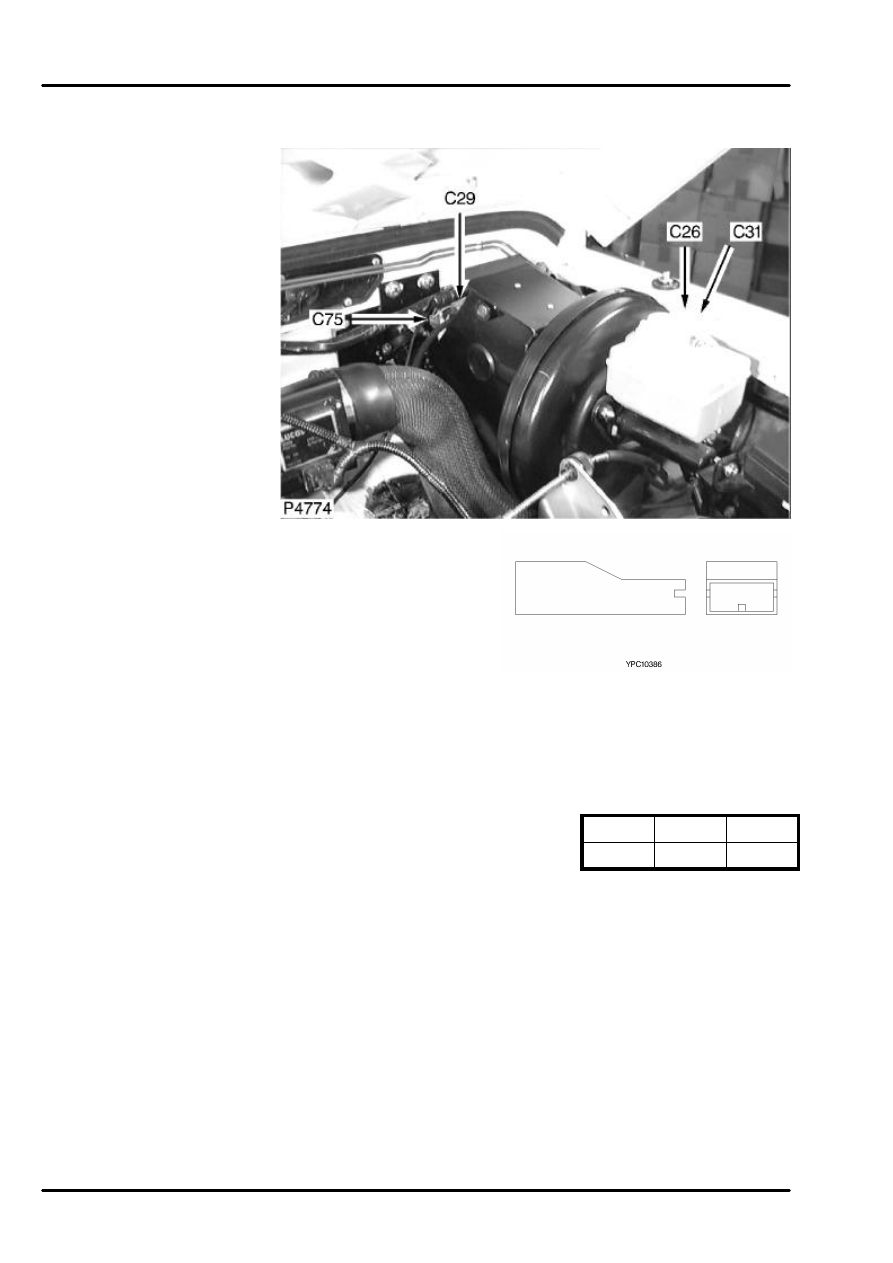

C29

C29
STOP LAMP SWITCH
1 Way
Female
NATURAL
LH side of fire wall

Cav

Color Cct

1

GP

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

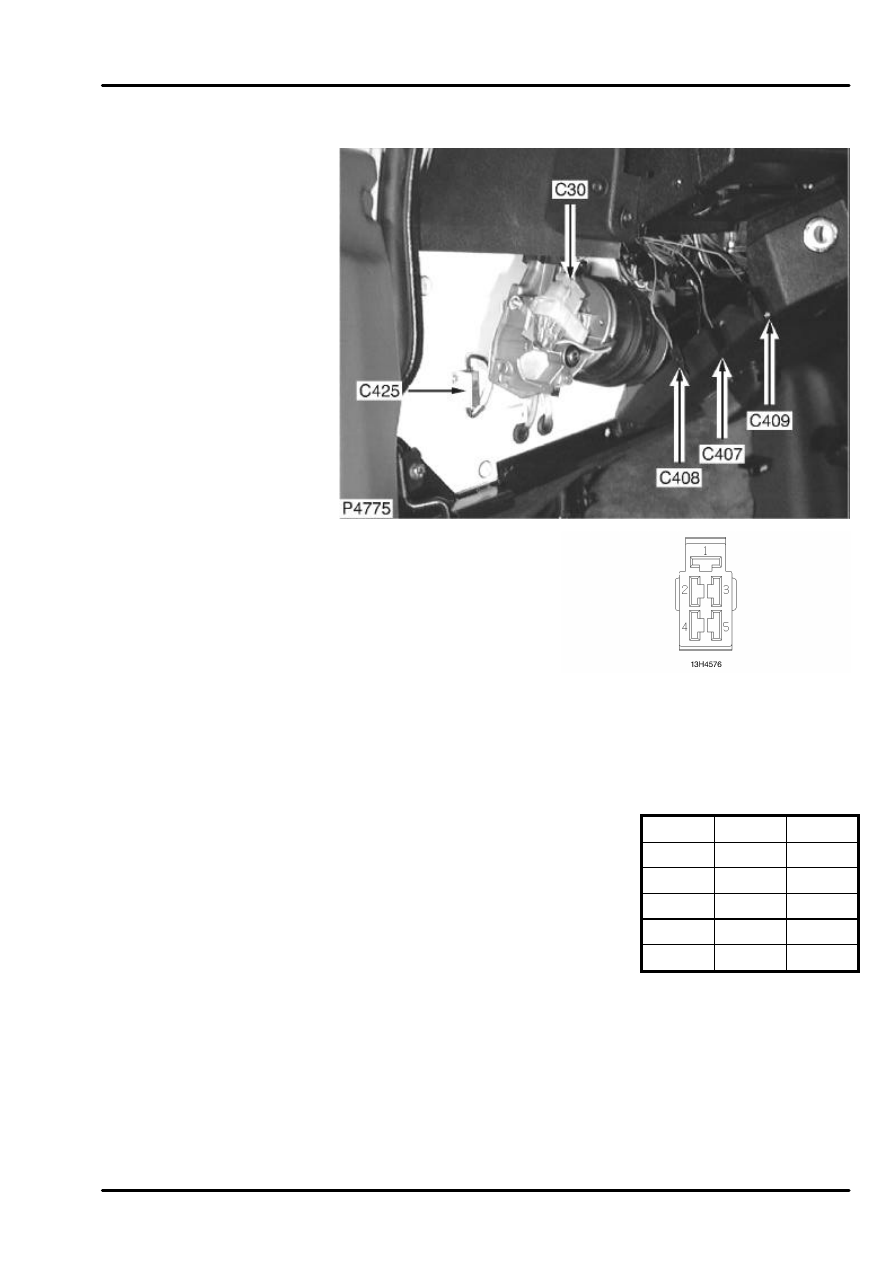

C30

C30
WIPER MOTOR -
FRONT
5 Way
Female
GREY
Under LH side of dash

Cav

Color Cct

1

B

ALL

2

NLG

ALL

3

ULG

ALL

4

G

ALL

5

RLG

ALL

   CONNECTOR DETAILS

DEFENDER 90 NAS

C31

C31
BRAKE FLUID LEVEL
1 Way
Female
NATURAL
Behind center console

Cav

Color Cct

1

B

ALL

CONNECTOR DETAILS

DEFENDER 90 NAS

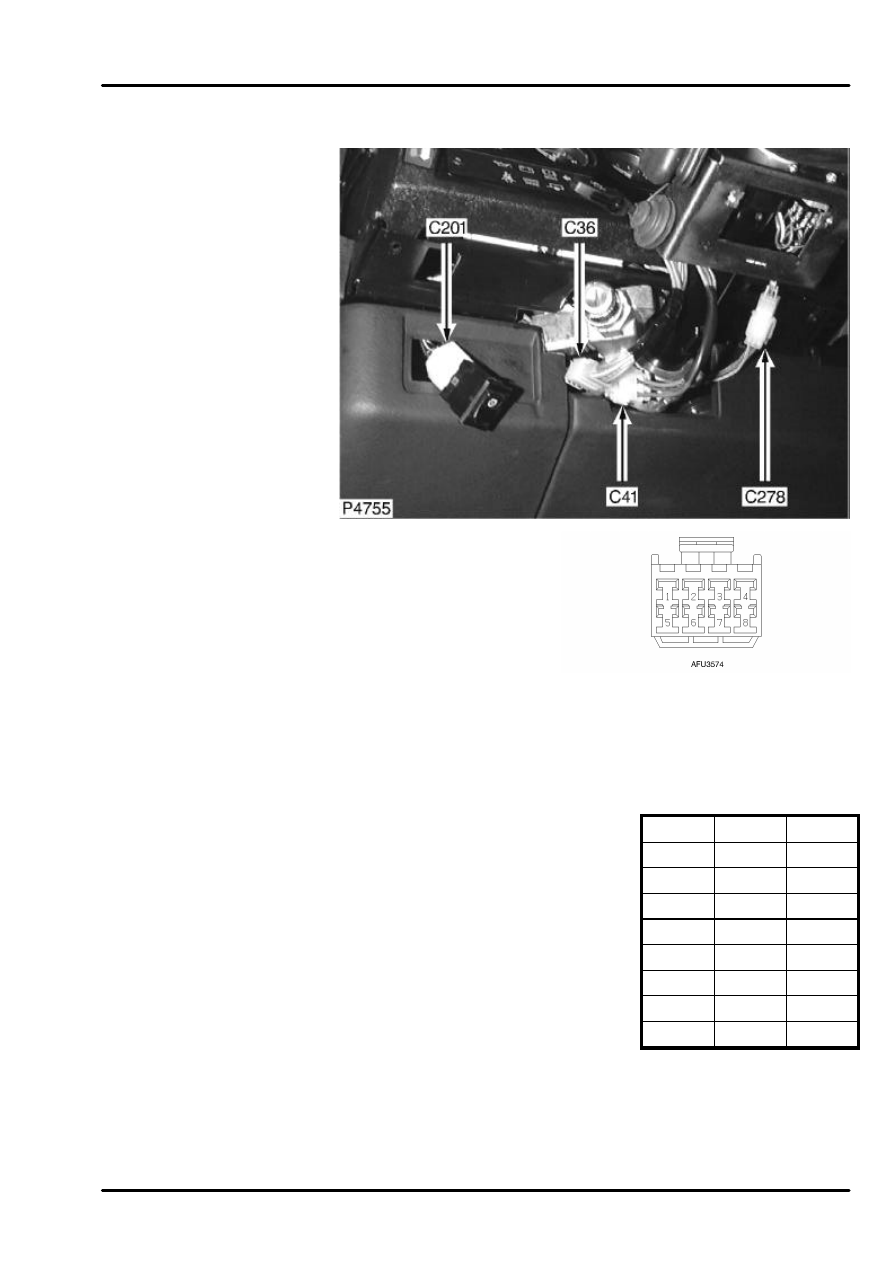

C36

C36
MULTI-PURPOSE
SWITCH
8 Way
Female
NATURAL
Behind steering column
cowl LH side

Cav

Color Cct

1

U

ALL

2

GW

ALL

3

LGN

ALL

4

GR

ALL

5

UW

ALL

6

UR

ALL

7

P

ALL

8

PB

ALL
